Ceramic Liquid Vibrating Filter Sieve Machine

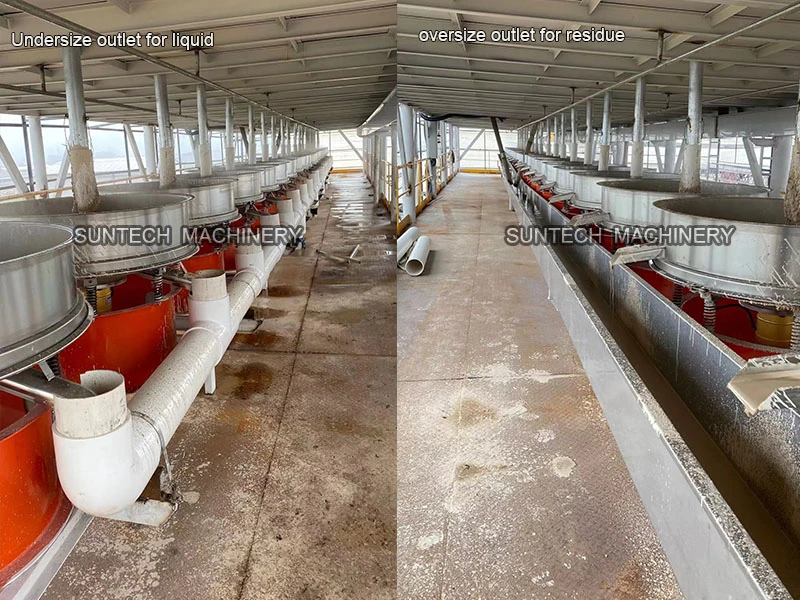

Ceramic liquid vibrating filter sieve machine is one kind of vibration dewatering and filtering screen machine. With high frequency vibration motor and super fine mesh screen and special outlet design, it has a wide application for slurry or pulp or liquid type filtering and dewatering. It is designed and built to solve the most difficult classifying, separating and dewatering problems,especially better performance for ceramic liquid mud screening, paper pulp filtering etc.

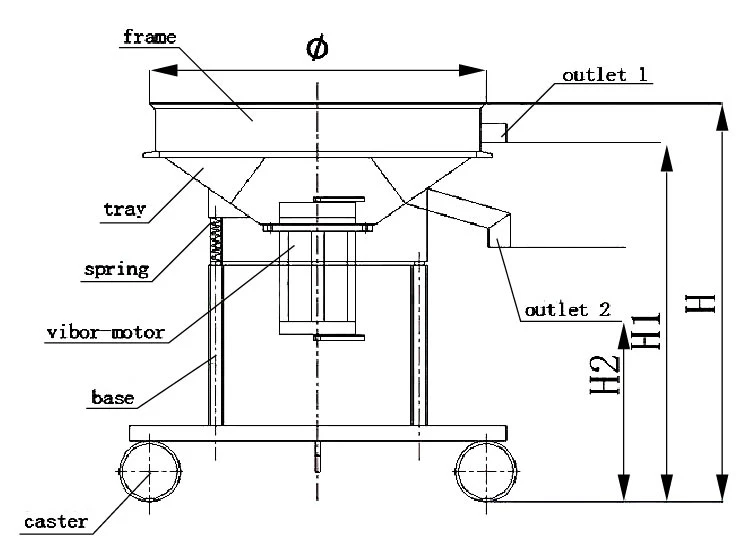

Ceramic liquid vibrating filter sieve machine is mainly composed of the high frequency vibrating motor, one mesh size screen,screen frame, two outlets, machine supporting leg, and leveling caster.







High Frequency Vibrating Filter paper pulp Screen uses a high-frequency motor, that is, a 2-stage motor (speed is 3000r/min) as the excitation source to destroy the tension of water molecules in the slurry. The high-frequency vibration makes the slurry smaller than the mesh hole pass through the screen and enter the lower layer The screen frame is discharged from the discharge outlet. The mud impurities larger than the mesh remain on the screen surface, rotate with the vibrating screen surface, and are screened out from the upper discharge outlet.

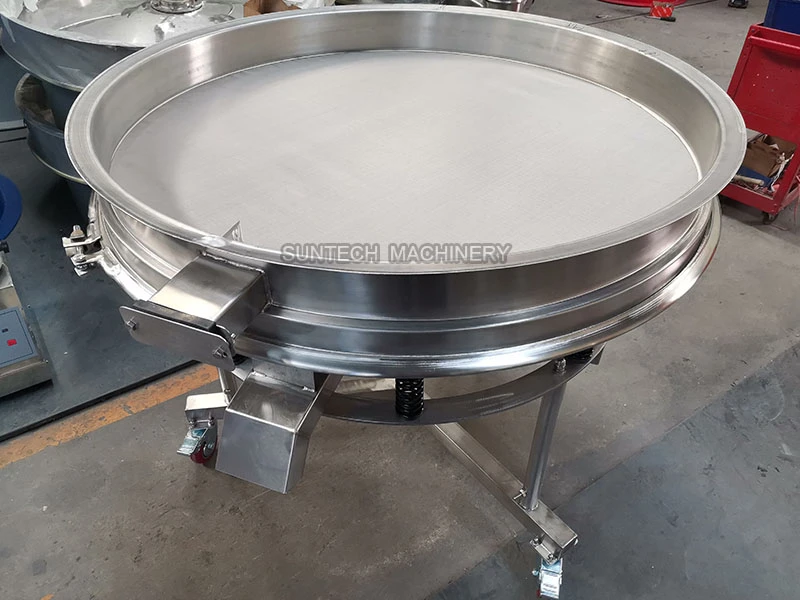

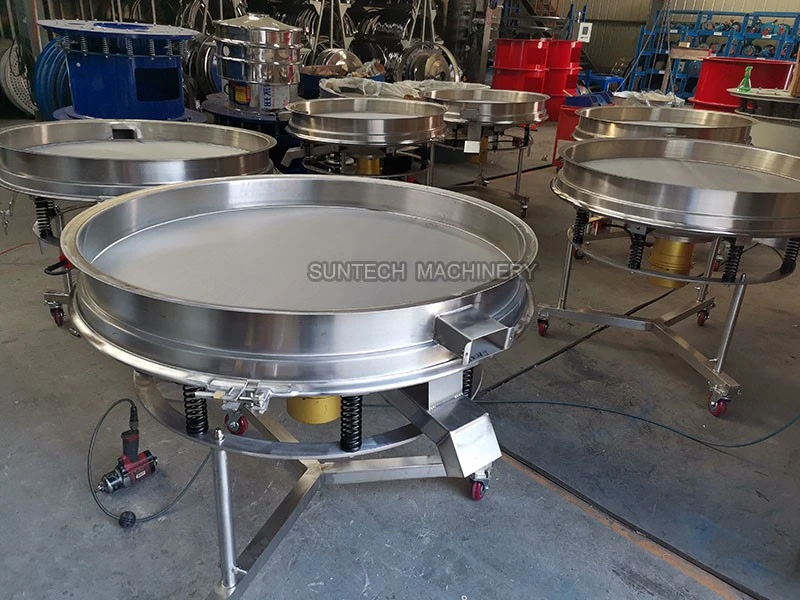

Opening type vibrating filter screen

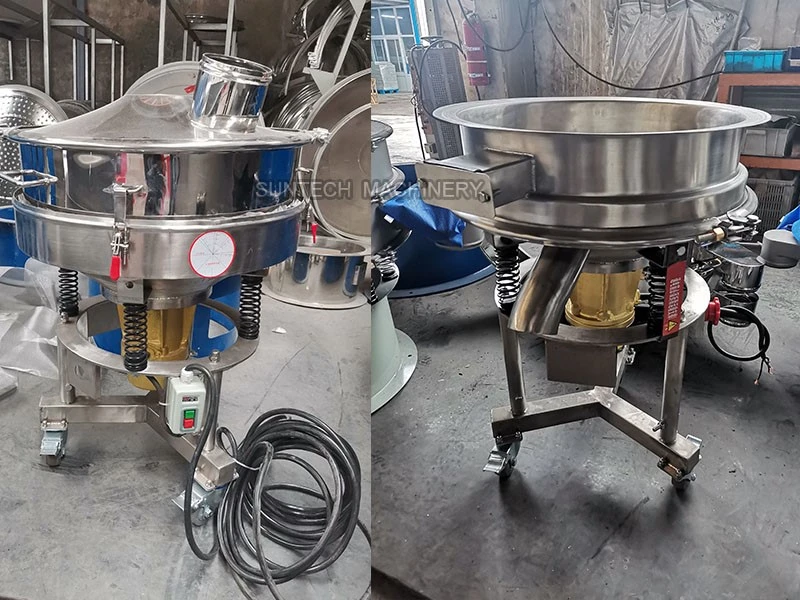

600mm closed type with opening type vibrating filter screen





Bottom barrel type vibrating filter screen

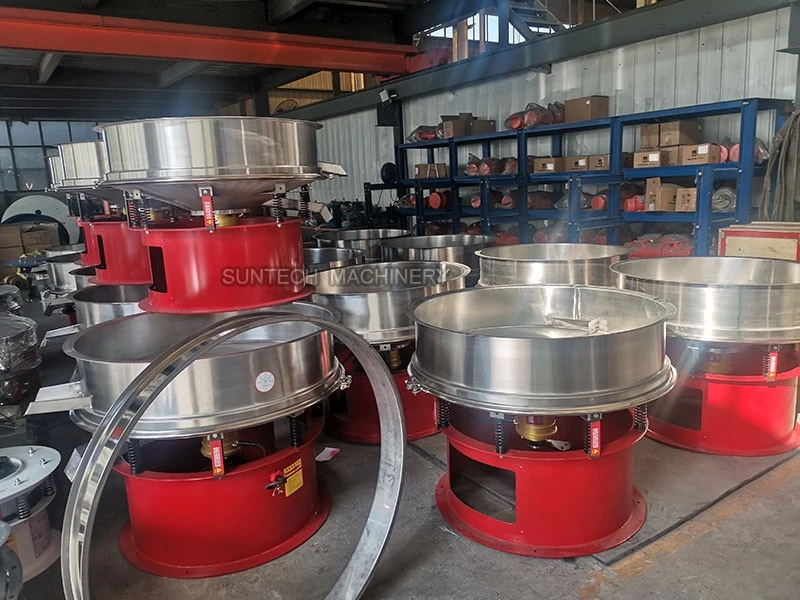

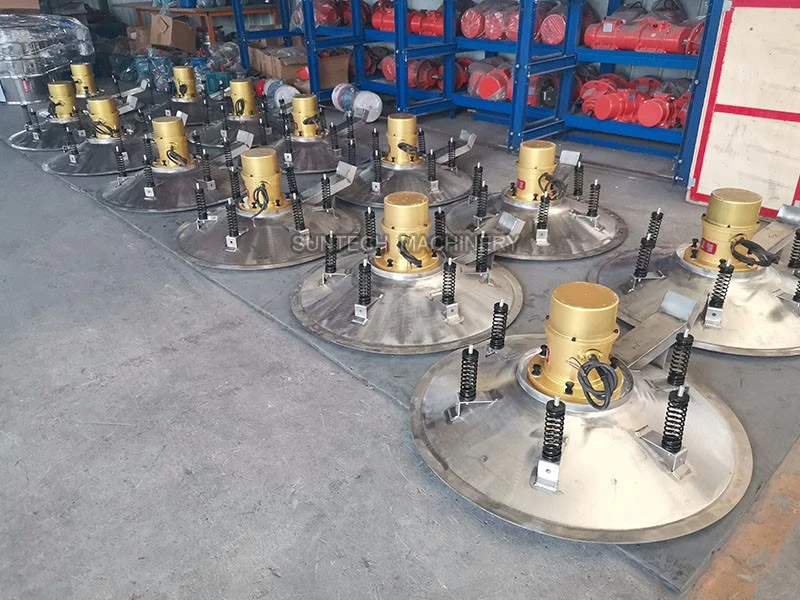

Batch production of ceramic liquid vibrating filter sieve machine, rich stock, fast delivery.







1. Small volume, light, easy to move and height freely adjusted.

2. High precision screening and efficiency; Applied to any powder, granule and serosity.

3. No blocked mesh, no powder flying,the vibration frequency is up to 3,000 times/min.

4. The special mesh structure makes installation convenient and fast only costs 3 to 5 minutes.

5. Easy cleaning blind space and no residue left.

6. Easy to operate and easy maintenance.

7. All material contact parts are "stainless steel 304"





Model	Power(Kw)	Effective diameter(MM)	Packing size(mm)	Layer	Weight
GPS-450	0.25	420	580*580*660	1-2	50kg
GPS-600	0.37	560	800*800*780	1-2	65kg
GPS-800	0.55	760	900*900*930	1-2	78kg
GPS-1000	0.75	1000	1160*1160*1030	1-2	130kg
GPS-1200	1.1	1130	1360*1360*1160	1-2	170kg

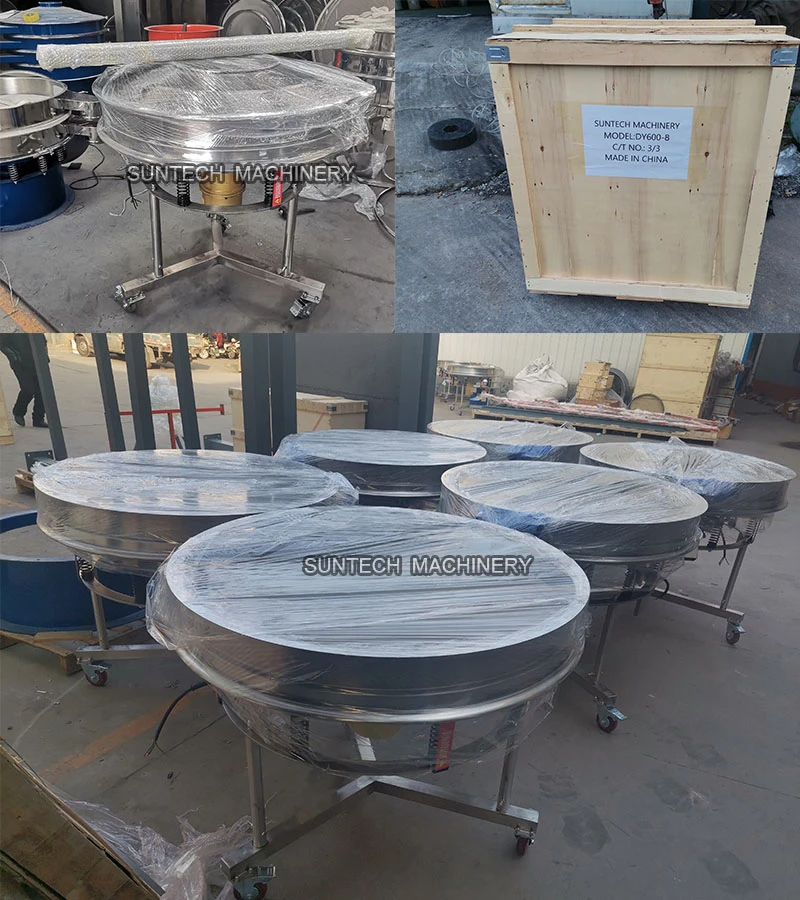

For the screen sieve spare parts and the single vibrating filter screen machine, we will make the ply wooden box packing for damage proof, for the whole truck machine, we will hire the direct line truck to ensure the machine hand over to the client directly.
