Circular Motion Vibrating Screen Sieve Separator
Circular motion vibrating screen sieve separator is a type of vibrating screen that separates materials by size using a rotating motion. This motion is typically generated by a motor that causes the screen to rotate in a circular motion, allowing particles to pass through the screen and be separated based on size.
- Product Introduction

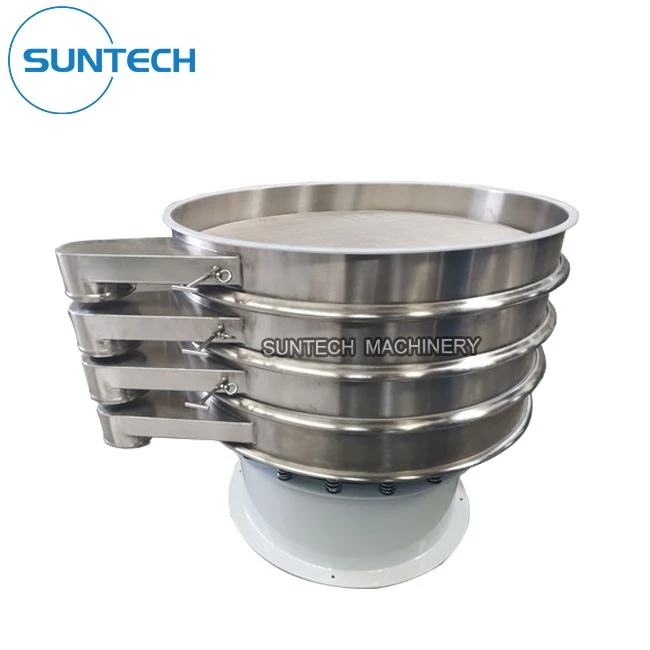

Circular Motion Vibrating Screen Sieve Separator
Introduction
Circular motion vibrating screen sieve separator is a type of vibrating screen that separates materials by size using a rotating motion. This motion is typically generated by a motor that causes the screen to rotate in a circular motion, allowing particles to pass through the screen and be separated based on size.
The rotary vibrating screen is commonly used in industries such as food processing, pharmaceuticals, chemicals, minerals, and many others. It is an efficient and cost-effective method for sorting and separating particles of different sizes. It is high efficiency, continuous operation, low noise levels, and easy maintenance. It can be customized to meet specific material requirements and is capable of separating particles ranging from very fine to coarse.
Machine Advantages
High efficiency, exquisite and durable design, any powder or liquid can be sieved
Easy to replace the screen, easy to operate and easy to clean
Different types of mesh cleaning device for choice, mesh blocking free.
Compact and closed structure make powder do flying, and sieved up to 500mesh
Unique grid design, the screen can be used for long time.
Quick clap opening structure or screw type structure, the replaced screen can be changed quickly, only 3-5 minutes
Small size, space saving and easy to move.
The screen layers can made in to five max, and 3 layers are generally recommended.
Machine in workshop
Technical Parameters
|
Model |
Inner Diameter |
Sieving Area (M2) |
Screen Mesh |
Layer |
Power (KW) |
|
ST-400 |
360 |
0.0907 |
2-500 |
1-5 |
0.25 |
|
ST-600 |
560 |
0.2289 |
1-5 |
0.55 |
|
|
ST-800 |
760 |
0.4183 |
1-5 |
0.75 |
|
|
ST-1000 |
960 |
0.6359 |
1-5 |
1.5 |
|
|
ST-1200 |
1160 |
0.9499 |
1-5 |
1.5 |
|
|
ST-1500 |
1460 |
1.5386 |
1-3 |
2.2 |
|
|
ST-1800 |
1760 |
2.2687 |
1-3 |
3.0 |
Main Applications
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice,
Chemical industry: resin pigment, medicine, grease, paint, palette, plastic granules etc
Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc
Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc
Iron industry: ore, titanium oxide, zinc oxide, sand casting, powder metallurgy hard alloy, magnetic materials, aluminum powder, metal powder, etc.
Other industries for powder and granules: activated carbon, and pearls etc.
