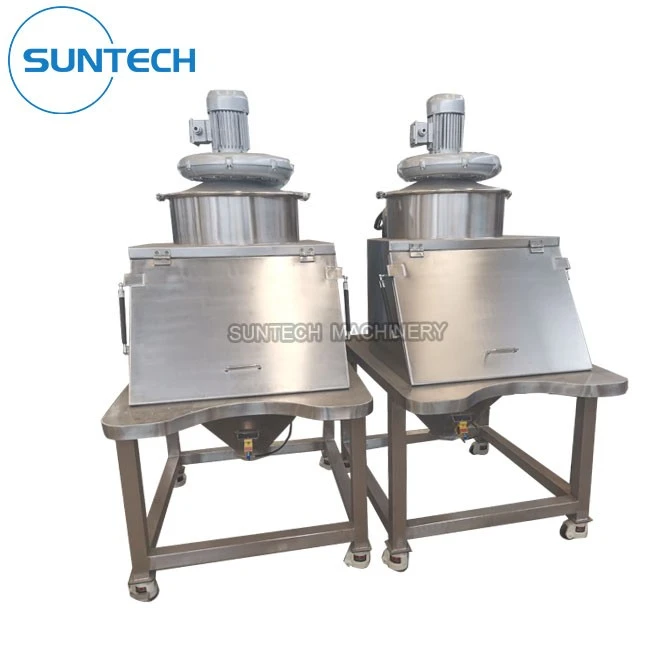

Manual Bag Dump Station With Dust Collector

Automatic Dust Control Bag Dumping Station

Automatic dust control bag dumping station are used for eliminating dust pollution when dumping powder,pellets,particles,flakes,fiber,or bulk solids from boxes,drums,bags,etc. It is one kind of middle transfer equipment that uses negative pressure to collect dust while dumping. The whole system consists of vibrator (optional),conveyor, platform,filters,pulse jet cleaning system and blower, Due to the function of dust collector, it can prevent powder dust flying everywhere and can protect the environment effectively. Further more, a vibrating screen can be installed in the dust-free feeding station to effectively remove large lumps or impurities in the materials to ensure the qualified materials go the next step.

The bag dumping station is a kind of equipment for unloading powdery materials. It mainly consists of a working platform, a filter combination, a filter backflush cleaning device, a negative pressure fan, a strip partition, a temporary storage bucket, etc. It can also be installed optionally Vibrating screens, crushers, iron removers and flip barrel supports, etc., are suitable for use in a variety of situations.

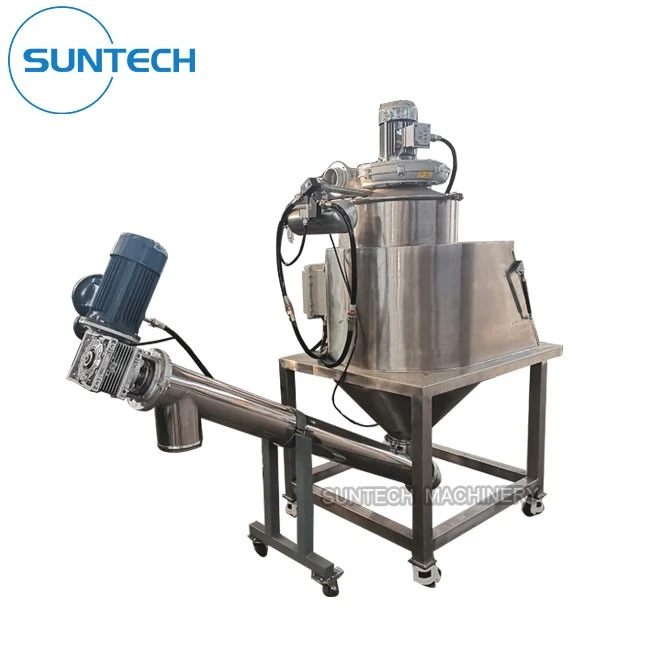

It can also installed the screw conveyor or the vacuum conveyor below the hopper to transfer the powder to the next production
