Stainless Steel Rotary Drum Screen
Stainless Steel Rotary Drum Screen is one kind of general coarse sieving machine with large handling capacity. Different from the vibrating screen, the drum screen structure is installed one screen layer with different mesh size in different segment. Feeding from the inlet, the different size granules will be separated by different segment screen mesh or different screen apertures when going through the different segment screen.
- Product Introduction

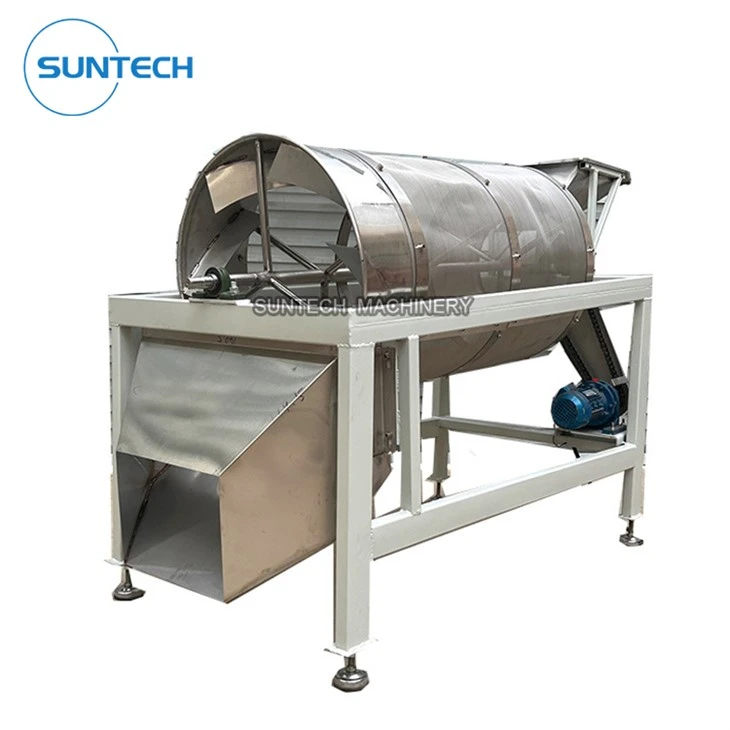

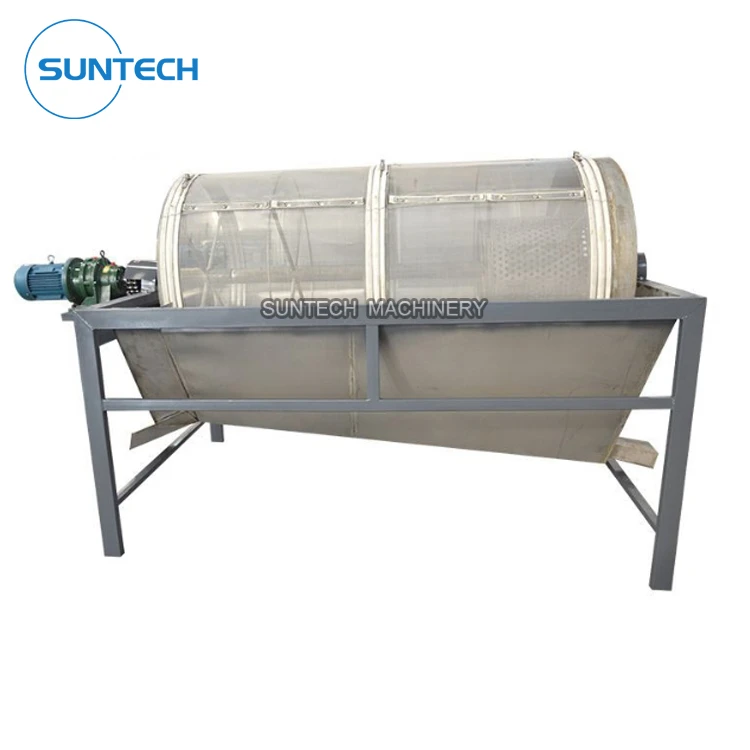

Stainless Steel Rotary Drum Screen
Introduction

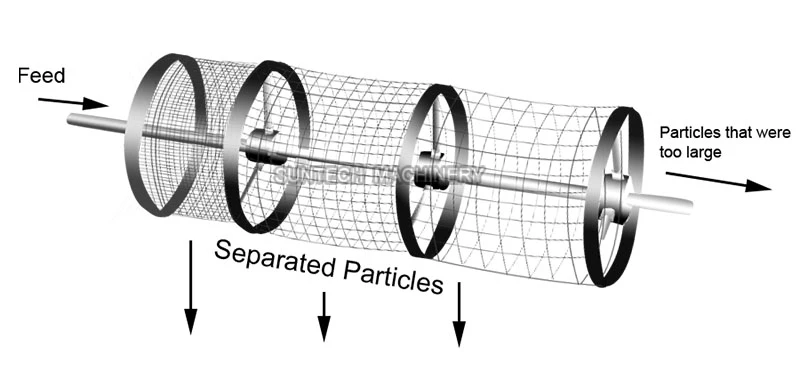

Stainless Steel Rotary Drum Screen is one kind of general coarse sieving machine with large handling capacity. Different from the vibrating screen, the drum screen structure is installed one screen layer with different mesh size in different segment. Feeding from the inlet, the different size granules will be separated by different segment screen mesh or different screen apertures when going through the different segment screen.
Except for the transmission part, the stainless steel Rotary Drum Screen is made of stainless steel 304 or S316. The screen can be punched and then mechanically rolled so that it does not damage the material during use or the wire woven mesh. The screen aperture can also be designed according to user requirements. During production, the products are transported to the drum screen through the elevator or conveyor. Due to the transmission function, the drum is constantly running, and the materials are graded from small to large. The raw materials can be divided into grades 2-5, which is suitable for grading mushrooms, water chestnuts, grapes, longans and other mineral, chemical or food products according to different sizes and specifications.
Machine Features
1. Adopt the drum rotating principle, the friction coefficient is small, the wear is light, and the screen holes are not easy to be blocked.
2. Adopts an integral through-shaft structure for the drum screen support , it can ensures smooth operation, no vibration and low noise.
3. The internal drum screen sieve adopt a separate design, with a simple structure and fast and convenient replacement and maintenance.

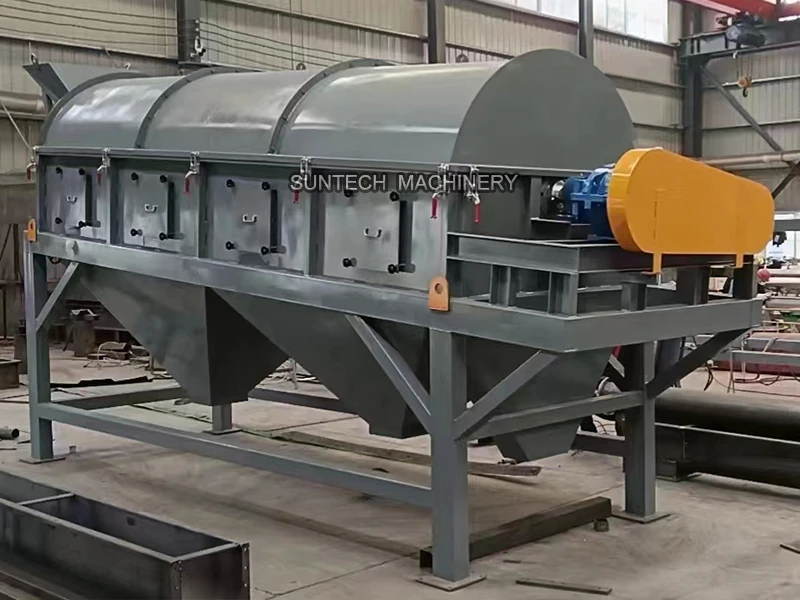

4. The drum screen adopts an effective fully sealed structure, which does not generate dust or cause pollution.
5. The operation is safe and reliable. It adopts reduction transmission, has high transmission efficiency, low motor power, low energy consumption and obvious energy saving.
6. Different screen materials and screen hole sizes can be customized according to customer requirements, with high screening efficiency, long service life and low maintenance cost.
Main Parameters
|
Model |
Length range (m) |
Screen segments |
Mesh range (mm) |
Power (kw) |
Degree of tilt |
Max Size (mm) |
Drum speed (r/min) |
Handling capacity (m3/h) |
|
GTS600 |
2~4 |
1~3 |
5~35 |
2.2~3 |
7° |
35 |
20 |
10 |
|
GTS800 |
2~4 |
1~3 |
5~40 |
2.2~5.5 |
7° |
45 |
18 |
14 |
|
GTS1000 |
2~6 |
1~4 |
5~45 |
3~7.5 |
7° |
60 |
16 |
16 |
|
GTS1200 |
2~8 |
1~4 |
5~50 |
4~11 |
7° |
70 |
15 |
20 |
|
GTS1500 |
2~8 |
1~4 |
5~55 |
4~15 |
7° |
80 |
12 |
32 |
|
GTS2000 |
2~9 |
1~4 |
5~60 |
5.5~18.5 |
7° |
90 |
8 |
45 |
In Summary
As an indispensable part of modern industry, Stainless steel Rotary drum screen plays an important role especially in the chemical and food industries. Its durability and high performance make it ideal for handling a variety of materials. In the chemical industry, stainless steel drun screens can efficiently screen out materials of different particle sizes to ensure the smooth progress of the production process. Its solid structure and corrosion resistance allow it to maintain excellent performance when handling corrosive materials such as strong acids and strong alkali.
In the food industry, stainless steel drum screens are also widely used. Since food processing requires strict hygiene standards, stainless steel trommel screens have become the preferred equipment for food processing companies due to their easy cleaning and anti-contamination properties. In industries such as flour milling and sugar refining, stainless steel drum screens can effectively separate materials of different specifications and improve product quality and output.
In addition, the design of the stainless steel drum screen with the features of high efficiency and ease of operation. Its unique screen design can ensures the granules or powder going through the screen sieve in fast way while minimizing clogging and wear. At the same time, it can also be customized according to actual needs to adapt to different scales and types of production needs.
In general, stainless steel drum screens have become an essential equipment in chemical, food and other industries due to their excellent performance and wide range of uses. Its high efficiency, safety and reliability make it play an irreplaceable role in promoting industrial development and improving production efficiency. In the future, with the continuous advancement of technology and the continuous expansion of application fields, stainless steel drum screens will play greater value in more industries.
