Silica Sand Rectangular Swing Sieving Machine
Silica sand rectangular swing sieving machine is a commonly used screening equipment in the sand and gravel industry. It is a high-efficiency screening equipment developed and designed to meet the needs of users with large output and high precision. It is widely used in chemical industry, metallurgy, mining, feed industry, food and other industries. Especially suitable for heavy alkali, salt, resin, compound fertilizer, large and small granular urea, feed, reduced iron powder, zirconia, ceramsite, barite, etc.
- Product Introduction
Silica sand rectangular swing sieving machine
Introduction
Silica sand rectangular swing sieving machine is a commonly used screening equipment in the sand and gravel industry. It is a high-efficiency screening equipment developed and designed to meet the needs of users with large output and high precision. It is widely used in chemical industry, metallurgy, mining, feed industry, food and other industries. Especially suitable for heavy alkali, salt, resin, compound fertilizer, large and small granular urea, feed, reduced iron powder, zirconia, ceramsite, barite, etc.
Main Applications
General specifications of quartz silica sand are: 0.5-1mm, 1-2mm, 2-4mm, 4-8mm, 8-16mm, 16-32mm, 10-20 mesh, 20-40 mesh, 40-80 mesh, 100-120 mesh. The rectangular swing screen can be used for effective screening work with the above mesh sizes. A single unit has an hourly output of 5 tons to 50 tons, and the screening accuracy is more than 98%, which meets the requirements for the use of petroleum proppant.
Working Principle
Adopt the ordinary motor as the transmission source,which is the imitation of the people to make sieving with two hands to make the screened powder doing the elliptical trajectory movement on the screen surface left and right, so that the screened material is close to the mesh surface. The elliptical curve movement is also used on the screen to make the material stay on the drying surface for a long time, thereby achieving better screening performance.
Machine Features
Two sieving trajectories make screening easier
The material stays on the screen for a short time, and screen not easy be blocked
The technology is mature and can reach 10 layers of mesh screens.
Large electrostatic spray plastic, more beautiful, wear-resistant and rust-proof
Convenient screen mesh replacement and simple operation
Fully enclosed structure, no dust flying, low noise, in line with environmental protection requirements
One machine can be divided into multiple groups, which is equivalent to producing multiple screening machines at the same time.

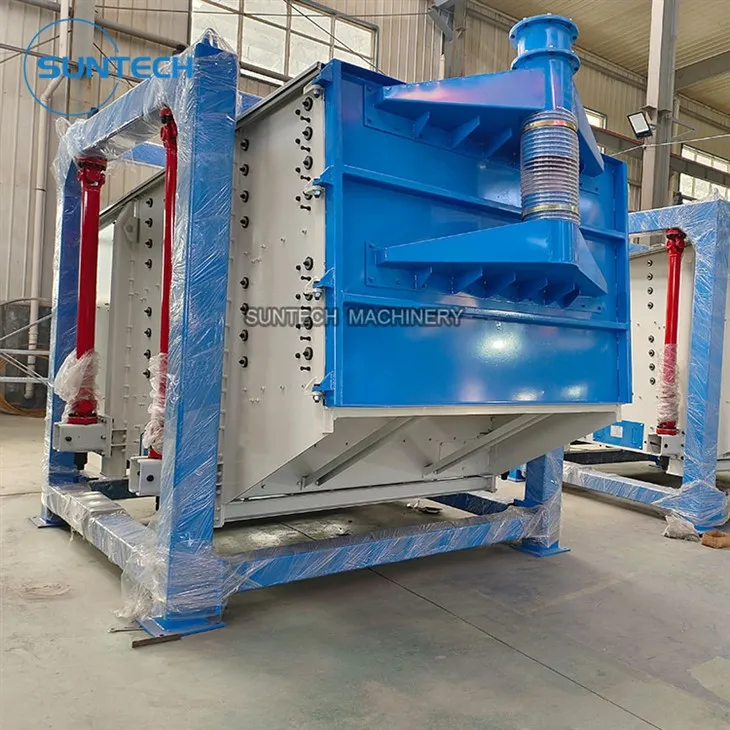

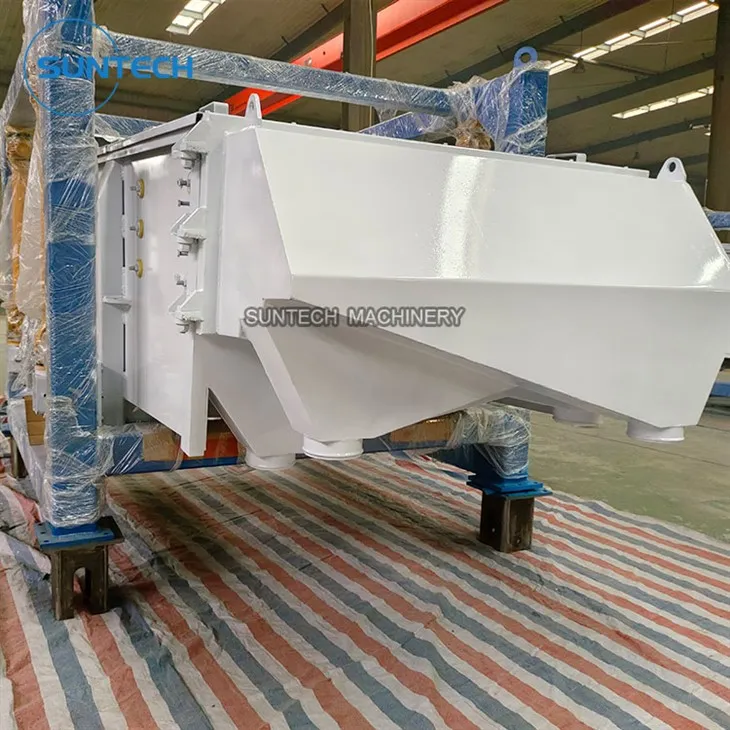

Machine in workshop
Punched screen plate sieve with cleaning bouncing ball
Machine in working site
Parameters
Main Size for choice, pls tell us the material you need to sieve, the mesh size, the capacity per hour, professional plan will provide after we get your detail inquiry.
|
Model |
Sieve Size(mm) |
Power(KW) |
Inclination (Degree) |
Layers |
Rate of frequency (r/min) |
Screen Box movement distance(mm) |
|
FXS1030 |
1000*3000 |
3 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1036 |
1000*3600 |
3 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1230 |
1200*3000 |
4 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1236 |
1200*3600 |
4 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1530 |
1500*3000 |
5.5 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1536 |
1500*3600 |
5.5 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1830 |
1800*3000 |
7.5 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1836 |
1800*3600 |
7.5 |
5 |
1-6 |
180-264 |
25-60 |
