Stainless Steel Rotary Vibrating Screen

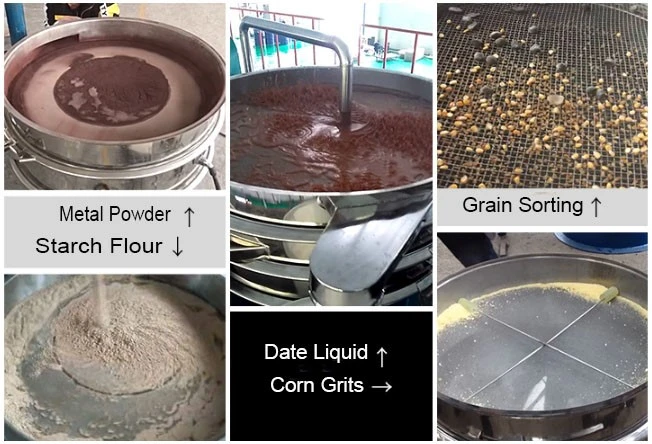

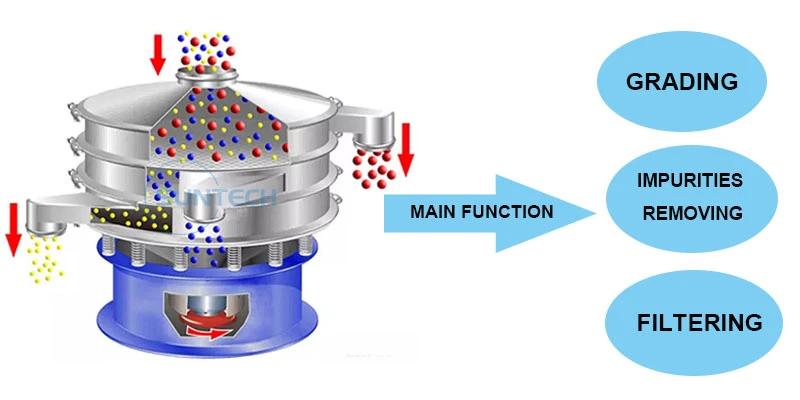

Stainless steel Rotary Vibrating Screen is one kind of round shape sieving machine in customized mesh size deck, it mainly used for sieving the powder in different mesh size, classifying the granules in different millimeter, separating the oversize pellets from the powder, removing the dust, filtering the liquid etc. It is also called vibro sieve, vibration screen, vibratory sifter etc.
- Product Introduction
Stainless Steel Rotary Vibrating Screen
Introduction
Stainless steel Rotary Vibrating Screen is one kind of round shape sieving machine in customized mesh size deck, it mainly used for sieving the powder in different mesh size, classifying the granules in different millimeter, separating the oversize pellets from the powder, removing the dust, filtering the liquid etc. It is also called vibro sieve, vibration screen, vibratory sifter etc.
It can be made in fully stainless steel 304/316L, or contact parts are stainless steel 304/316L or fully carbon Steel, Stainless steel Rotary Vibrating Screen is mainly used for the food,chemical and pharmaceutical industry.

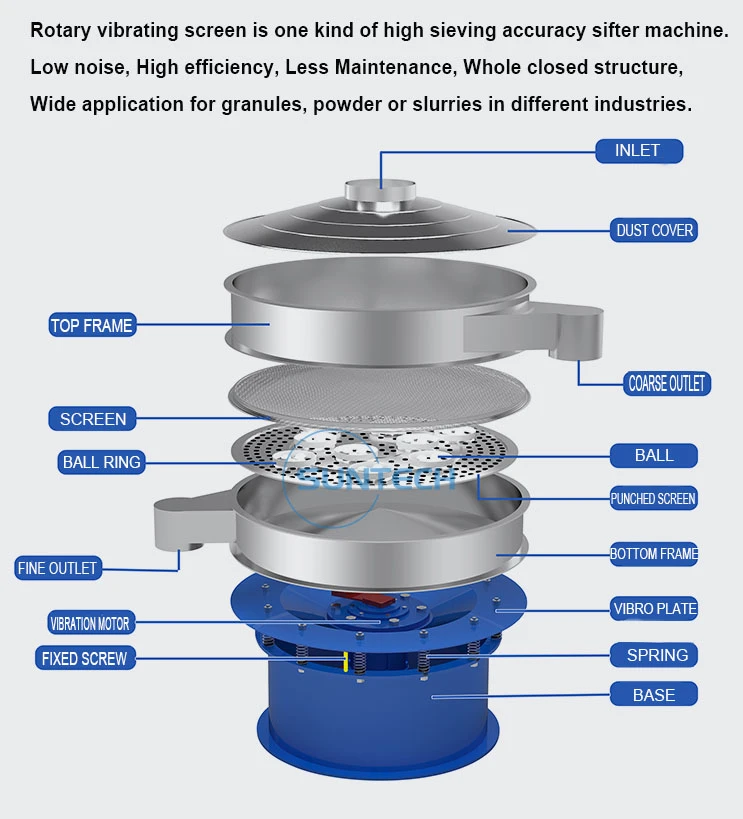

Machine Structure

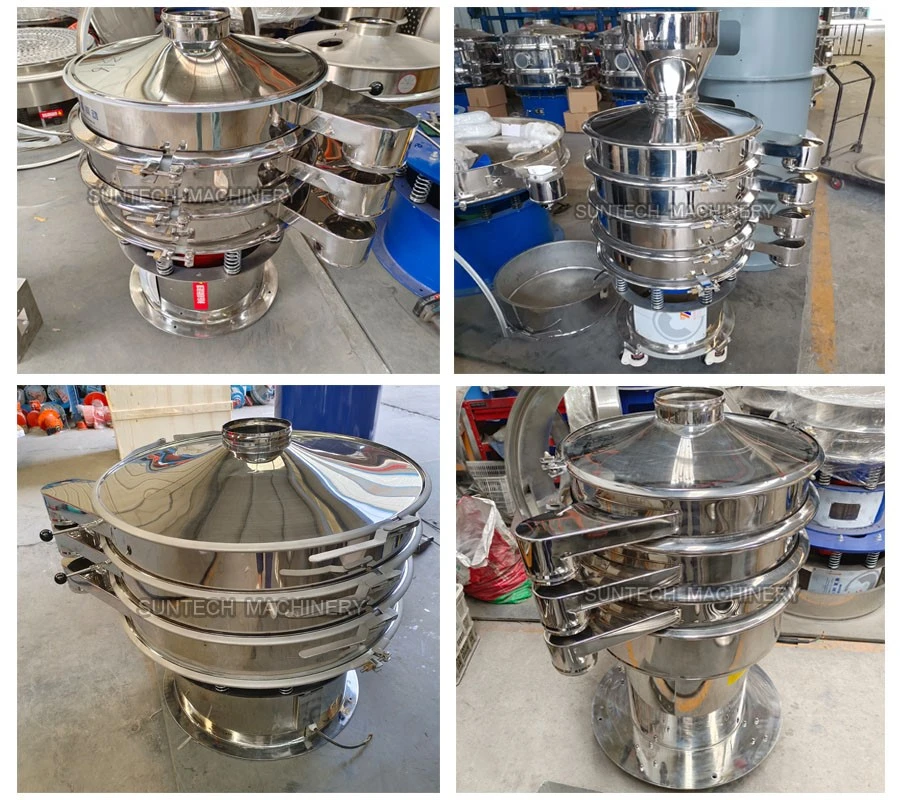

Main Categories
Different Types of Stainless Steel Rotary Vibrating Screen, we support any kinds of customized design service.

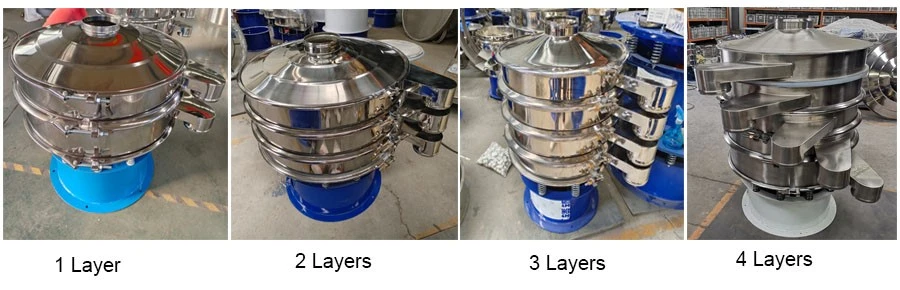

Rotary Vibrating Screen can be installed the mesh size from 1 to 5 max which can separate the 6 Mesh size by single machine. 1 Layer for 2 size separate, 2 Layer for 3 size separate, etc.
Working Principle

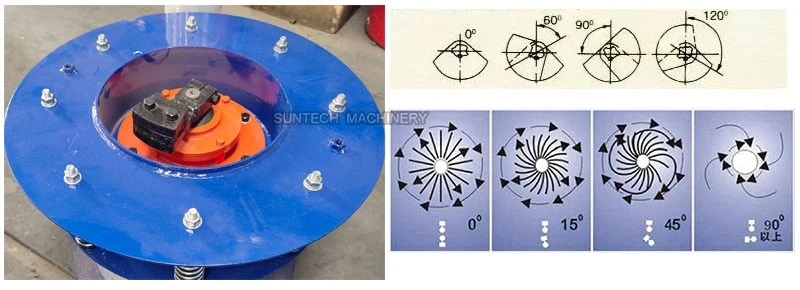

Adopt the vertical vibration motor as the vibration source,By means of the upper and lower hammer mounted on the vibration motor, the machine can convert the rotary motion force of the motor into three dimensional motion (Horizontal, Vertical, Inclined),then this motion will be transferred to the screen surface and realize the sieving purpose. The vibration force can also be adjusted by adjusting the upper and lower ends of the phase angle of the hammer so as to meet the different sieving accuracy requirement.
Working Site

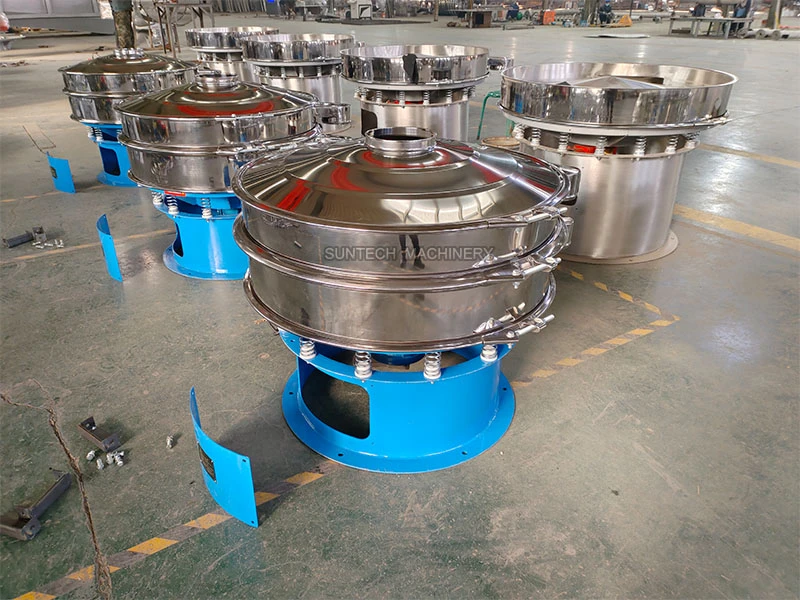

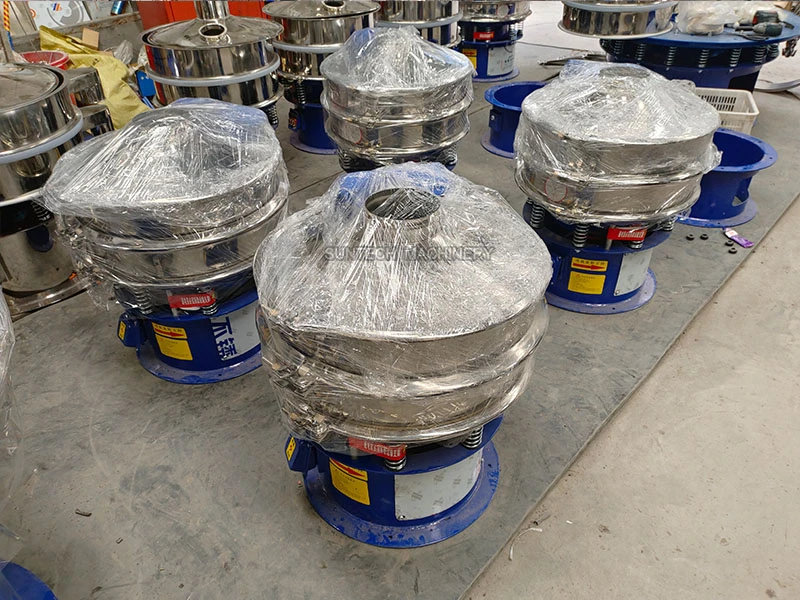

Machine in Work Shop

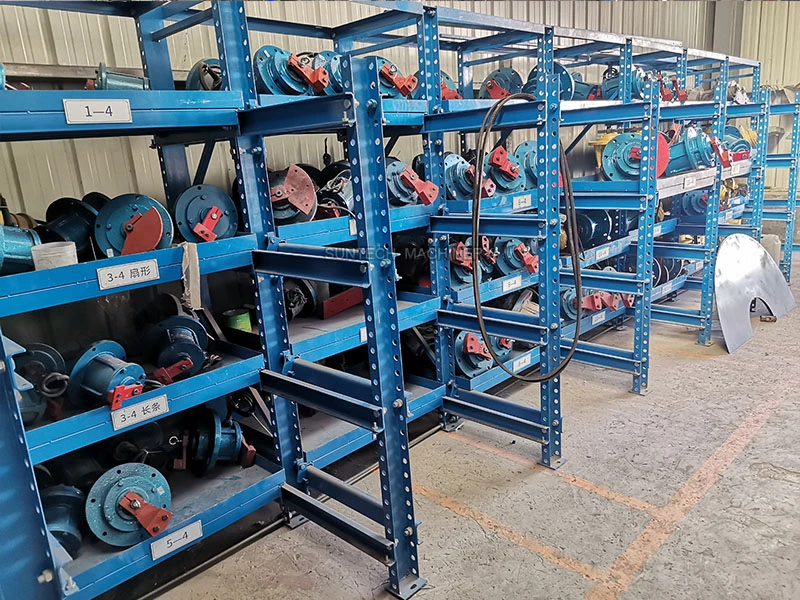

Suntech Machinery is the OEM and ODM manufactures, all the product are qualified enough to meet the ISO with CE standard. We have rich stock spare parts, can fast delivery after order.
Main Parameters
|
Model |
Inner Diameter |
Sieving Area (M2) |
Screen Mesh |
Layer |
Power (KW) |
|
ST-400 |
360 |
0.0907 |
2-500 |
1-5 |
0.25 |
|
ST-600 |
560 |
0.2289 |
1-5 |
0.55 |
|
|
ST-800 |
760 |
0.4183 |
1-5 |
0.75 |
|
|
ST-1000 |
960 |
0.6359 |
1-5 |
1.5 |
|
|
ST-1200 |
1160 |
0.9499 |
1-5 |
1.5 |
|
|
ST-1500 |
1460 |
1.5386 |
1-3 |
2.2 |
|
|
ST-1800 |
1760 |
2.2687 |
1-3 |
3.0 |
