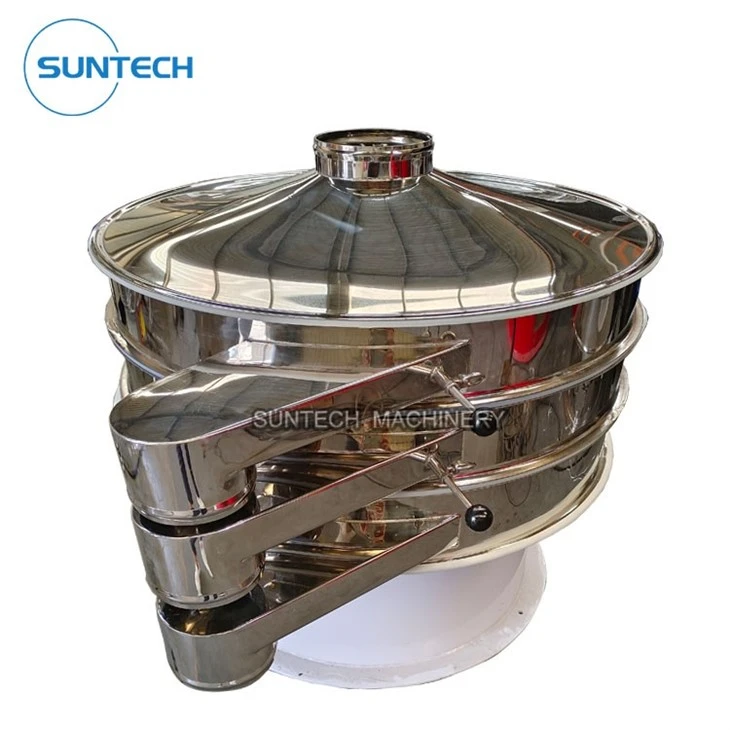

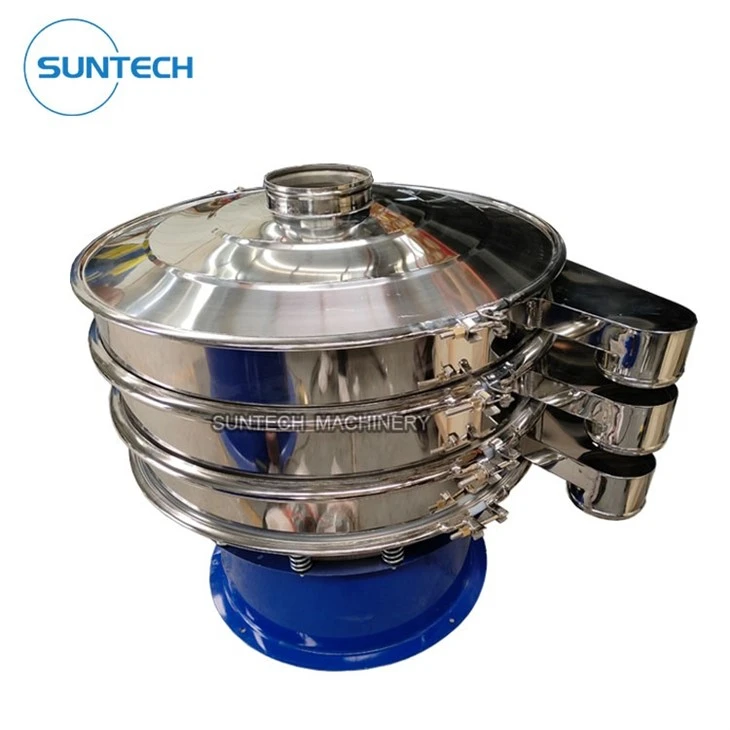

Double Deck Rotary Vibrating Shaker Screen

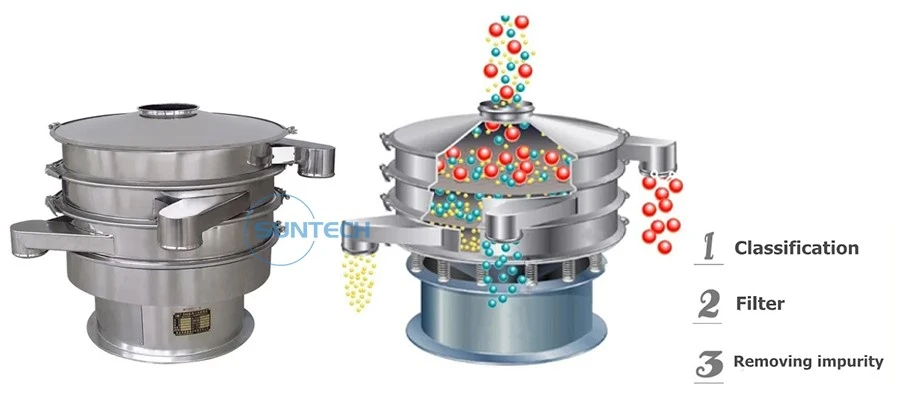

Double deck rotary vibrating shaker screen is the round vibrating sieve machine with two mesh size layer for 3 size separating and grading. It is a high precision fine powder sifting equipment.
- Product Introduction
Double Deck Rotary Vibrating Shaker Screen
Introduction
Double deck rotary vibrating shaker screen is the round vibrating sieve machine with two mesh size layer for 3 size separating and grading. It is a high precision fine powder sifting equipment. As it has the characteristic of low noise, high efficiency, fully closed structure, quickly change the screen sieve design, low maintenance cost, it is widely used in food, chemical, pharmaceutical, metallurgy, mineral industry etc.

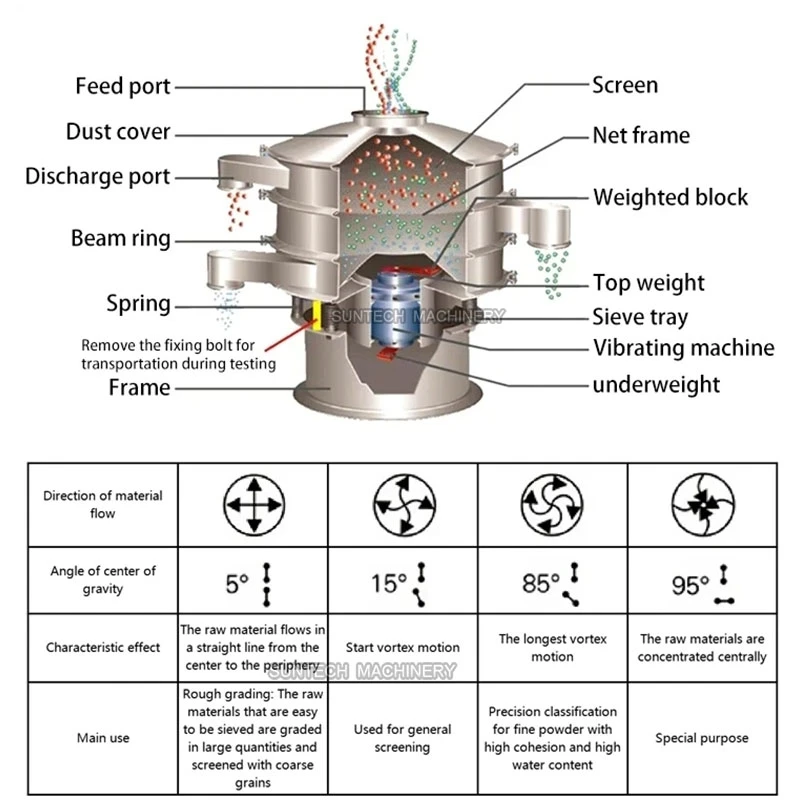

Machine Structure & Working Principle
Vertical vibration motor is used as the excitation source, and the upper and lower ends of the motor are installed with eccentric weight which can transform the rotation force of the motor into horizontal, vertical, and inclined directions, meanwhile transfer this motion to the screen surface, then the screen drive the material do same motion as sieve do,that is why it is called rotary vibrating screen.

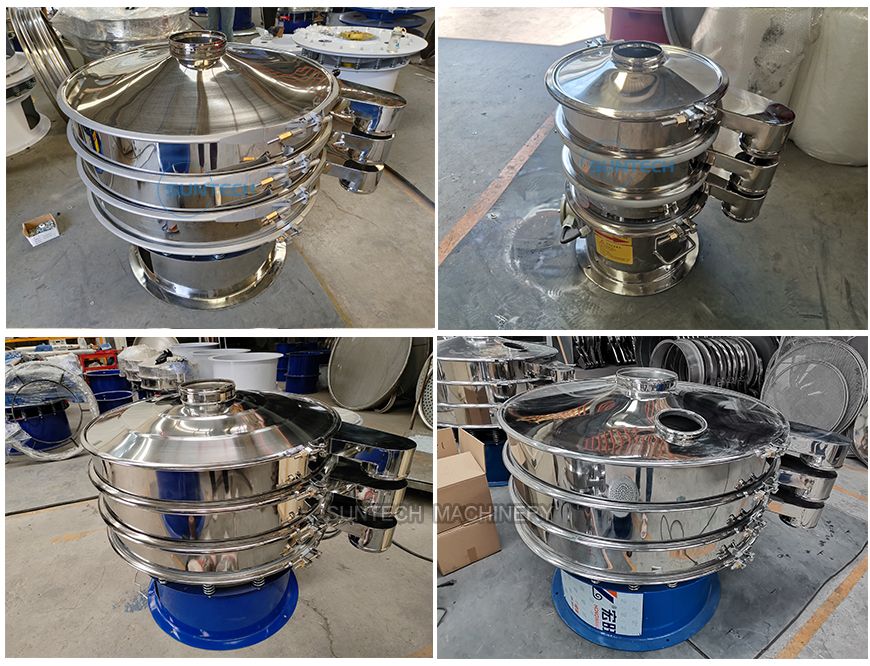

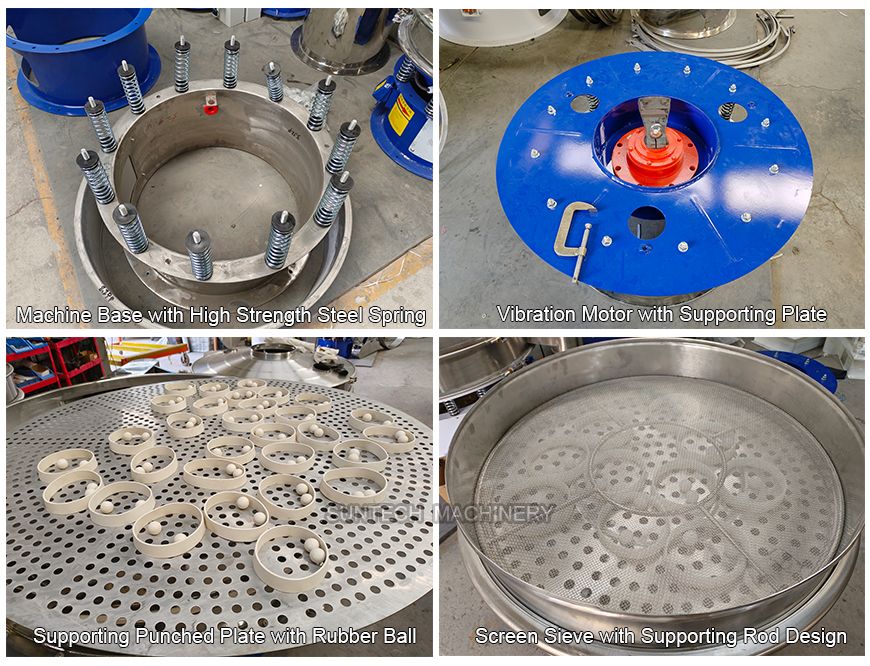

Machine Details
Technical Parameters
There are different diameter size for different capacity, wide range mesh size for choice, 1-5 layer for single machine can be made, the motor voltage from 110V-480V at 50/60hz can be customize
|
Model |
Inner Diameter |
Sieving Area (M2) |
Screen Mesh |
Layer |
Power (KW) |
|
ST-400 |
360 |
0.0907 |
2-500 |
1-5 |
0.25 |
|
ST-600 |
560 |
0.2289 |
1-5 |
0.55 |
|
|
ST-800 |
760 |
0.4183 |
1-5 |
0.75 |
|
|
ST-1000 |
960 |
0.6359 |
1-5 |
1.5 |
|
|
ST-1200 |
1160 |
0.9499 |
1-5 |
1.5 |
|
|
ST-1500 |
1460 |
1.5386 |
1-3 |
2.2 |
|
|
ST-1800 |
1760 |
2.2687 |
1-3 |
3.0 |

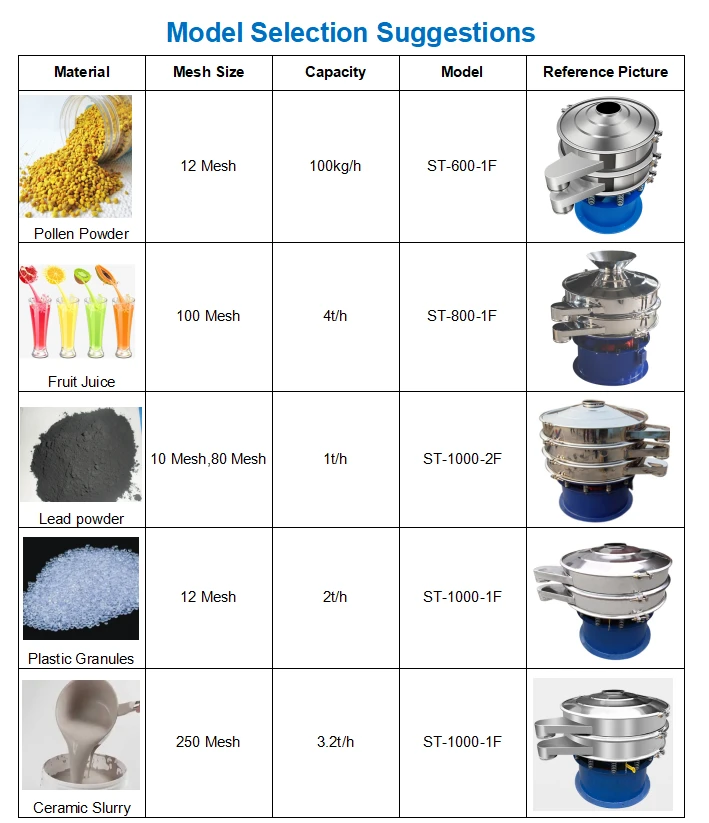

Blow sheet is the referenced model choice for some powder in any mesh size, any inquiry or any confusions pls contact us directly, we can provide professional suggestion for your production needs.

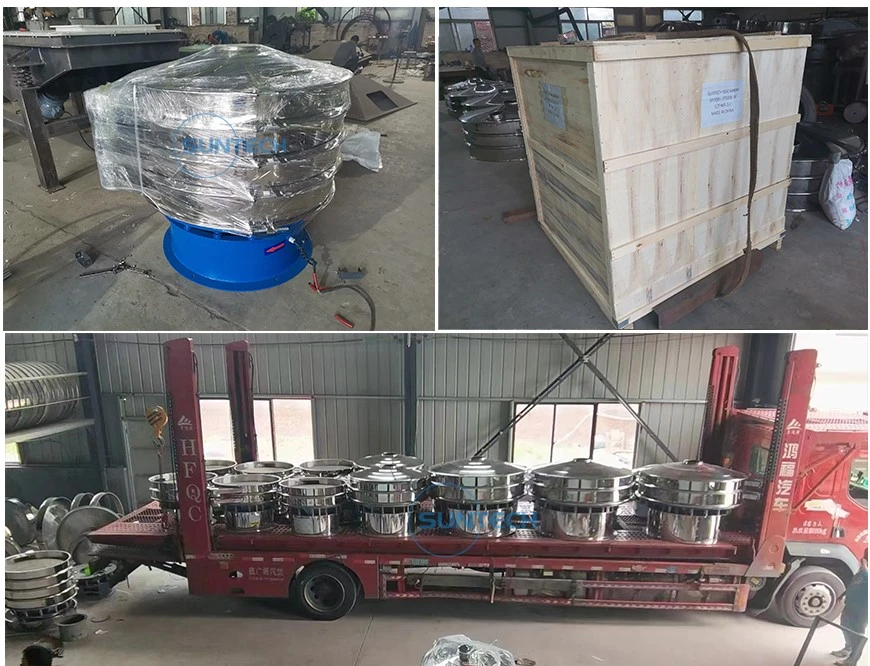

Packing & Shipping
Daily machine delivery in work shop, for the international client , we usually take the stretch film inside and plywooden box outside, for the domestic full truck delivery, we usually take the special direct line truck to hand over to the client directly in very fast way.
Please show us the following answers ,so that we can direct make a quotation for you:
1. Screen Material :
2.Layers:
3. Mesh size each layer:
4. Capacity : _______KG/H
5. Moisture ,viscous ,corrosive.....
6. Voltage: _______V, ______HZ,3 phase.
7. Carbon Steel ,SS304.SS316.
