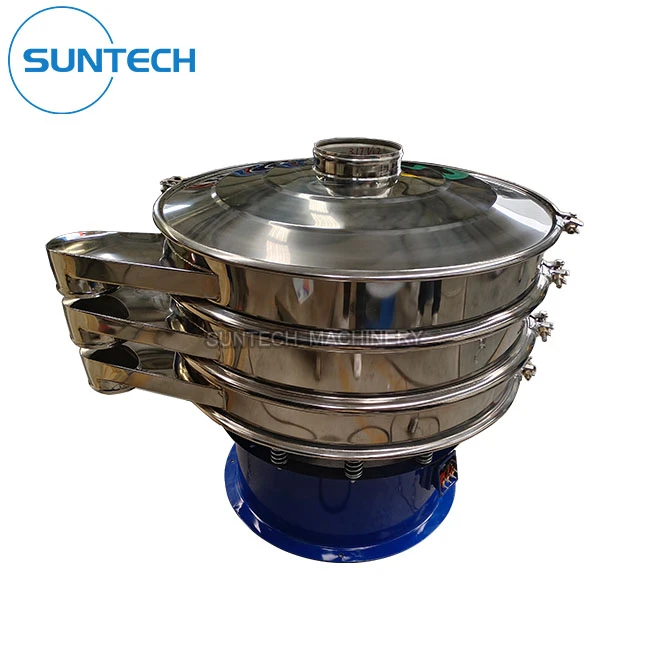

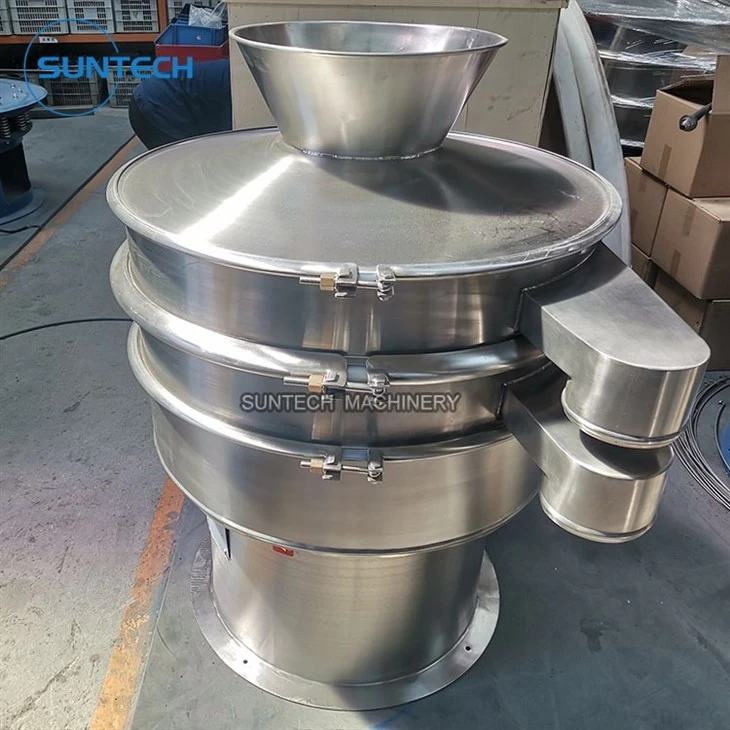

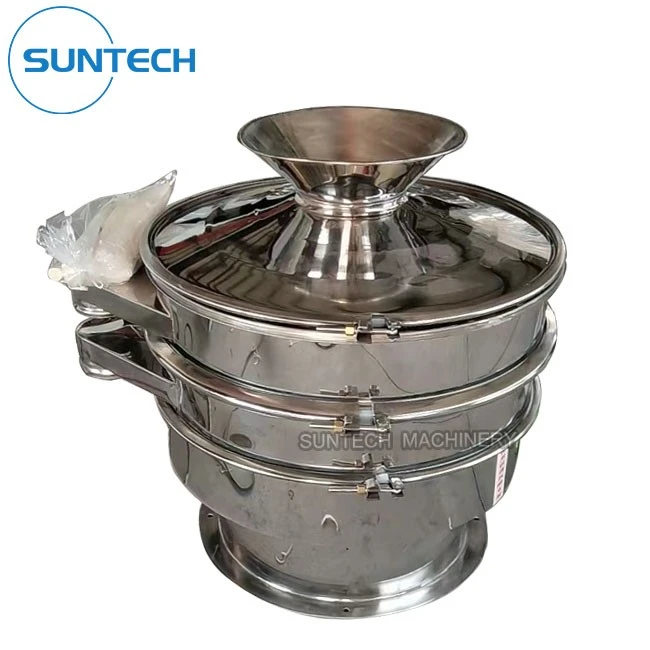

Small Size Rotary Vibrating Screen

Small Size Rotary Vibrating Screen

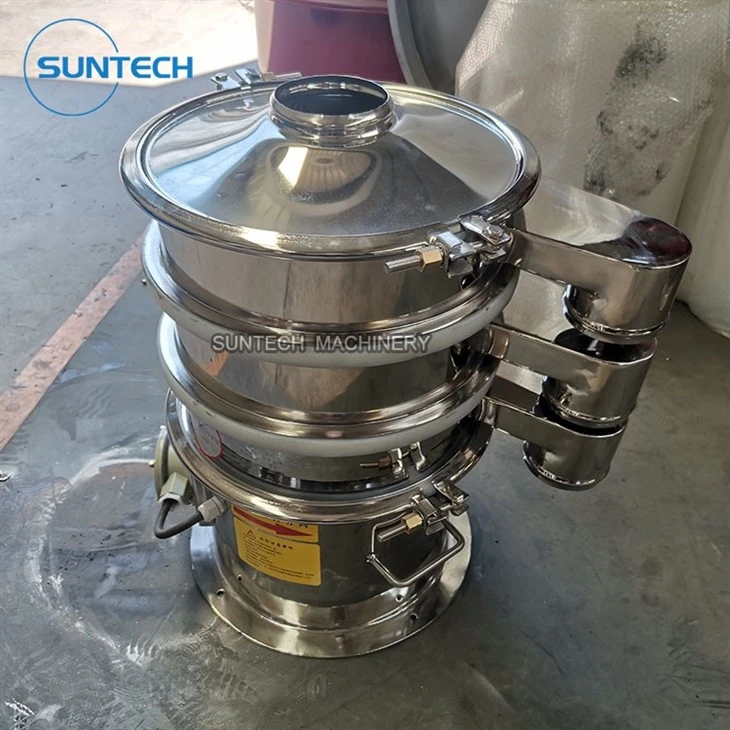

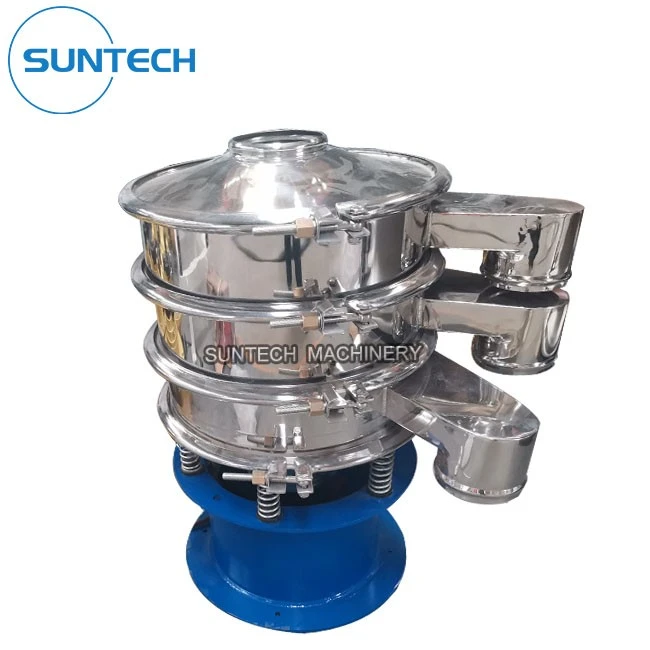

Compared with the Mineral Vibrating Screen, Rotary Vibrating Screen in diameter 400mm, 600mm, 800mm, 1000mm, 1200mm are all called small size rotary vibrating screen, Even they are small in size, compact in structure, but they are same performance in function. So it mainly used for small capacity sieving production from tens of kgs to hundreds of kgs. All these size machine can also be equipped in one mesh layer to five mesh layers for two size to six size separating max.

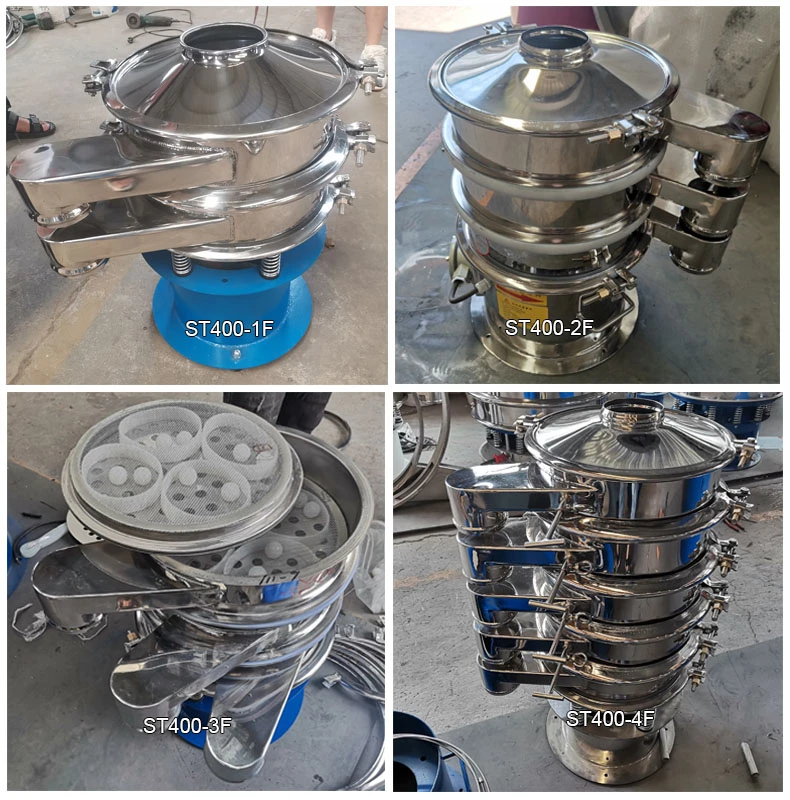

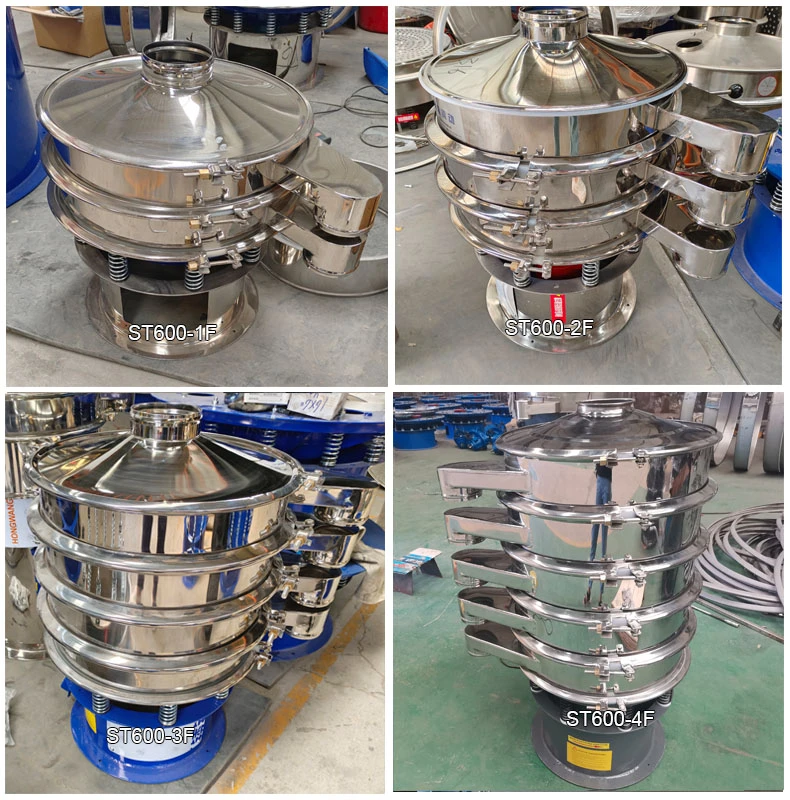

Model	Power (kw)	Sieve diameter (mm)	Granularity (mm)	Voltage (v)	RPM (r/min)	Capacity (kg/h)
-1S ST-400 - 2S -3S	0.18	350	<10	380	1440	100
-1S ST-600 -2S -3S	0.25	550	<10	380	1440	300
-1S ST-800 -2S -3S	0.55	750	<10	380	1440	500
-1S ST-1000 -2S -3S	0.75	920	<10	380	1440	800
-1S ST-1200 -2S -3S	1.1	1120	<10	380	1440	1000
-1S ST-1500 -2S -3S	1.5	1420	<10	380	1440	1200
-1S ST-1800 -2S -3S	2.2	1720	<10	380	1440	1500





Chemical industry:resin,coating, industry,cosmetic,oil,ect.

The food industry:sugar,gourmet powder,salt,fruit juice,starch,milk powder,food,soyabean milk,egg powder,rice,soy,fish meal,pineapple juice,etc.

Metals,metallurgical mining:Aluminium powder,lead powder,copper powder,ore,alloy powder,electrode powder,abrasive powder,refractory materials,kaolin,lime,aluminium oxide,quartz sand,etc.









If you have ever used the screen machine, kindly pls tell us its DIAMETER, LAYERS, MESH SIZES, MATERIALS.

If never use the machine, pls offer us the info about your needsl as below:

Sieving material: Bulk density:

Will you do a separation or dust-removal?

Production Capacity per hour(KG/H)?

How many Layers do you need? Mesh size of each layer?

Material of Construction material?(Stainless steel or Mild Steel)

Voltage(V), Frequency(Hz), Phase(P)?

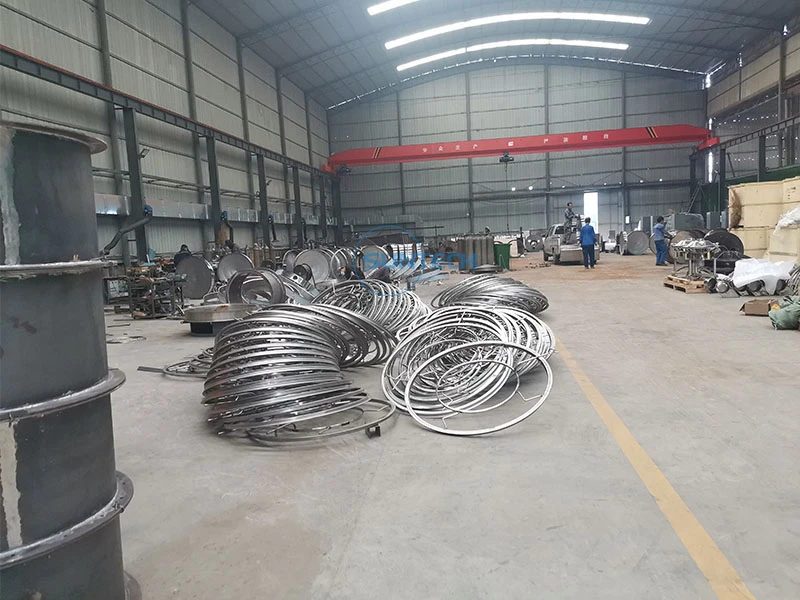

Suntech Machinery (Xinxiang) Company Limited is located in Xinxiang which is the production base of vibrating screen and conveyor equipment. With more than 10 years development and technology precipitation, Suntech has become a leading enterprise in screening and conveying industry with richful export experience.

Our main product is including rotary vibrating screen, round tumbler sieve, rectangular gyratory sieving machine, vacuum conveyor, bag dumping station, screw conveyor, belt conveyor, bucket elevator,packing machine and other supporting machine etc. All these machine are widely used in food, chemical, pharmaceutical, abrasive,mining, metallurgy,geology, lithium battery and all other industries. All our machine have win a good reputation because of the stable quality, reasonable price, and good sales service.

Sincerely invite you to come to our company for more cooperation!
