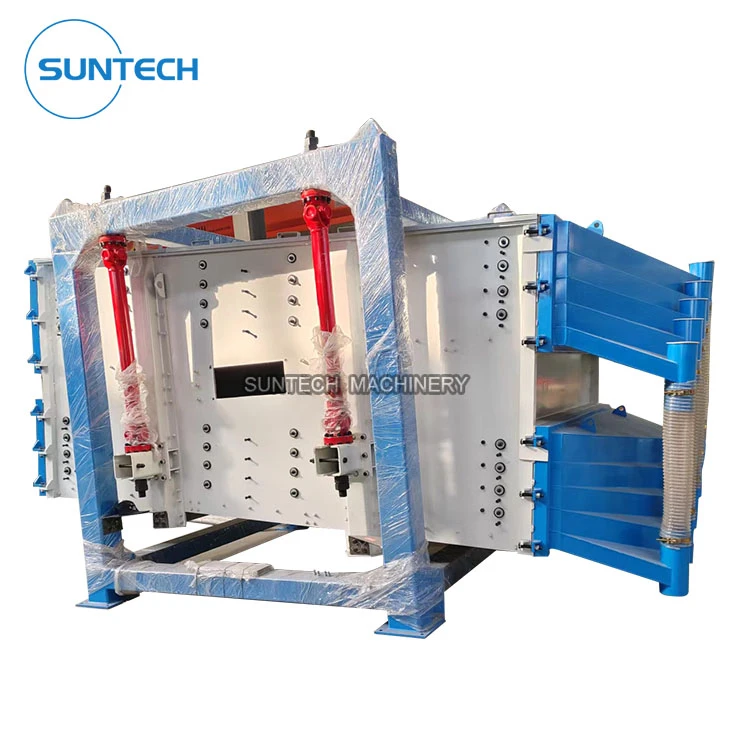

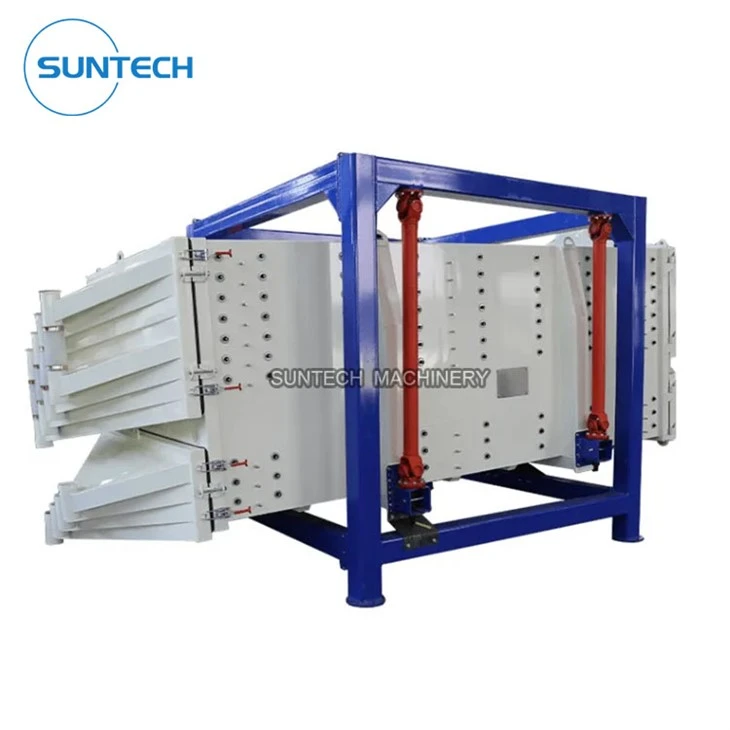

Multi Deck Rectangular Swing Vibrating Screen
The multi deck rectangular swing vibrating screen, also known as the square swing screen , is a high-efficiency screening equipment with high precision and large output. Through the square swing vibrating screen, the whirling motion of the exciter is transmitted to the screen surface, so that the material is quickly dispersed in the front of the screen, so as to achieve the purpose of efficient screening.
- Product Introduction
Multi deck rectangular swing vibrating screen
Introduction
The multi deck rectangular swing vibrating screen, also known as the square swing screen , is a high-efficiency screening equipment with high precision and large output. Through the square swing vibrating screen, the whirling motion of the exciter is transmitted to the screen surface, so that the material is quickly dispersed in the front of the screen, so as to achieve the purpose of efficient screening. The square swing screen adopts many new technologies and standardized design schemes, which can be combined with production conditions and different customer needs to achieve multiple combinations. The dust cover and the power transmission plate of the vibration exciter are stamped and formed by a large press at one time, which increases the strength and reduces the weight of the equipment. The plates are made of high-quality cold-rolled plates, which are more unique in mechanical design and achieve a design concept of high efficiency and energy saving.

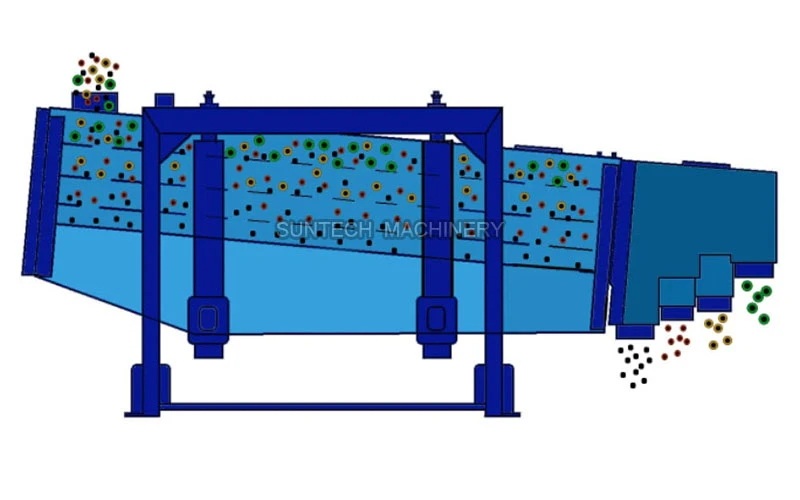

Working Instructions
Machine Features
1. The fully enclosed structure prevents dust from flying, and adopts a biased balance to make the screen machine less vibrating and less noisy. Comply with environmental protection requirements.
Combining three motion modes: circular, elliptical and linear, the screening performance is better. Suitable for screening a variety of materials.
2. Equipped with an automatic tensioning and automatic cleaning screen installation system, the screen has high utilization rate, long service life, and a simple and fast screen changing structure.
3. The reinforced machine base ensures more balanced operation of the equipment, and a hanging structure can also be used to meet customer modification needs according to actual site conditions.
Improve the wire rope hanging structure to avoid wire wear.
4. Two-layer screen frame design; there are also three-layer screen frame models for customers to choose from.
5. It is used for screening and grading of powdered or pellet feed. It can also be used for the initial cleaning of raw materials in feed mills and the grading of intermediate products after secondary crushing in large and medium-sized feed mills.

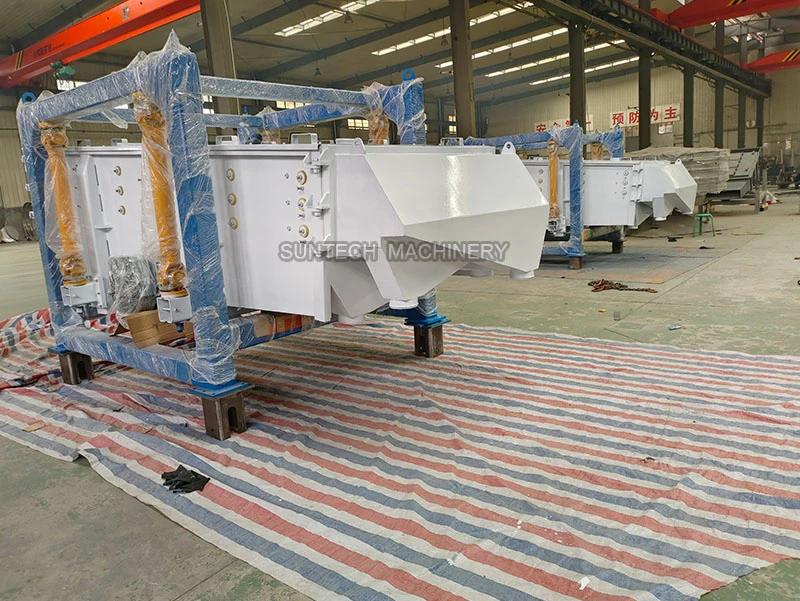

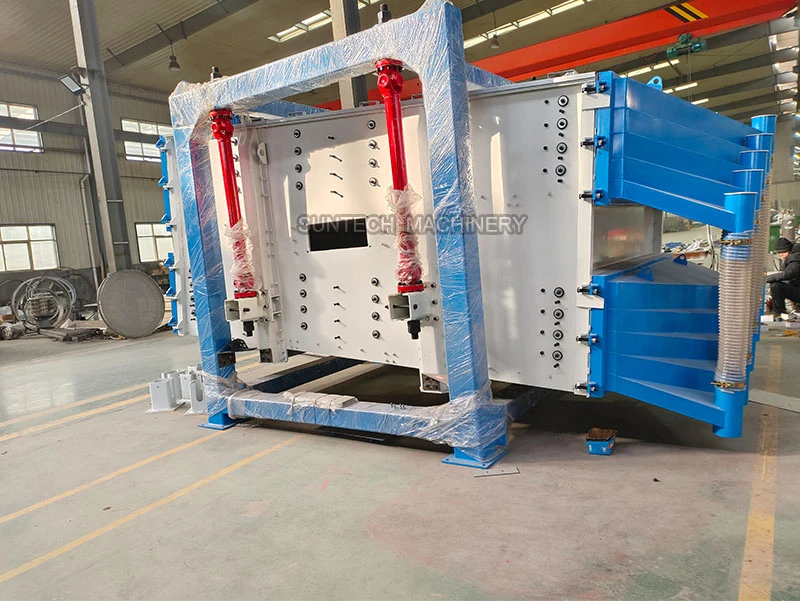

Machine in workshop

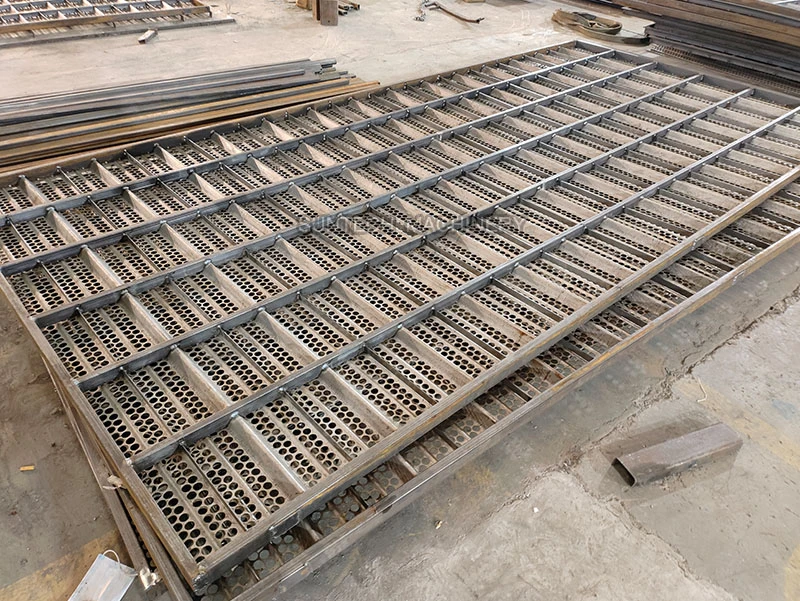

Punched screen plate sieve inside the rectangular swing vibrating screen

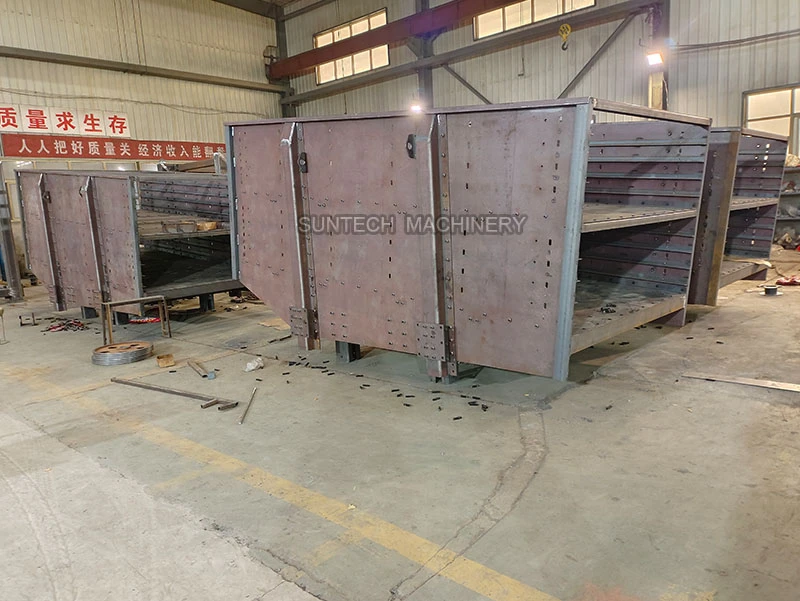

Rectangular swing vibrating screen case

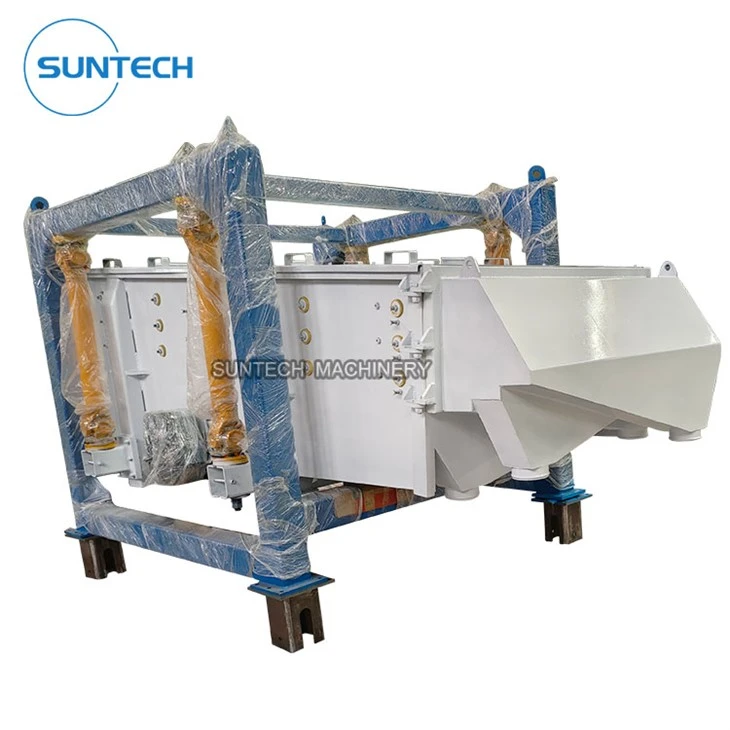

Complete rectangular swing vibrating screen ready for delivery

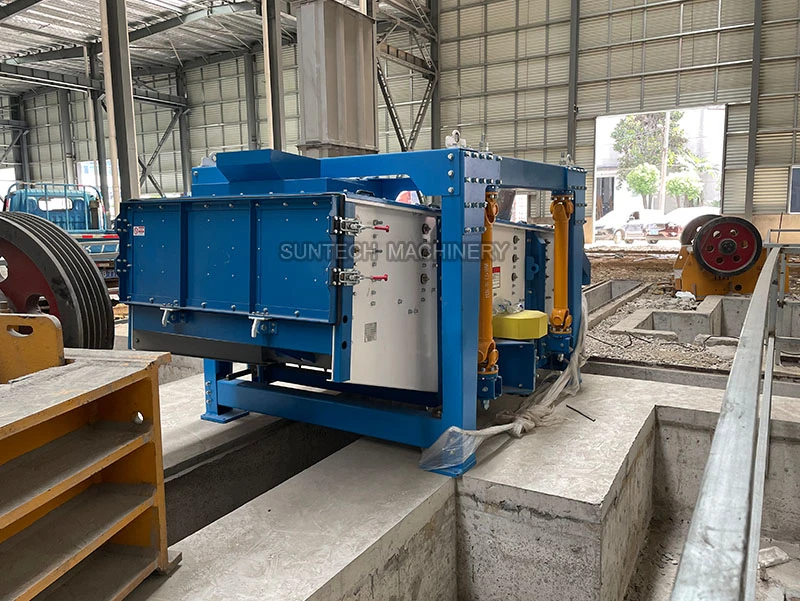

Machine in working site
Parameters
Main Size for choice, pls tell us the material you need to sieve, the mesh size, the capacity per hour, professional plan will provide after we get your detail inquiry.
|
Model |
Sieve Size(mm) |
Power(KW) |
Inclination (Degree) |
Layers |
Rate of frequency (r/min) |
Screen Box movement distance(mm) |
|
FXS1030 |
1000*3000 |
3 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1036 |
1000*3600 |
3 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1230 |
1200*3000 |
4 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1236 |
1200*3600 |
4 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1530 |
1500*3000 |
5.5 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1536 |
1500*3600 |
5.5 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1830 |
1800*3000 |
7.5 |
5 |
1-6 |
180-264 |
25-60 |
|
FXS1836 |
1800*3600 |
7.5 |
5 |
1-6 |
180-264 |
25-60 |
