Cement Linear Vibrating Screen

Cement Linear Vibrating Screen





Cement linear vibrating screen is the linear vibrating sieve used for sieving the cement in the certain mesh size. During the cement production, there will be some particle size difference due to the influence of a variety of raw materials and process. These difference will have an influence on the physical and chemical properties of the cement. In order to ensure the stability and reliability of the cement quality, it is necessary to perform a particle size analysis of the cement to evaluate its particle size distribution and determine its fineness and activity. Then it is necessary to measure the particles size distribution of cement particles by screening procedure, so as to ensure the consistency of cement products. Linear vibrating screen will be an very efficient equipment for the cement screening. Adopts double vibrating motors as vibration source, Linear Vibrating Screen is a kind of closed and light weight industrial vibrating sieve equipment. It has the features of high efficiency, high sieving precision, high sieving capacity etc.

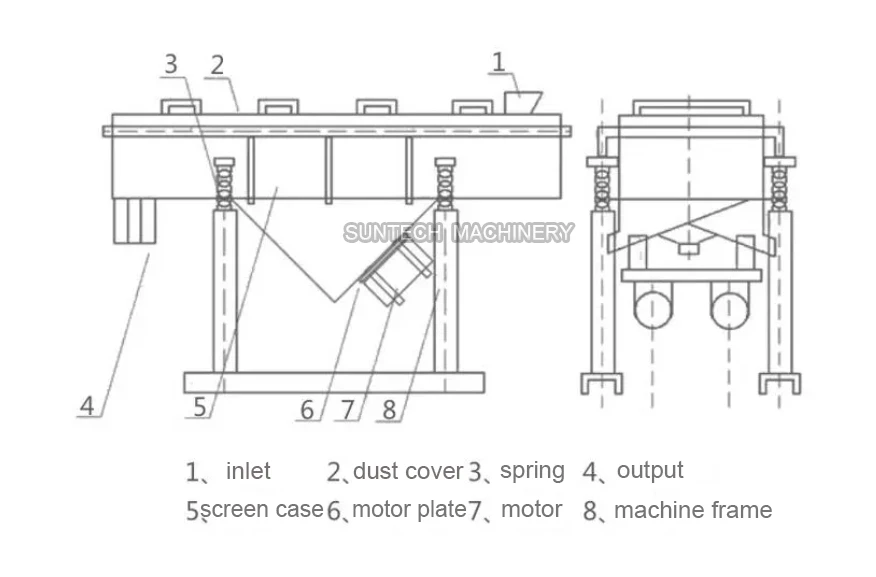

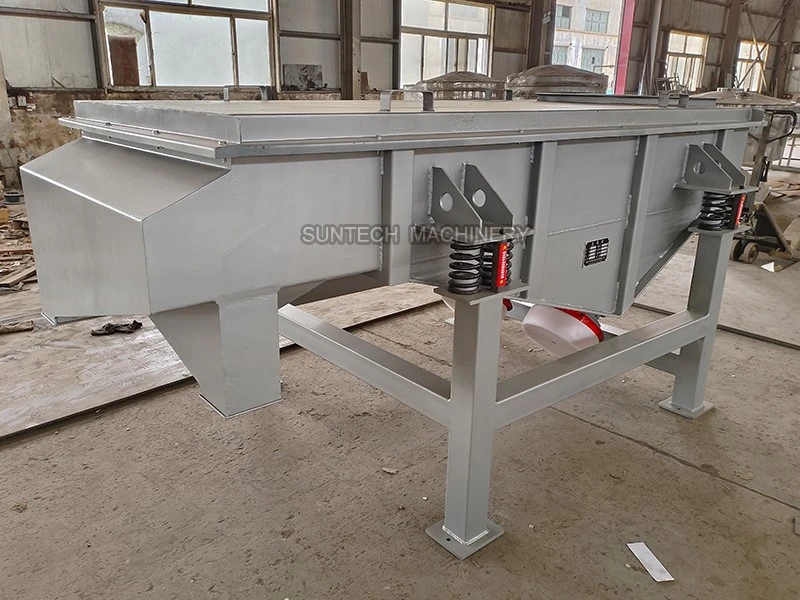

The cement linear vibrating screen is mainly composed of screen case, screen frame, screen mesh, vibration motor, motor pedestal, vibration damping spring and so on.

1.screen case: welded by several kinds of different thickness of steel plate with a certain strength and stiffness,which is the main component of the screen machine.

2. mesh screen frame: made of pine or small deformation of wood, mainly used to keep the screen flat, to achieve normal screening, there are also punched screen plate, steel mesh frame, stainless steel mesh frame.

3. screen mesh sieve: there are low carbon steel, brass, stainless steel wire and other sieve.

4. vibration motor (use and maintenance methods refer to the vibration motor instruction manual).

5.motor pedestal: used for installation of vibration motor, before using, the connection screw must be tightened, especially three days before the trial of the new screen machine, must be repeatedly tightened to avoid loosening caused by accidents.

6. damping spring: prevent vibration to the ground, while supporting the full weight of the screen case,when installation the spring must be perpendicular to the ground.

7. machine frame: consists of four pillars and two channels, supporting the screen box, the installation of the pillar must be perpendicular to the ground, the two pillars below the channel should be parallel to each other.

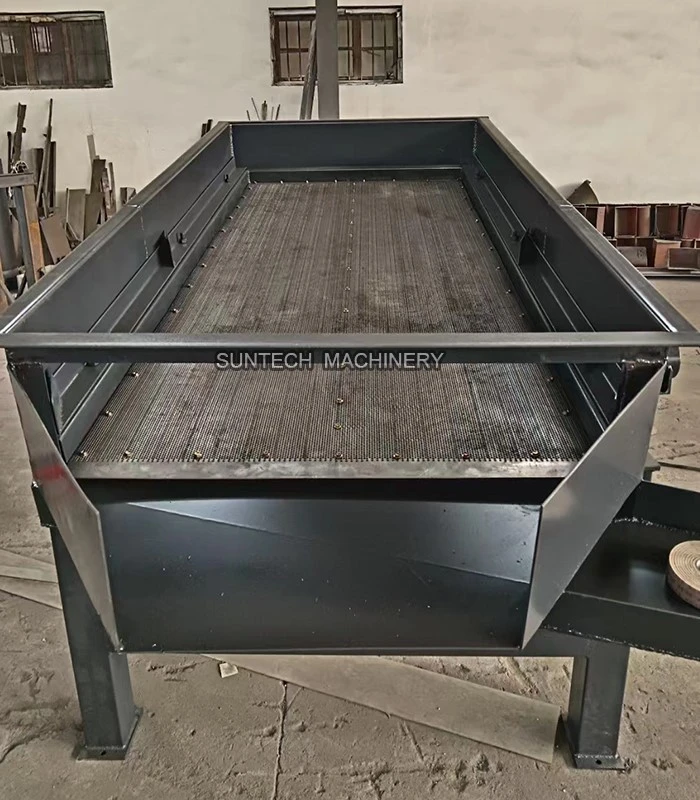

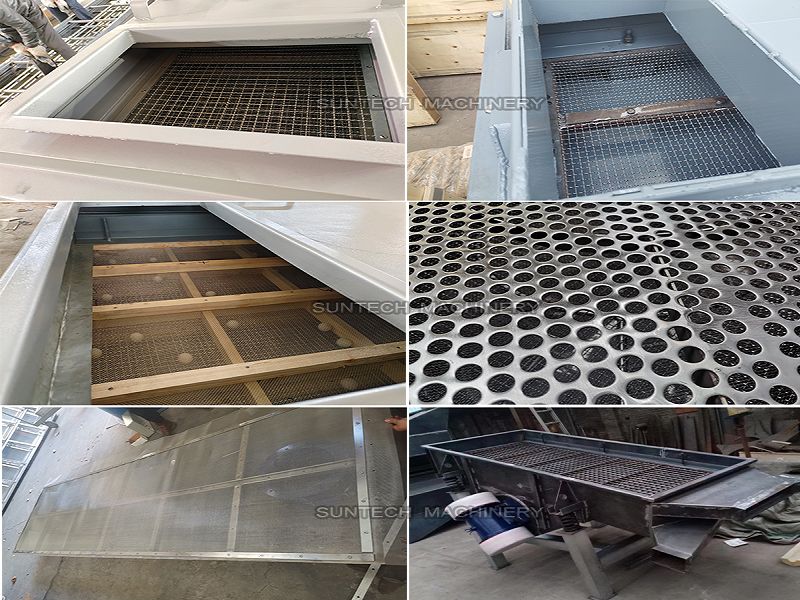

There are different types of inside screen sieve structure according to different customer's request or different applications.



There are Light linear vibrating screen and heavy linear vibrating screen in the cement sieving applications, here is the difference:

1. Strength and durability

The lightweight linear vibrating screen is made of relatively thin material and simple structure, and is suitable for screening smaller particles and powders. The material of the heavy-duty linear vibrating screen is relatively thick, and the structural design considers strength and durability. It is suitable for screening larger particles and harder and more sticky raw materials.

2. Application scope

Light linear vibrating screen is suitable for screening and filtering materials such as light impurities and small powders on production lines. Heavy-duty linear vibrating screens are suitable for screening raw materials in boiler plants, metallurgy, mining and other industries. They can handle granulation, granules, powders and other materials, and have strong processing capabilities.





3. Screening efficiency

The screening efficiency of heavy linear vibrating screen is higher than that of light linear vibrating screen. Heavy-duty vibrating screens can improve screening efficiency by adjusting parameters such as screen angle and screening linear speed, and have stronger processing capabilities when screening larger particles.



To sum up, the lightweight linear vibrating screen is suitable for screening smaller particles and powders. The structural design is relatively simple, and it is suitable for screening and filtering lightweight materials on industrial production lines. The heavy-duty linear vibrating screen has stronger structural strength and durability. It has stronger processing capacity and higher screening efficiency when screening raw materials with larger particle sizes. It is suitable for screening raw materials in boiler plants, metallurgy, mining and other industries.
