Plastic Pellet Linear Vibrating Screen

Plastic Pellet Linear Vibrating Screen

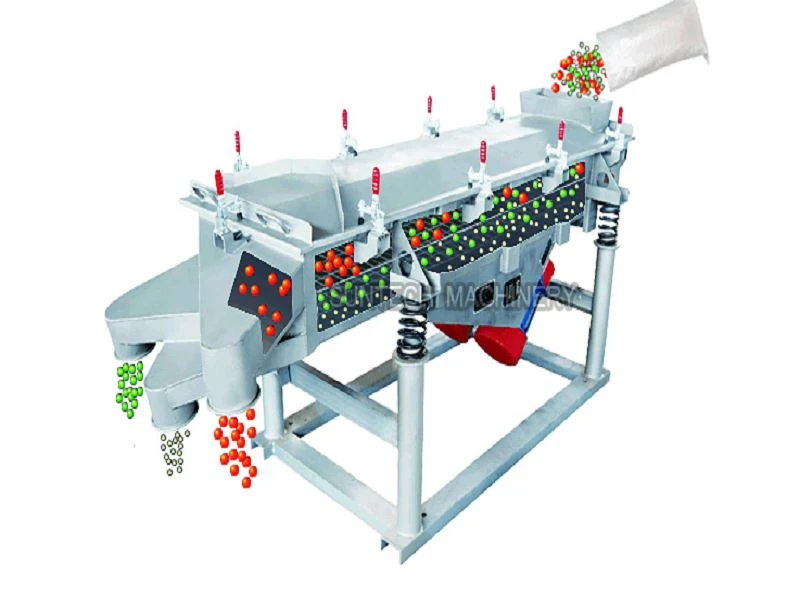

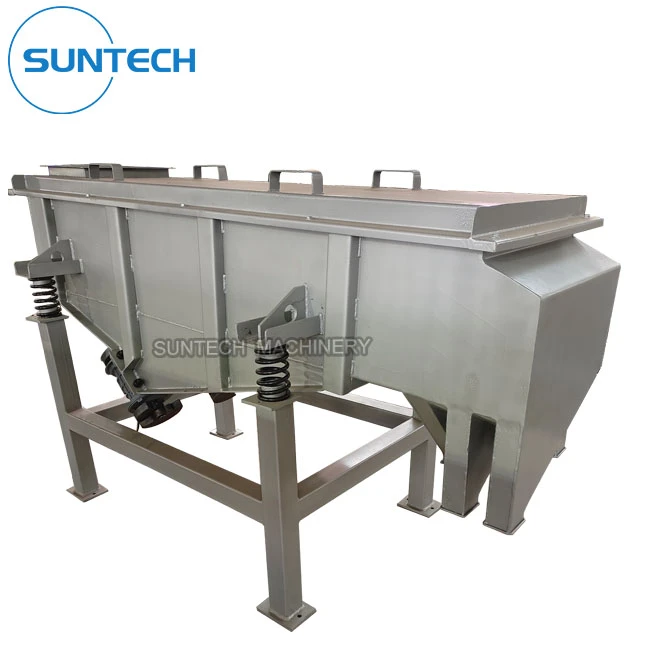

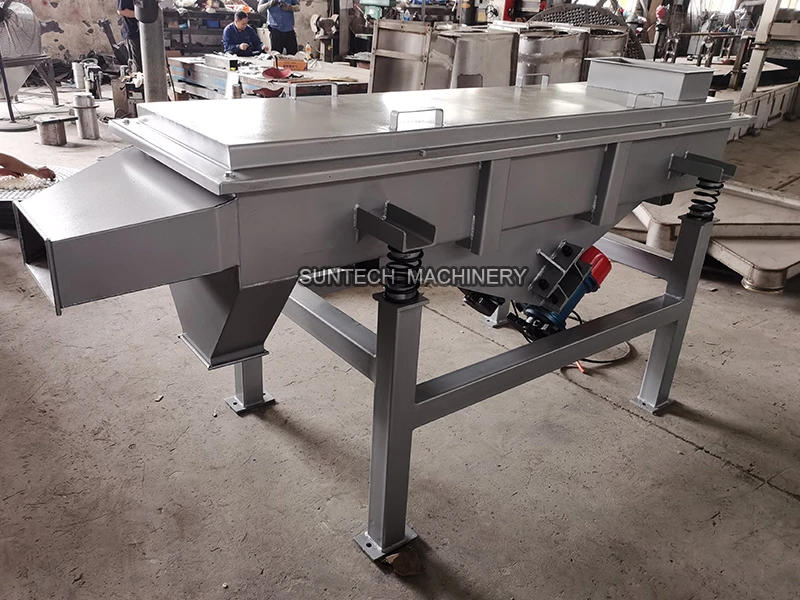

Plastic pellet separating in different size is an important production procedure in plastic recycling and pelletizing industry. There are round shape or rectangular shape sieving machine which can sieving the pellets in different size. linear vibrating screen is a kind of rectangular shape closed and light weight industrial vibrating sieve equipment. It can installed the wooden frame sieve, wire mesh sieve, or perforated plate screen as per different plastic pellet sieving request. After the pellets be fed in to the machine, linear vibrating screen will doing the vibration movement, the plastic pellets will be vibrated and jumped on the screen surface and move forward in straight line. Then different mesh size pellets will be separated by different screen mesh sieve and discharged from each outlet by oversize and under size. It has the features of low energy consumption, high output, simple structure, easy maintenance, full closed structure, not dust overflow, automatic discharged, more suitable for assembly production line.

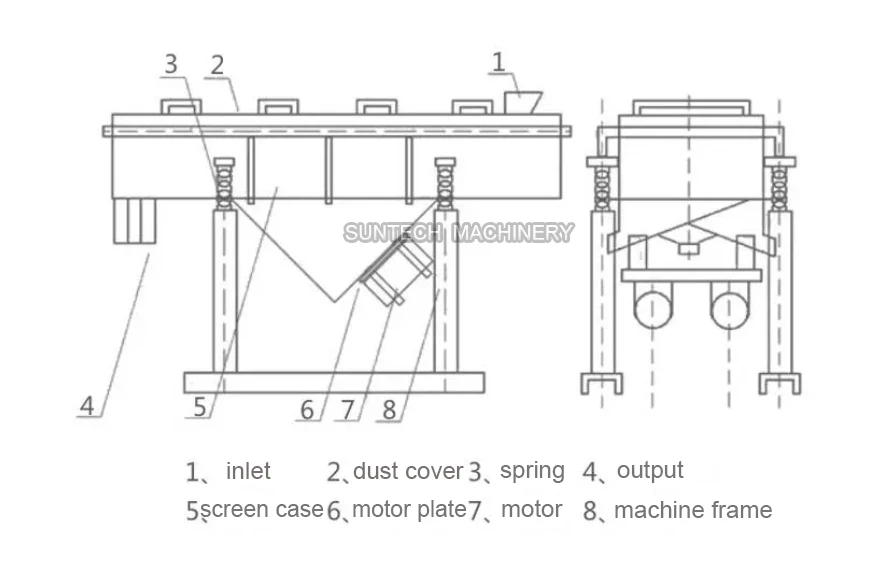

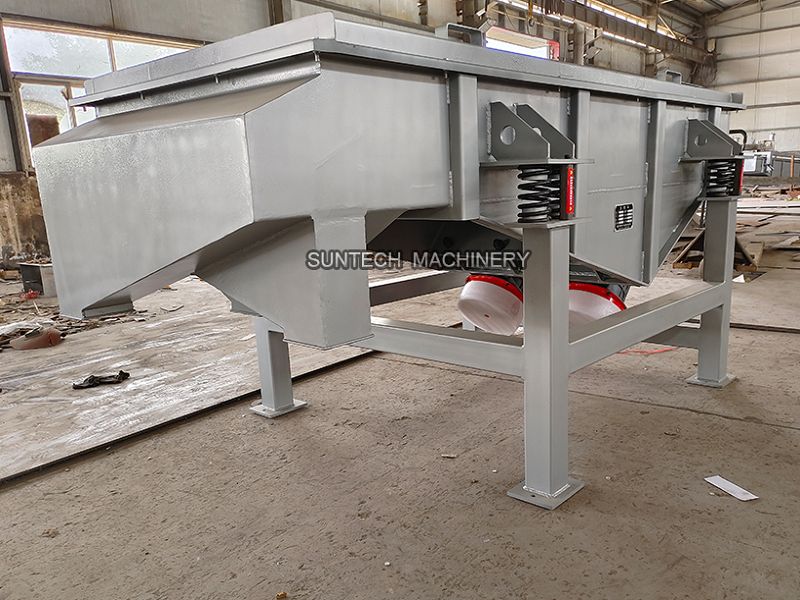

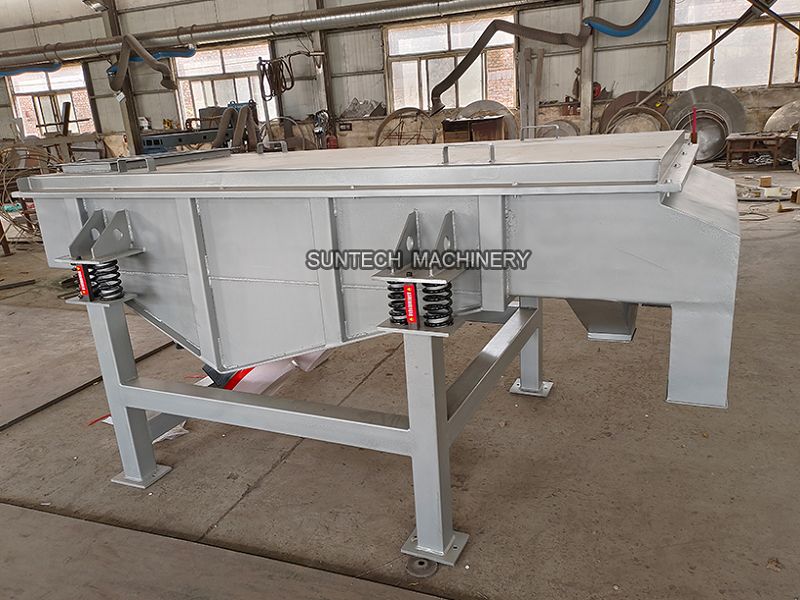

The structure of linear vibrating screen usually includes screen box, single or double vibrator, spring shock absorb er, screen, feeding device, diversion device, etc. The screen box is the main part of the linear vibrating screen. It is usually welded by steel plates and has sufficient strength and rigidity. The vibrator is the power source that generates vibration during the screening process. It is usually directly driven by a motor and is connected to the screen box in a sealed manner. The spring damping device is used to weaken the impact of vibration and ensure that the vibration of the entire system is stable and reliable. The screen is the main component used to screen raw materials, and its selection needs to be based on the production process and material characteristics.

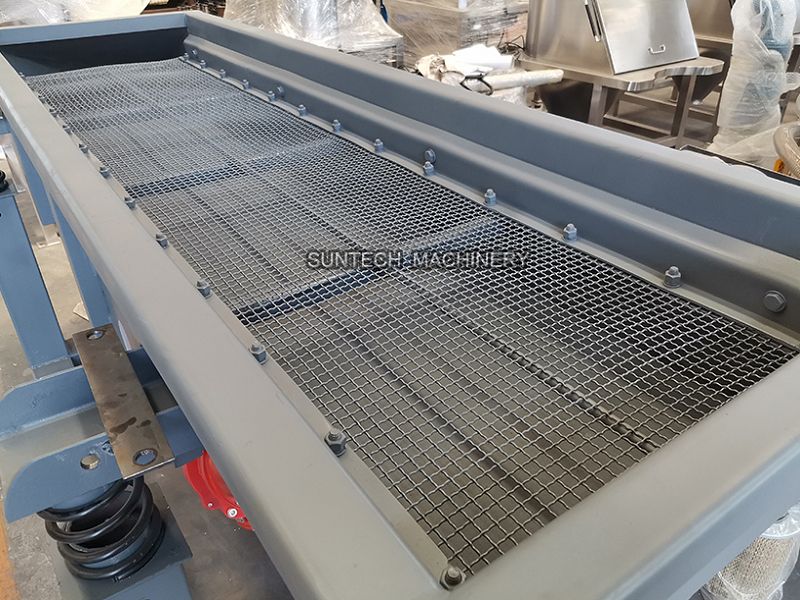

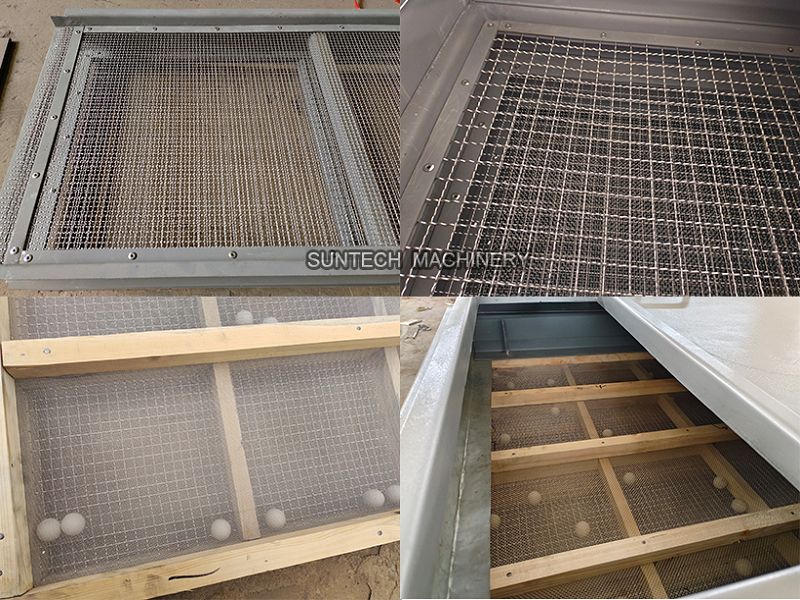

There are two types of linear screen frames: wooden mesh frames and steel mesh frames. Wooden mesh frames are mainly used in the abrasive industry to avoid iron powder mixed with materials caused by friction between materials and carbon steel plates, which affects product quality; the main advantages of steel mesh frames are Not easy to break, large screening area.



It has a wide range of application precedents in the screening and classification of granular and powdery materials in the chemical, food, metallurgy, mining, building materials, grain, abrasives, fertilizer, and coal industries.

1. Determine the screen surface spacing or inclination angle according to the material particle size, screen penetration probability, productivity and other conditions

2. The screen part of this type of equipment has a unique and ingenious design, which can quickly change the screen and tighten it quickly.





There are different size from 500*2000mm to 1500*4000mm, customized mesh layers from 1-7 for 2 to 8 grades separation. Pls contact us directly if you need our suggestions on model choose or you can tell the model you need if you have ever used this type of sieving machine.



Model	Sieve Size(mm)	particle size	Screen surface inclination (°)	amplitude (mm)	layer(s)	power(kw)
ST520	500×2000	0.074-10	0°-10°	3-8	1-7	2×(0.37-0.75)
ST525	500×2500					2×(0.37-0.75)
ST530	500×3000					2×(0.55-1.1)
ST535	500×3500					2×(0.55-1.1)
ST1020	1000×2000					2×(0.55-1.1)
ST1025	1000×2500					2×(1.1-1.5)
ST1030	1000×3000					2×(1.1-1.5)
ST1035	1000×3500					2×(1.5-2.2)
ST1040	1000×4000					2×(1.5-2.2)
ST1225	1200×2500					2×(1.5-2.2)
ST1230	1200×3000					2×(1.5-3)
ST1235	1200×3500					2×(1.5-3)
ST1530	1500×3000					2×(2.2-3)
ST1535	1500×3500					2×(2.2-3)
ST1540	1500×4000					2×(2.2-4)
