Chemical Grade Linear Vibrating Screen
Chemical grade linear vibrating screen is mentioned the linear vibrating screen used in chemical powder sieving industry. Chemical industry is a very widely concept, it including inorganic chemical material,resin,auxiliary chemicals, food additives, catalyzer, dyes, paints, pigments, fragrances etc. All of this chemical materials will need to be sieved or separated or filtered during the production. Besides the round rotary vibrating screen, tumbler vibrating screen, the linear vibrating screen also playing a very important role during this sieving production.
- Product Introduction
Chemical Gade Linear Vibrating Screen
Introduction
Chemical grade linear vibrating screen is mentioned the linear vibrating screen used in chemical powder sieving industry. Chemical industry is a very widely concept, it including inorganic chemical material,resin,auxiliary chemicals, food additives, catalyzer, dyes, paints, pigments, fragrances etc. All of this chemical materials will need to be sieved or separated or filtered during the production. Besides the round rotary vibrating screen, tumbler vibrating screen, the linear vibrating screen also playing a very important role during this sieving production.
Linear vibrating screen is a kind of rectangular shape closed and light weight industrial vibrating sieve equipment. It can installed the wooden frame sieve, wire mesh sieve, or perforated plate screen as per different sieving request.
Working Principle
The linear vibrating screen is driven by dual vibration motors. When the two vibration motors rotate synchronously and in opposite directions, the exciting forces generated by their eccentric blocks cancel each other in the direction parallel to the motor axis, and overlap in the direction perpendicular to the motor axis. A resultant force, so the motion trajectory of the screen machine is a straight line. The two motor shafts have an inclination angle relative to the screen surface. Under the combined force of the excitation force and the material's own gravity, the material is thrown up on the screen surface and moves forward in a straight line, thereby achieving the purpose of screening and grading the material. Can be used to automate operations in the assembly line. It has the characteristics of low energy consumption, high efficiency, simple structure, easy maintenance, and fully enclosed structure without dust spillage. It can screen materials up to 400 mesh, and can screen out 8 kinds of materials with different particle sizes.

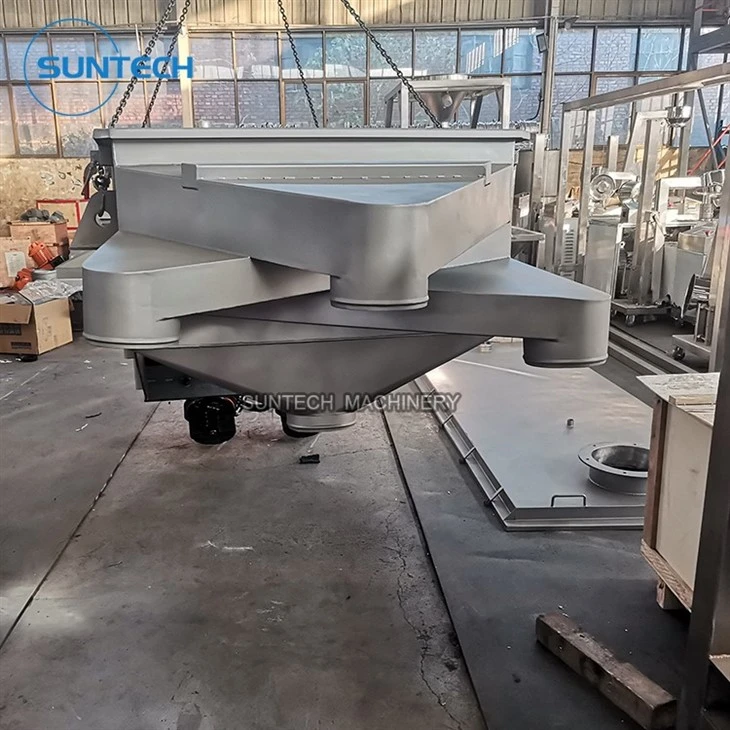

Machine in Workshop
There are different types of inside screen sieve structure according to different customer's request or different applications.
Machine Features
This linear vibrating screen has high screening accuracy, large processing capacity, simple structure, low energy consumption, low noise, long screen life, good sealing, very little dust spillage, easy maintenance, and can be used for automated operations in assembly line production.
It is widely used for screening dry powdery or granular materials in chemical, food, plastics, medicine, metallurgy, glass, building materials, grain, fertilizer, abrasives, ceramics and other powder and granules industries.
Main Parameters
The right model choice depends on the material density, the powder mesh size, the sieving capacity etc, pls contact us directly if you have any interest in our linear vibrating screen machine or any sieving needs, we will provide you right model and professional plan.
|
Model |
Sieve Size(mm) |
particle size |
Screen surface inclination (°) |
amplitude (mm) |
layer(s) |
power(kw) |
|
ST520 |
500×2000 |
0.074-10 |
0°-10° |
3-8 |
1-7 |
2×(0.37-0.75) |
|
ST525 |
500×2500 |
2×(0.37-0.75) |
||||
|
ST530 |
500×3000 |
2×(0.55-1.1) |
||||
|
ST535 |
500×3500 |
2×(0.55-1.1) |
||||
|
ST1020 |
1000×2000 |
2×(0.55-1.1) |
||||
|
ST1025 |
1000×2500 |
2×(1.1-1.5) |
||||
|
ST1030 |
1000×3000 |
2×(1.1-1.5) |
||||
|
ST1035 |
1000×3500 |
2×(1.5-2.2) |
||||
|
ST1040 |
1000×4000 |
2×(1.5-2.2) |
||||
|
ST1225 |
1200×2500 |
2×(1.5-2.2) |
||||
|
ST1230 |
1200×3000 |
2×(1.5-3) |
||||
|
ST1235 |
1200×3500 |
2×(1.5-3) |
||||
|
ST1530 |
1500×3000 |
2×(2.2-3) |
||||
|
ST1535 |
1500×3500 |
2×(2.2-3) |
||||
|
ST1540 |
1500×4000 |
2×(2.2-4) |
Packing & Delivery
For single machine delivery, we will make the plywooden box packing for damage proof, for the whole truck machine, we will hire the direct line truck to ensure the machine hand over to the client directly.
The linear vibrating screen machine is complete packing and delivery, the user can use the machine directly after connecting the according power.
Using Instructions
1) The unique screen structure design makes it easy and fast to replace the screen (only 3 to 5 minutes). In addition, this design also support various screens such as nylon, special nylon, PP mesh etc.
2) Screen machine design; compact and easy to assemble, one person can operate the screen machine.
3) Compared with other related brand manufacturers, it has a larger screening area and high-efficiency processing capabilities.
4) The supporting mesh fully supports the fine mesh, so the fine mesh can have a longer life, reduce wearing of fine mesh.
