Multi Deck Linear Vibration Screen

Multi Deck Linear Vibration Screen

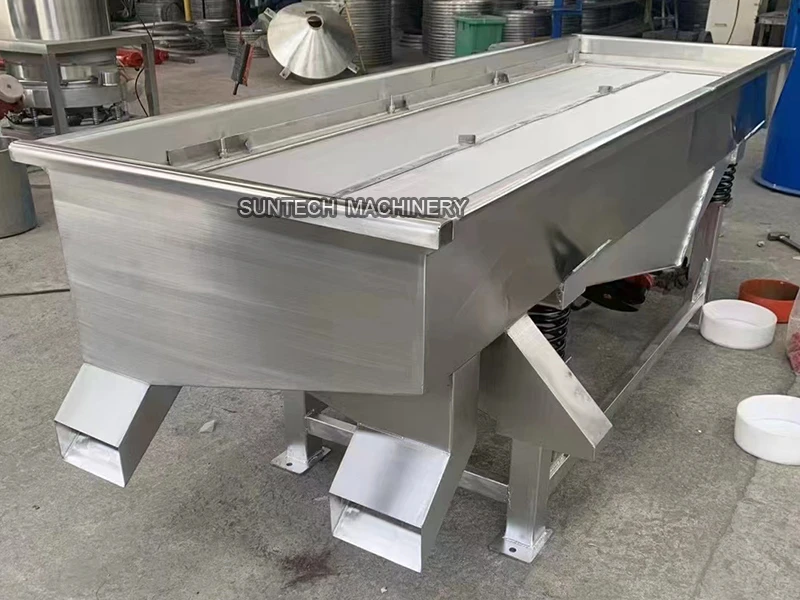

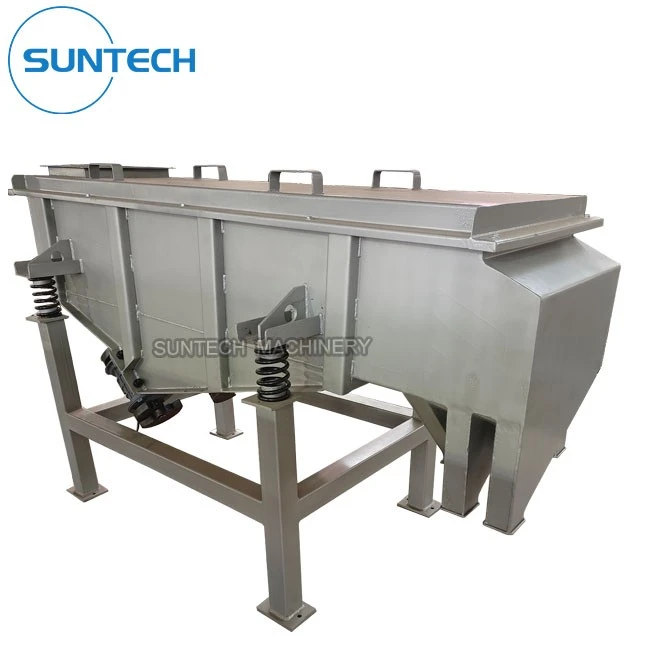

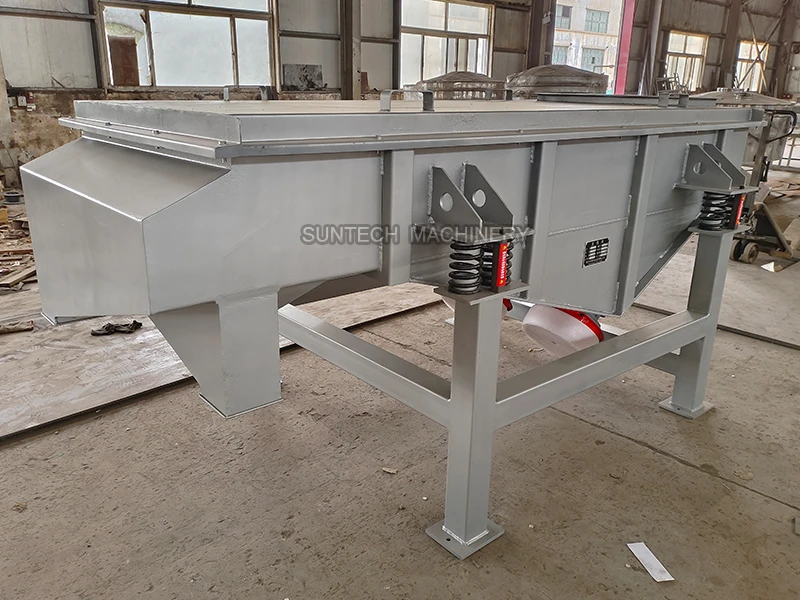

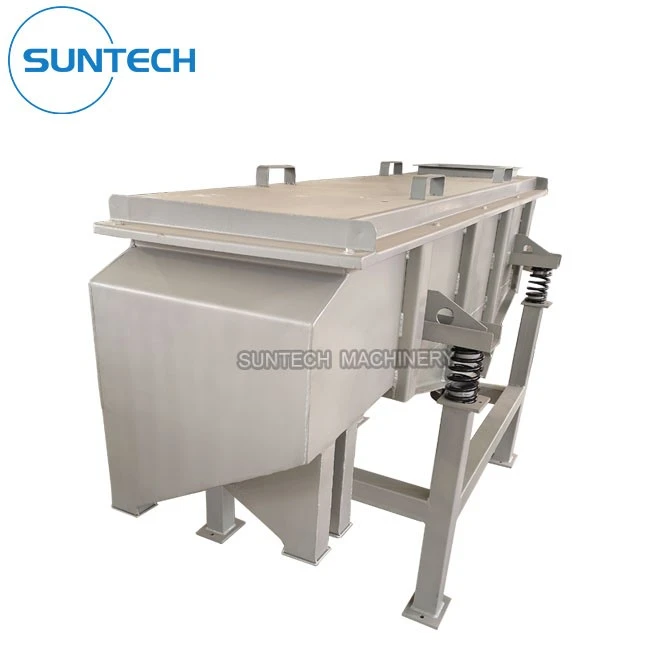

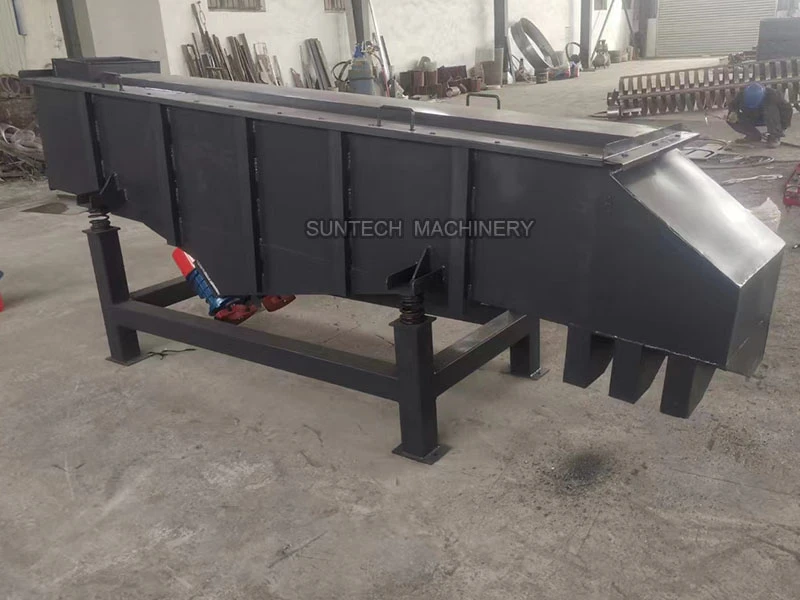

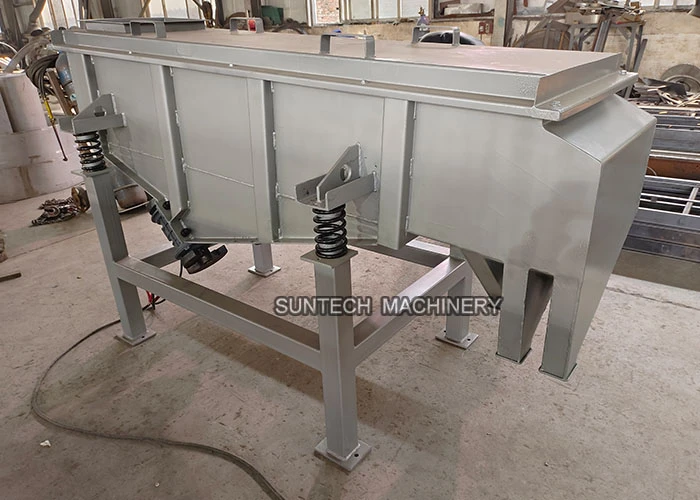

Multi deck linear vibration screen is the rectangular vibrating sieve machine equipped with several mesh layers as per user's specific sieving request. Single Layers linear vibration screen is mainly used for removing the dust, multi deck linear vibration screen is mainly used for grading or separating the pellet or powder in different mesh size. It can install 1-7 mesh size by one single machine. There are different size from 520, 525, ....1030...1545 as per different sieving capacity from 0.05t/h-20t/h. Adopts double vibrating motors as vibration source,multi deck linear vibration screen is a kind of closed and light weight industrial vibrating sieve equipment. It has the features of high efficiency, high sieving precision, high sieving capacity etc.



Model 520-4F

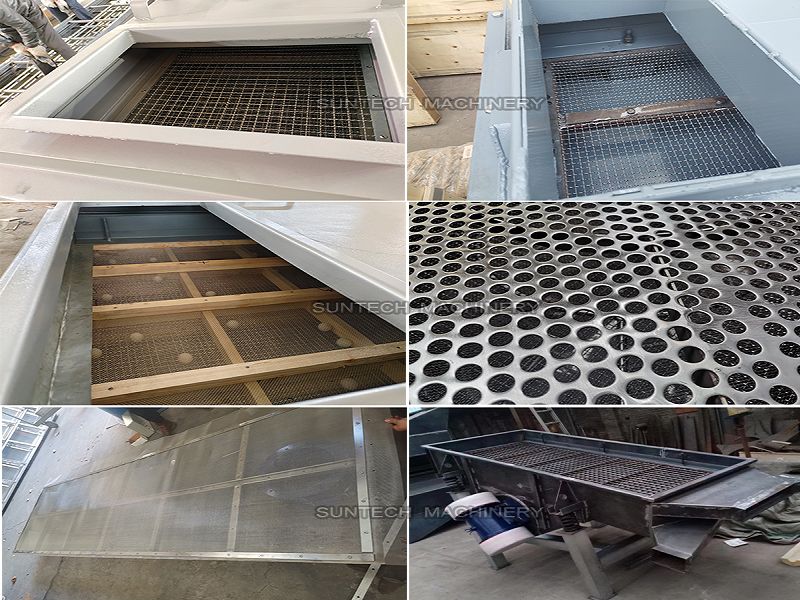

There are different types of inside screen sieve structure according to different customer's request or different applications.

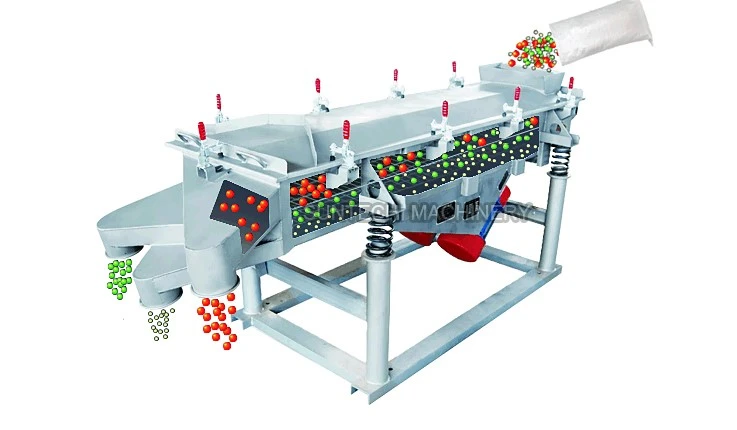

The screen surface of the linear screen vibrates linearly through the driving mechanism. The material enters the screen surface along the feed inlet. Under the action of the vibration force, the material moves forward and continuously contacts the screen surface, thereby being divided into particles of different sizes. During the screening process, small particles fall into the fine bin below through the sieve holes, while large particles move forward along the screen surface and finally fall into the enlarged bin.

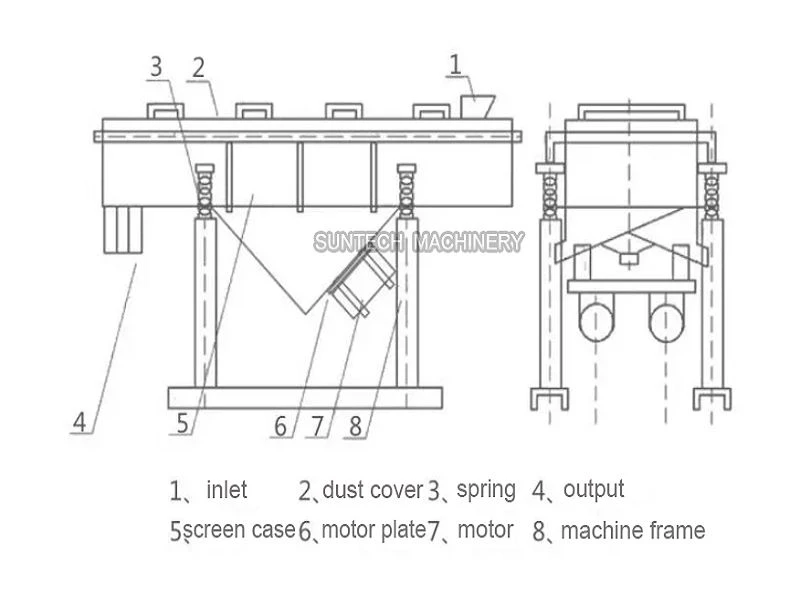

(1) Detachable screen box: It is made of welded plates of different materials and certain thicknesses according to customer needs. The detachable screen is designed to facilitate users to repair, clean, and replace the screen, or to choose different screening layers according to the differences in materials. number.

(2) Multi-layer screen frame: There are various types such as wood and metal materials, which are used to fix the screen to keep it flat and optimize the screening effect.

(3) Multi-layer screen: Select the number of screen layers and meshes according to the fineness of the material. There are several materials such as mild steel, brass, bronze, stainless steel wire, etc.; there are square, round, diamond and other shapes. Mesh shape, used for screening different materials.

(4) Vibration damping spring: connects the bracket and the screen box. It is mainly used to prevent vibration from being transmitted to the ground and at the same time support the full weight of the screen box.

(5) Dust cover: It is mainly used to screen dust and granular materials to ensure that the materials do not splash and the dust does not spill.







Both linear screens and round vibrating screens are screening equipment, but their screen surface vibration trajectories are different. The screen surface of the linear screen has a linear motion trajectory, with high screening efficiency and high precision; while the screen surface of the round vibrating screen is circular or oval, with low screening efficiency and low precision. At the same time, the linear screen will not cause damage to the materials and ensures the integrity of the materials; while the round vibrating screen will be disturbed by frustration and noise during the screening process, which may cause damage to the materials. Therefore, suitable screening equipment should be selected under different industries and screening requirements.
