Linear Vibrating Screen Machine for Sieving Kaolin
Adopts double vibrating motors as vibration source, Linear Vibrating Screen is a kind of closed and light weight industrial vibrating sieve equipment. Kaolin is a kind of non-metallic ore, mainly composed of kaolinite and illite.
- Product Introduction

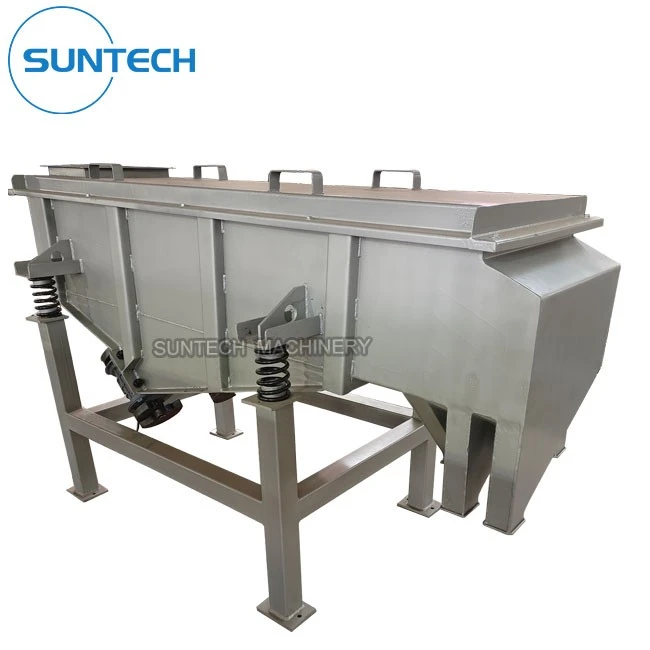

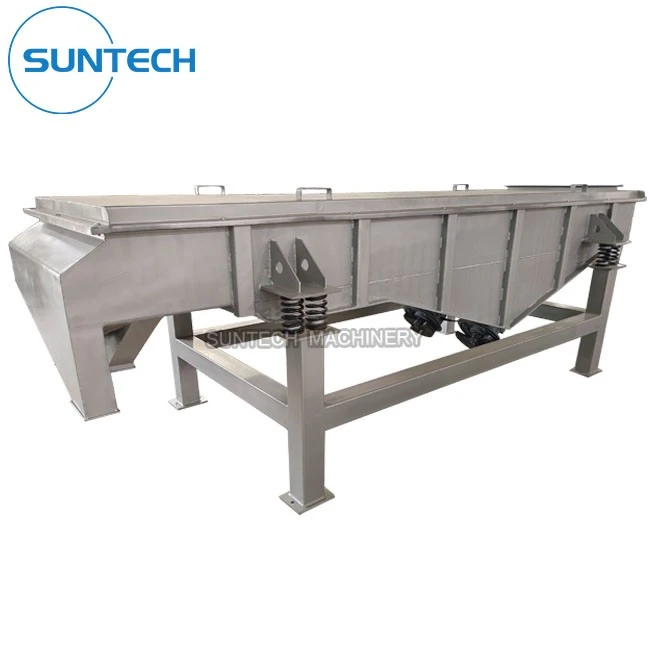

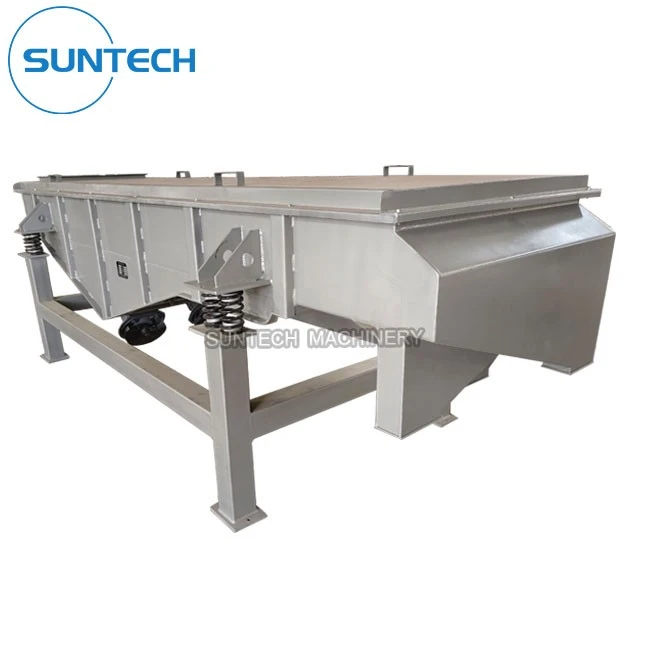

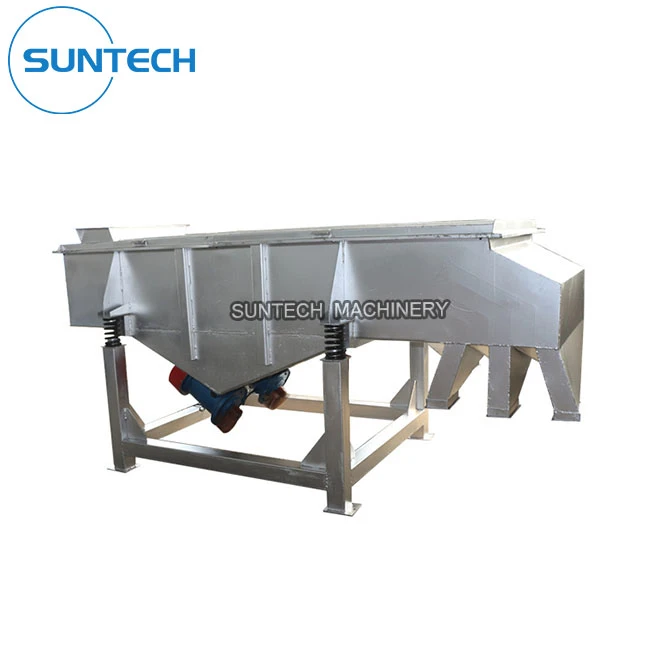

Linear Vibrating Screen Machine For Sieving Kaolin
Introduction

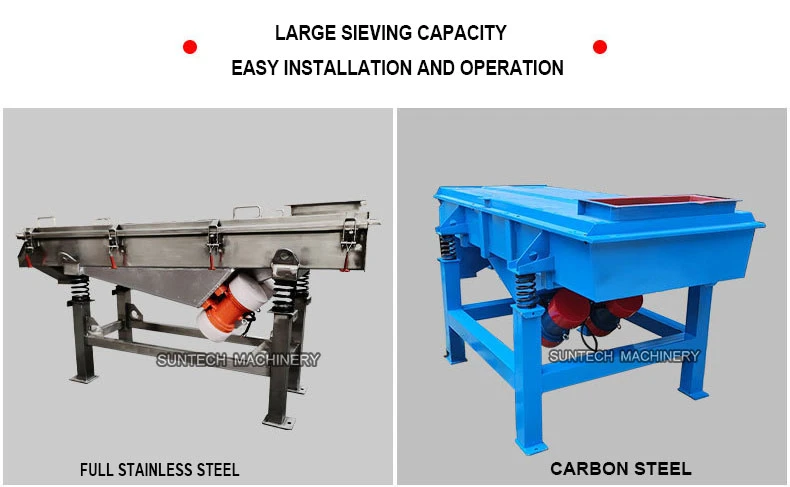

Adopts double vibrating motors as vibration source, Linear Vibrating Screen is a kind of closed and light weight industrial vibrating sieve equipment. Kaolin is a kind of non-metallic ore, mainly composed of kaolinite and illite. It will need to separate the kaolin in different mesh size, or remove the impurities. The linear vibrating screen machine has a good performance on the kaolin sieving as it is closed structure which can avoid dust flying around, can be made in multi layers from 1-8 decks which can meet full sieving demands.There are different materials as per different application, full stainless steel or carbon steel.
Working Principle

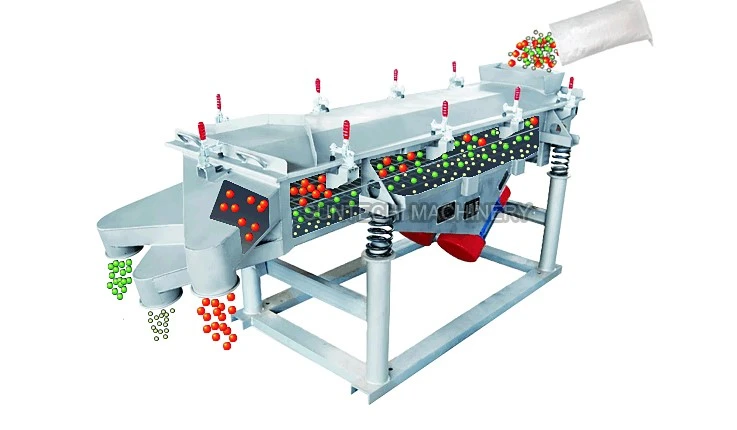

When working, the two motors spin in opposite directions, the eccentric blocks at the ends of motor produce vibration force. Under the action of vibration force, the screen box which supported on the four compression spring produces a continuous linear vibration. In the process of the movement, the materials do the projectile motion and keep going in a straight line at the same time. The materials enter in from the inlet, go through the multi-layer screen, then different size of materials was separated out from different outlet. It can be equipped with single or multi-decks to achieve different purposes like grading, removing impurity, removing dust, testing, washing selecting, dehydration, etc.

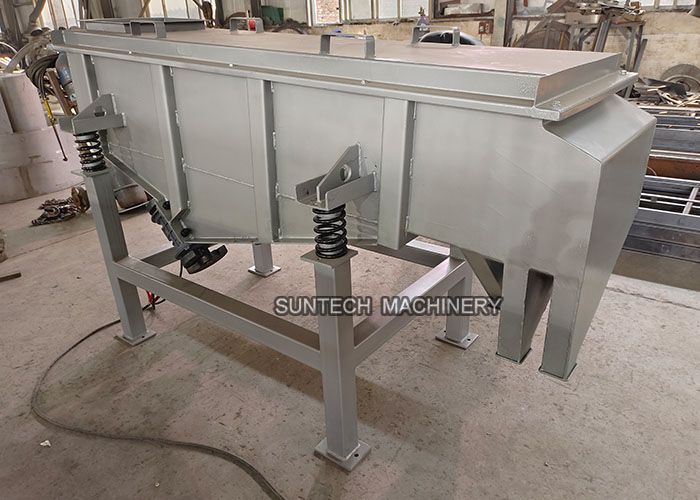

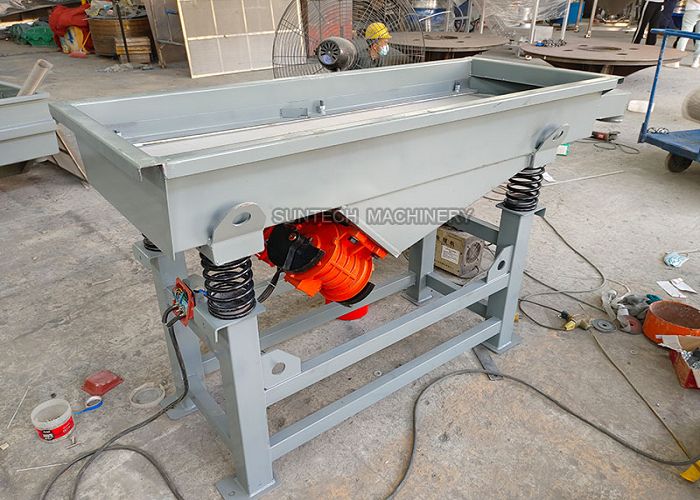

Detail Picture Show

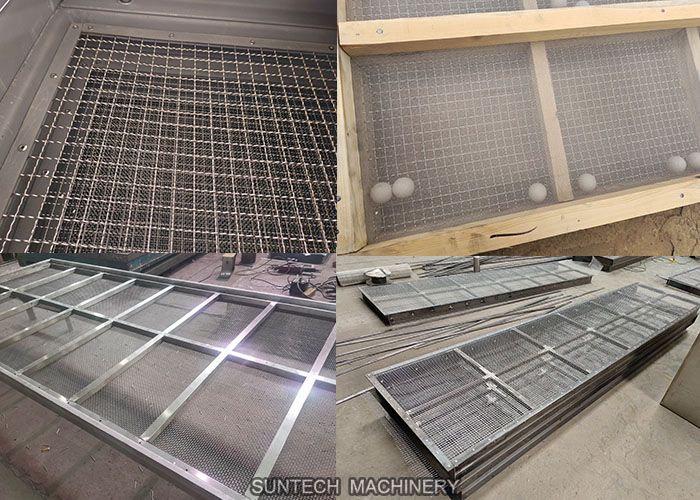

There are different mile steel frame with s304 wire screen, pine wooden frame with s304 wire screen and bouncing ball, stainless steel frame with stainless steel wire sieve according to different customer's request or different applications.
Machine Features
1. Low energy consumption, high efficiency.
2. Full closed structure, no dust flying.
3. Sieving accuracy reach to 200 mesh (0.074mm), 6 layers.
4. Simple and convenient for changing and cleansing mesh screen.
5. Less blocking of mesh screen.
Main Parameters
The right model choice depends on the material density, the powder mesh size, the sieving capacity etc, pls contact us directly if you have any interest in our linear vibrating screen machine or any sieving needs, we will provide you right model and professional plan.
|
Model |
Sieve Size(mm) |
particle size |
Screen surface inclination (°) |
amplitude (mm) |
layer(s) |
power(kw) |
|
ST520 |
500×2000 |
0.074-10 |
0°-10° |
3-8 |
1-7 |
2×(0.37-0.75) |
|
ST525 |
500×2500 |
2×(0.37-0.75) |
||||
|
ST530 |
500×3000 |
2×(0.55-1.1) |
||||
|
ST535 |
500×3500 |
2×(0.55-1.1) |
||||
|
ST1020 |
1000×2000 |
2×(0.55-1.1) |
||||
|
ST1025 |
1000×2500 |
2×(1.1-1.5) |
||||
|
ST1030 |
1000×3000 |
2×(1.1-1.5) |
||||
|
ST1035 |
1000×3500 |
2×(1.5-2.2) |
||||
|
ST1040 |
1000×4000 |
2×(1.5-2.2) |
||||
|
ST1225 |
1200×2500 |
2×(1.5-2.2) |
||||
|
ST1230 |
1200×3000 |
2×(1.5-3) |
||||
|
ST1235 |
1200×3500 |
2×(1.5-3) |
||||
|
ST1530 |
1500×3000 |
2×(2.2-3) |
||||
|
ST1535 |
1500×3500 |
2×(2.2-3) |
||||
|
ST1540 |
1500×4000 |
2×(2.2-4) |

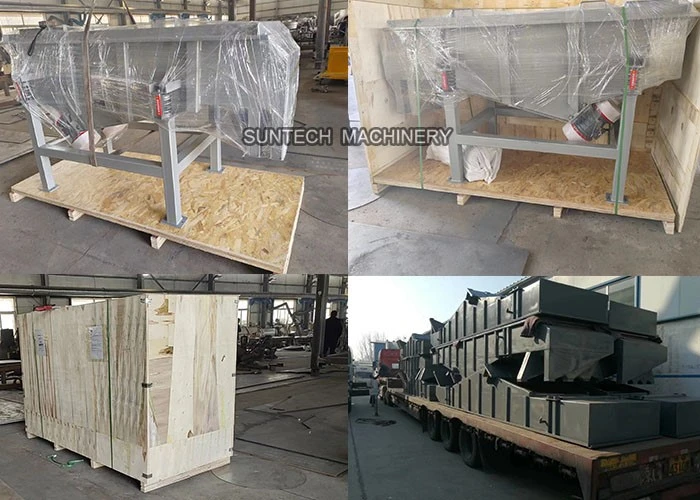

Packing & Delivery
For the screen sieve spare parts and the single machine, we will make the plywooden box packing for damage proof, for the whole truck machine, we will hire the direct line truck to ensure the machine hand over to the client directly.
The linear vibrating screen machine is complete packing and delivery, the user can use the machine directly after connecting the according power.
About US
Suntech Machinery (Xinxiang) Company Limited is located in Xinxiang which is the production base of vibrating screen and conveyor equipment. With more than 20 years development and technology precipitation, Suntech has become a leading enterprise in screening and conveying industry with richful export experience.
Our main product is including rotary vibrating screen, round tumbler sieve, rectangular gyratory sieving machine, vacuum conveyor, bag dumping station, screw conveyor, belt conveyor, bucket elevator,packing machine and other supporting machine etc. All these machine are widely used in food, chemical, pharmaceutical, abrasive,mining, metallurgy,geology, lithium battery and all other industries. All our machine have win a good reputation because of the stable quality, reasonable price, and good sales service.
Sincerely invite you to come to our company for more cooperation!
