Fine Powder Ultrasonic Vibrating Screen

Fine Powder Ultrasonic Vibrating Screen

Fine powder ultrasonic vibrating screen is the new upgrade rotary vibrating sieve machine. It is combined two function of ultrasonic generator with vibration motor which is higher efficiency for fine mesh powder above 100mesh or the powders with high absorption, easy agglomeration, high static, high precision degree, light weight etc.The ultrasonic transducer converts 220V, 50Hz or 110V, 60Hz electrical energy into 38KHz high-frequency electrical energy and turns it into 38KHz mechanical vibration frequency to the screen surface so that improve the passing rate.

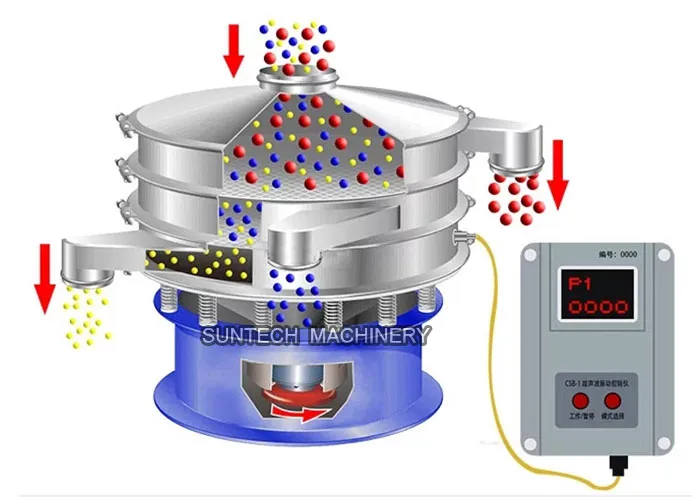

Ultrasonic vibrating screen is a new product that combined the ultrasonic generator with vibrating screen. Connecting with the single phase powder 220V 50HZ or 110V 60HZ, the ultrasonic generator will transforms this normal power into the high-frequency electrical energy of 35kHz, then using ultrasonic vibrator head to convert the electrical energy---35kHz into mechanical energy to produce ultrasonic vibration that we can't see but can touch by hand, so that the material on screen surface always maintain suspension, in this way, we can achieve the purpose of screening and clearing efficiently, and make the screening of ultra-fine powder become an easy way.

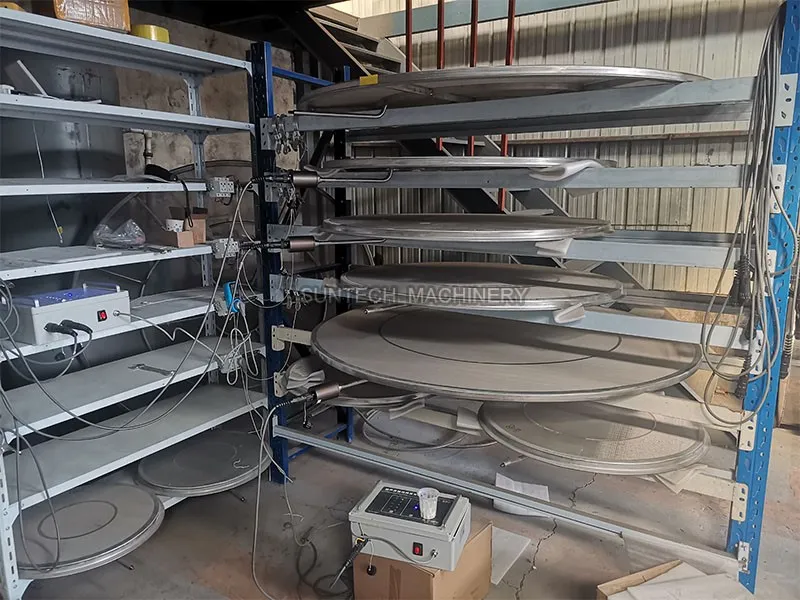

Ultrasonic transducer with screen sieve testing in working shop

Ultrasonic transducer with generator

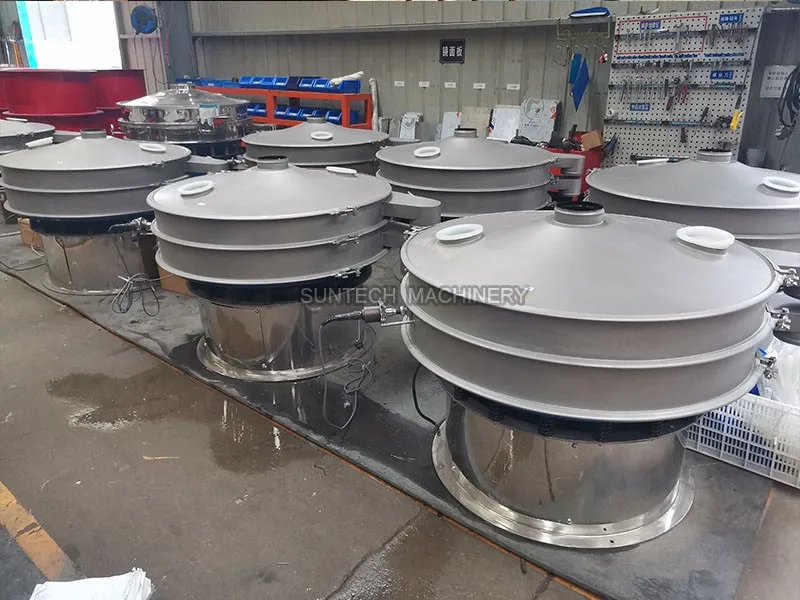

Single layer ultrasonic vibrating screen testing in workshop

Improve the flat fall of low-density powder in gravity sedimentation (light contact between powder and screen mesh ) and sliding effect, improve the retention or wedge of high-density metal at the mesh opening, improve the adhesion effect of electrostatically charged powder, thereby improving screening efficiency and screening quality. In terms of sieving pass rate, generally the passing rate is 50%-400% higher than that of a vibrating screen without ultrasonic vibrating screen.

⑴Reduce or eliminate screen mesh clearing time;

⑵No contamination of the powder by auxiliary objects such as bouncing balls;

⑶Maintain mesh size and stabilize screening accuracy;

⑷Decompose adhering substances and reduce sieve debris;

⑸Reduce the sieving times.

Chemical industry: resin, paint, industrial drugs, cosmetics, paint, Chinese medicine powder, etc.
Food industry: sugar powder, starch, salt, rice flour, milk powder, soybean milk, egg powder, soy sauce, fruit juice, etc.
Metals, metallurgy and mining industry: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod powder,manganese dioxide, electrolytic copper powder, electric Magnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.
Pollution treatment: waste oil, waste water, dyeing and finishing waste water, auxiliaries, activated carbon, etc.

The proper selection of ultrasonic round vibrating screen sieve depends on the raw material, mesh size, required output, method of input, abrasiveness of the material, etc:

1. Material:_____, specific
gravity/density:_____

2. Moisture:_____%

3. Capacity:________kg/ hour

4. Screen layer:_______

5. Screen mesh size:______ mesh .
______ mesh. ______ mesh

6. Voltage:______V, Frequency:______HZ, 3 phase

7. SS304/316L stainless steel or carbon steel?
Or you can tell us the model you need if you have ever used this type of machine.

For overseas goods, we generally use the stretch film inside and plywooden box outside, for domestic goods, we usually use the direct line truck for goods safe and delivery on time.

Full truck of fine powder ultrasonic vibrating screen delivery from factory.
