Milk Powder Ultrasonic Vibro Sieve

Milk Powder Ultrasonic Vibro Sieve





Milk powder ultrasonic vibro sieve is mentioned the ultrasonic vibrating screen applied for the milk powder sieving in different mesh size. Ultrasonic vibro sieve is the upgrade rotary vibrating screen for the fine mesh powder sieving by adding the ultrasonic device on the screen surface.It not only can cleaning the screen mesh very efficiently but also can improve the sieving capacity, so it is the ideal sieving machine for the milk powder sieving.

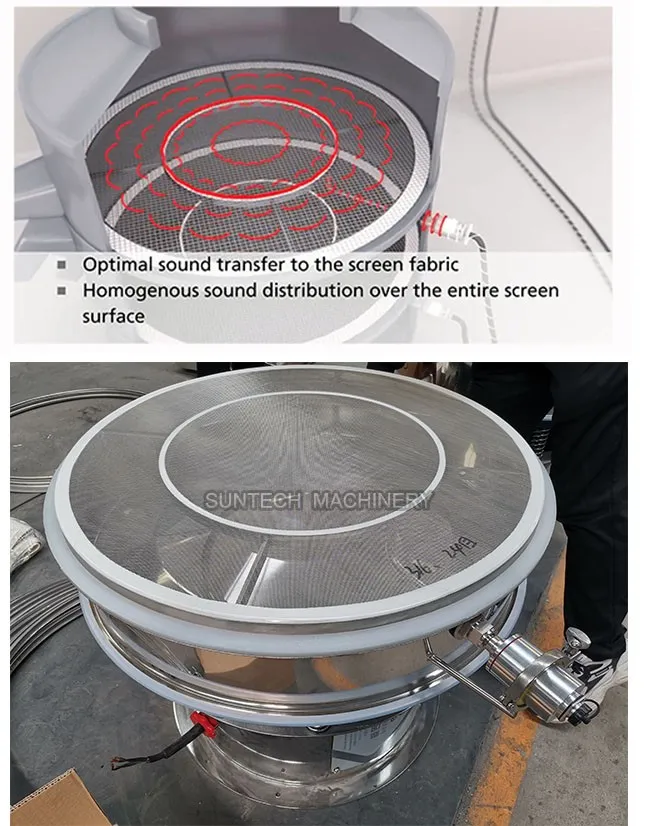

Milk powder ultrasonic vibro sieve is combining ultrasonic generator and rotary vibrating screen, different from the general rotary vibrating screen, there will be an ultrasonic transducer installed on the special design screen sieve, controlled by the transducer generation box, the ultrasonic transducer will convert the 110V or 220V electric energy into the high frequency sinusoids longitudinal oscillation waves and then transmitted to the screen surface by the resonance. The powder material will do the three dimensional vibration and ultrasonic vibration together, which can not only prevent mesh plugging, but also improve the sieving capacity and accuracy. It is can specially solve the sieving problems of strong adsorption, easy agglomeration, high static electricity, high precision, high density, light gravity and so on.









Model		STC-400	STC-600	STC-800	STC-1000	STC-1200	STC-1500	STC-1800	STC-2000
Effective diameter		Φ340	Φ540	Φ730	Φ900	Φ1100	Φ1400	Φ1700	Φ1886
Effective screening area		0.0907	0.2289	0.4183	0.6359	0.9499	1.5386	2.2687	2.7922
Sieve size		80-600mesh
Number of layers		1-3	1-3	1-3	1-3	1-3	1-3	1-3	1-3
Power	vibration motor	0.18	0.25	0.55	0.75	1.1	1.5	2.2	2.2





Various production line of ultrasonic vibro sieve, it not only can work in single machine, but also can combine with other feeding, conveying, mixing production line.

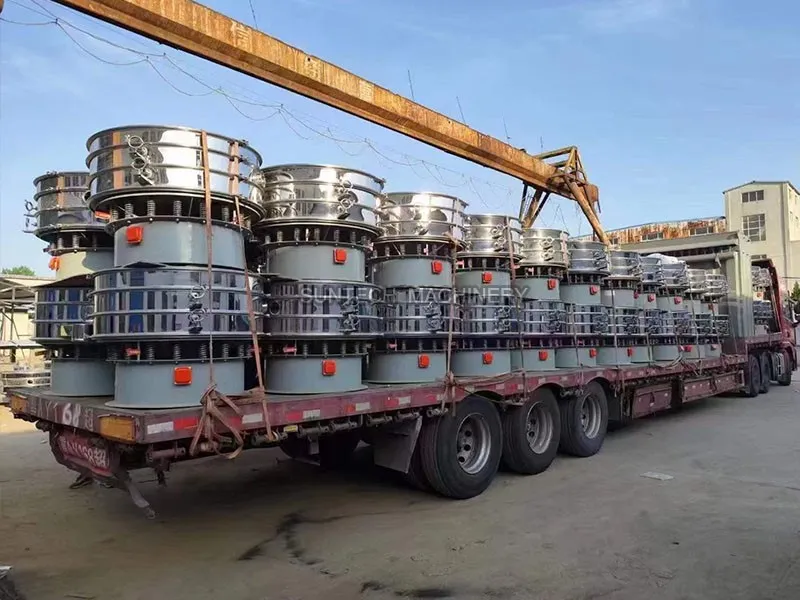

For the screen sieve spare parts and the single machine, we will make the plywooden box packing for damage proof, for the multi sets machine, we will hire the direct line truck to ensure the machine hand over to the client directly.







Suntech Machinery (Xinxiang) Company Limited is located in Xinxiang which is the production base of vibrating screen and conveyor equipment. With more than 20 years development and technology precipitation, Suntech has become a leading enterprise in screening and conveying industry with richful export experience.

Our main product is including rotary vibrating screen, round tumbler sieve, rectangular gyratory sieving machine, vacuum conveyor, bag dumping station, screw conveyor, belt conveyor, bucket elevator,packing machine and other supporting machine etc. All these machine are widely used in food, chemical, pharmaceutical, abrasive,mining, metallurgy,geology, lithium battery and all other industries. All our machine have win a good reputation because of the stable quality, reasonable price, and good sales service.

Sincerely invite you to come to our company for more cooperation!
