High Quality Ultrasonic Vibrating Screen Separator

High Quality Ultrasonic Vibrating Screen Separator

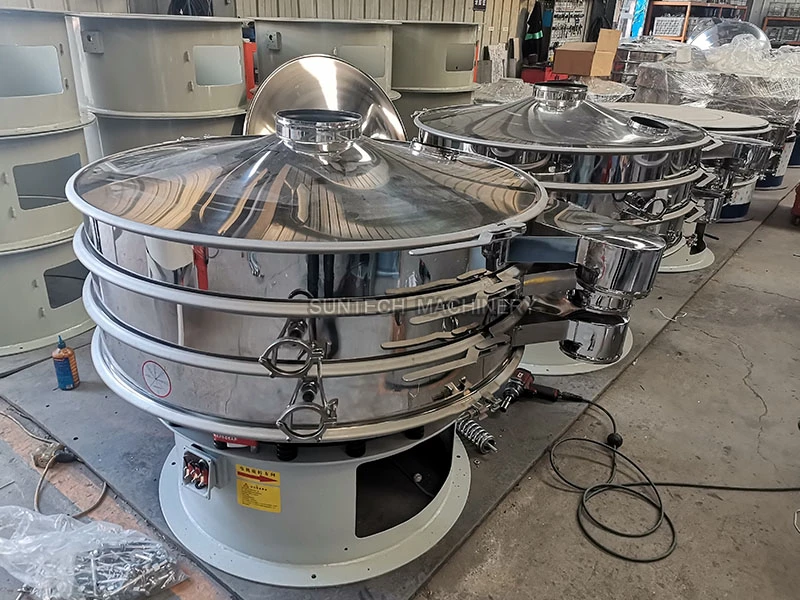

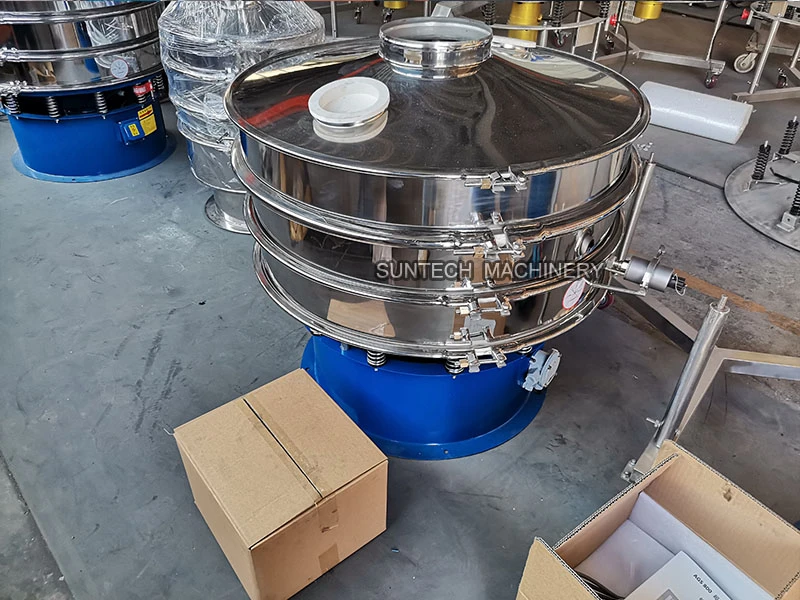

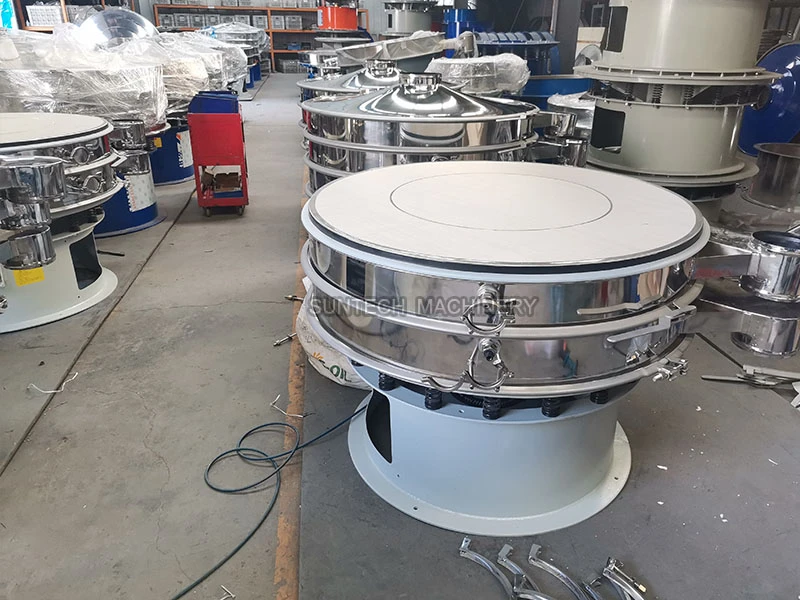

Ultrasonic vibrating screen separator is mainly used for sieving powder in different mesh size, grading the granules or pellets in big or small size, solid liquid separation. Different from the general rotary vibrating screen which cleaning the screen sieve by the rubber bouncing ball, the ultrasonic vibrating screen separator is equipped with the ultrasonic generator and transducer which can generate the ultrasonic vibration wave on the fine mesh size screen surface so that make the powder passing the screen mesh more smoothly.

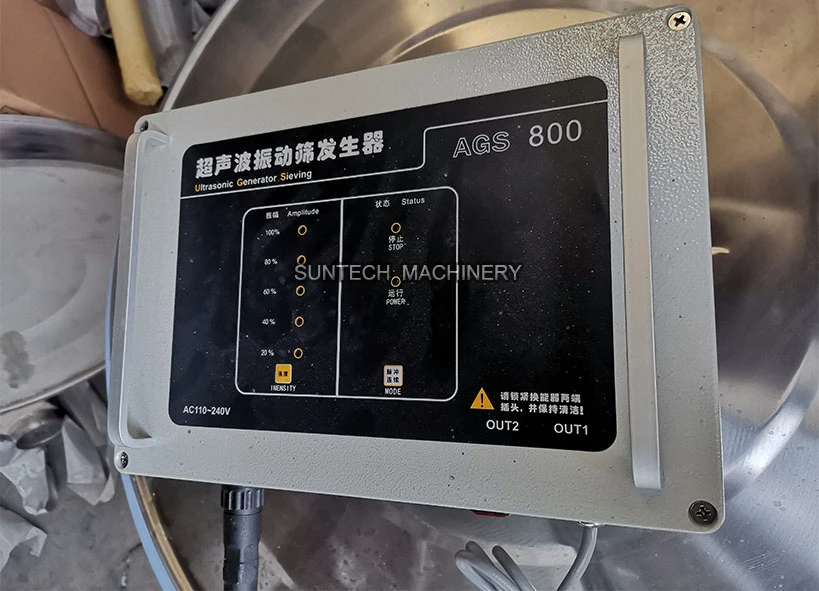

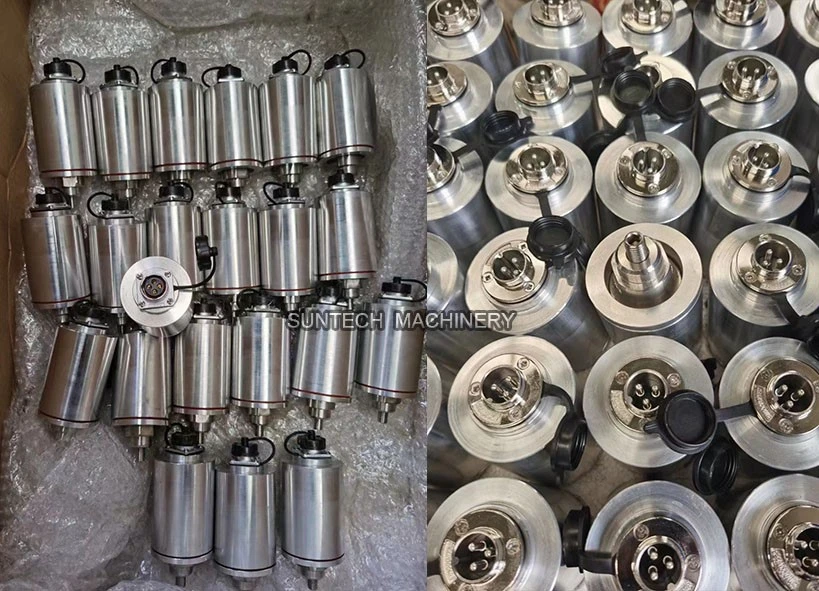

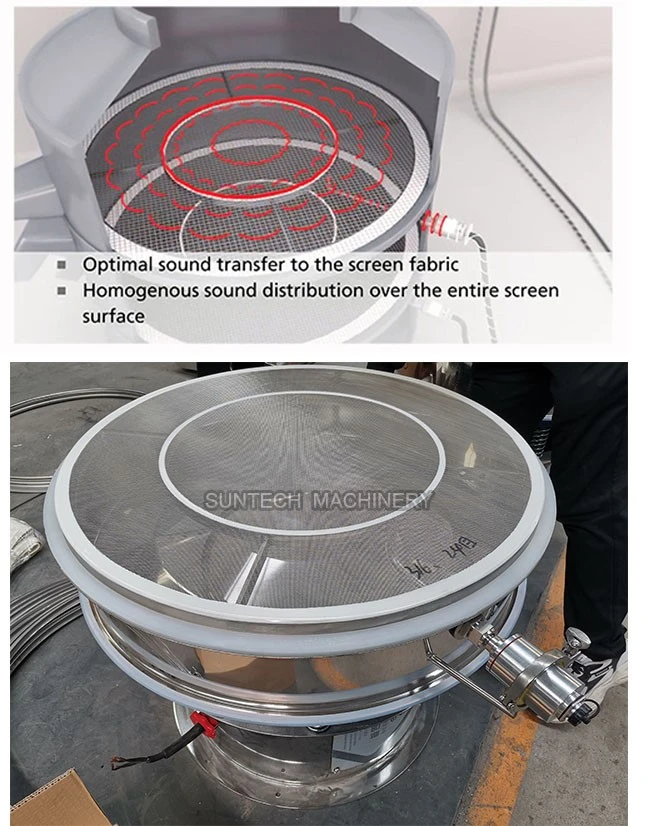

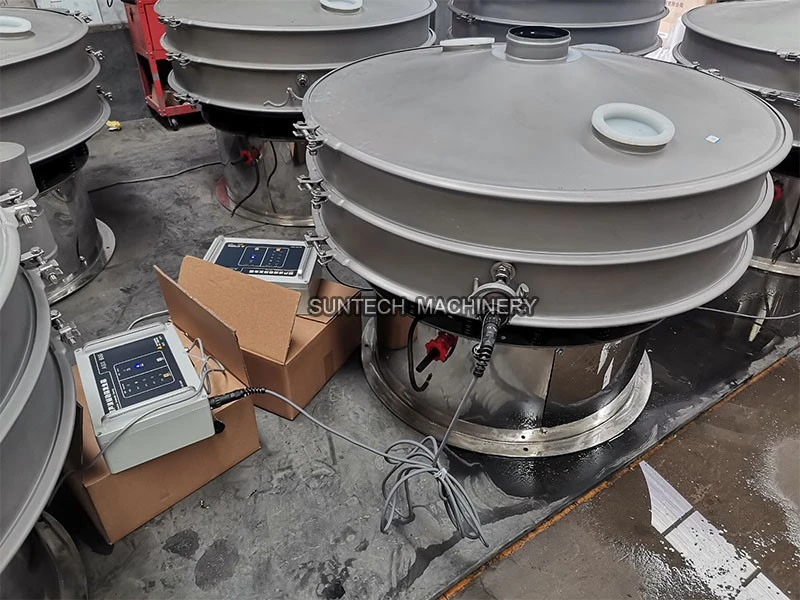

The ultrasonic round rotary vibrating screen is consisit of the ultrasonic generator, transducer, resonant ring, vibration motor, screen body. The ultrasonic generator creates high frequency oscillation, and transducer will convert it to the high frequency sine shaped longitudinal oscillatory wave, then the oscillatory will be trans missed to the resonant ring and creates the sympathetic vibration, and the resonant ring will trans missed the vibration to the screen surface evenly. The system introduces a low-amplitude and high-frequency ultrasonic vibration wave (mechanical wave) on the screen based on the traditional vibrating screen to improve the screening performance of the ultra fine particles. Particularly suitable for high value-added fine split users.







Model		STC-400	STC-600	STC-800	STC-1000	STC-1200	STC-1500	STC-1800	STC-2000
Effective diameter		Φ340	Φ540	Φ730	Φ900	Φ1100	Φ1400	Φ1700	Φ1886
Effective screening area		0.0907	0.2289	0.4183	0.6359	0.9499	1.5386	2.2687	2.7922
Sieve size		80-600mesh
Number of layers		1-3	1-3	1-3	1-3	1-3	1-3	1-3	1-3
Power	vibration motor	0.18	0.25	0.55	0.75	1.1	1.5	2.2	2.2

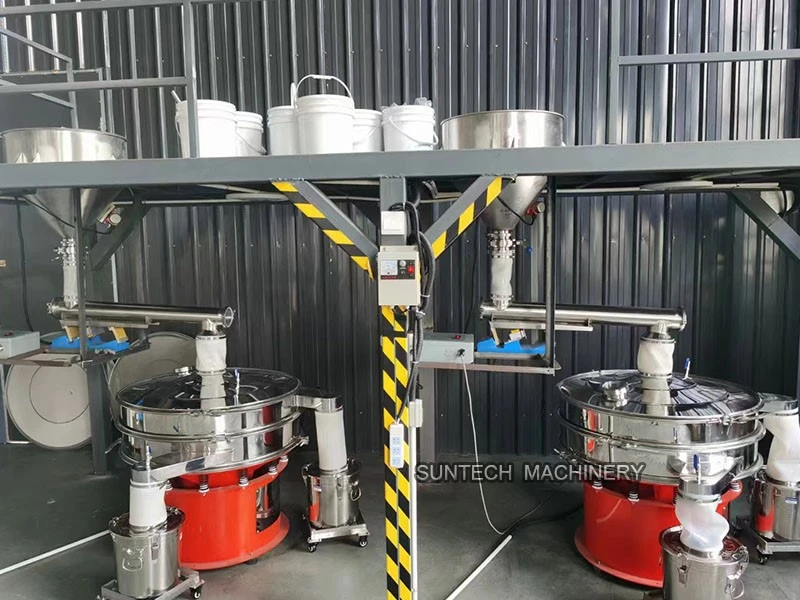

Production line from the dispenser silo to screw feeder to the ultrasonic vibrating screen separator.







If you have ever used the screen machine, kindly pls tell us its DIAMETER, LAYERS, MESH SIZES, MATERIALS.

If never use the machine, pls offer us the info about your needsl as below:

Sieving material: Bulk density:

Will you do a separation or dust-removal?

Production Capacity per hour(KG/H)?

How many Layers do you need? Mesh size of each layer?

Material of Construction material?(Stainless steel or Mild Steel)

Voltage(V), Frequency(Hz), Phase(P)?
