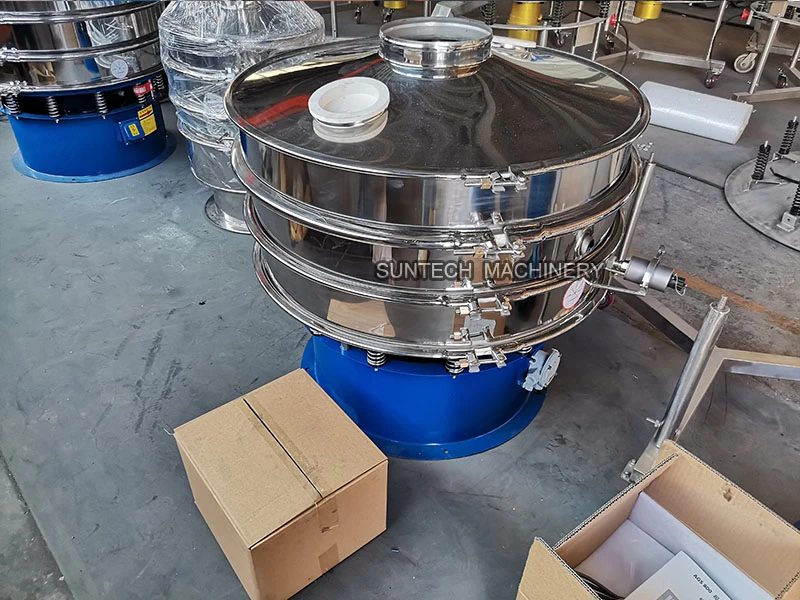

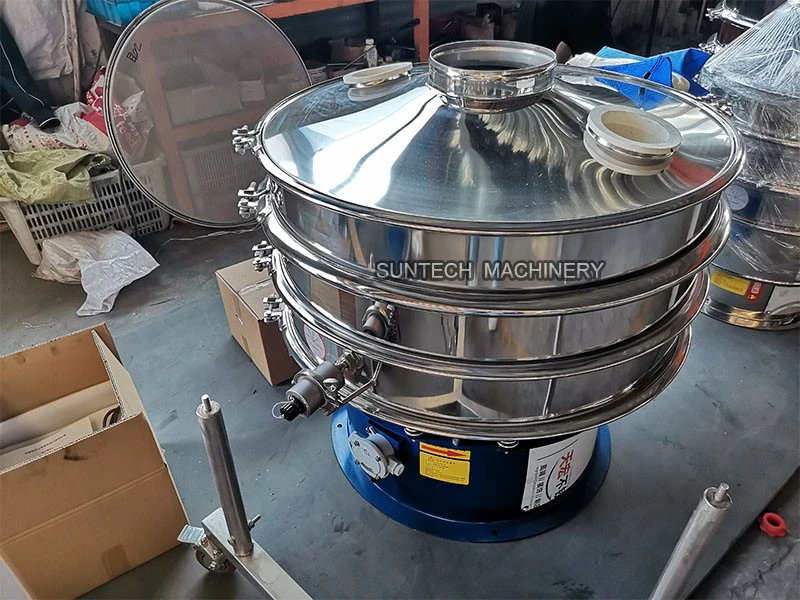

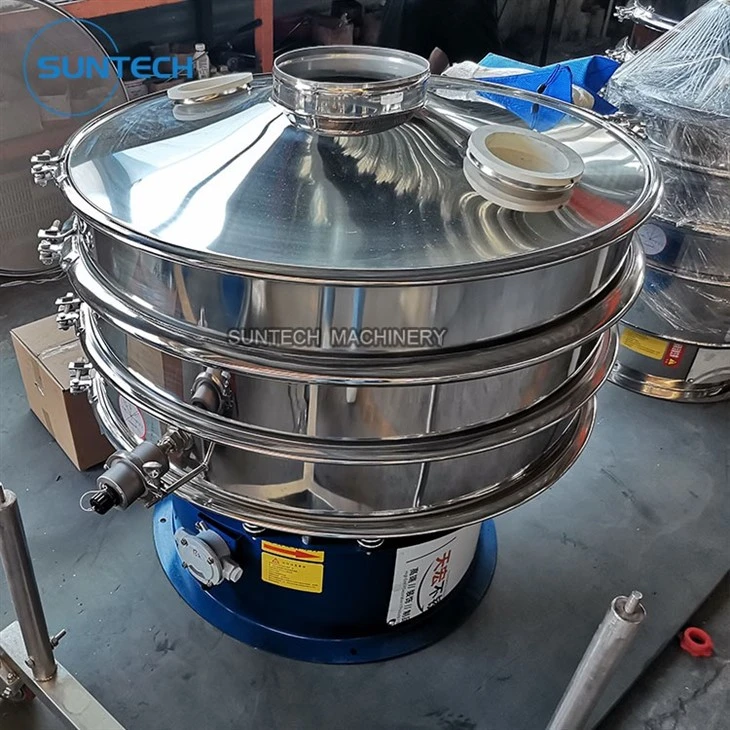

Ultrasonic Vibrating Screen For Starch





During different kinds of starch production, there will need to make the solid liquid separation, or sieving the starch in different mesh size, for the coarse size sieving, the general rotary vibrating screen can achieve the sieving process, for the very fine size above 100mesh, the ultrasonic vibrating screen will be necessary, as the ultrasonic wave generated by the ultrasonic generator and transducer can better cleaning the screen mesh so that improve the powder passing rate and better complete the starch sieving procedure.

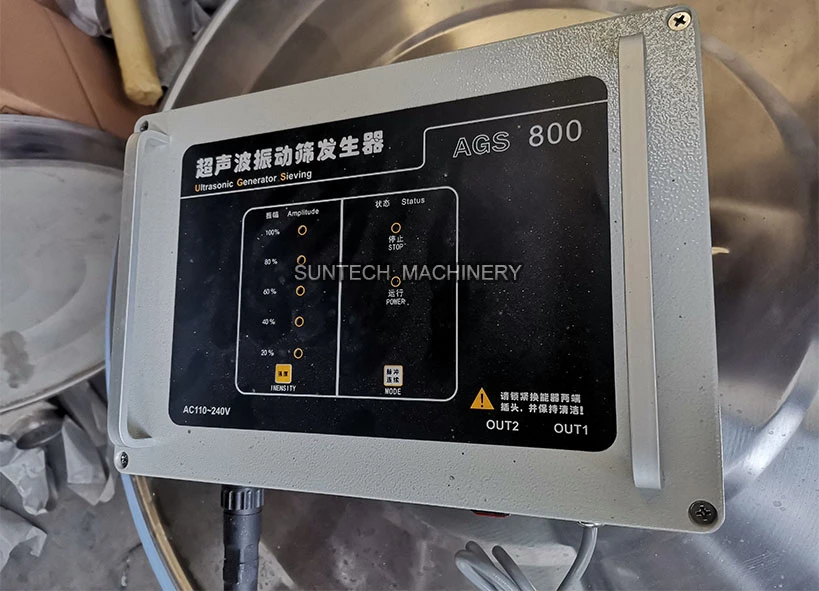

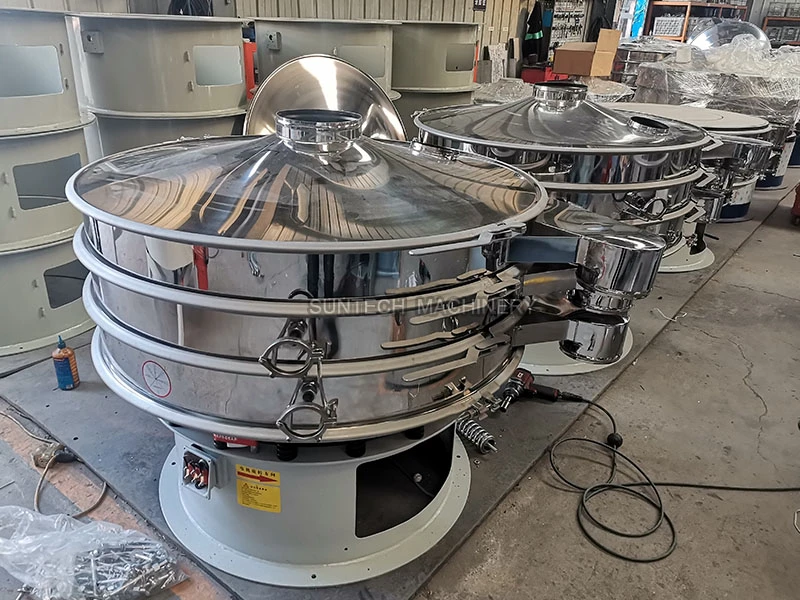

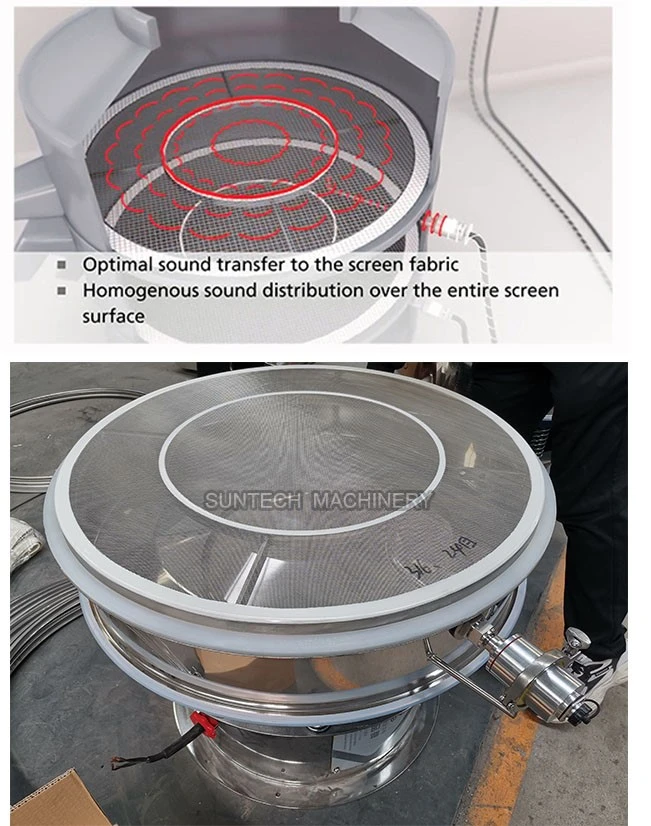

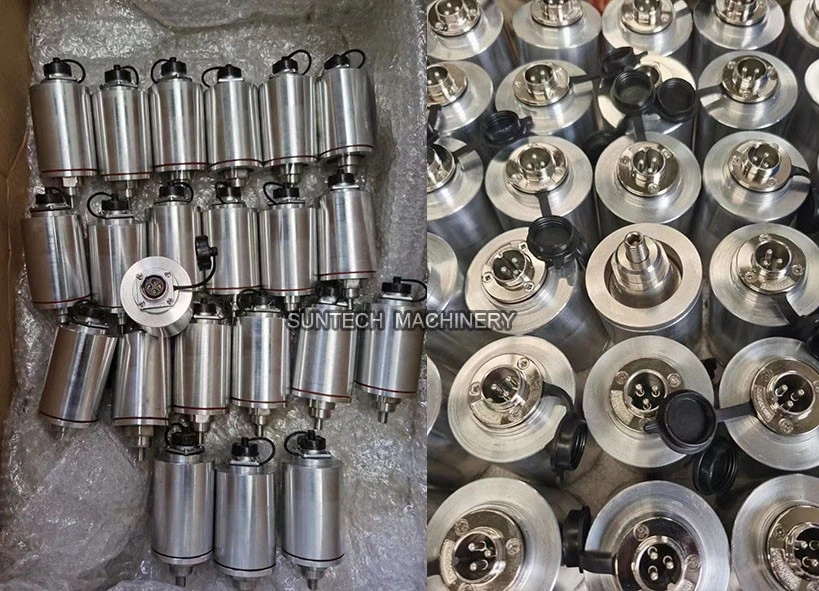

Ultrasonic vibrating screen change 220V, 50Hz or 110V, 60Hz electrical energy into 36KHz high-frequency electrical energy, then input ultrasonic transducer, it will become 36KHz mechanical vibration, the power of the ultrasonic wave make the screen with high-frequency vibration. ultrasonic vibrating sieve is combining ultrasonic generator and rotary vibrating screen, in addition to three-dimensional round separator itself, Ultrasonic vibrating screen overlaps ultrasonic vibrating on the screen surface, which effectively solves the materials difficult to screen, such as: various high electrostatic, superfine, strong adsorption, easily aggregated, light relative density materials. In this case, based on the low frequency three dimensional movement and supersonic vibration wave, the machine can not only keep off the screen mesh jam but also can improve the sieving capacity and quality.

















Model		STC-400	STC-600	STC-800	STC-1000	STC-1200	STC-1500	STC-1800	STC-2000
Effective diameter		Φ340	Φ540	Φ730	Φ900	Φ1100	Φ1400	Φ1700	Φ1886
Effective screening area		0.0907	0.2289	0.4183	0.6359	0.9499	1.5386	2.2687	2.7922
Sieve size		80-600mesh
Number of layers		1-3	1-3	1-3	1-3	1-3	1-3	1-3	1-3
Power	vibration motor	0.18	0.25	0.55	0.75	1.1	1.5	2.2	2.2

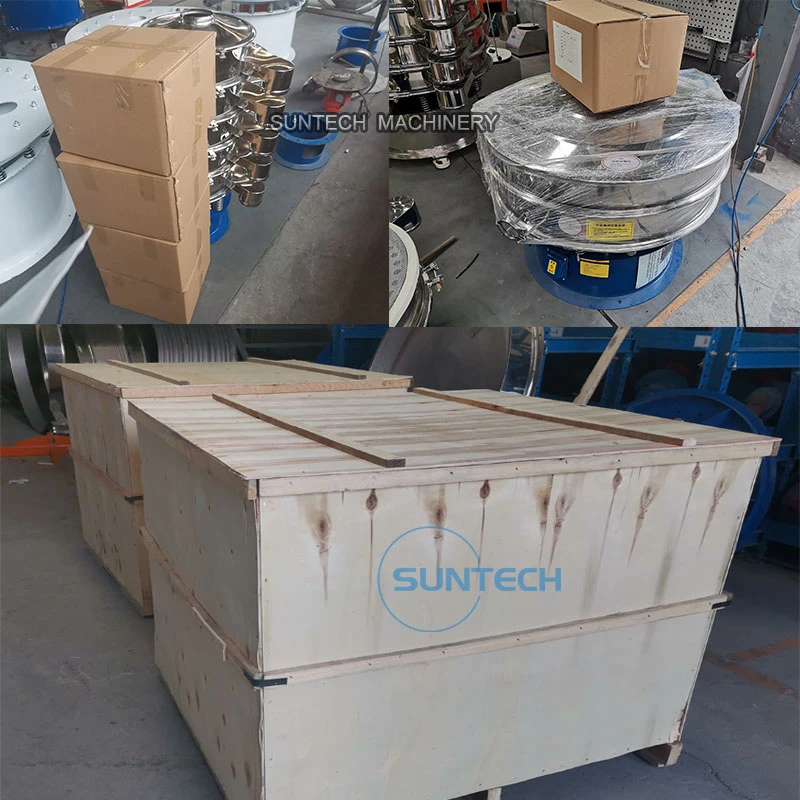

For the screen sieve spare parts and the single machine, we will make the plywooden box packing for damage proof, for the whole truck machine, we will hire the direct line truck to ensure the machine hand over to the client directly.
