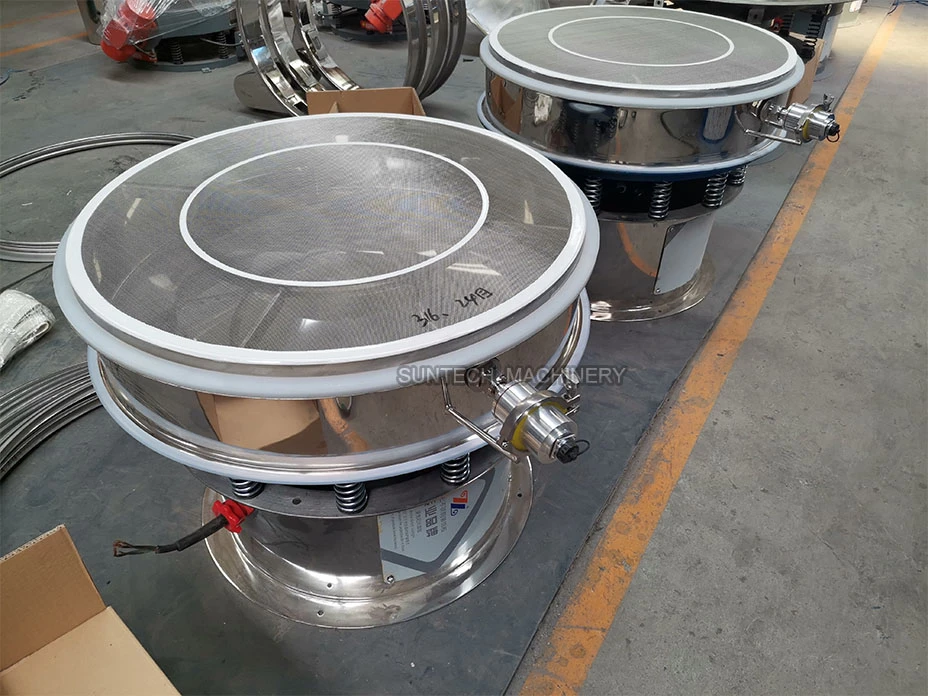

Ultrasonic Round Vibrating Screen Sieve

Ultrasonic Round Vibrating Screen Sieve

Ultrasonic round vibrating screen sieve is the upgrade vibrating sieve machine based on general rotary vibrating screen. It is combined two force of ultrasonic generator with vibration motor which is higher efficiency for fine mesh powder above 100mesh or the powders with high absorption, easy agglomeration, high static, high precision degree, light weight etc.

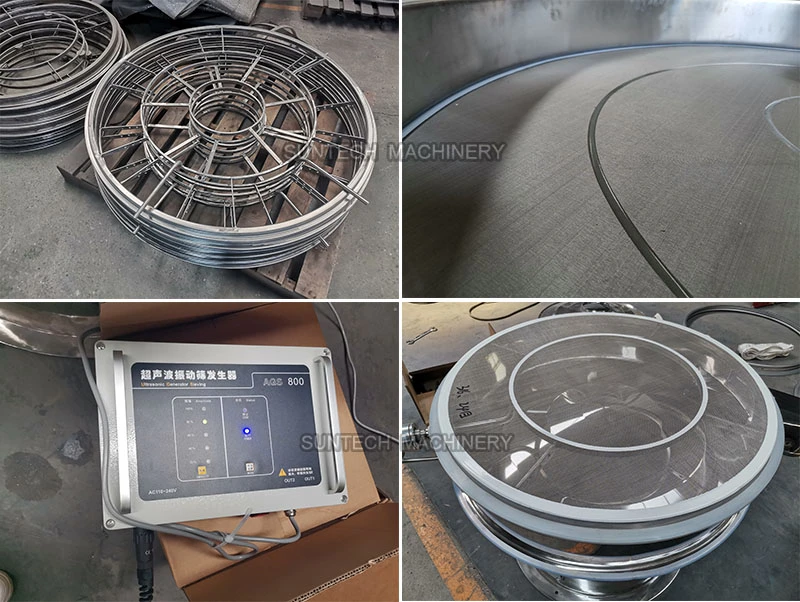

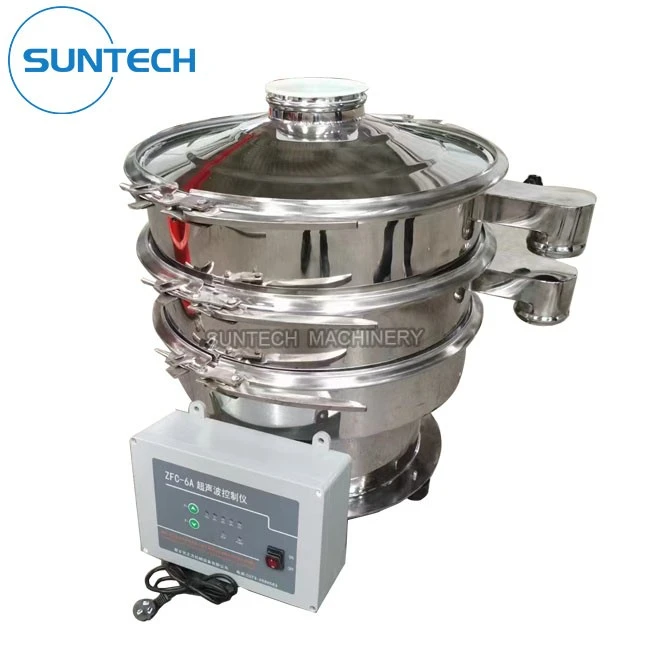

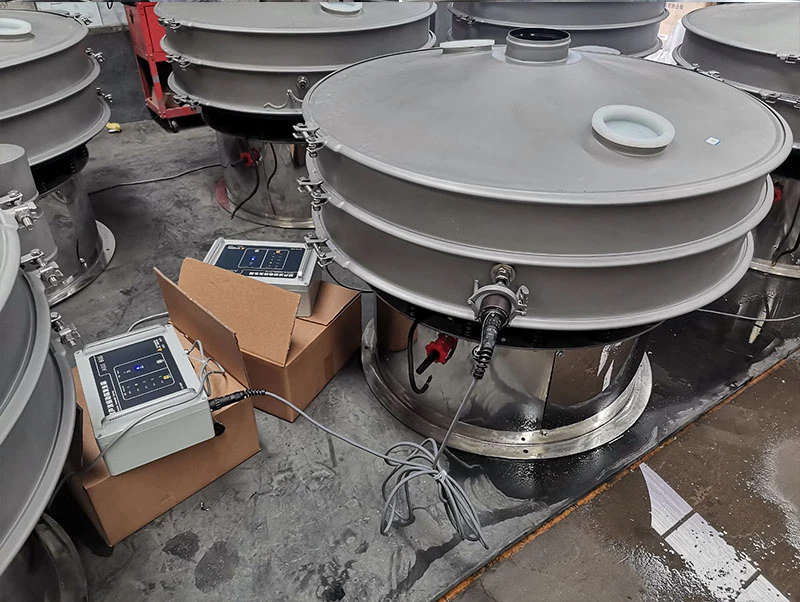

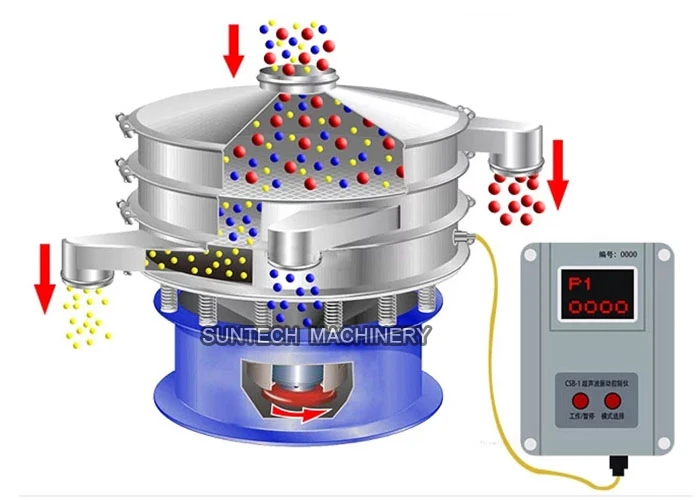

The ultrasonic round vibrating screen sieve is consists of the ultrasonic generator, transducer, resonant ring, vibration motor, screen body. The ultrasonic generator creates high frequency oscillation, and transducer will convert it to the high frequency sine shaped longitudinal oscillatory wave, then the oscillatory will be transmitted to the resonant ring and creates the sympathetic vibration, and the resonant ring will transmitted the vibration to the screen surface evenly. In this case, based on the low frequency three dimensional movement and supersonic vibration wave, the machine can not only keep off the screen mesh jam but also can improve the sieving capacity and quality.

Improve the flat fall of low-density powder in gravity sedimentation (light contact between powder and screen mesh ) and sliding effect, improve the retention or wedge of high-density metal at the mesh opening, improve the adhesion effect of electrostatically charged powder, thereby improving screening efficiency and screening quality. In terms of sieving pass rate, generally the passing rate is 50%-400% higher than that of a vibrating screen without ultrasonic vibrating screen.

⑴Reduce or eliminate screen mesh clearing time;

⑵No contamination of the powder by auxiliary objects such as bouncing balls;

⑶Maintain mesh size and stabilize screening accuracy;

⑷Decompose adhering substances and reduce sieve debris;

⑸Reduce the sieving times.

The proper selection of ultrasonic round vibrating screen sieve depends on the raw material, mesh size, required output, method of input, abrasiveness of the material, etc:

1. Material:_____, specific
gravity/density:_____

2. Moisture:_____%

3. Capacity:________kg/ hour

4. Screen layer:_______

5. Screen mesh size:______ mesh .
______ mesh. ______ mesh

6. Voltage:______V, Frequency:______HZ, 3 phase

7. SS304/316L stainless steel or carbon steel?
Or you can tell us the model you need if you have ever used this type of machine.
