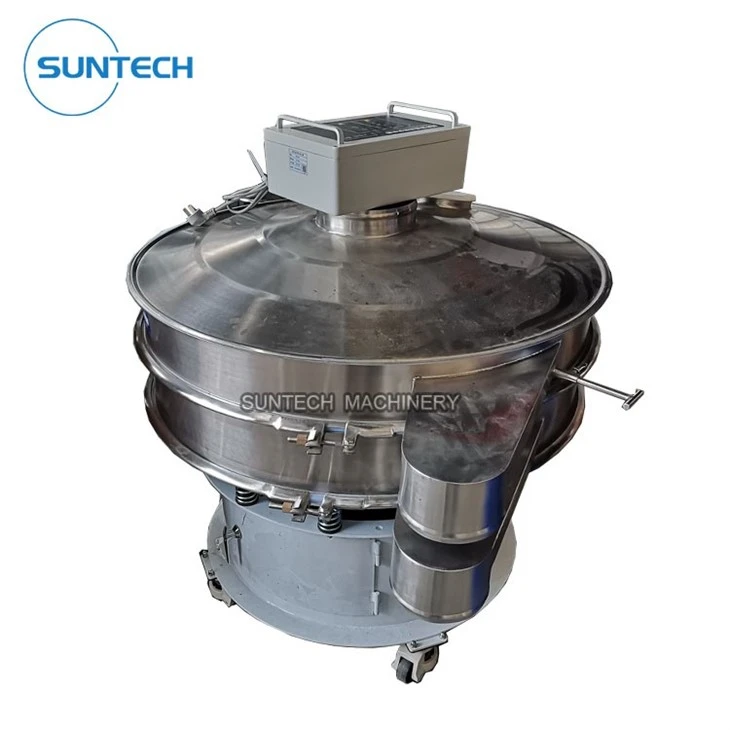

Chemical Powder Ultrasonic Vibrating Screen

Chemical powder ultrasonic vibrating screen is the rotary vibrating screen with ultrasonic system used in chemical industries like resin, pigment, cosmetic, coatings,pesticide, fertilizer, washing powder, food additives etc.

  • Product Introduction

Chemical Powder Ultrasonic Vibrating Screen



Introduction



Chemical powder ultrasonic vibrating screen is the rotary vibrating screen with ultrasonic system used in chemical industries like resin, pigment, cosmetic, coatings,pesticide, fertilizer, washing powder, food additives etc. It mainly used for sieving the powder in different mesh size, separation, classification, filtering, remove the impurities. The transduced low amplitude and high frequency ultrasonic wave would solve the static, caking and strong adsorption problem.



product-700-500

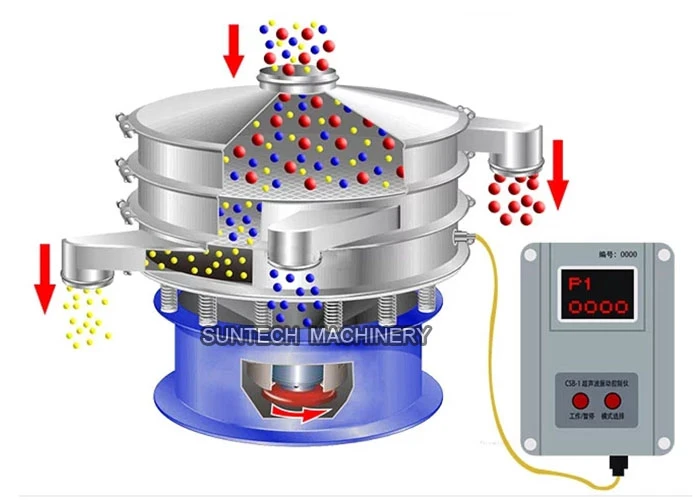

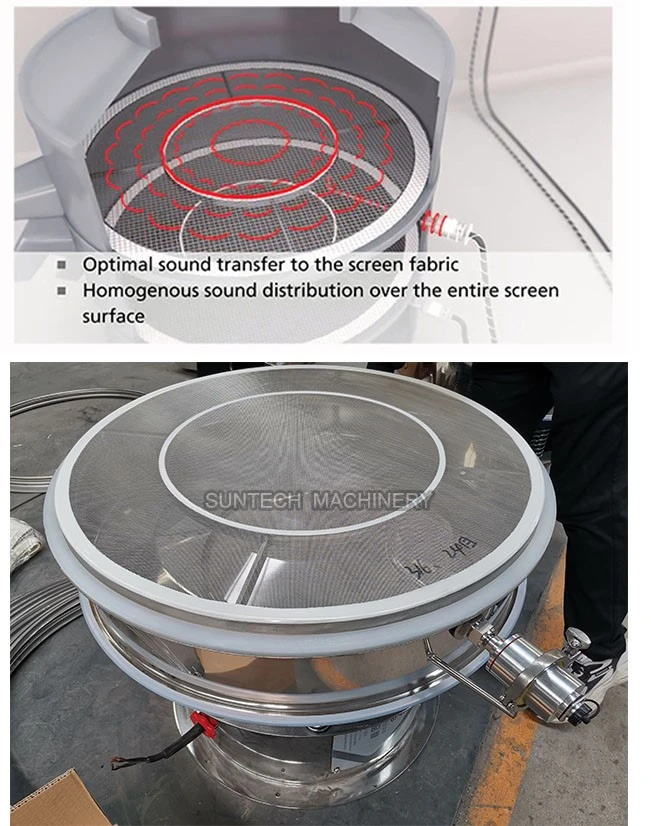

Working Principle



Ultrasonic vibrating screen is combining ultrasonic generator and rotary vibrating screen, in addition to three-dimensional round separator itself, Ultrasonic vibrating screen overlaps ultrasonic vibrating on the screen surface, which effectively solves the materials difficult to screen, such as: various high electrostatic, superfine, strong adsorption, easily aggregated, light relative density materials. Ultrasonic vibrating screen not only avoids to block the screening mesh but also increases the screening capacity and accuracy, achieving the purpose of fast screening and cleaning.



product-651-826

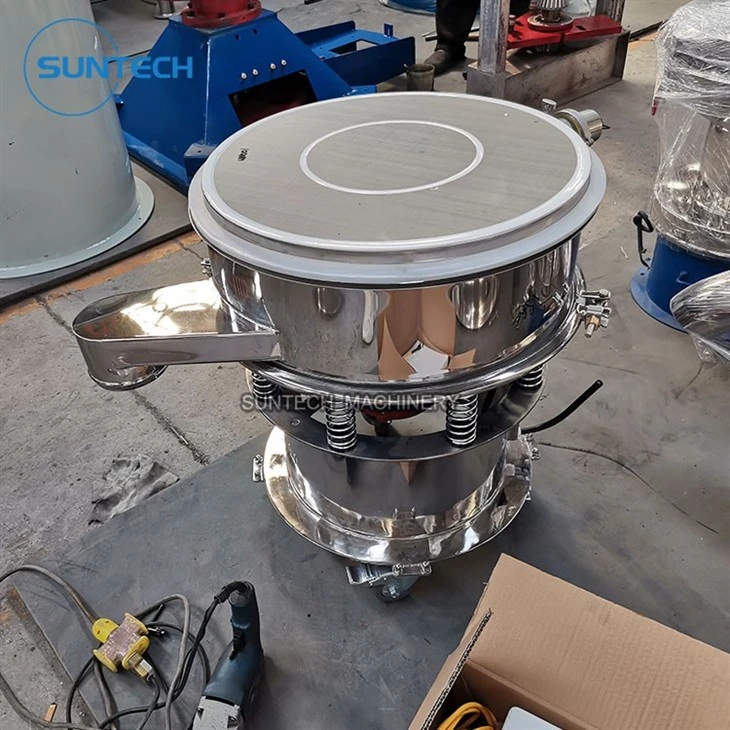

Detail Machine Pictures

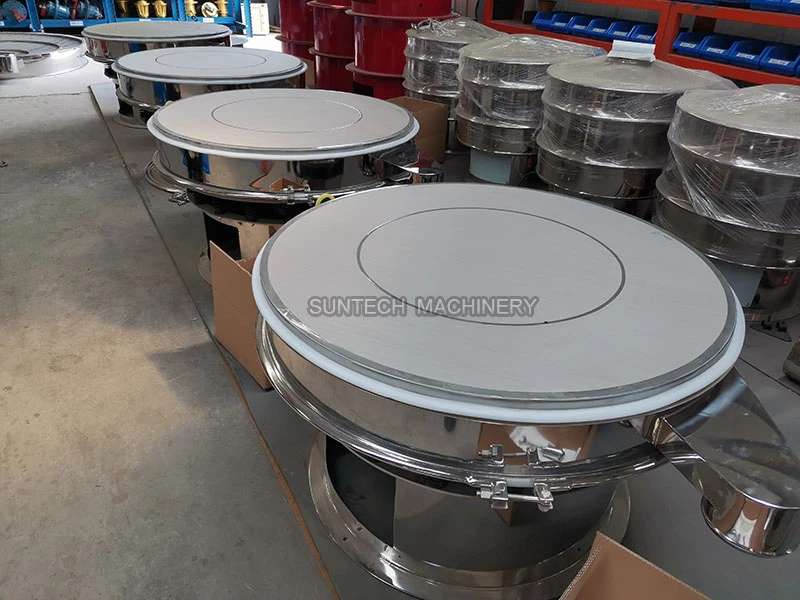

automatic ultrasonic sieve

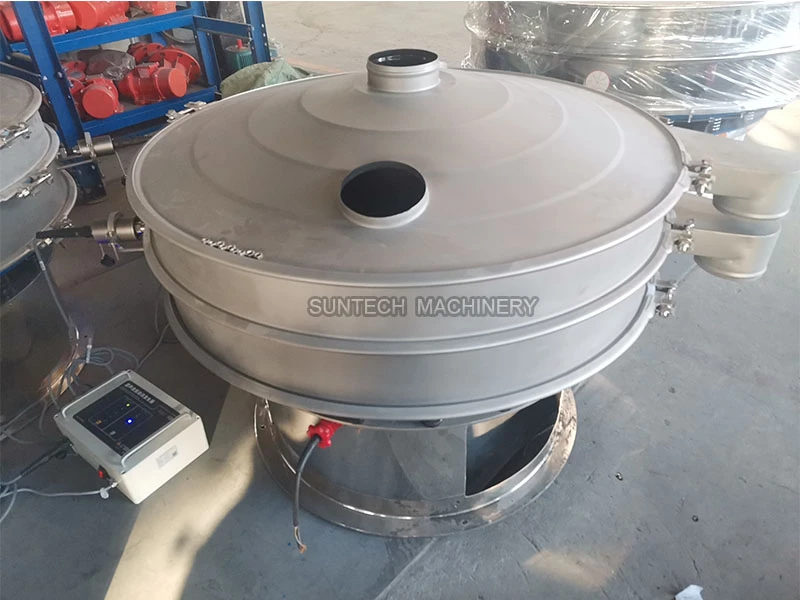

ultrasonic vibratory sieve

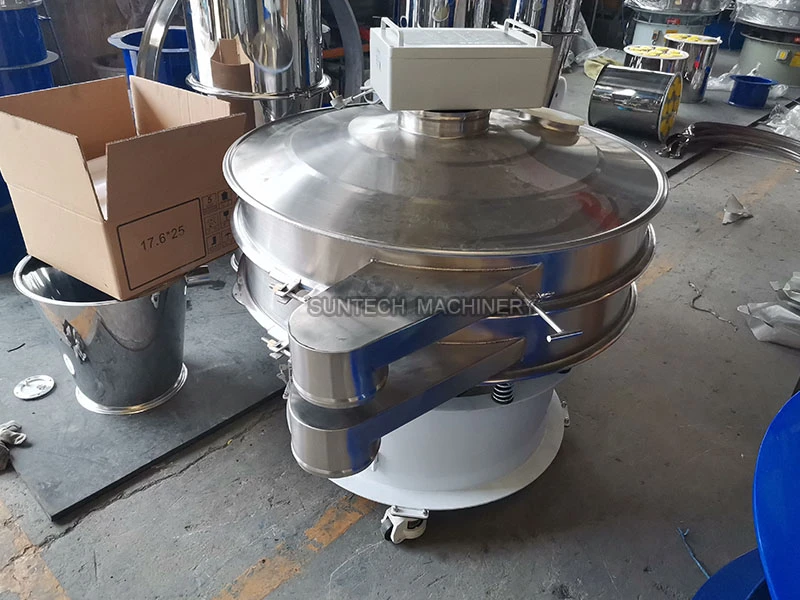

ultrasonic sifting machine


Main Parameters



Model

STC-400

STC-600

STC-800

STC-1000

STC-1200

STC-1500

STC-1800

STC-2000

Effective diameter

Φ340

Φ540

Φ730

Φ900

Φ1100

Φ1400

Φ1700

Φ1886

Effective screening area

0.0907

0.2289

0.4183

0.6359

0.9499

1.5386

2.2687

2.7922

Sieve size

80-600mesh

Number of layers

1-3

1-3

1-3

1-3

1-3

1-3

1-3

1-3

Power

vibration motor

0.18

0.25

0.55

0.75

1.1

1.5

2.2

2.2

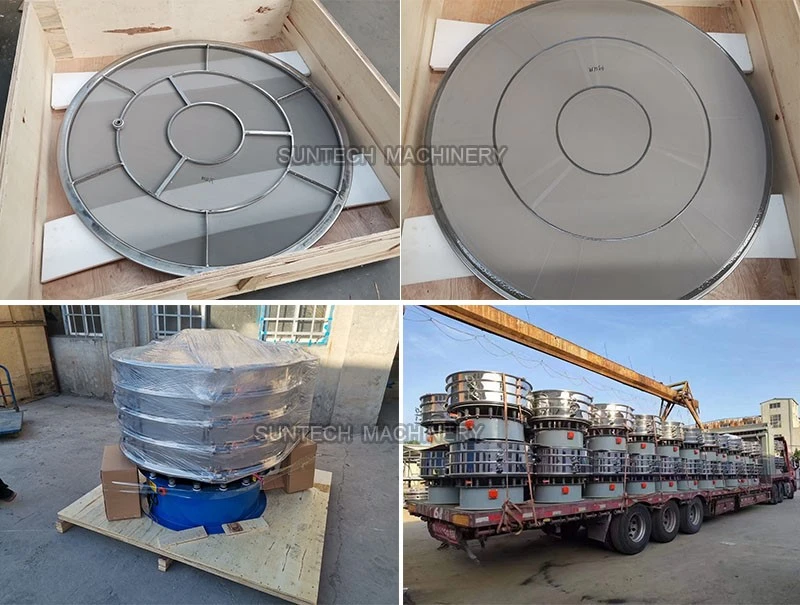

Packing & Delivery



For the screen sieve spare parts and the single machine, we will make the plywooden box packing for damage proof, for the whole truck machine, we will hire the direct line truck to ensure the machine hand over to the client directly.



product-800-605
