Rectangular Swing Sieving Machine For Chemical

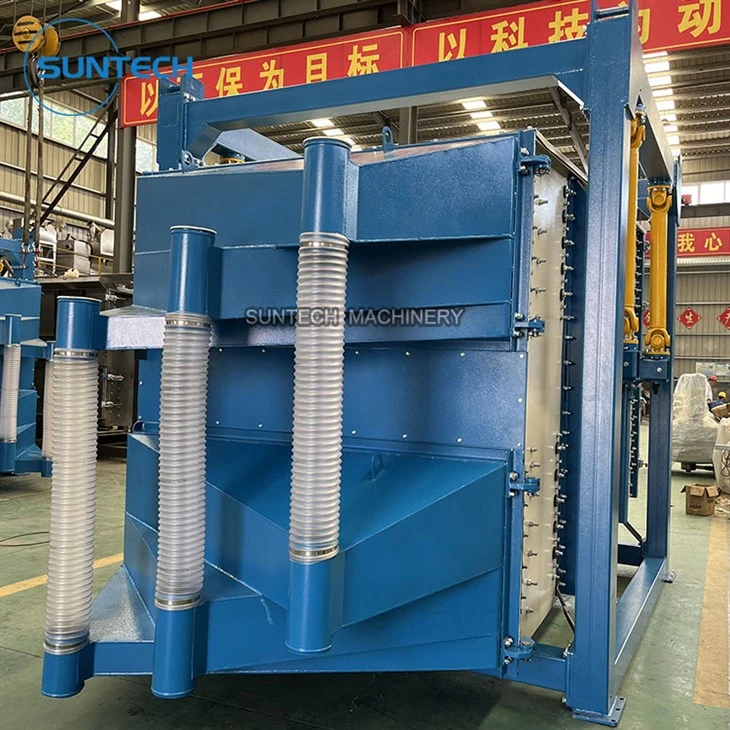

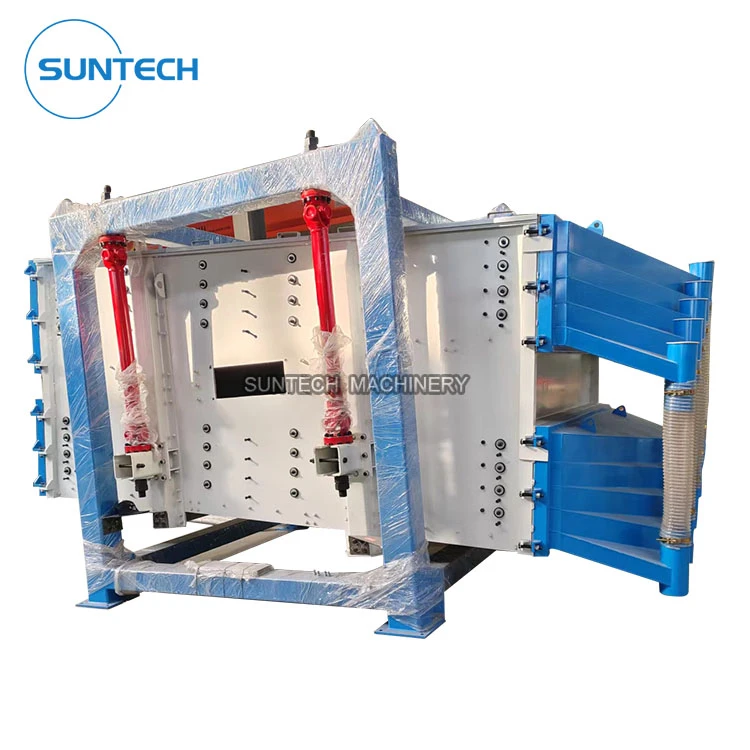

Rectangular swing sieving machine for chemical

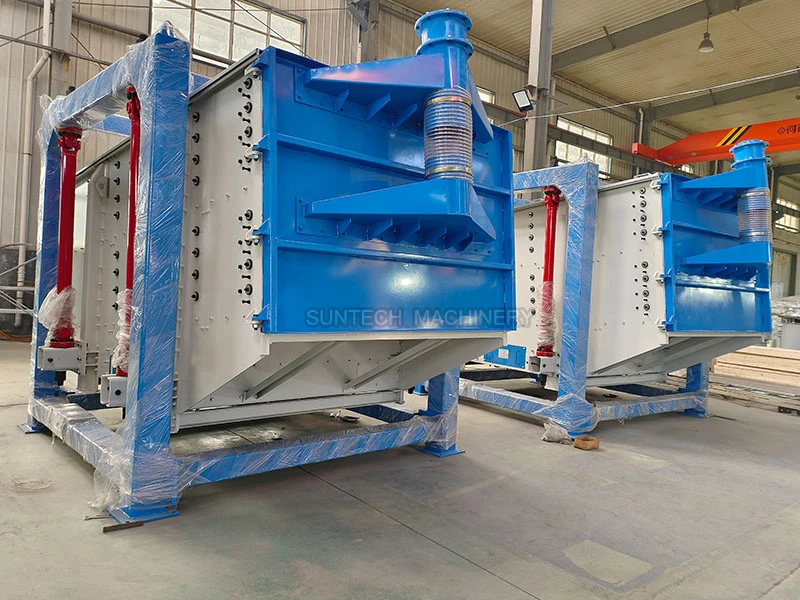

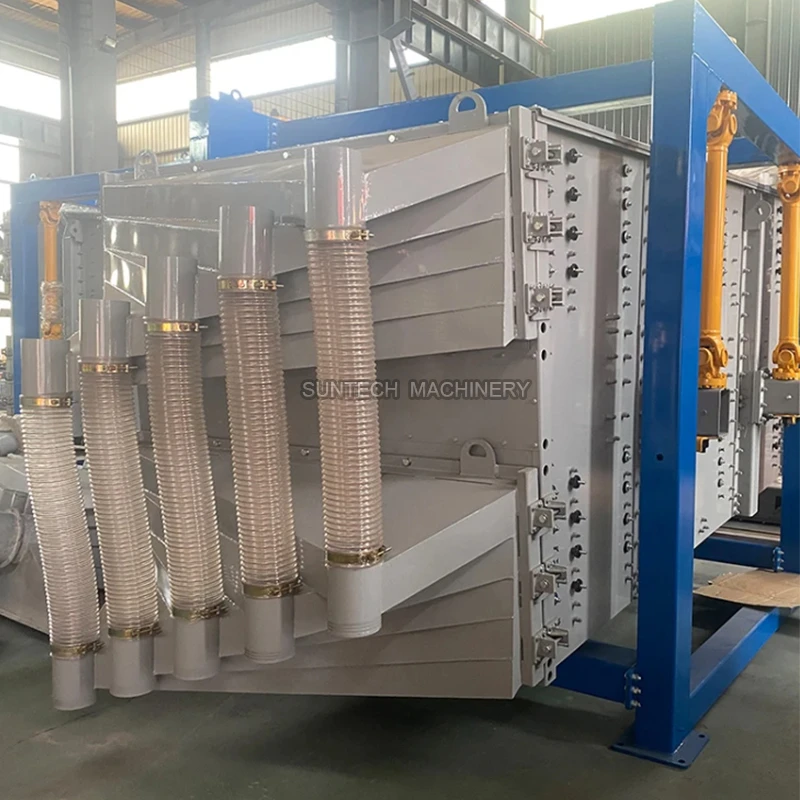

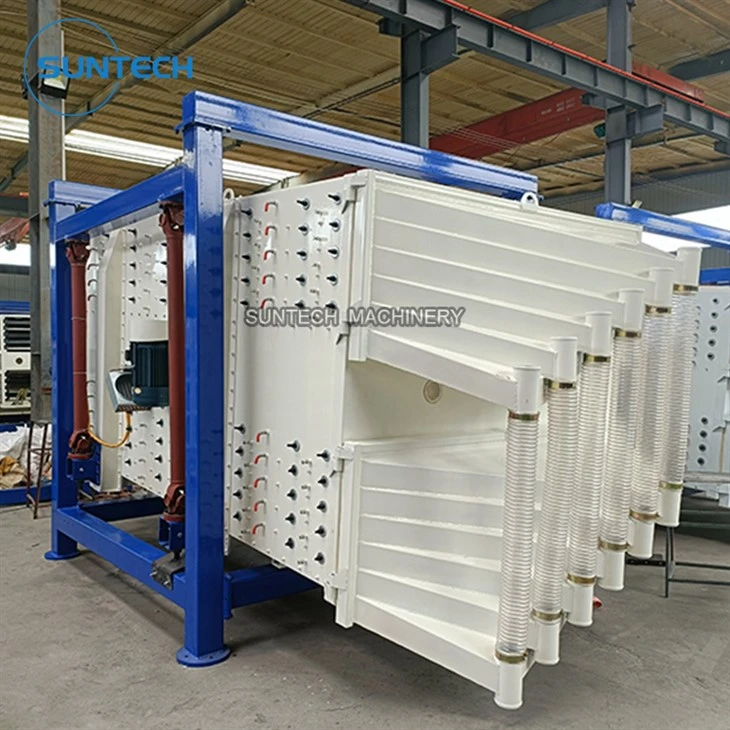

Rectangular swing sieving machine is the general screening equipment which suitable for screening different kinds of granules, powders, and liquids in chemical and other industries. Its structure is simple and consists of screen box, vibrator, bottom frame and other parts. The screen box is square shape and is equipped with multi-layer sieve plates inside. Materials enter the screen box from above inlet. After being screened by the multi-layer sieve plates, materials of different specifications will fall to different screening outlets. The vibrator provides vibration force to make the screen box swing back and forth to complete the whole sieving procedure.

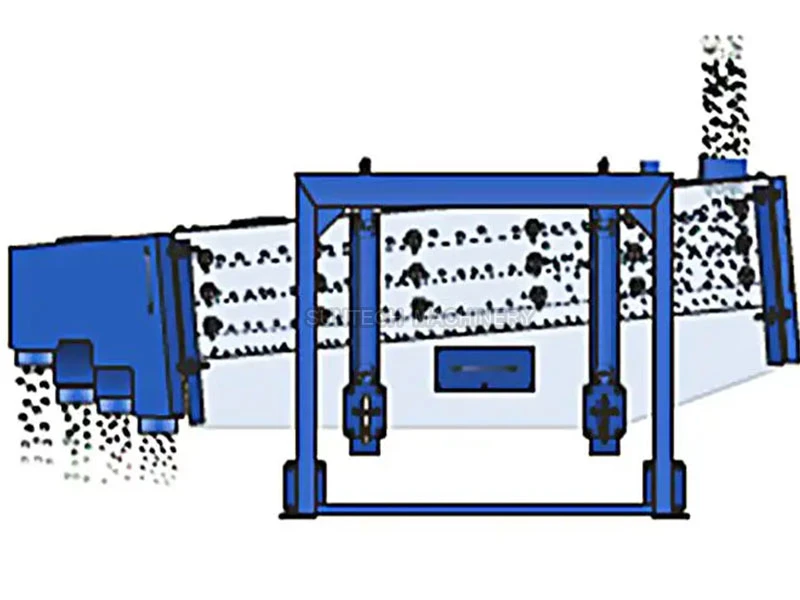

1. Feeding the materials to be screened into the screen surface.
2. The screen is vibrated by the exciter to produce high-frequency and small-amplitude fluctuations.
3. As the screen surface continues to vibrate, the particles gradually rise to the screen surface.
4. Large particles are retained at the bottom of the screen, while small particles are passed through the screen holes and fall into the collection box below.
5. After the separation is completed, the required particles are obtained for further processing.



1. High sieving efficiency: The sieving efficiency of the square swing sieving screen is higher than that of ordinary vibrating screens because it uses uniform vibration to make the movement of materials on the screen more uniform, reducing clogging and screen leakage.

2. Large screening area: The screening area of the square swing screen is relatively large, which makes the material stay longer during the screening process, thus improving the screening efficiency.

3. Wide range of applications: The square swing screen can be used for separation and screening of various materials such as powders, granules, and liquids, and is suitable for a variety of industries, such as chemical industry, food, medicine, etc.

4. The screen sieve is easier to replace: It adopts a detachable screen structure, making it easier and faster to replace the screen.

5. Energy saving and environmental protection: The square swing screen does not require external power drive, but completes screening through the swing frequency, so it has the advantages of energy saving and environmental protection.

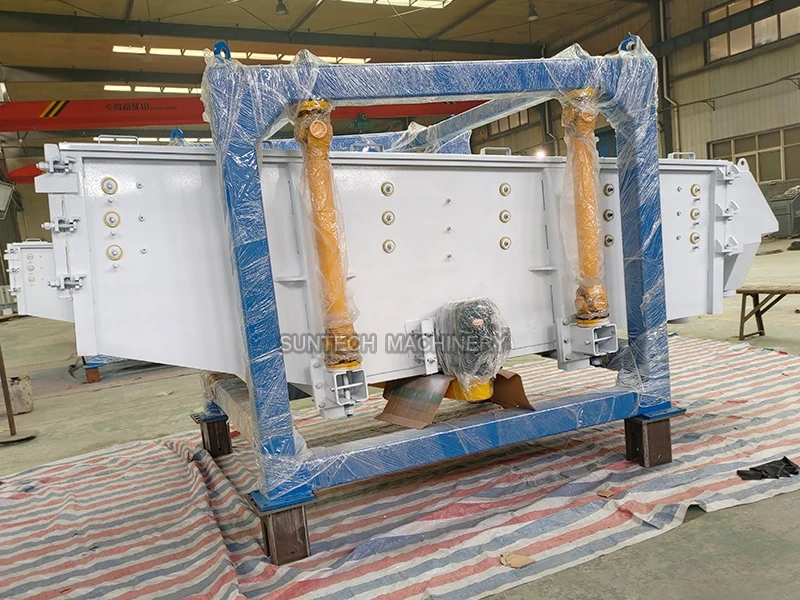

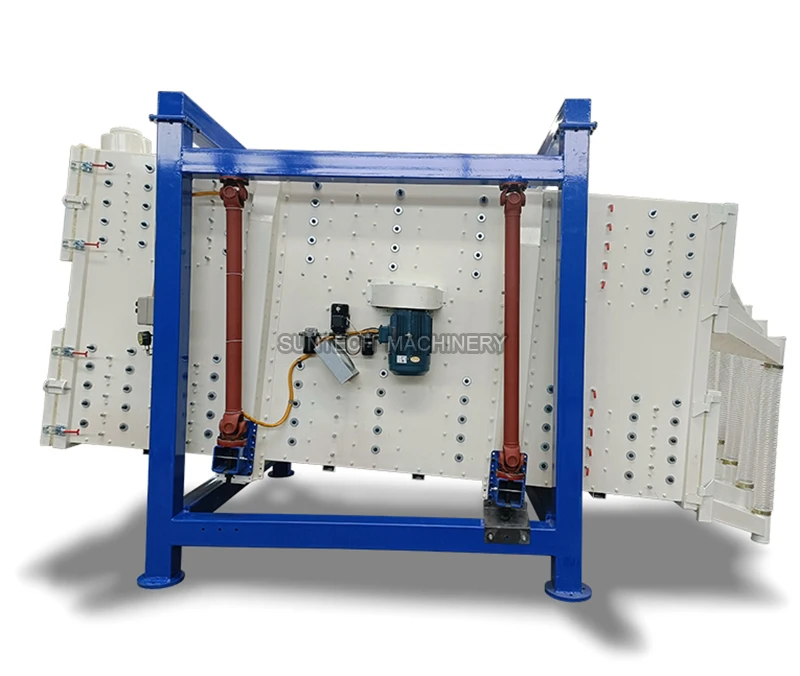

The rectangular swing sieving machine is composed of a lower bracket, a screen case, inside sieving screen, a damping spring and a driving device.
Lower bracket: Made in strong square tube and it is used to support the entire screening machine with stability and firmness.
Screen case: It forms a screening chamber with sieving screen and a damping spring installed inside.
Screen mesh: Used for screening materials in the screen case.Different mesh sizes screen can be selected according to different sieving requirements.
Vibration damping spring: Installed in the screen case, it is mainly used for reducing vibration transmission and reducing noise.
Driving device: Electric or hydraulic drive is used to generate swing motion, causing the screen to swing up and down during the sieving process.



Rectangular swing sieving machine are usually used for screening, classifying and filtering solid materials, such as chemical, food, medicine, building materials, mining and other industries.
1. Chemical industry: Rectangular swing sieving machine can be used for screening and classifying chemical raw materials, such as powders, granules, liquids, thick slurries, etc.
2. Food industry: Rectangular swing sieving machine can be used for screening and classifying food, such as filtration and separation of powder, granular, liquid and paste foods.
3. Pharmaceutical industry: Rectangular swing sieving machine can be used for screening and classifying drugs, such as filtration and separation of pharmaceutical powders, granules, and liquids.
4. Building materials industry: Rectangular swing sieving machine can be used for screening and grading solid materials such as cement, lime, stone powder, ceramic raw materials, etc.
5. Mining industry: Rectangular swing sieving machine can be used for screening and grading mineral processing, coal, sand and other materials to increase product quality and output and reduce energy consumption and pollution.











Main Size for choice, pls tell us the material you need to sieve, the mesh size, the capacity per hour, professional plan will provide after we get your detail inquiry.



Model	Sieve Size(mm)	Power(KW)	Inclination (Degree)	Layers	Rate of frequency (r/min)	Screen Box movement distance(mm)
FXS1030	1000*3000	3	5	1-6	180-264	25-60
FXS1036	1000*3600	3	5	1-6	180-264	25-60
FXS1230	1200*3000	4	5	1-6	180-264	25-60
FXS1236	1200*3600	4	5	1-6	180-264	25-60
FXS1530	1500*3000	5.5	5	1-6	180-264	25-60
FXS1536	1500*3600	5.5	5	1-6	180-264	25-60
FXS1830	1800*3000	7.5	5	1-6	180-264	25-60
FXS1836	1800*3600	7.5	5	1-6	180-264	25-60
