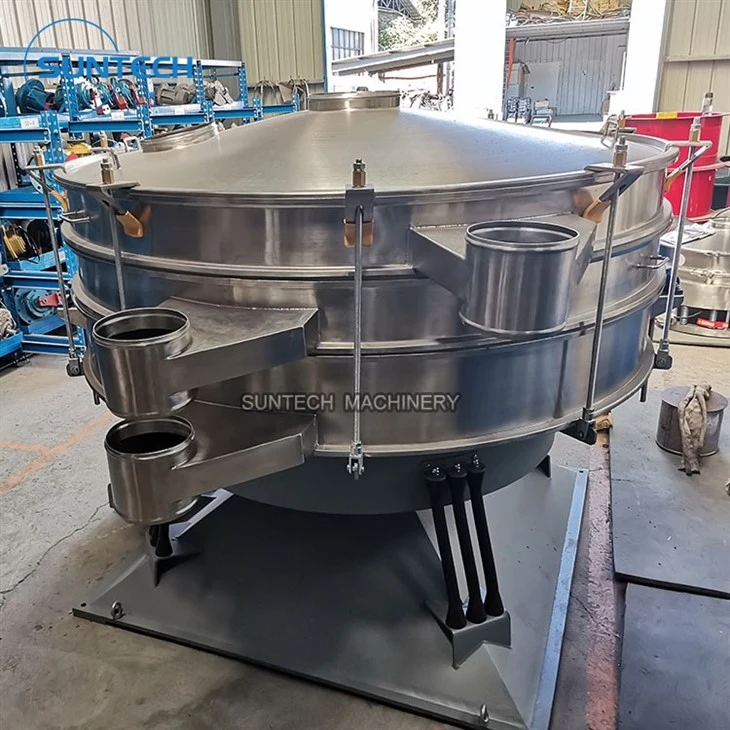

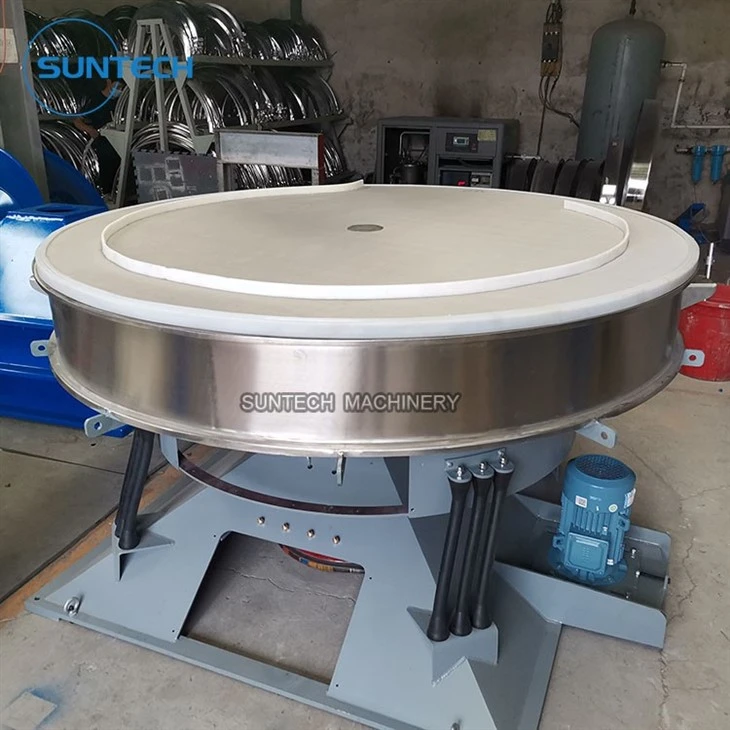

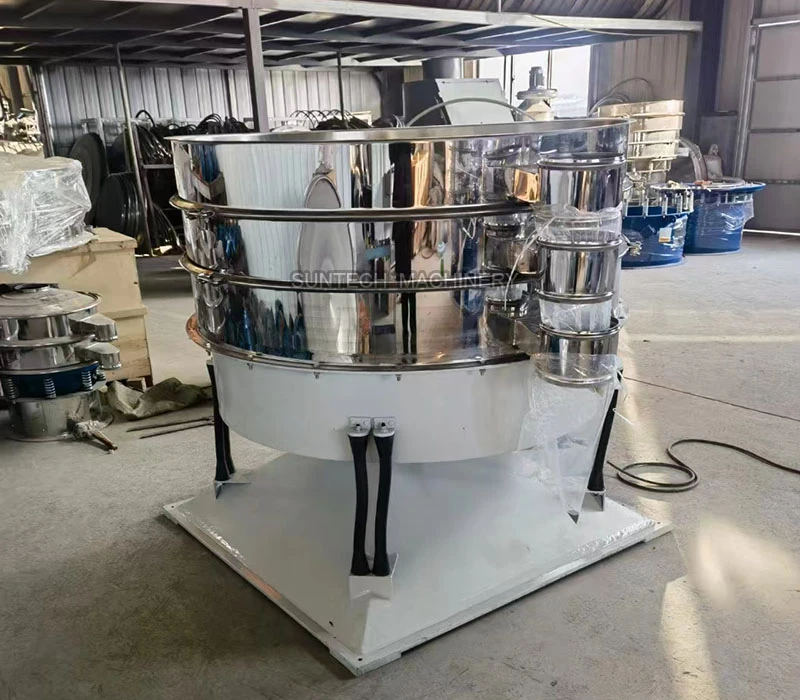

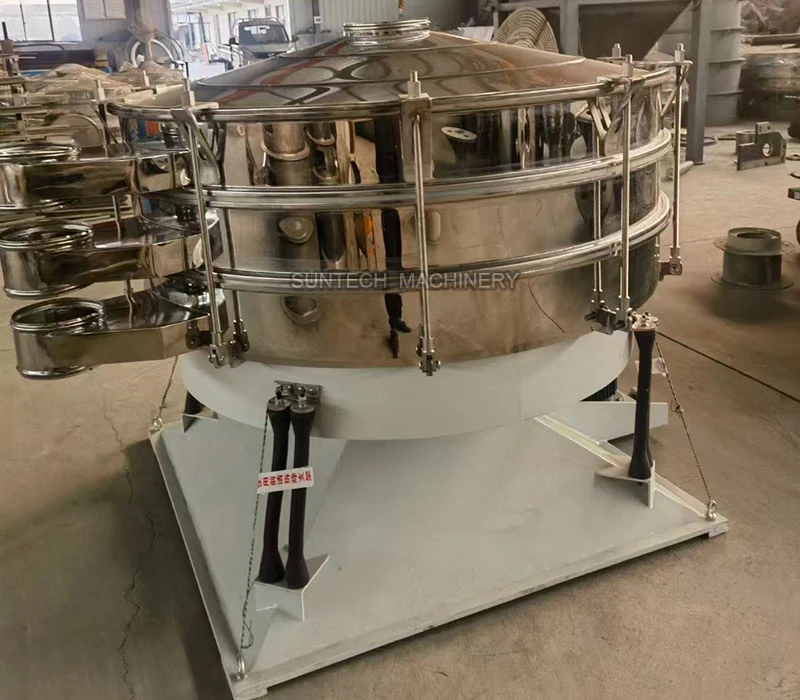

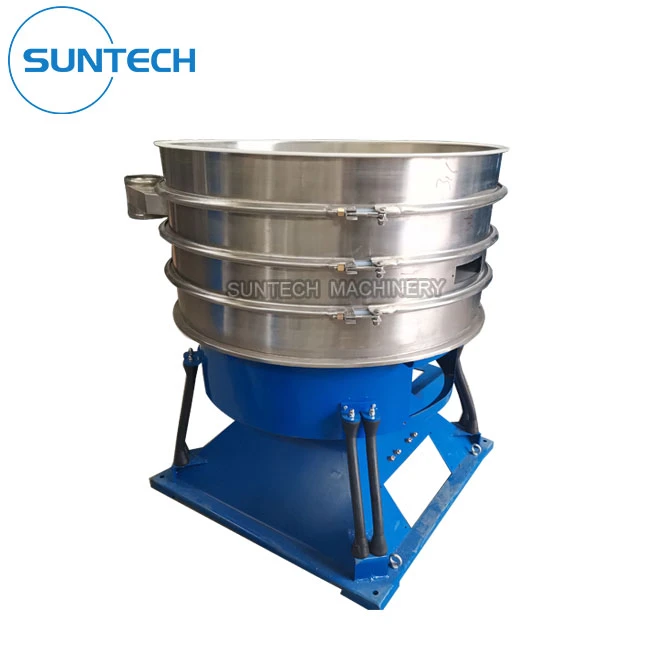

Round S304 Tumbler Vibrating Sieve Separator

Round S304 Tumbler Vibrating Sieve Separator





Round S304 Tumbler Vibrating Sieve Separator is also called the rocking sieve, swing type vibrating screen, It is a common screening equipment and is widely used in chemical, food, pharmaceutical, metallurgy, building materials and other industries. Its main function is to classify, screen and filter granular or powdery materials.

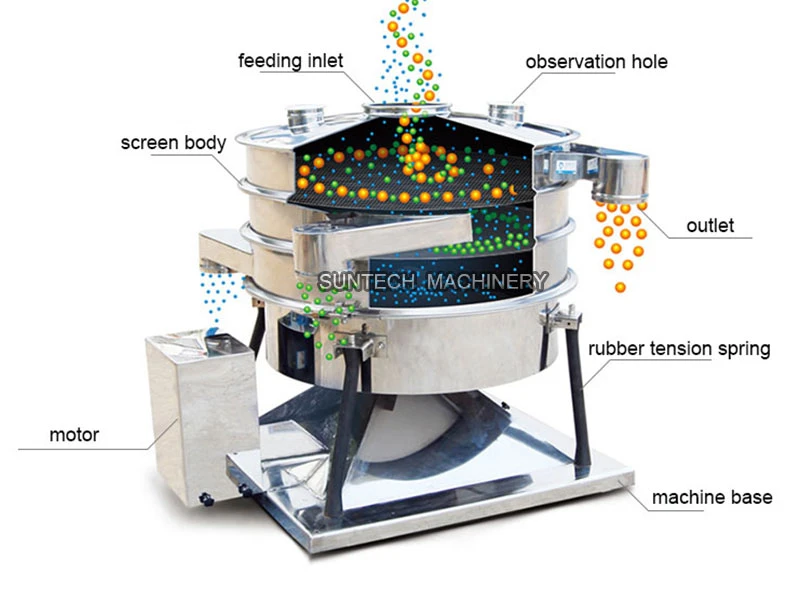

The working principle of the Round S304 Tumbler Vibrating Sieve Separator is the rotating force generated by the motor to make the screen body to produce reciprocating swing motion in the vertical or approximately vertical direction. The material is subject to this rocking effect on the screen surface. The smaller particles fall through the gaps in the screen, while the larger particles are left on the screen surface to continue to be rocked and discharged from the outlet, ultimately achieving classification and screening of the material.









1. Imitation of manual screening. As the screened products moved on the screen surface,the material landing time is usually more than 85%, and the screening efficiency can reach more than 95%.

2. There are different size from diameter 600mm-1000mm-1200mm-1600mm-2000mm-2400mm -2600 mm, and the output is 5-10 times that of ordinary vibrating screens.

3. Five layers of screens can be installed to complete separation of 2-6 different sizes.

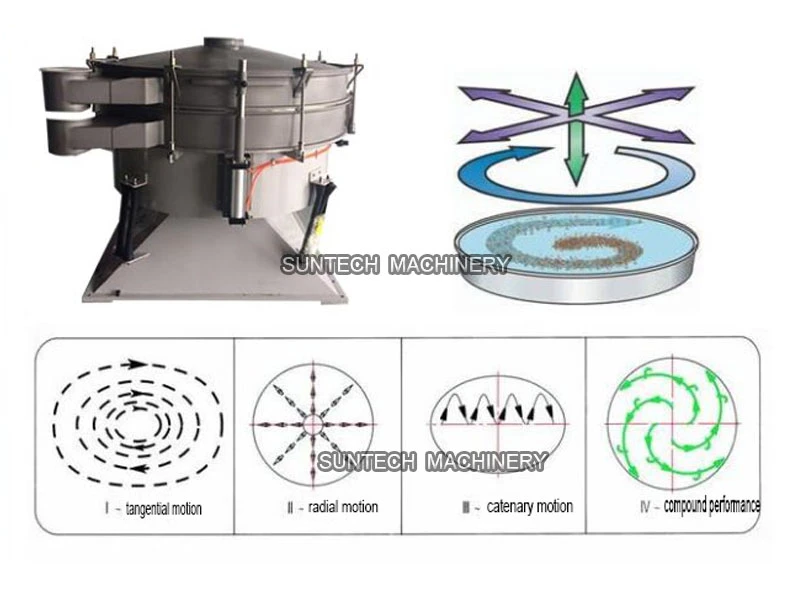

4. The movement of the machine is swing left and right instead of vibrated up and down like a vibrating screen, thereby reducing noise levels and reducing damage to the screened products.

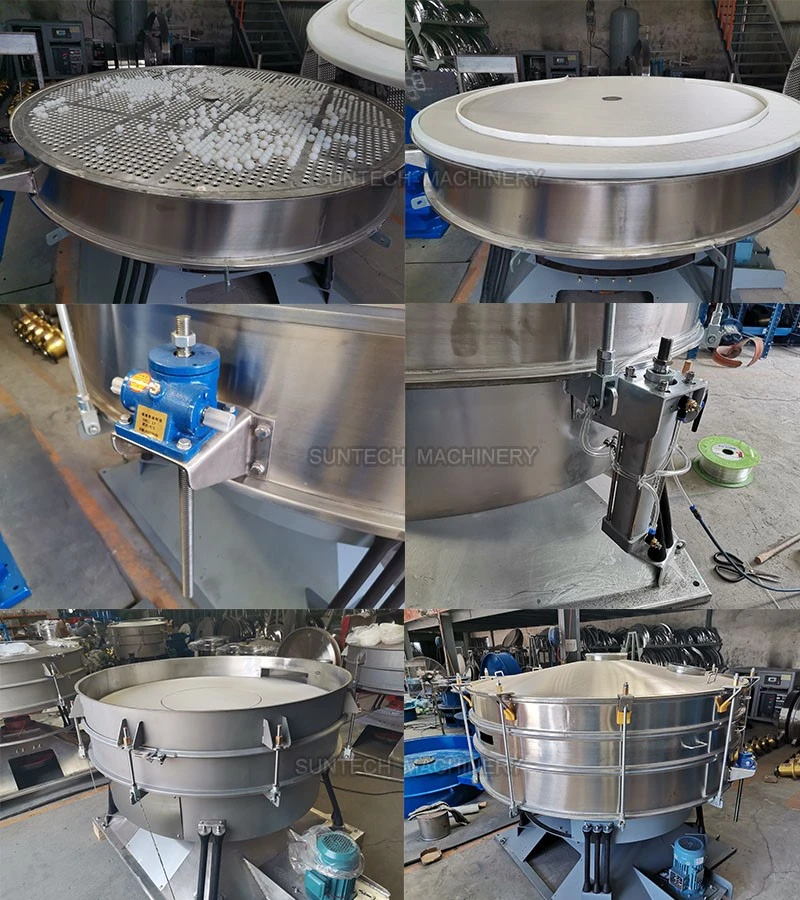

5. Different cleaning devices can be flexibly used, such as bouncing balls, cleaning brushes, ultrasonic screening, etc., to avoid material clogging the sieve aperture.

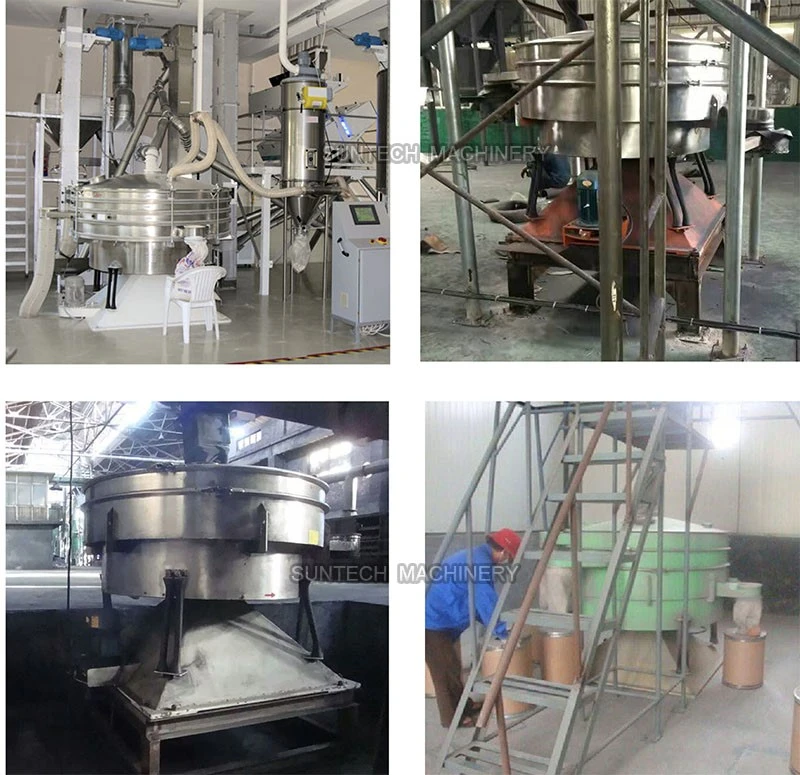

Round S304 Tumbler Vibrating Sieve Separator are widely used in the classification and processing of fine particles and fine powder materials in many industries such as chemistry, food, medicine, plastics, mining, wood industry, agriculture, metallurgy, and construction.

Food industry: flour, sugar, salt, alkali, monosodium glutamate, soy milk, etc.

Pharmaceutical industry: Chinese medicine powder, Western medicine powder, Chinese and Western medicine granules, etc.

Chemical industry: resin, coating, rubber, plastic, fertilizer, urea, etc.

Metallurgical industry: quartz sand, zinc oxide, magnesium oxide, electromagnetic powder, etc.











Model	Layer	Power(Kw)	Sieve Effective Diameter(mm)	Sieve Area(m2)	RPM
YBS-600	1-5	0.25	600	0.21	120-360
YBS-1000	1-5	1.5	1000	0.66	120-360
YBS-1200	1-5	2.2	1200	0.98	120-360
YBS-1600	1-5	4	1600	1.81	120-360
YBS-2000	1-5	4	2000	2.8	120-360
YBS-2400	1-4	5.5	2400	4.15	120-360
YBS-2600	1-4	5.5	2600	5.31	120-360

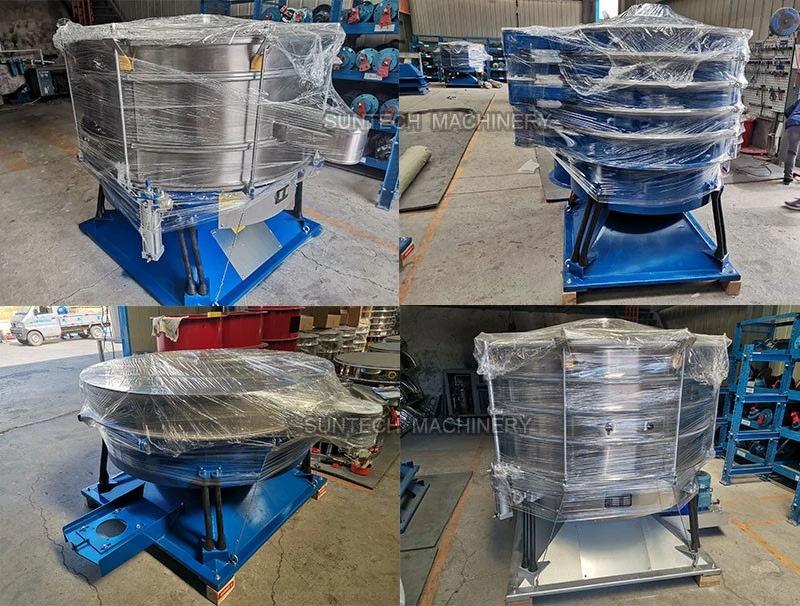

Different mesh layers tumbler Vibrating Sieve Separator packing well and ready for delivery in workshop. For single machine, we will use the plywooden box packing, for full container, we will make the pellet or plywooden box as per the size calculation.

Delivery way: by sea shipping (port to port), by train shipping(to your city) and for small volume we can use the air shipping (to your airport or to your door by express). For some countries we can also provide door-to-door transport services.

If you want to know more information please contact us (email: sales02@suntechm.com)
