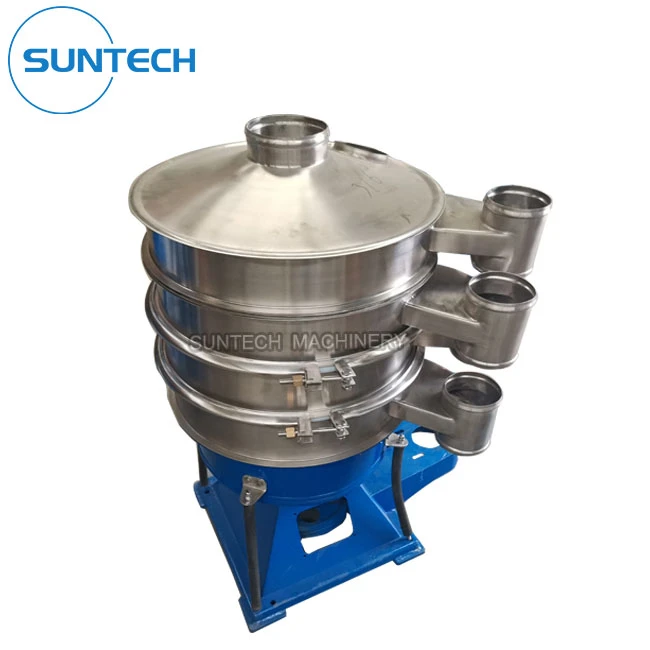

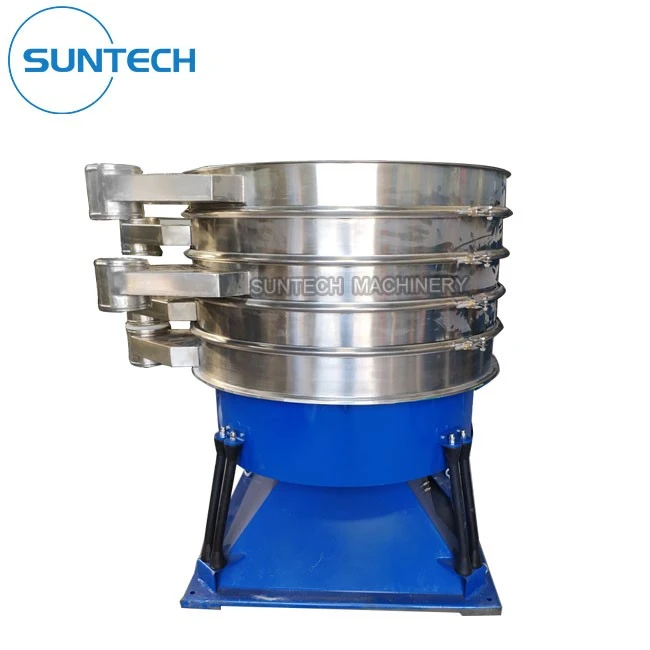

1-5 layers tumbler vibrating screen sieve machine means the tumbler vibrating screen can equipped in 1 to 5 screen layers as per specific sieving needs. The design principle of the tumbler vibrating screen is an imitation of artificial sieving and specially designed to meet large sieving capacity and high-precision screening purpose. Its unique design structure cleverly combines the screen-plane circular motion and the pitch-up parabolic motion. By adjusting the meridional angle and tangential angle, it can get the best sieving performance.

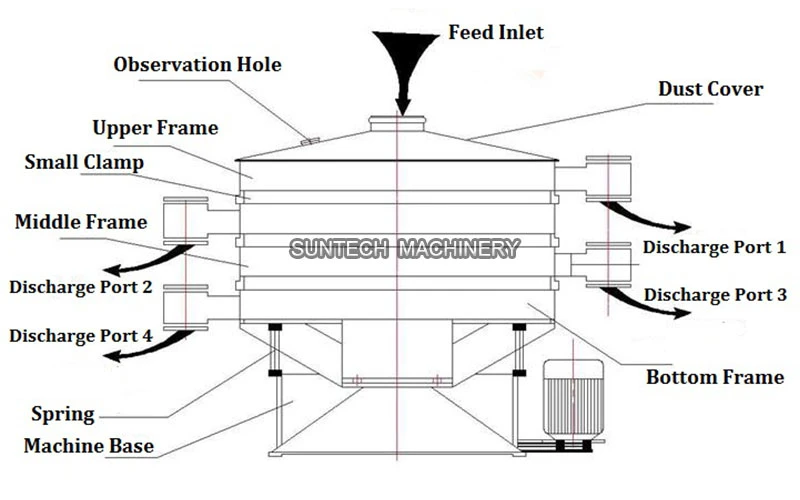

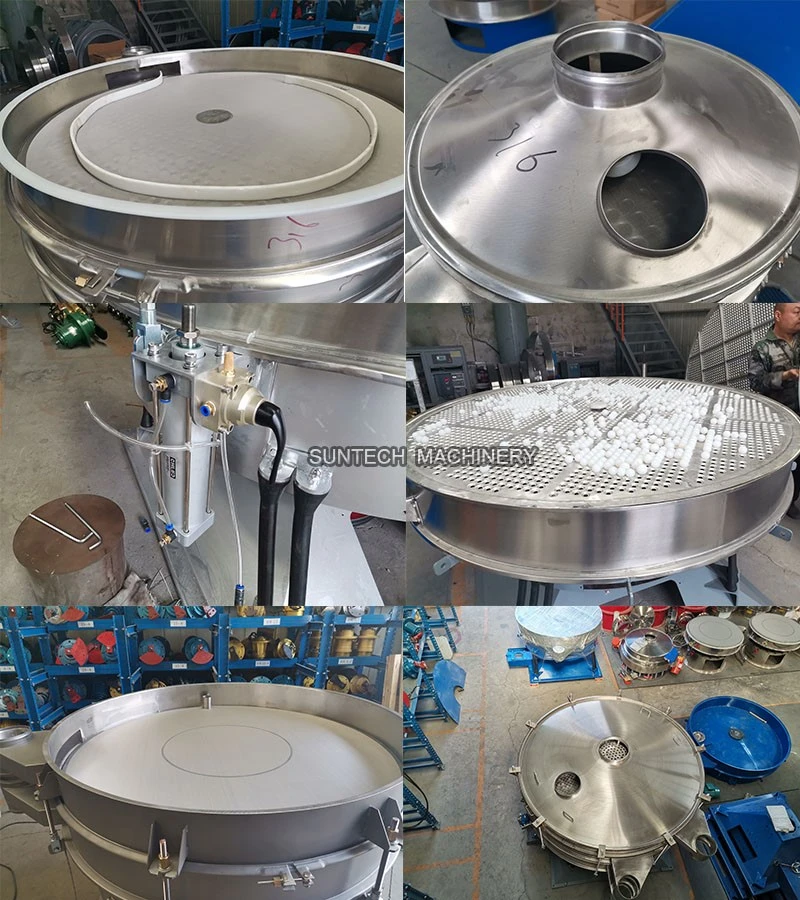

1. Screen frame: It consists of upper and lower layers of screens and support frames. Screens of different specifications can be replaced as needed.

2. Driving motor: The rotor generates vibration force to drive the entire screen frame to rotate.

3. Spring support: connects the motor to the screen frame and plays a buffering role

4. Discharge output: By adjusting the position and angle of the discharge port, the material discharge speed and direction can be controlled.

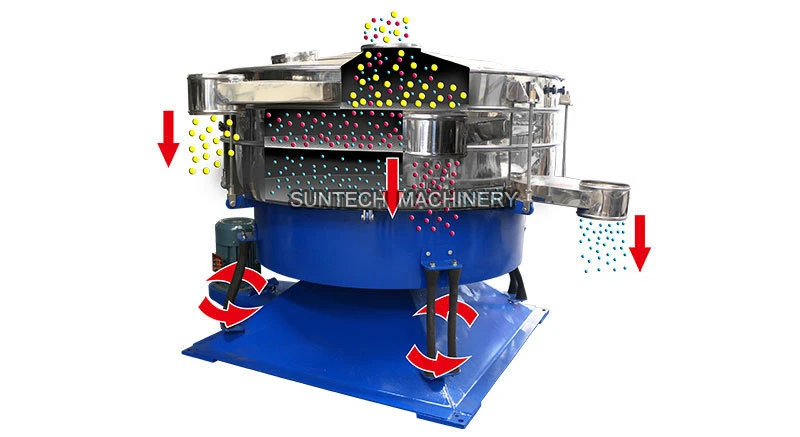

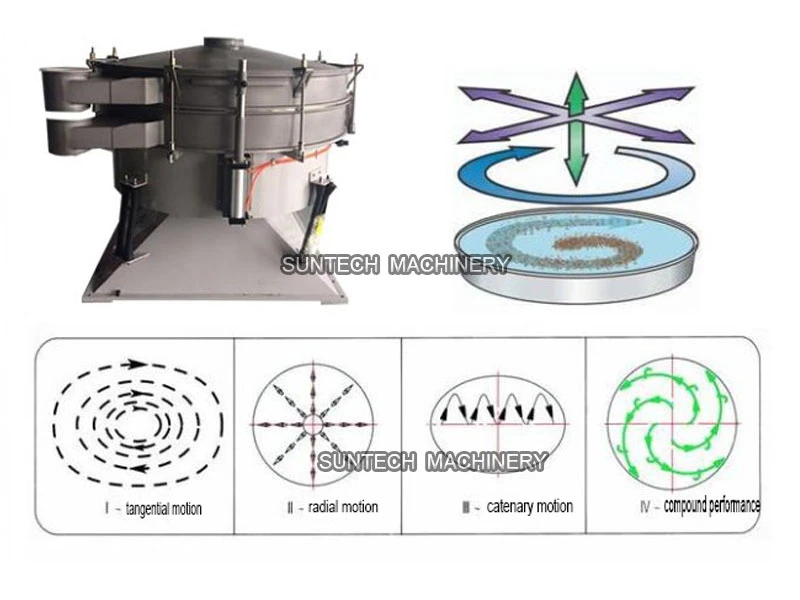

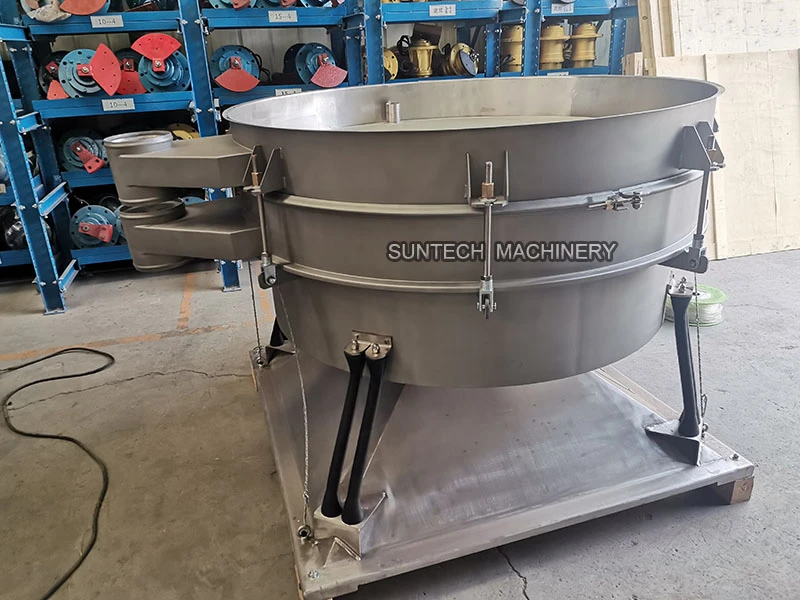

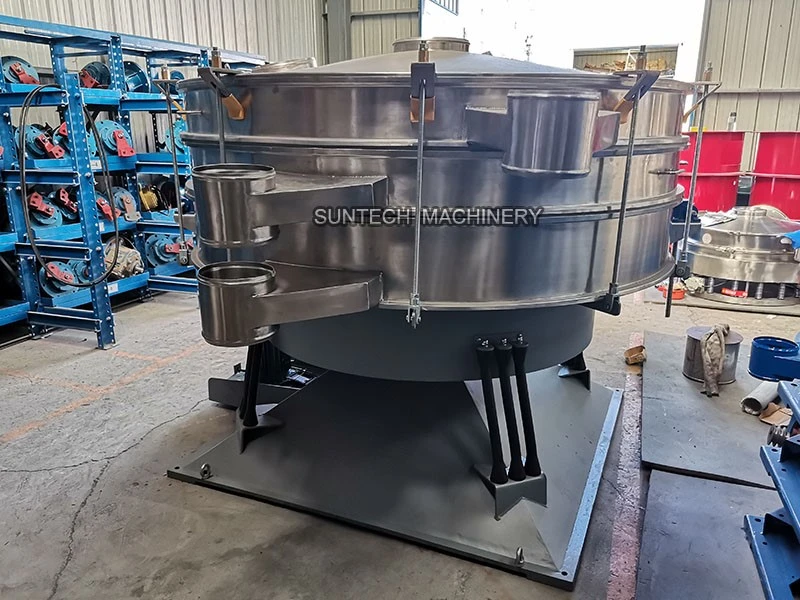

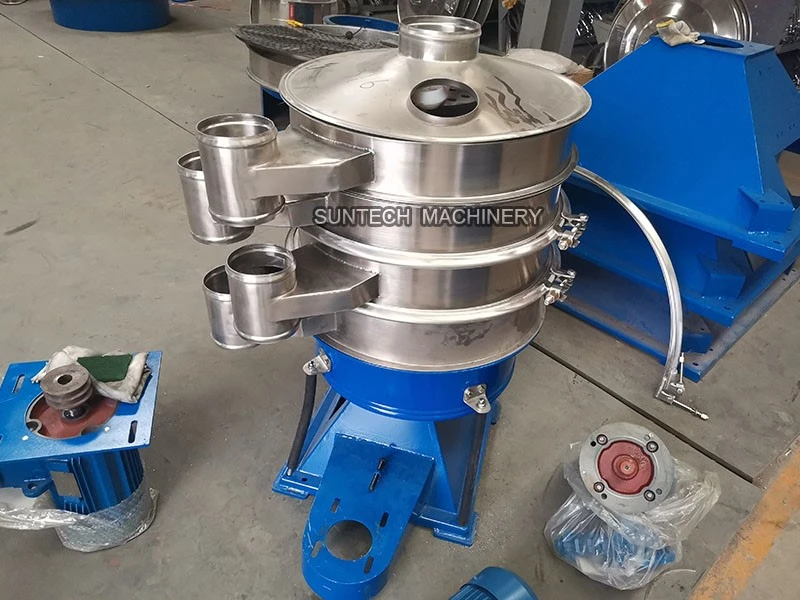

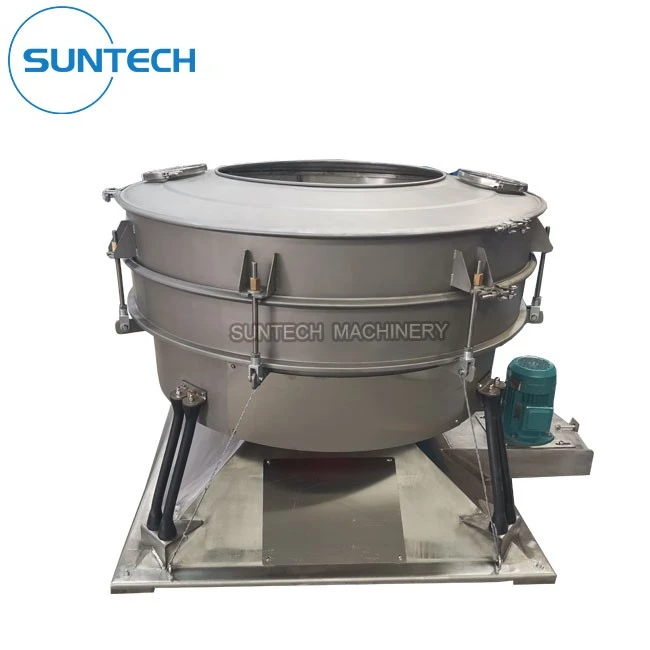

Adopt the ordinary motor as the working source to drive the tumbler screen body to rotate so that the powder materials presents an in volute swing motion trajectory on the screen surface to achieve the sieving and filtration function. The motion trajectory of the equipment itself is elliptical. Adjust the The meridional angle and tangential angle can change the movement trajectory of the material on the mesh surface. This movement trajectory enables materials to travel a relatively long distance in a smaller area to improve screening accuracy. The unique design makes the material moving on the screen take a longer time to hit the sieve than other screen machines, so the screening output relatively improved.







1. High screening accuracy: Due to the rocking effect, the material is distributed more evenly on the screen surface, which improves screening efficiency and accuracy.

2. Low energy consumption: The excitation force of the motor can be precisely controlled, making the circular swing screen consume less energy during operation.

3. Compact structure: The circular tumbler screen has a compact design and a small cubage, making it suitable for installation and use in limited spaces.

4. Easy to maintain: The screen mesh and screen body are designed for easy cleaning and replacement, which helps maintain the hygiene of the screening process and reduce cross-contamination.

5. Wide scope of application: It can be used for screening a variety of materials, including chemical raw materials, food additives, pharmaceutical powders, metal powders, etc.

6. Customizability: It can be customized in different machine sizes, different mesh size different screen layers and different capacity as per different sieving requirement.

















oat groats	14mesh	Medicine powder	40-60-80mesh
semen cassiae	16mesh	Corn grits powder	30mesh
Corn grits	16mesh	almond powder	30-40mesh
Rice	12-14mesh	Flour	50-60mesh
Black beans	5 mesh	notoginseng powder	80-100mesh
Soybean	6 mesh	Pearl powder	120-150mesh
Barley	8 mesh	Pollen powder	80-120mesh
Green mungbeans	10 mesh	Coffee powder	100-120mesh
buckwheat	12 mesh	Soybean milk	60mesh
Black rice	14 mesh	Honey	120mesh
Brown rice	14 mesh	Medicine dregs	80-150mesh
Sesame	24 mesh	Frass	30-40mesh
Millet	24 mesh	Chilli seed	8-10mesh





Tumbler vibrating screen sieve are widely used in the classification and processing of fine particles and fine powder materials in many industries such as chemistry, food, medicine, plastics, mining, wood industry, agriculture, metallurgy, and construction.

Food industry: flour, sugar, salt, alkali, monosodium glutamate, soy milk, etc.

Pharmaceutical industry: Chinese medicine powder, Western medicine powder, Chinese and Western medicine granules, etc.

Chemical industry: resin, coating, rubber, plastic, fertilizer, urea, etc.

Metallurgical industry: quartz sand, zinc oxide, magnesium oxide, electromagnetic powder, etc.





Model	Layer	Power(Kw)	Sieve Effective Diameter(mm)	Sieve Area(m2)	RPM
YBS-600	1-5	0.25	600	0.21	120-360
YBS-1000	1-5	1.5	1000	0.66	120-360
YBS-1200	1-5	2.2	1200	0.98	120-360
YBS-1600	1-5	4	1600	1.81	120-360
YBS-2000	1-5	4	2000	2.8	120-360
YBS-2400	1-4	5.5	2400	4.15	120-360
YBS-2600	1-4	5.5	2600	5.31	120-360
