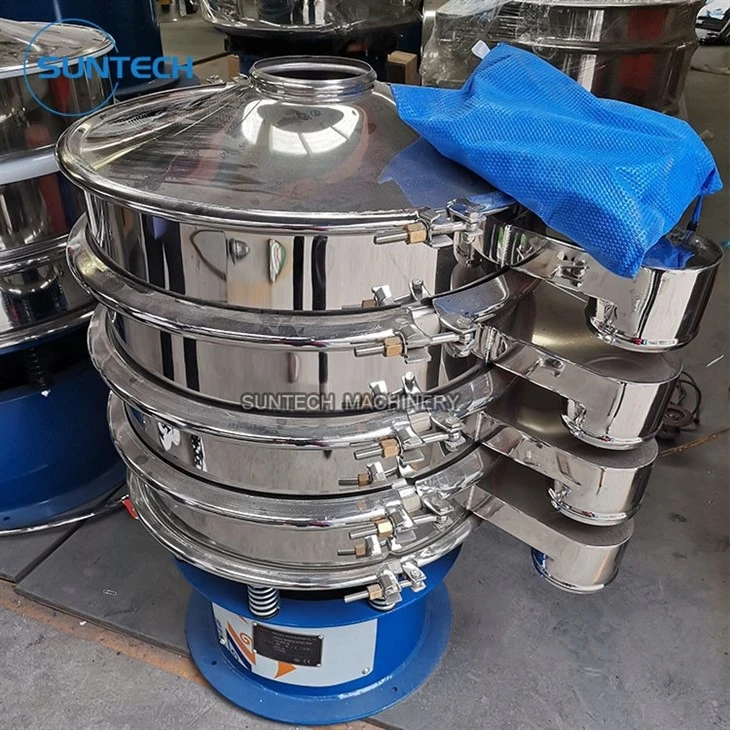

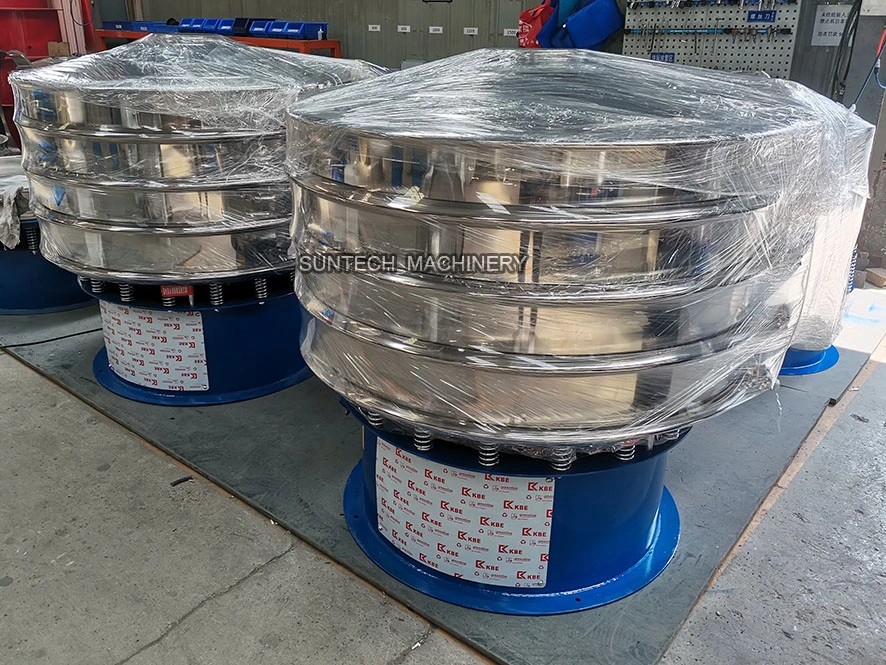

Multi Deck Vibrating Screen Vibro Sieve Separator

Multi Deck Vibrating Screen Vibro Sieve Separator

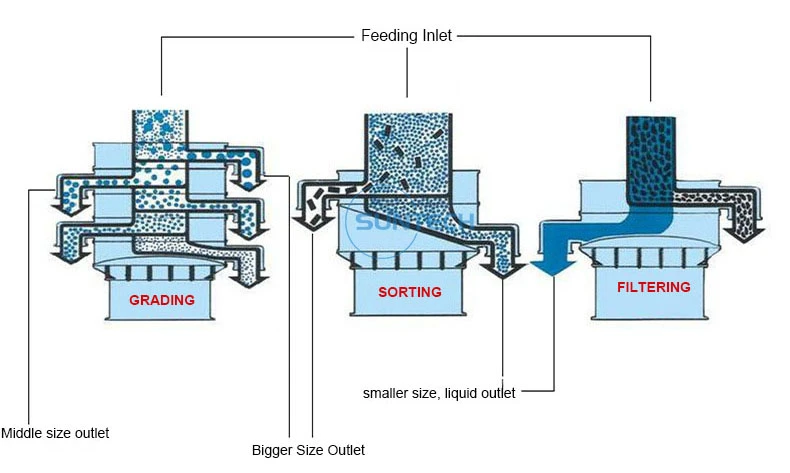

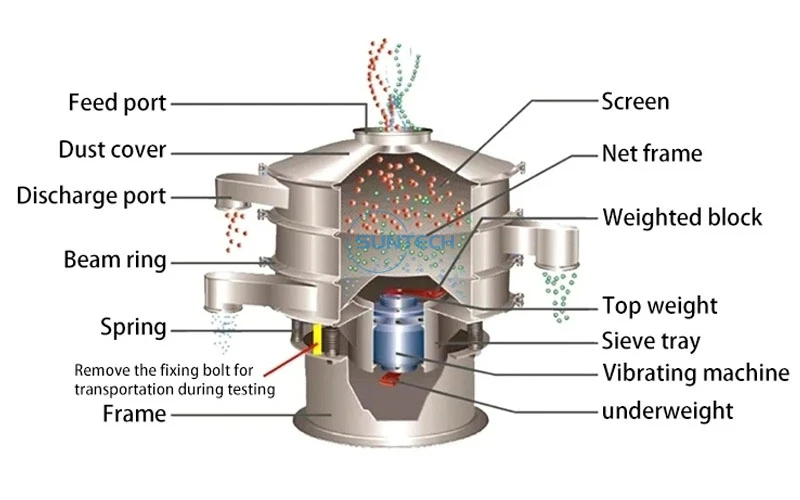

Multi deck vibrating screen vibro sieve separator is also called rotary vibrating screen as it is working in the rotating motion. It is a high-precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to quickly change the screen. It has a fully enclosed structure and is suitable for screening and filtering materials such as granules, powder, and mucus. The rotary vibrating screen uses an upright motor as the excitation source. Eccentric weights are installed on the upper and lower ends of the motor to convert the rotational motion of the motor into horizontal, vertical, and tilted three-dimensional motion, and then transfer this motion to the screen surface. . Adjusting the phase angles of the upper and lower ends can change the movement trajectory of the material on the screen surface.







1. Small size, light weight, easy to move, the direction of the discharge port can be adjusted arbitrarily, coarse and fine materials are automatically discharged, and can be operated automatically or manually.

2. High screening accuracy and high efficiency, and can be used for any powder, granule, or mucus.

3. The screen is not clogged, the powder does not fly, the finest sieving can reach 500 mesh (28 microns), and the finest filtration can reach 5 microns.

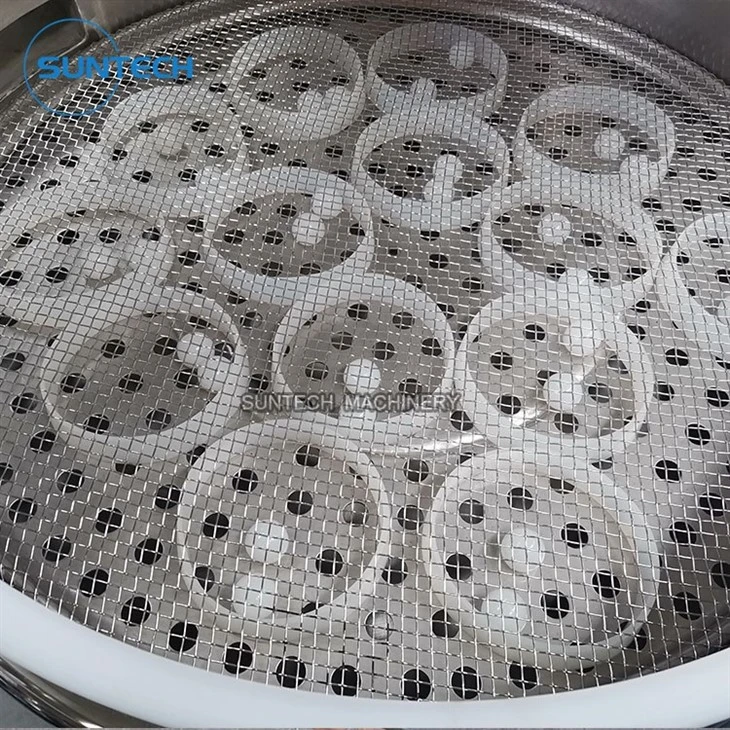

4. Unique grid design (mother-and-child type), the screen can be used for a long time, and it is easy to change the screen. It only takes 3-5 minutes. It is simple to operate and easy to clean.

5. No mechanical action, easy maintenance, can be used in single or multiple layers, and parts in contact with materials are made of stainless steel (except for medical use)





Various types of powder industry: Any particles, powders, and slime can be screened within a certain range.

Chemical industry: resin powder, pigment, washing powder, micro powder, paint, soda ash, lemon powder, rubber, plastic, etc.

Abrasives and ceramic industry: alumina, quartz sand, mud, spray soil particles.

Food industry: sugar, salt, alkali, MSG, milk powder, soy milk, yeast, juice, soy sauce, vinegar, etc.

Paper making industry: coatings, clay slurry, black and white liquid, waste liquid, paper making liquid, wastewater recycling.

Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.

Pharmaceutical industry: Chinese medicine powder, Chinese medicine liquid, Western medicine powder, Western medicine liquid, Chinese and Western medicine granules, etc.

Environmental protection: garbage, human and animal feces, waste oil, food wastewater, wastewater processing, etc.







1. Check whether the motor label meets the requirements.

2. Use a 500-volt megger to measure the insulation resistance. The stator winding should be dried for its value, and the drying temperature should not exceed 120°C.

3. Check the fasteners of the motor to prevent loosening.

4. Check whether the motor surface is damaged or deformed.

5. Check whether the rotation is flexible. If there are any abnormalities, they should be eliminated.

6. Check the power supply to see if there is phase loss, and run it without load for 5 minutes.





1. The motor should be fastened to the mounting surface, which must be smooth and flat.

2. The motor can be installed horizontally.

3. The motor lead adopts four-core rubber cable YZ-500V. When connecting to the power supply, the lead cable is not allowed to have sharp bends and is reliably fixed with the vibrating body.

4. The motor should have reliable grounding. There is a grounding device inside the motor, and there are signs on the lead ends. You can also use solid bolts on the feet for grounding.

5. Adjustment of exciting force.

The machine is well installed before leaving from the factory, you just need to connect the power after it arrive, any favor need from us, we will support the video guidance.





Model	Power (kw)	Sieve diameter (mm)	Granularity (mm)	Voltage (v)	RPM (r/min)	Capacity (kg/h)
-1S ST-400 - 2S -3S	0.18	350	<10	380	1440	100
-1S ST-600 -2S -3S	0.25	550	<10	380	1440	300
-1S ST-800 -2S -3S	0.55	750	<10	380	1440	500
-1S ST-1000 -2S -3S	0.75	920	<10	380	1440	800
-1S ST-1200 -2S -3S	1.1	1120	<10	380	1440	1000
-1S ST-1500 -2S -3S	1.5	1420	<10	380	1440	1200
-1S ST-1800 -2S -3S	2.2	1720	<10	380	1440	1500
