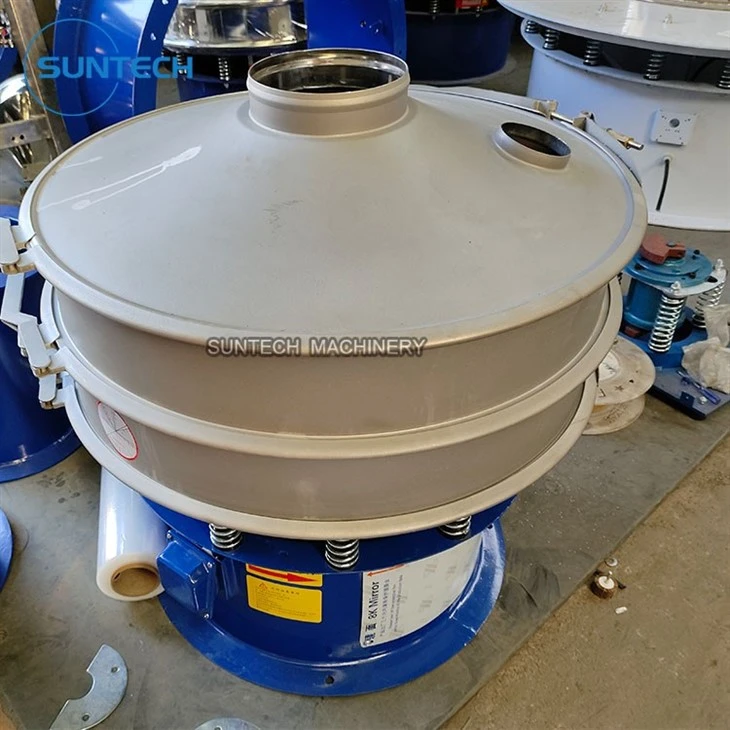

Electric powder coating garri sieving machine is the rotary vibrating sieve with the surface treatment in powder coating and used for garri powder sieving and scalping. Different from the surface treatment in mirror polishing, powder coating technology can prevent light reflecting so that ensure the production safety. It has the same function for powder sieving in different mesh size, remove dust or impurities from the granules, liquid filtering etc. The materials of the machine can make in fully stainless steel 304/316 or contact parts are stainless steel s304/316 or full carbon steel, no matter the carbon steel or stainless steel, all can be in technology of powder coating.



Powder Coating or Plastic spraying is a spraying process to spray electrostatic powder (such as plastic powder) on the surface of parts. Compared with ordinary spray painting, plastic spraying is more energy-saving and safer. , more durable.

The main function of the vibrating screen is to classifying powder in different mesh size. The vibrating screens used in mines, sandfields and other places have harsh living environments and are often exposed to wind, rain and sun. Long-term accumulation will make the screen material thinner. , weathering, affecting normal use.

In order to avoid slowing down the weathering, it is mainly use paint to protect the vibrating screen surface. However, the paint is easy to fall off, especially in harsh environments, In recent years, powder coating technology is more and more popular in the vibrating screen surface treatment. Plastic spraying can better protect the vibrating screen. It has strong adhesion and is not easy to burn. It can protect the metal surface from damage for a long time in harsh environments.







The powder coating or the plastic spaying for vibrating screens is relatively complex.

Preparation work: remove dust, rust, etc. on the surface of the equipment, and apply a phosphating layer on the surface of the equipment to prevent corrosion and enhance coating adhesion; Electrostatic spraying: use a high-performance electrostatic spraying machine to evenly spread the plastic powder Apply to the surface of the equipment;

High-temperature curing: The curing furnace is heated to a certain temperature (about 185°C) and maintained for a period of time (about 15 minutes) to melt, level and solidify the coating, and then take it out to cool. The most important steps in spray molding are the above three steps.

The spray-coated vibrating screen has a longer service life and is more suitable for use in harsh environments. Modern vibrating screens are mostly driven by electricity. The surface of the screen machine after spraying is insulated, which can avoid accidents caused by electrification of the screen body and enhance safety.







Model	Power (kw)	Sieve diameter (mm)	Granularity (mm)	Voltage (v)	RPM (r/min)	Capacity (kg/h)
-1S ST-400 - 2S -3S	0.18	350	<10	380	1440	100
-1S ST-600 -2S -3S	0.25	550	<10	380	1440	300
-1S ST-800 -2S -3S	0.55	750	<10	380	1440	500
-1S ST-1000 -2S -3S	0.75	920	<10	380	1440	800
-1S ST-1200 -2S -3S	1.1	1120	<10	380	1440	1000
-1S ST-1500 -2S -3S	1.5	1420	<10	380	1440	1200
-1S ST-1800 -2S -3S	2.2	1720	<10	380	1440	1500









As it's standardized inlet and adjustable outlet direction, it is not only can work by single machine but also can easy to combine the production line with related conveying and mixing machine.







Abrasive & Ceramics: alumina, quartz sand, slurry, atomizing soil particles.
2.Chemical: resin sand, pigment, washing powder, micropowder, paint, soda ash, lemon powder, rubber and plastics.
3.Food: sugar, salt, soda, MSG (monosodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar, etc.
4.Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid, waste water recycle.
5.Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.
6.Pharmaceutical: TCM (traditional Chinese medicine) powder, TCM liquid, western medical powder, western medical liquid, TCM & western medical particles, etc.
7.Environment Protection: rubbish, excrement, waste oil, food effluent, waste water processing, etc.
