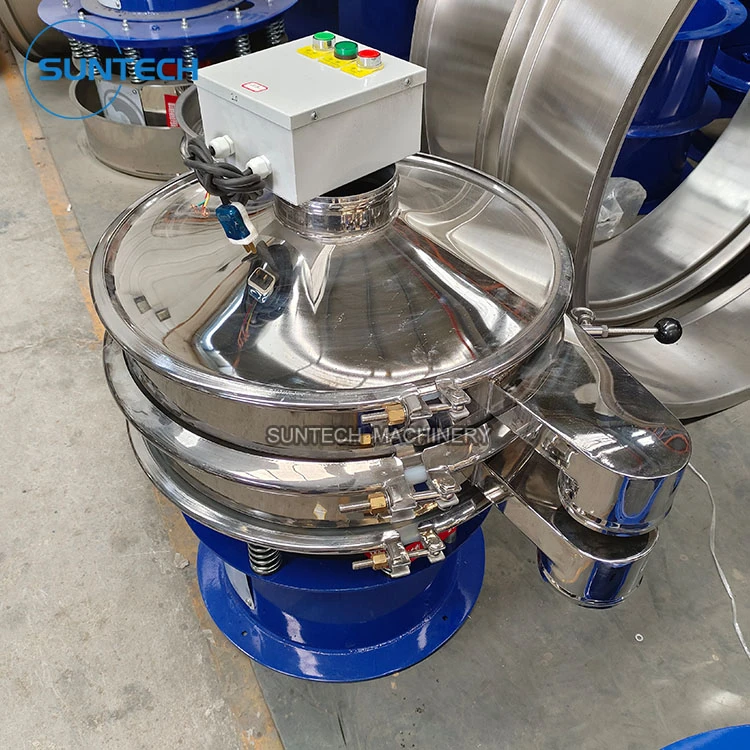

Diameter 600mm Rotary Vibrating Screen
Diameter 600mm rotary vibrating screen is the smaller size in the category of the circular vibration sieve, it is also called vibrating sieve shaker,vibro screen separator,mechanical vibrating sifter etc. It is mainly used to sieving out foreign material and oversized particles and remove dust from the product to ensure the quality of powder or liquid products.
- Product Introduction
Diameter 600mm Rotary Vibrating Screen
Introduction
Diameter 600mm rotary vibrating screen is the smaller size in the category of the circular vibration sieve, it is also called vibrating sieve shaker,vibro screen separator,mechanical vibrating sifter etc.
It is mainly used to sieving out foreign material and oversized particles and remove dust from the product to ensure the quality of powder or liquid products. It can sieving as fine as 500mesh, the inside cleaning bouncing ball can prevent the sieve from clogging. There are three construction materials, carbon steel, stainless steel, and plastic type, it can achieve 2-6 different classifications in one operation.
Working Principle
rotary vibrating screen adopt a vertical vibration motor as the excitation source. The eccentric weights at the upper and lower ends of the vibration motor convert the rotational motion into horizontal, vertical, and tilted three-dimensional motion, and transmit it to the screen surface of the rotary vibrating screen, feeding the powder from the inlet, according to different screening requirements, the material passes through 1-5 layers of screens with different mesh numbers. Materials with different mesh sizes pass through the corresponding mesh mesh of each layer and discharged from the discharge outlet of each layer to ultimately achieve the purpose of screening or filtration.
Main Specifications
Except for 600mm diameter, there are also 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm, different size for different sieving production needs.
|
Model |
ST-600 |
ST-800 |
ST-1000 |
ST-1200 |
ST-1500 |
ST-1800 |
ST-2000 |
|
Diameter (mm) |
Φ600 |
Φ800 |
Φ1000 |
Φ1200 |
Φ1500 |
Φ1800 |
Φ2000 |
|
Sieving Area (m2) |
0.24 |
0.45 |
0.67 |
1.0 |
1.6 |
2.43 |
3.01 |
|
Mesh Size(#) |
2-500 |
||||||
|
Feeding Size(mm) |
<Φ10 |
<Φ15 |
<Φ20 |
<Φ30 |
|||
|
Vibration Frequency (rpm) |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Valid Size (mm) |
Φ560 |
Φ760 |
Φ930 |
Φ1130 |
Φ1430 |
Φ1760 |
Φ1960 |
|
Screen Layers |
1-5 |
||||||
|
Motor Power (Kw) |
0.25 |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
Machine Features
Widely application for different kinds of powders, can sieving fine to 500mesh or 0.028mm, and filtering liquid materials fine to 5 microns.
The bouncing rubber ball inside machine can achieve the screen mesh cleaning function by continuously hitting the screen without blocking the sieve. There are ultrasonic screen cleaning device for option when sieving the sticky and static materials or very fine powders.
Fully closed structure, no dust flying.
It can install 1 to 5 layers of sieve, can perform 2 to 6 grade of sorting or filtration at one time.
Impurities and coarse materials are automatically discharged and can continuous operation
The discharge outlet can be rotated 360°for easy operation
Machine Details Instructions
Main Application
Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

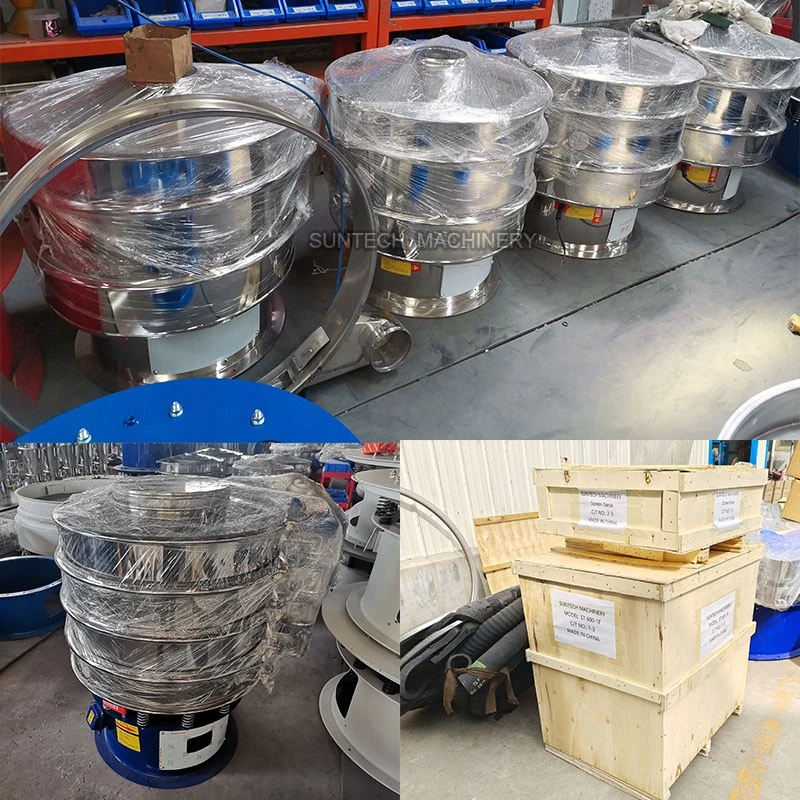

Packing & Shipping
Leave us message if you interested in any of our machine, we will reply timely.
