Diameter 800mm Rotary Vibrating Screen
Diameter 800mm rotary vibrating screen is the round vibration sieve with diameter at 24 inches, it’s valid diameter is 780mm, sieving area is 0.45m2, as per different mesh size or different layers or different material density, it can sieving up 300-500kgs per hour.
- Product Introduction
Diameter 800mm Rotary Vibrating Screen
Introduction
Diameter 800mm rotary vibrating screen is the round vibration sieve with diameter at 24 inches, it's valid diameter is 780mm, sieving area is 0.45m2, as per different mesh size or different layers or different material density, it can sieving up 300-500kgs per hour.

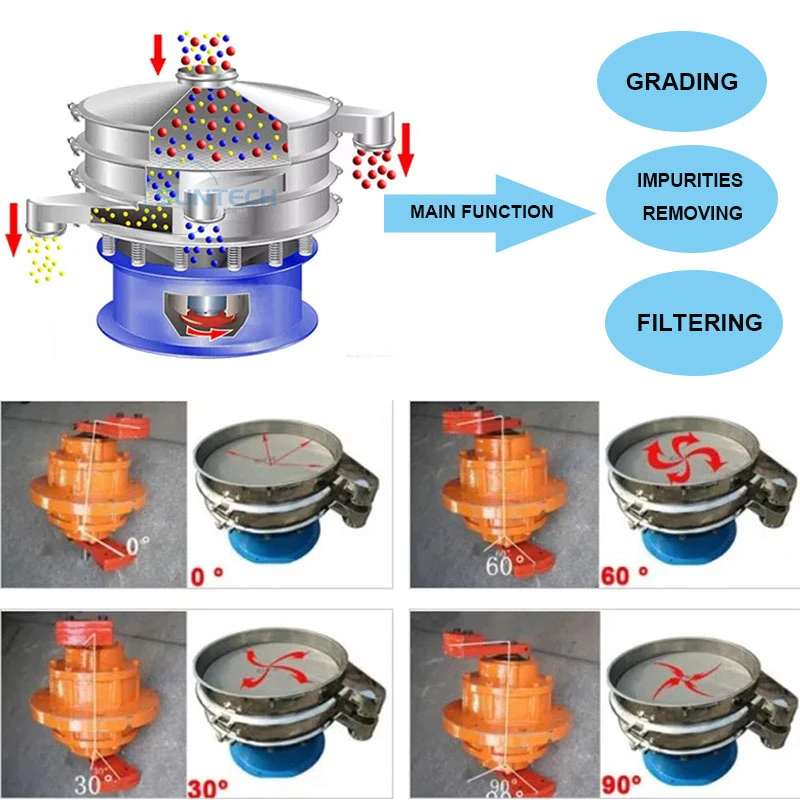

Working Principle
It uses the upright vibrating motor as the excitation source of vibration , equipped eccentricity hammer on the both sides of motor,change circum rotate to level ,upright and incline movement,then pass these three movement to the surface of the screen.By adjust the phase angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
Main Specifications
|
Model |
ST-800 |
|
Screen Layers |
1-5 Layers |
|
Screen Mesh |
2-500 mesh |
|
Motor Power |
0.75KW |
|
Capacity |
500-1000kgs |
|
Mesh Cleaning System |
Bouncing Ball,Ultrasonic System |
|
Function |
Sieving, Sorting, Grading, Separation, Filtering |
|
Machine Material |
Full S304/S316 Stainless Steel, Contact Parts Stainless Steel, Full Carbon Steel |
|
Optional Device |
footmaster caster,ON/OFF switch,Iron Remover,flange, valve control gate, observation hole, sight glass, feeding funnel |
|
Voltage Option |
Single Phase or Three Phase 110V-480V, 50HZ /60HZ |
|
Other Size |
400mm, 600mm, 1000mm, 1200mm, 1500mm, 1800mm |
|
HS code |
847410000 or 8479820090 |
Main Application
Food industry: sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, powdered milk, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, potato granules, sugar beets, ice cream, fruit juices, vegetable and pickle canneries, soybean oil.
Construction industry: sand, glass beads, plaster, abrasives Grit/shot, borax.
Chemical industry: fertilizer, rubber, polystyrene beads, paint, detergents, latex, catalyst, casein.
Recycle: animal blood, paper effluent, brewer yeast, sewage, manure, brewery waste, laundry waste, potato peelings and waste, tallow.

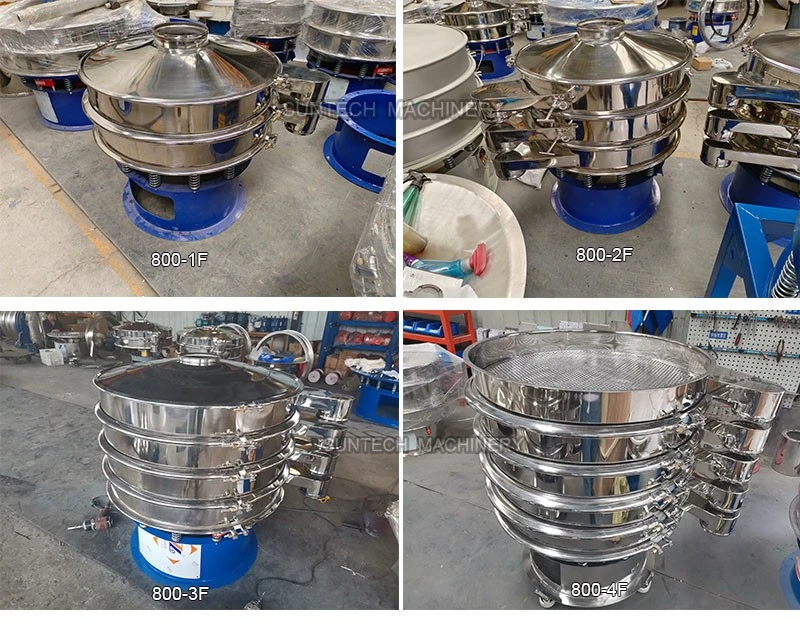

Machine Pictures Show
Machine Onsite showing
