Round 450 Vibrating Filter Screen
Round 450 vibrating filter screen is one kind of single layer small vibrating screen filter, it has a wide application in small business or home use for powder or particle classification or liquid filtration, such as filter juice, milk, soybean milk and other liquid and powder material in food, chemical and other industries.
- Product Introduction
Round 450 Vibrating Filter Screen
Introduction

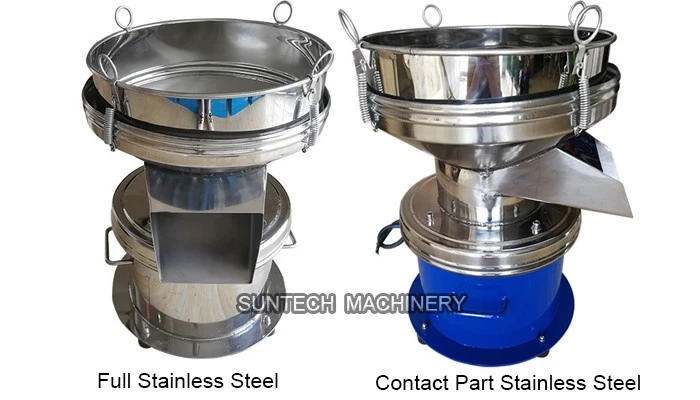

Round 450 vibrating filter screen is one kind of single layer small vibrating screen filter, it has a wide application in small business or home use for powder or particle classification or liquid filtration, such as filter juice, milk, soybean milk and other liquid and powder material in food, chemical and other industries. It consists of machine body, vibration motor, outlet hopper, sieve griddle-control device. There are full stainless steel and contact parts stainless steel material for choice.

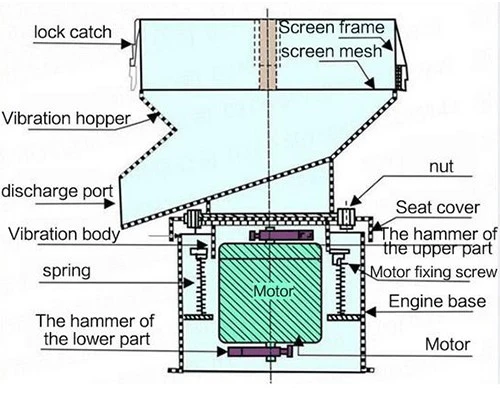

Machine Structure
Advantage
Small size, light weight, easy to move,
simple operation, easy maintenance
Unique grid design, no slurry leakage, easy to change and clean
Main Applications of round 450 vibrating filter screen

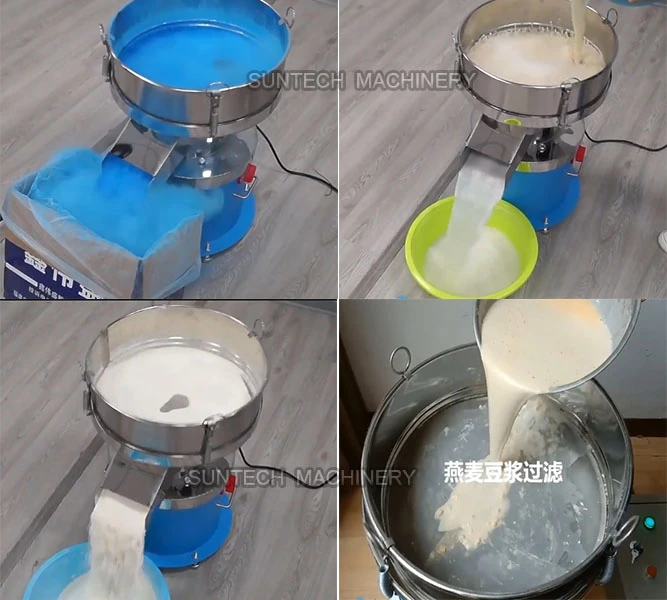

1.Food industry: 450 filter screen is commonly used in beverages, alcohol, juice, soy milk, etc. Through filtration, suspended particles, impurities and other substances are removed, and pure drinks are obtained by utilizing their excellent quality.
2.Pharmaceutical industry: 450 filter screen is mostly used for filtering salt water and injection liquid. Effectively filter out particles, impurities and other substances to ensure the quality of medicines.
3.Chemical industry: 450 filter screen is mainly used in the field of suspension, sedimentation and high viscosity liquid filtration to filter impure substances.
4.Pharmaceutical industry: 450 filter screens are often used for filtration of biological product process liquids, such as purifying culture media, separating cells, and filtering out impurities such as cell debris.

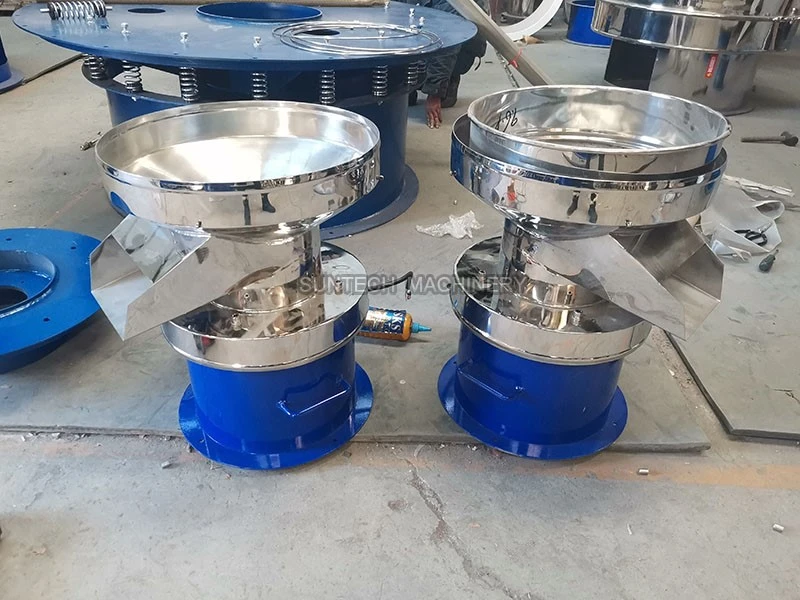

Machine in Workshop

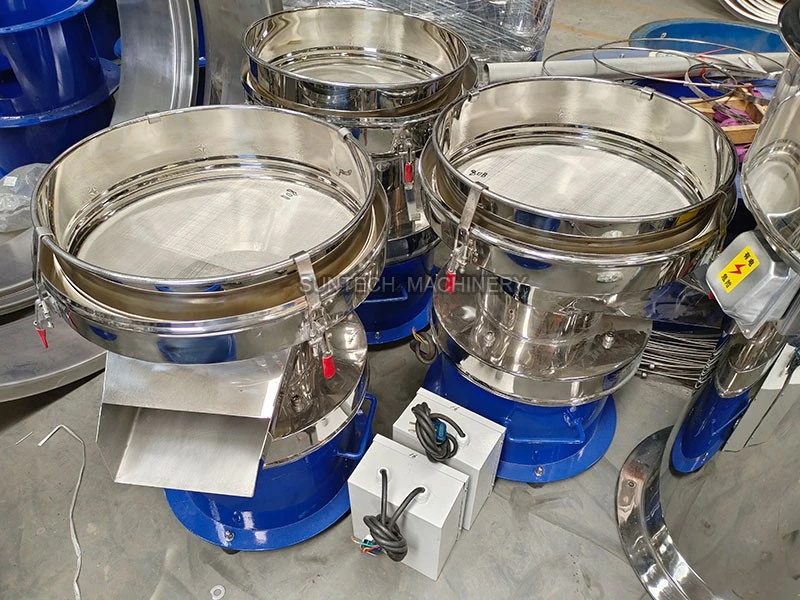

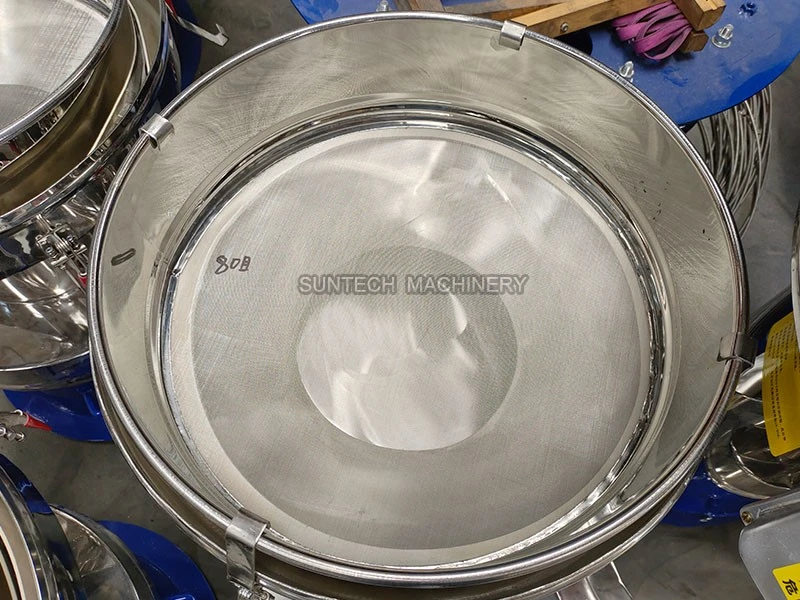

80mesh 450 vibrating filter screen
450 vibrating filter screen frame
450 vibrating filter screen with screen mesh installation

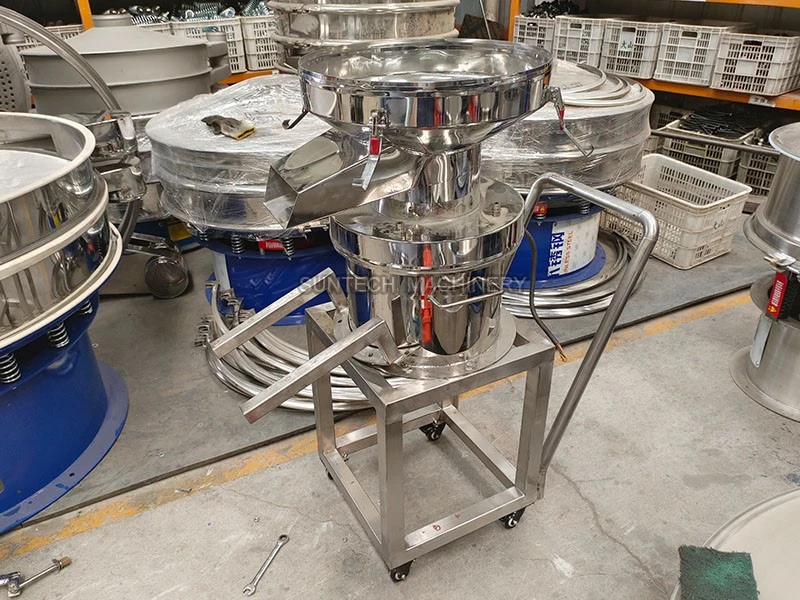

450 vibrating filter screen with movable trolley
Technical Sheet
There are two models on this series vibrating filter screen, one is diameter at 450mm, another is diameter at 550mm.
|
Type |
Power |
Valid screen diameter |
Machine Size |
Sieve size |
Weight |
|
ST-450 |
0.18kw |
380mm |
500*500*660 |
0.038-3mm |
50kgs |
|
ST-550 |
0.35KW |
480mm |
600*600*650 |
0.038-3mm |
80kgs |
In all, 450 vibrating filter screen is a common filtering and screening equipment, widely used in medicine, chemical industry, food, cement and other fields. Knowing more well its characteristics and application scenarios, this device can be better applied and used to achieve efficient and precise screening operations.
