Stainless Steel Direct Discharge Vibrating Screen

Stainless Steel Direct Discharge Vibrating Screen

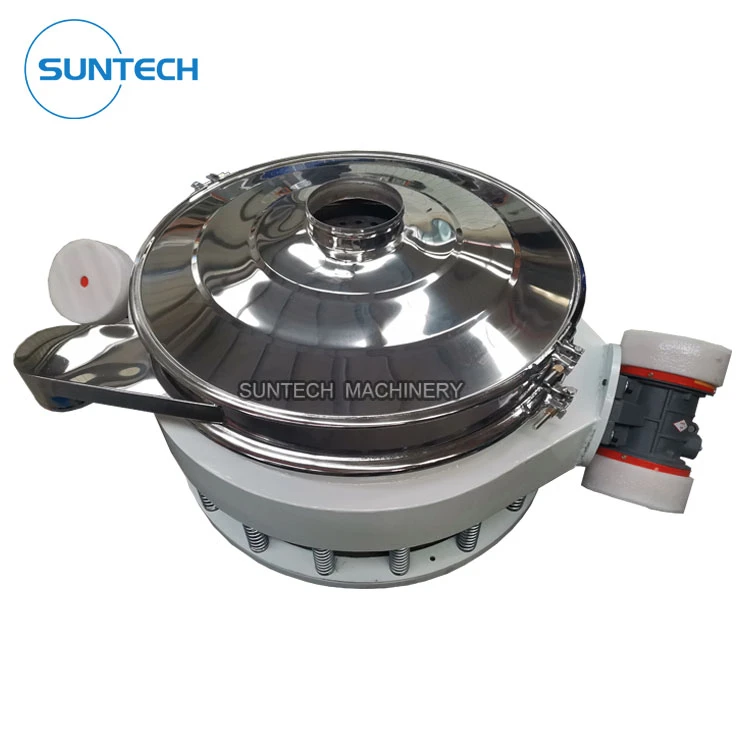

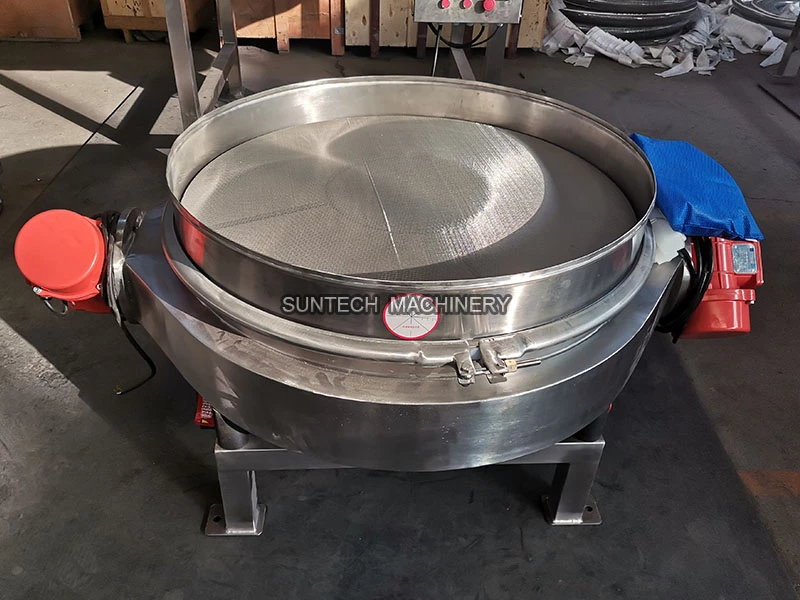

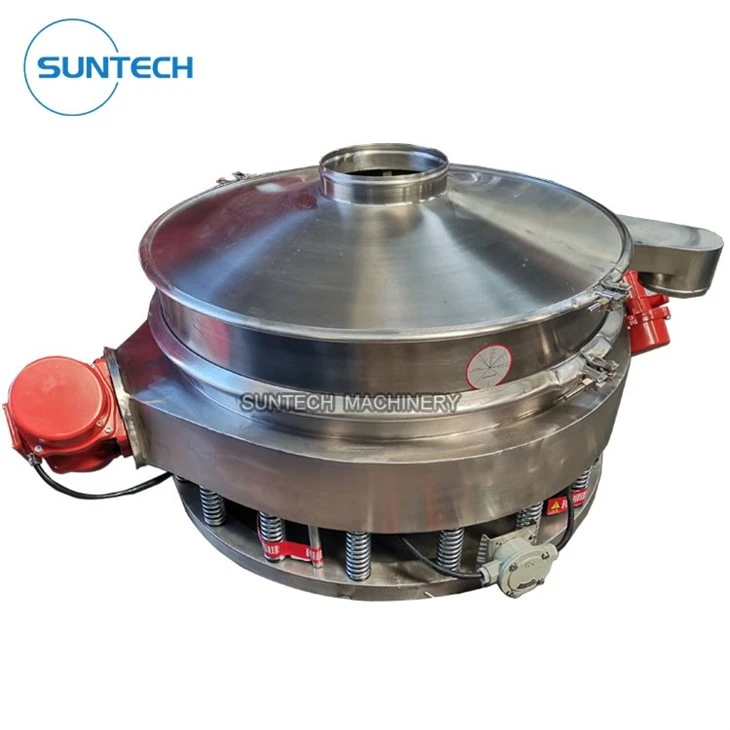

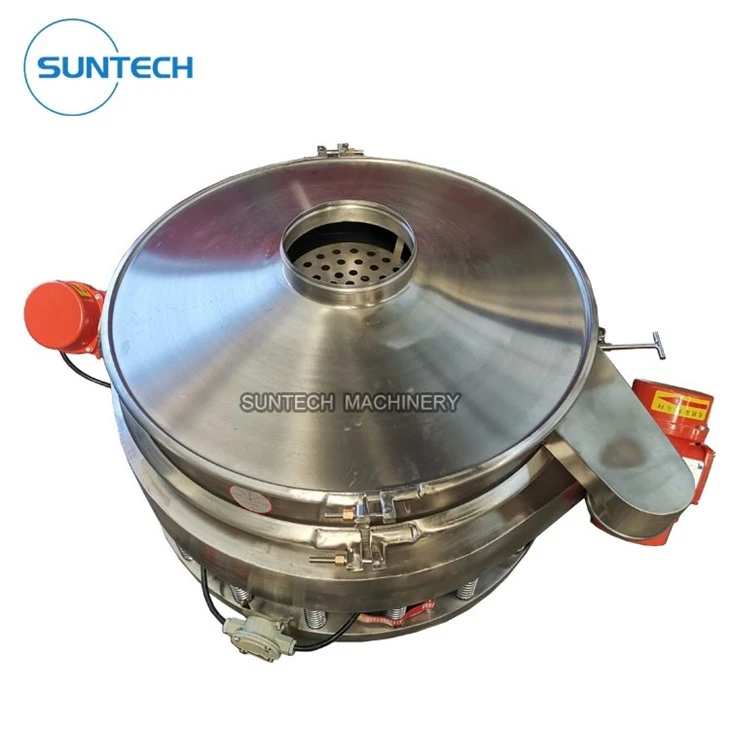

Stainless steel direct discharge vibrating screen is one kind of round type straight flow vibrating screen separator build in full stainless steel s304/s316 or contact parts in stainless steel s304/s316. The double motor mounted on the both sides of the machine can make the powder doing the circulatory motion on the screen surface and passing through the specific mesh size and then discharged from each outlet directly. It mainly used for the dust removing, scalping, or make the powder fluffy.

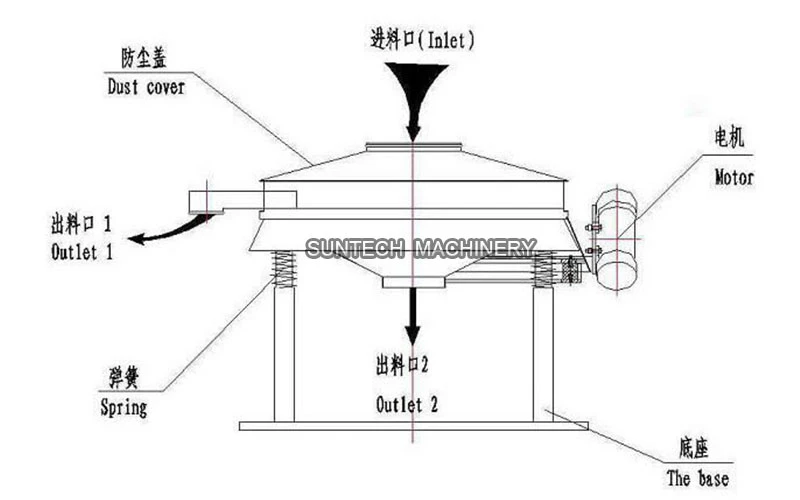

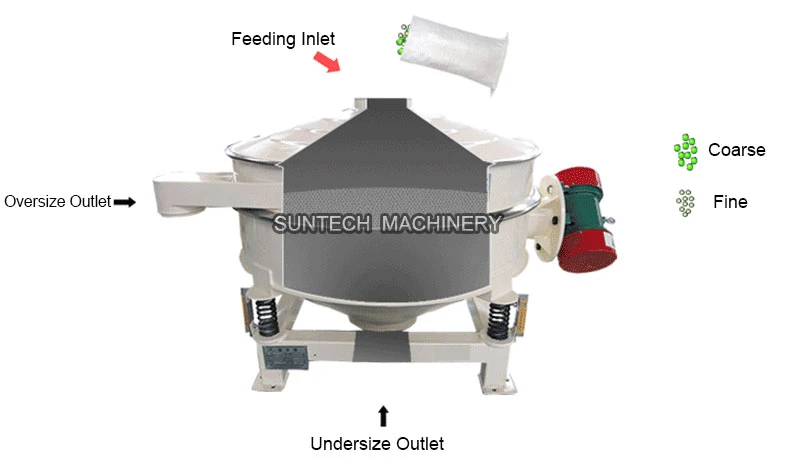

There are two sets of eccentric blocks (unbalanced eccentric blocks) at the upper and lower ends of the vibration motor shaft to convert the rotational motion of the vibration motor into a multi-overlapping force of horizontal, vertical, tilt and centrifugal effects, and then transfers this force to the screen surface. After the material enters the equipment,

affected by the force of the vibration motor, which makes powder materials doing an elliptical motion trajectory on the screen surface. It has the function of stripping, breaking up and reorganizing, so that the materials can pass through the screen mesh quickly and discharged from fine size outlet and over size powder will be discharged from oversize discharge outlet so that complete the screening and separating process.

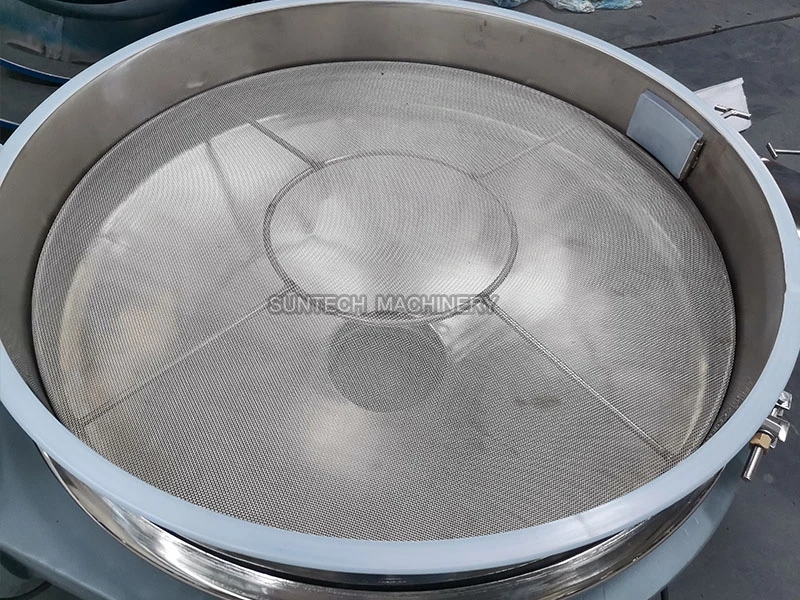

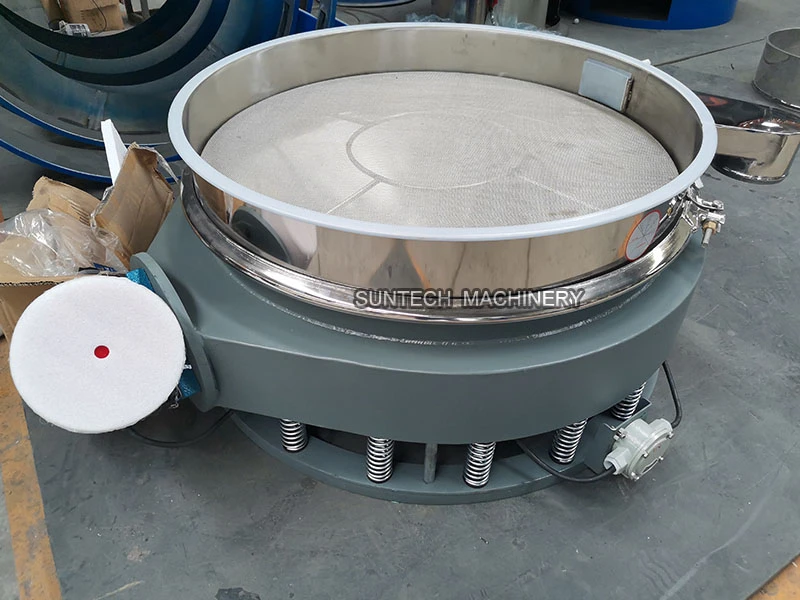

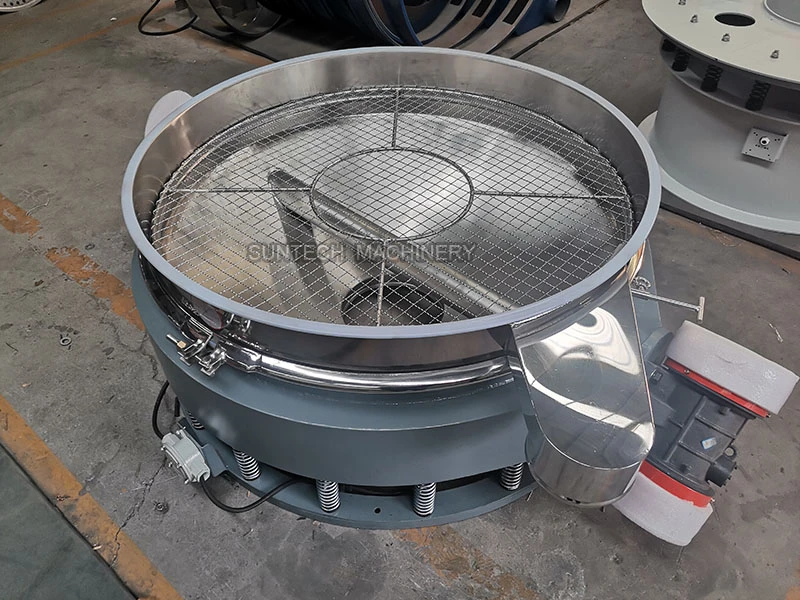

Different mesh size showing

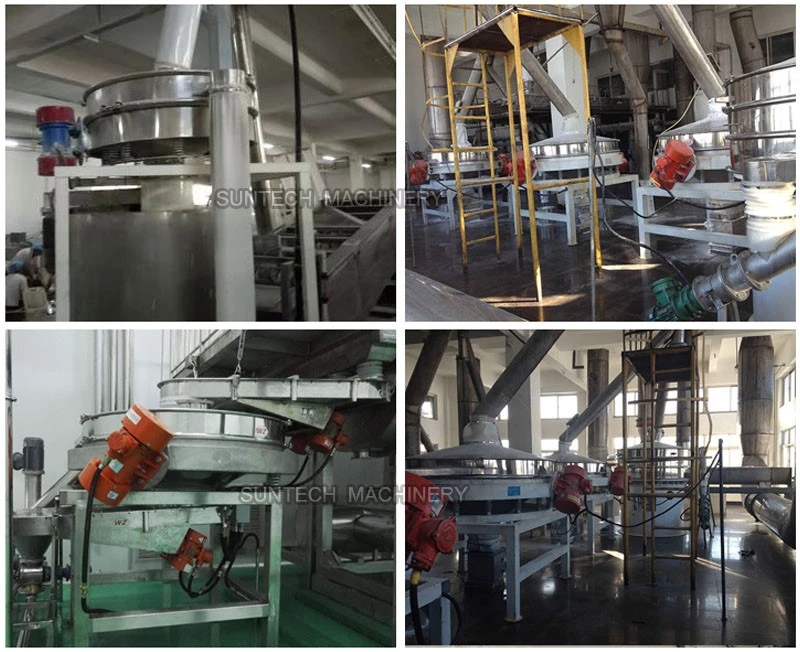

Direct discharge vibrating screen can be used for front end feeding system of the instant noodles production line, snacks, powder drinks, it has a good performance to remove the foreign materials or dust before feeding to the next production procedure.







Model	power (kW)	Motor speed (r/min)	Screen diameter (mm)	Dimensions (mm)
ZPS-600	2×0.18	1460	Φ560	1150×600×550
ZPS-800	2×0.18	1460	Φ760	1360×800×600
ZPS-1000	2×0.25	1460	Φ930	1600×1000×700
ZPS-1200	2×0.55	1460	Φ1160	2000×1200×900
ZPS-1500	2×0.75	1460	Φ1430	2350×1500×1000
ZPS-1800	2×1.5	1460	Φ1730	2550×1700×1200

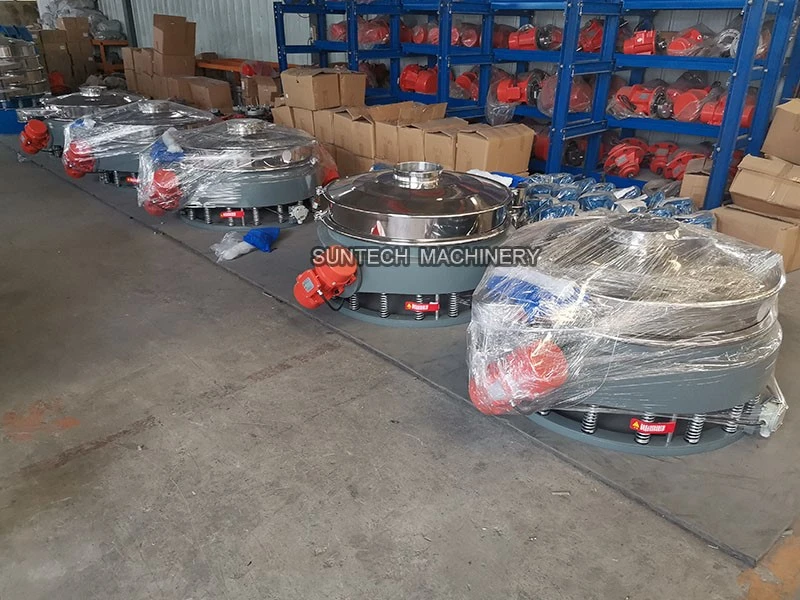

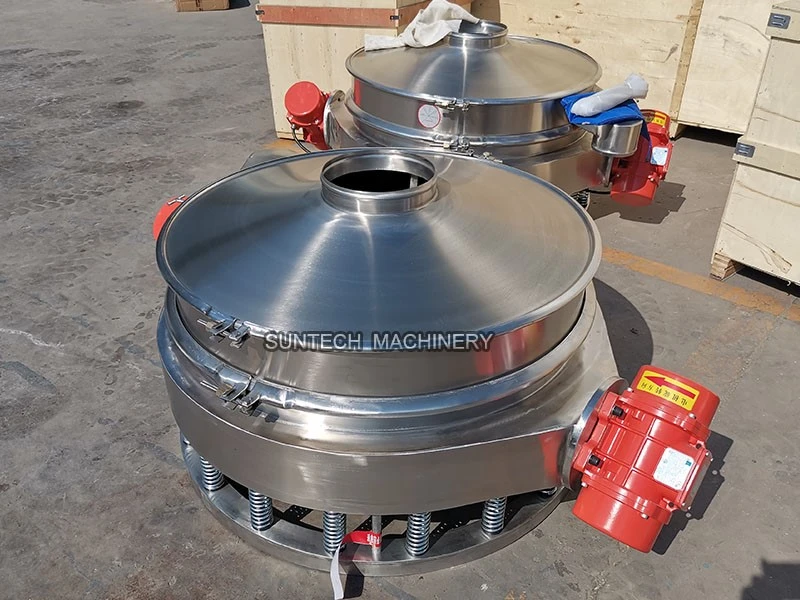

For the single direct discharge vibrating screen machine, we will make the plywooden box packing for damage proof, for the whole truck machine, we will hire the direct line truck to ensure the machine hand over to the client directly.







During the warranty period, our factory will be responsible for repairing and replacing spare parts and equipment that need to be replaced not due to improper operation.

After the quality guarantee period ends, our factory will continue to provide free after-sales service, with lifetime service regardless of year. Only the cost of parts and components will be charged, labor fees and maintenance fees will be free.

In order to provide you with perfect after-sales service, please feedback your valuable opinions, suggestions and requirements to our factory. We thank you for using our products. Our factory has established a complete marketing network and a complete after-sales service system. The after-sales service department has established an information file for the products you purchased. If there is a quality problem with the product you purchased, we will provide you with a full range of services timely.
