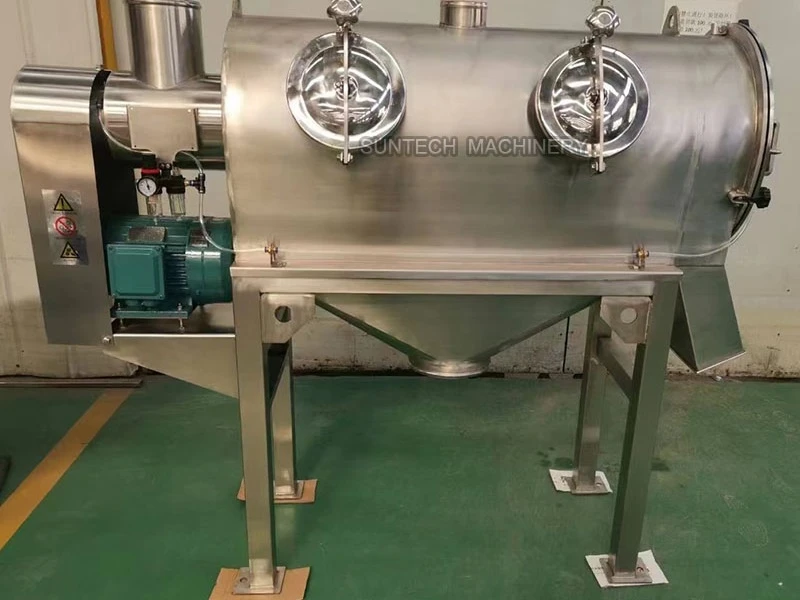

Cylindrical Centrifugal Air Flowing Sifter Machine

Cylindrical Centrifugal Air Flowing sifter machine

Cylindrical Centrifugal Air Flowing sifter machine is the horizontal type air jet sieving machine which is also known as a flat-bottom airflow screen, it is a device widely used for grading and screening granular materials. Its working principle is based on the synergistic effect of air flow and gravity, and is suitable for classification, screening and separation of powder and granular materials.

The Cylindrical Centrifugal Air Flowing sifter machine changes the traditional gravity potential energy operating principle and opens up a new screening method by using the kinetic energy of the carrier fluid. The screen mesh of the horizontal air flow screen is cylindrical and is placed inside of horizontal air flow screen. The material is mixed with the air flow through the screw conveyor system and materialized before entering the mesh cylinder. When the material passes through the wind wheel blades in the mesh cylinder, it is pushed by centrifugal force and cyclone, so that the material can be sprayed through the mesh and discharged from the fine material discharge outlet without being able to pass through the mesh cylinder. The material of the mesh is discharged from the coarse material discharge outlet along the wall of the net cylinder.

1. The screening efficiency can reach 85-95%, and the residue on the screen is basically 0 (which is difficult to achieve by ordinary vibrating screens).
2. It can process powder or granules from a few kilograms per hour to more than 90 tons, and the output is 5-10 times or higher than that of ordinary vibrating screens.
3. The screen is cleaned by a cyclone, which automatically cleans the screen and has the function of re-crushing the agglomerated material to prevent the screen from being blocked.
4. 30-second screen change for inspection and cleaning through an easy-to-remove screen.
5. The cantilever shaft design ensures that there are no oversized bearings or seals, and the maintenance cost is low.
