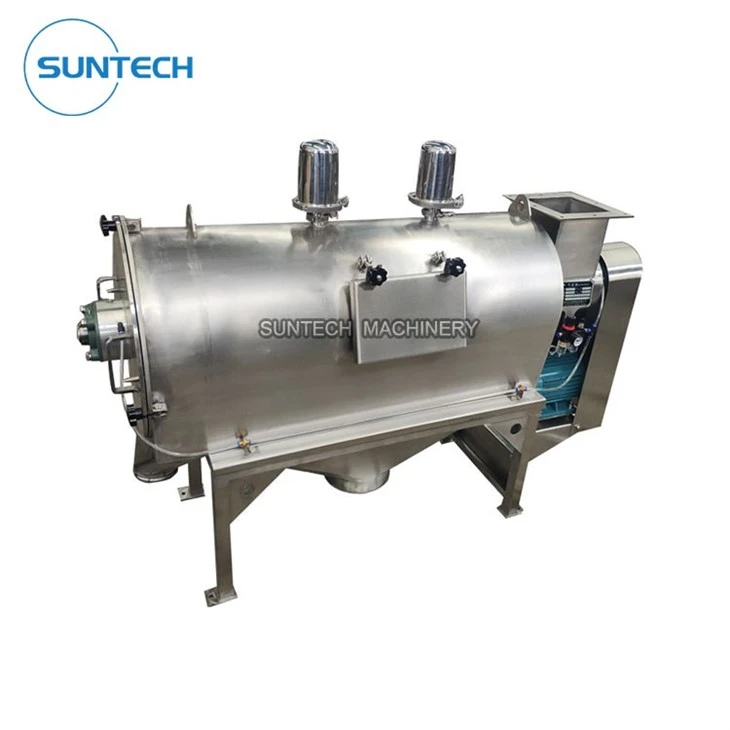

Dust Free Airflow Centrifugal Sieving Machine

Dust Free Airflow Centrifugal Sieving Machine

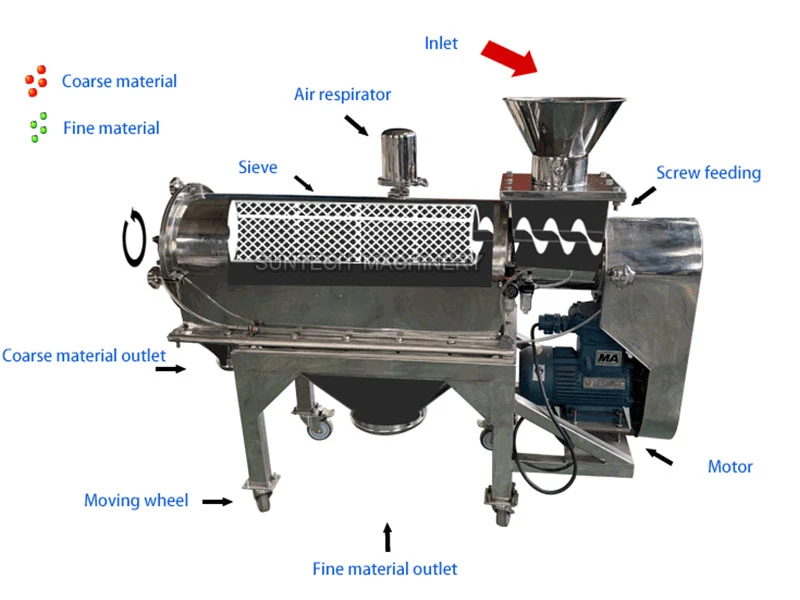

Dust free airflow centrifugal sieving machine is one kind of fully closed powder sieving machine. The screen sieve is cylindrical and is placed inside of the machine. After the material passes through the screw conveyor to the sieving machine, it is mixed with the air flow and atomized into the mesh cylinder; the material is subjected to centrifugal force and cyclone propulsion force at the same time through the wind wheel blades in the mesh cylinder, so that the material can be sprayed through the mesh and discharged from the fine material discharge port. Materials that cannot pass through the mesh are discharged from the coarse material discharge port along the wall of the mesh cylinder.







1. It can be used as a single machine or multiple machines, and it can run continuously for a long time, safe and reliable;

2. New outer spherical bearings extend service life;

3. The whole machine is small in size, light in weight, stable, no vibration, no noise, good sealing performance, no dust, and high efficiency;

4. It has the function of re-breaking the agglomerated materials;

5. The screen is washed away by the cyclone and can be automatically cleaned;

6. The machine case is in flexible structure, is simple to install and easy to control;

7. This machine can be matched with the pneumatic conveying system and directly connected to the air path to save resources;

8. New design: The gas protection system transports purified air to both ends of the equipment, which can effectively reduce the temperature generated by the equipment during operation; it forms a gas isolation layer for the bearings to prevent the entry of dust and effectively extend the service life of the bearings. longevity, reducing maintenance frequency and improving work efficiency;

9. Can be specially designed to meet special needs.



The airflow centrifugal sieving machine is suitable for screening and grading various powdery materials with a mesh size of 150-500. It has high screening efficiency, large output, automatic feeding and discharging, continuous operation, and good dustproof features, making it is easy to perform high-precision sieving operations which is difficult in the past. After testing for such as 120-180 mesh light calcium, 300 mesh heavy calcium, 400 mesh active calcium, 300 mesh hawthorn powder, 320-500 mesh zinc powder, 500 mesh iron oxide black and other materials, better screening results can be obtained. The output per square meter of screen area is about one ton per hour. At the same time, the screening accuracy is measured to be over 95%, and the dust content in the air is less than 10mg/m3.











Model	Air Flow	Screen Mesh(mesh)	Cylindrical Screen Size	MotorPowe(kw)
S18-65	240	5-500	180×850	1.5
S30-100	300		300×1000	3
S50-130	460		400×1200	3
S65-180	460		500×1300	4

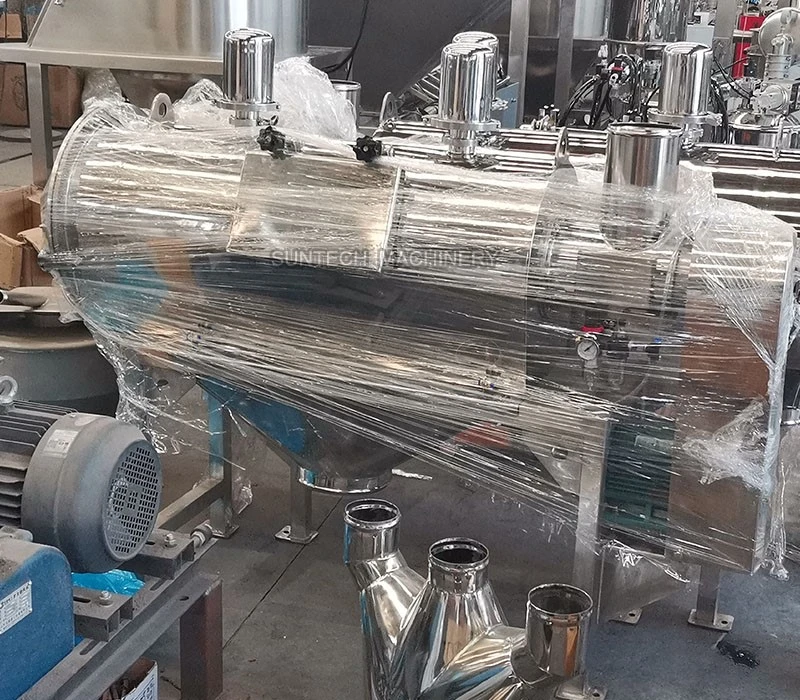

We usually take the stretch film inside and plywooden box outside for damage proof. Specific packing size and weight will provide if you arrange the sea delivery. Or we can arrange the delivery by sea to your seaport or door to door if you need.
