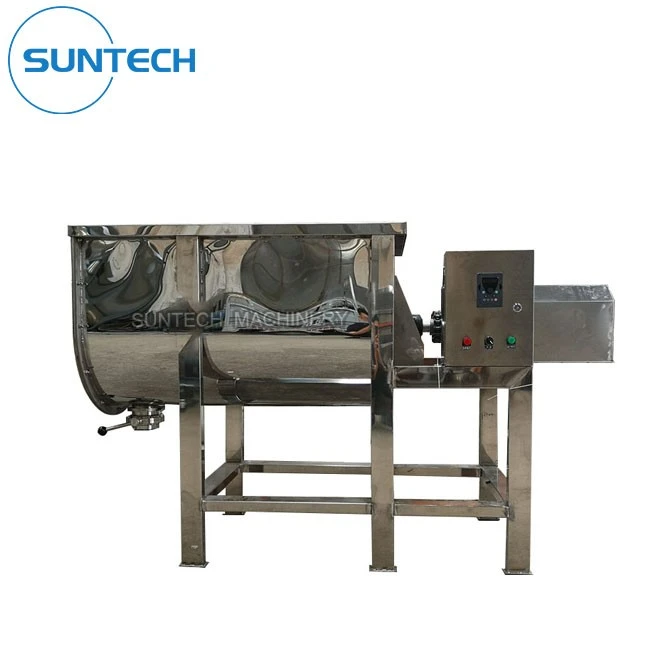

S304 Food Horizontal Screw Paddle Mixer

S304 Food Horizontal Screw Paddle Mixer





S304 food horizontal screw paddle mixer is mainly composed of the U shape container, screw paddle blade, motor and transmission parts.



There will be made a double-layer or triple layer spiral blade on the main transmission shaft of the mixer. The inner spiral transports the material to the outside, and the outer spiral gathers the material to the inside to form a convection mixing. The inner and outer diameter spirals installed on the mixing shaft drive the materials in the barrel, allowing the mixer to turn the materials over the maximum range in the barrel. When the mixing device is working, the inner spiral drives the material near the axis to rotate on the axis, and pushes the axial direction from the inside to both sides. The outer spiral drives the material close to the barrel wall to rotate on the axis, and pushes the axial direction from both sides to the inside. This mixing movement is able to mix the powder materials evenly in a short time. The mixing part can also be made into a paddle type or a flying knife can be added to adapt to different powder materials.







In practical applications, S304 food horizontal screw paddle mixer are widely used in material mixing production lines in chemical, food, pharmaceutical, pesticide and other industries. For example, in the chemical industry, horizontal ribbon mixers can be used to mix pigments, coatings, resins and other materials; in the food industry, they can be used to mix flour, powdered sugar, additives and other raw materials. These application cases fully prove the excellent performance of the horizontal ribbon mixer in terms of mixing effect.



Typical Production Line:

Ribbon mixer + Screw conveyor + Vacuum Conveyor + Packing system







Model specification	ST-0.1	ST-0.3	ST-0.5	ST- 1	ST- 1.5	ST- 2	ST- 3	ST- 4	ST-6
One-time mixing(kg)	30-50	100- 150	200- 300	400- 600	600- 900	800- 1200	1200- 1800	1600- 2400	2400-3600
Motor power (kg)	1.5-4	3-3.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55
Size(mm)* Max-diameter*High	1190 *740 *770	2030 *630 *980	2320 *730 *1130	2800 *920 *1320	3180 *1120 *1640	3310 *1120 *1640	3750 *1290 *1820	4220 *1400 *1990	4700 *1610 *2260
Equipment weight(kg)	300	500	900	1400	1900	2500	3100	3600	5300





Compared with other mixers, the horizontal screw paddle mixer has the advantages of short mixing time, wide adaptability, no damage to the mixed materials, and easy cleaning. It will not press, feed or grind the materials, and it can handle coarse and fine materials. The horizontal ribbon mixer produces composite movements such as transverse convection, blending, and diffusion in the body without destroying the mixture, so that the materials can achieve the best mixing effect in a short time.



Inside structure of the horizontal ribbon mixer





Vacuum Conveyor with Horizontal Ribbon Mixer Machine







For the single machine, or the multiple machine and shipped in LCL, we usually take the plywooden box outside for damage proof and ensure the machine safe.
