Horizontal Ribbon Blender Mixer Machine
Horizontal Ribbon Blender Mixer Machine is one kind of slot type mixer for powder and paste.It is widely used in the industries of pharmaceutical,chemical,and food.
- Product Introduction

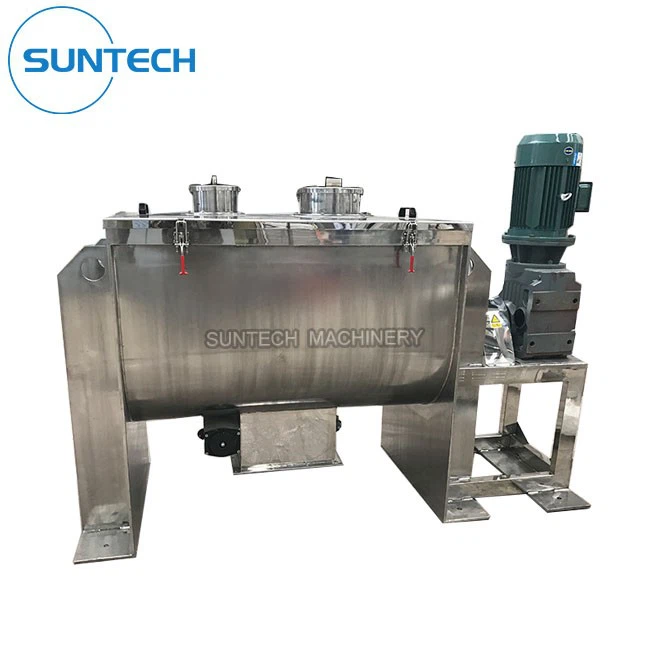

Horizontal Ribbon Blender Mixer Machine
Introduction
Horizontal Ribbon Blender Mixer Machine is one kind of slot type mixer for powder and paste.It is widely used in the industries of pharmaceutical,chemical,and food.The main components are U type container,ribbon mixing blades and transmission parts.During the mixing process,the materials in container are doing mixing movement driven by the ribbon spiral mixing blade.The ribbon blades are generally made of double or triple layers.All the layer are installed on one single horizontal axis,the inner layers and outer layers are doing opposite rotation during mixing process.
Main Applications
Horizontal Ribbon Blender Mixer Machine Widely used in putty paste, real stone paint, dry powder, putty, medicine, food, chemicals, feed, ceramics, refractory materials and other solid-solid (i.e. powder and powder), solid-slurry (i.e. powder and glue liquid) Mixing, especially suitable for mixing viscous materials. This mixer is not suitable for mixing materials with large fiber content and large density differences. For putty paste, real stone paint, biology, medicine, food and other industries, it is recommended to use stainless steel. Generally, when mixing dry mortar containing vitrified microspheres, a horizontal ribbon mixer is recommended. The motor and the mixing spindle are directly connected through a cycloidal pinwheel reducer, which has a simple structure, high operating reliability and easy maintenance.
Product Shows
As per different mixing request, there are carbon steel, stainless steel machine material for choice. If the material is too corrosive, then you can choose high-grade stainless steel or choose to be lined with a corrosion-resistant layer. According to the material usage level, the surface treatment can be rough polishing, Fine polishing and mirror polishing.
400L Volume Horizontal Mixer with movable wheel
600L Volume horizontal mixer with heighten supporting frame
200L Horizontal Mixer with screw conveyor
Two sets 1000L horizontal mixer machine with wiredrawing processing surface treatment
Main Specifications
|
Model specification |
ST-0.1 |
ST-0.3 |
ST-0.5 |
ST- 1 |
ST- 1.5 |
ST- 2 |
ST- 3 |
ST- 4 |
ST-6 |
|
One-time mixing(kg) |
30-50 |
100- 150 |
200- 300 |
400- 600 |
600- 900 |
800- 1200 |
1200- 1800 |
1600- 2400 |
2400-3600 |
|
Motor power (kg) |
1.5-4 |
3-3.5 |
4-11 |
7.5-15 |
11-18.5 |
15-22 |
18.5-30 |
22-37 |
37-55 |
|
Size(mm)* Max-diameter*High |
1190 *740 *770 |
2030 *630 *980 |
2320 *730 *1130 |
2800 *920 *1320 |
3180 *1120 *1640 |
3310 *1120 *1640 |
3750 *1290 *1820 |
4220 *1400 *1990 |
4700 *1610 *2260 |
|
Equipment weight(kg) |
300 |
500 |
900 |
1400 |
1900 |
2500 |
3100 |
3600 |
5300 |
FAQ
