Industrial Metal Tubular Screw Feeders

Industrial Metal Tubular Screw Feeders

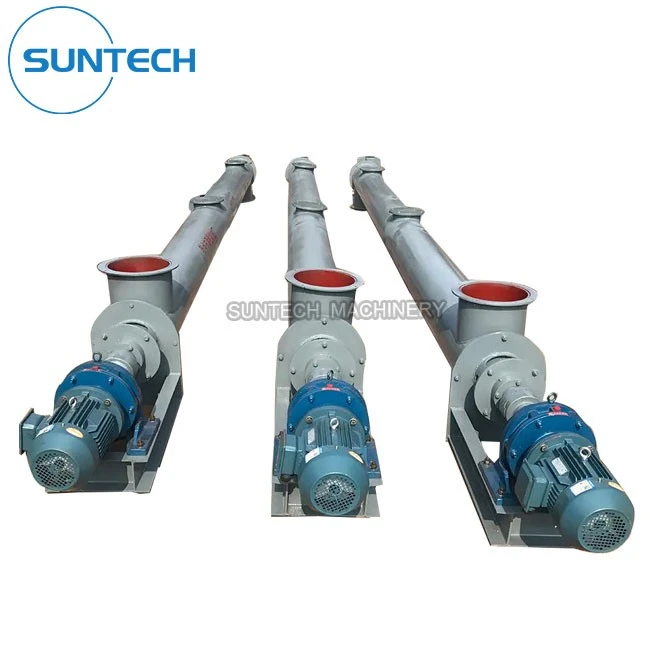

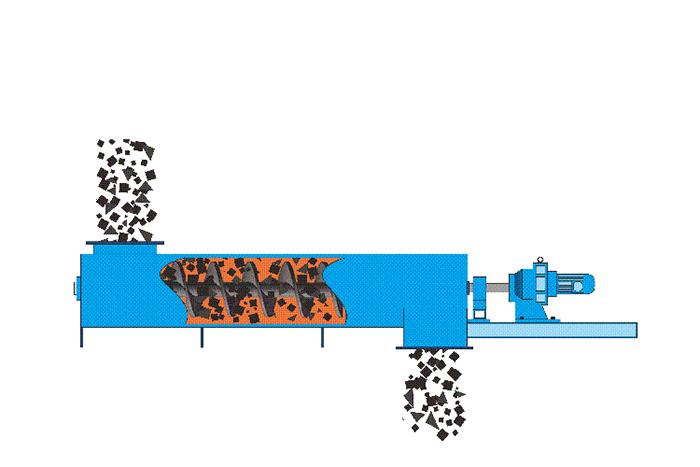

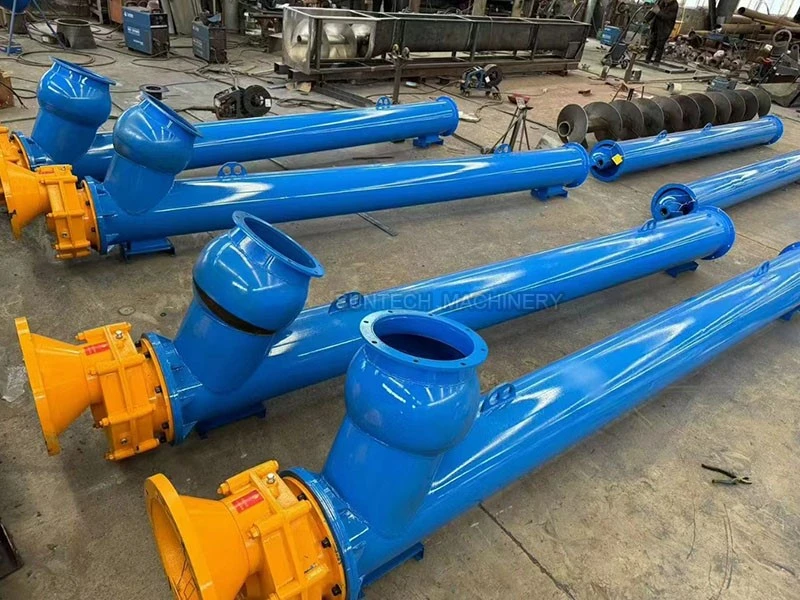

Industrial metal tubular screw feeders adopts a closed round shape tubular design, and the overall structure is compact and sturdy. Inside the tube, a spiral blade rotates slowly to convey materials from one end to the other. This design allows the conveyor to remain stable and continuous during the transportation process, greatly reducing the scattering and waste of materials during the transportation process.

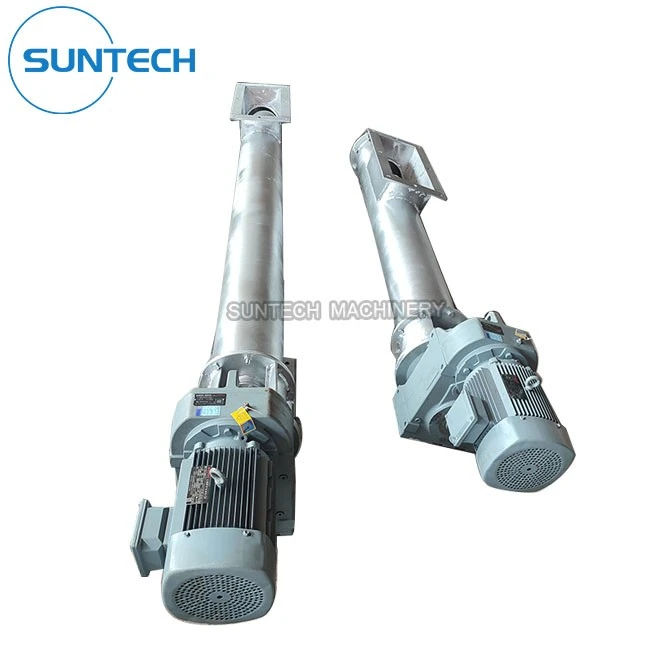

In the cement production process, cement pipe screw conveyors play an indispensable role. It can accurately transport the materials required in each link of the production line to the designated location, ensuring the smooth operation of the production line. At the same time, due to its high conveying efficiency and low failure rate, it has also become an important tool for cement production companies to improve production efficiency and reduce operating costs.



In addition to its application in the cement industry, cement pipe screw conveyors have also demonstrated their strong adaptability in other fields. In the chemical industry, building materials and other industries, it is also capable of various complex transportation tasks, providing strong support for the production and development of enterprises.











Industrial metal tubular screw feeders is mainly composed of a spiral blade, a machine trough, a bearing, a driving device, etc.



Spiral blade: It consists of a spiral shaft and spiral blades welded on the shaft. According to the different winding directions of the spiral blades on the rotating shaft, the spiral blades of the tubular screw conveyor are divided into two types: left-hand and right-hand.

Driving device: Using the electric motor as the driving force, it is decelerated by the cycloidal pinwheel reducer, and then the power is transmitted to the spiral shaft through the coupling.

Bearing: M1 - is a rolling hanging bearing, which adopts 80000 type sealed bearing. The shaft cover is equipped with a dust-proof sealing structure. It is often used in places where oil is not easy to be refueled, or oil will contaminate the material. The sealing effect is good and the hanging bearing has a long life. The temperature of conveyed materials is ≤80℃. M2 - is a sliding hanging bearing with a dust-proof sealing device. It is commonly used to transport materials with relatively high temperature (>80℃) or liquid materials.







(1) Lubricant should be added regularly to transmission parts such as bearings, gears and chains.

(2) After the box conveyor is out of service, the wear of the spiral blades should be checked and repaired if the wearing is serious.

(3) The conveying capacity must not be overloaded, otherwise the material will not be discharged, causing bending of the screw shaft and swelling of the box.

(4) When the conveyed medium has a high degree of friction, you should pay attention to whether the expansion and contraction of the box changes freely and there are no stuck places. If there is any problem, solve it as soon as possible.

(5) When the conveyor makes harsh noise during operation, the cover should be opened and inspected to eliminate the fault.



The industrial metal tubular screw feeders is usually used horizontally or slightly inclined as an effective way to transport semi-solid materials, including feed, grain, flour, corn, soybeans, garbage, wood chips, aggregates, sludge, solid waste, etc., conveying volume per hour In the range of 1.4-458 cubic meters, the conveying length can reach 70 meters.







1. The conveying volume can reach 458 cubic meters per hour, and the conveying length of a single machine can reach 60 meters;

2. Using a variable diameter structure, the material does not come into direct contact with the suspension bearing, which can extend its service life;

3. The material conveying square is reversible and can be conveyed in two directions at the same time;

4. Fully sealed transportation can ensure that materials will not be contaminated and can also improve the transportation environment;

5. The blades can be designed with or without shafts according to the materials being transported.





Model	Diameter	Screw Rotation Speed	Inclination Angle	Conveyor Length
	(mm)	(r/min)	(degree)	(m)
GX160	160	20-290	<90	0~30
GX219	219
GX273	273
GX325	325



Pls contact us directly for specific plan, we will recommend the right model and length as per your specific applications.
