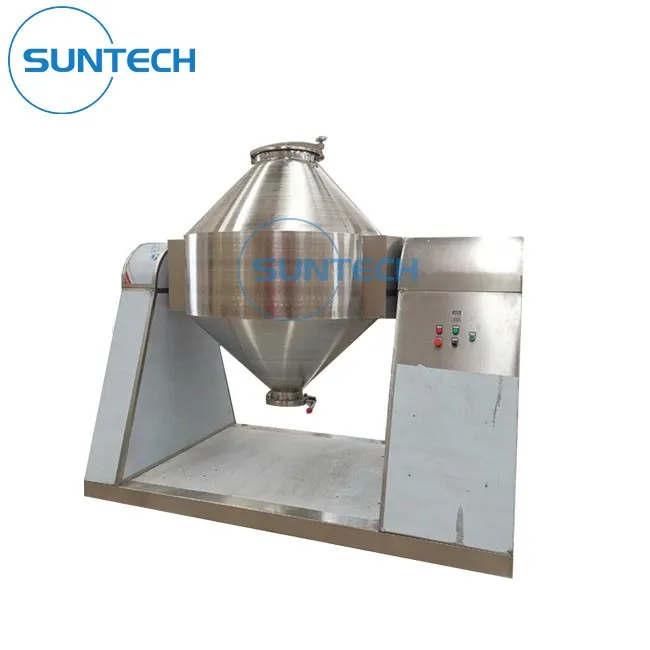

Double Cone Blender Mixer Machine

Double Cone Blender Mixer Machine





Double cone blender mixer is one kind of mixing equipment that mixes various powders evenly through the rotating tank with high efficiency.It is used for the uniform mixing of various powdery and granular materials.The materials can be sufficiently mixed under the continuous rotating of double-cone bucket. Put different materials into the double-cone bucket by vacuum conveyor or manually feeding,seal the bucket cover,start the machine,the double-cone bucket will start to rotating,at the same time,the agitating vane inside will also start to work.The materials will start to mix during the rotating process,and the agitating vane will break those agglomerated materials.







The motor and reducer drive the mixing tank to rotate through gear transmission. During operation, various prepared powders are added to the mixer tank. Through the rotation of the tank, the materials are repeatedly aggregated and separated by gravity and centrifugal force. To achieve uniform mixing, the mixed materials will be discharged from the discharge port by its own weight.





Typical production line: Vacuum conveyor feeding machine with Double cone mixer







Mixing material by rotating hopper,good mixing effect in short time

Stainless steel material, meet GMP standard, durable and strong

Simple structure, polished surface, easy to maintain and clean

Air tight on discharging and feeding hole

Adjustable rotating speed, digital display









It is widely applied for pharmaceutical, chemical, food, feed, fuel, electronics and other industries. This machine can mix powders and granules with good fluidity, and the effect is remarkable. All technical indicators can reach the standards of similar foreign machines.







Model	Total volume	Capacity (kg/batch)	Mixing time(min)	revolution of cylinder(rpm)	Power(kw)	Rotation height(mm)	Weight (kg)
ST100	100	50	4-8	12	1.1	1700	200
ST200	200	100	4-8	12	1.5	1850	280
ST300	300	150	6-10	12	2.2	1850	310
ST500	500	250	6-10	12	3	1950	550
ST1000	1000	500	6-10	12	4	2460	810
ST1500	1500	750	6-10	10	7.5	2540	980
