Truck Loading Chevron Conveyor Belt Machine

Truck Loading Chevron Conveyor Belt Machine

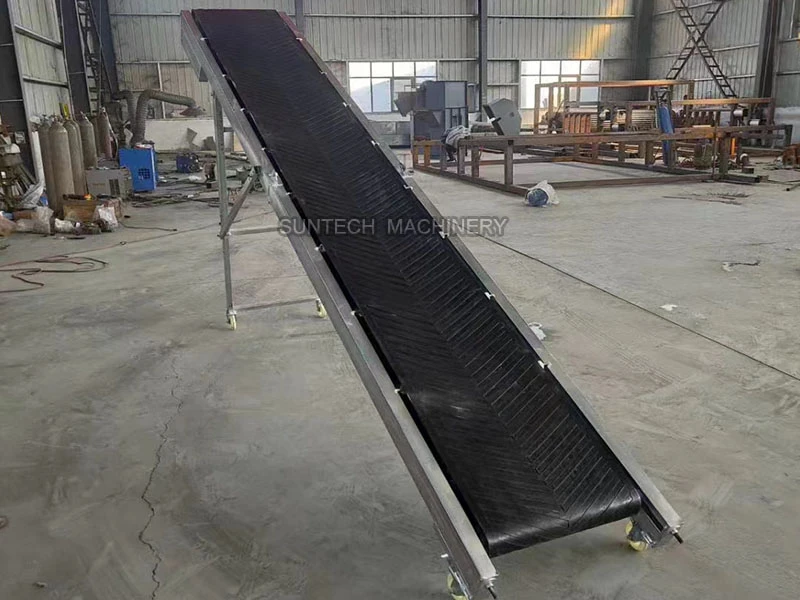

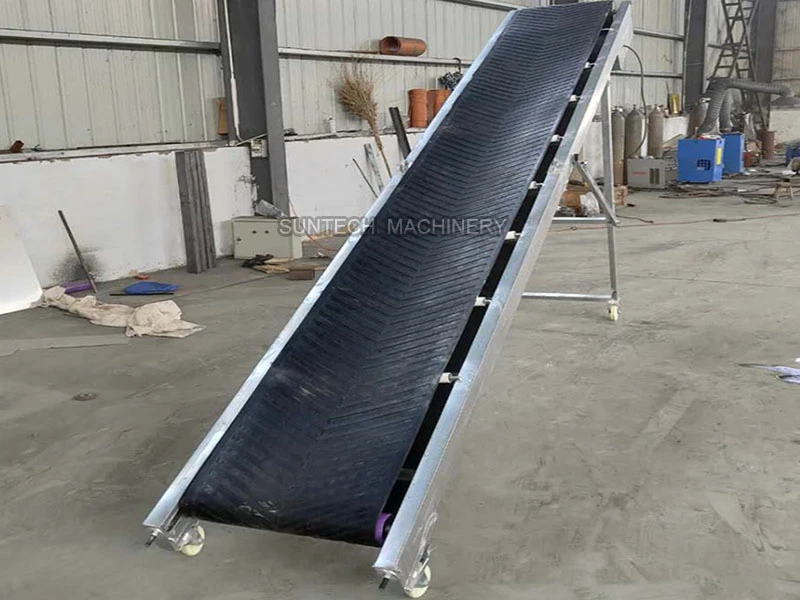

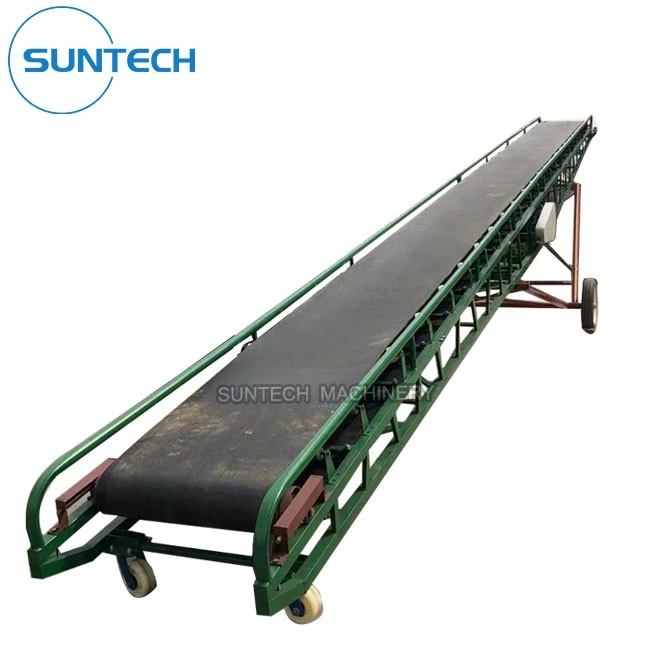

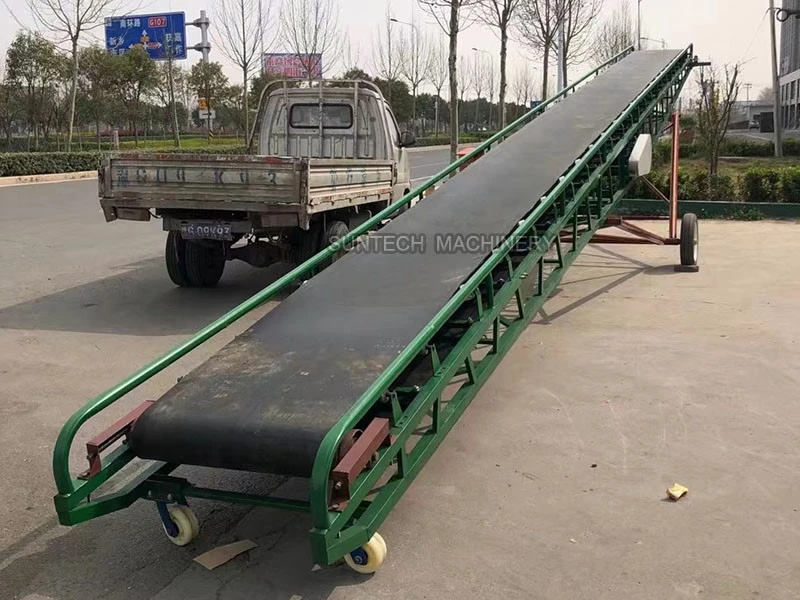

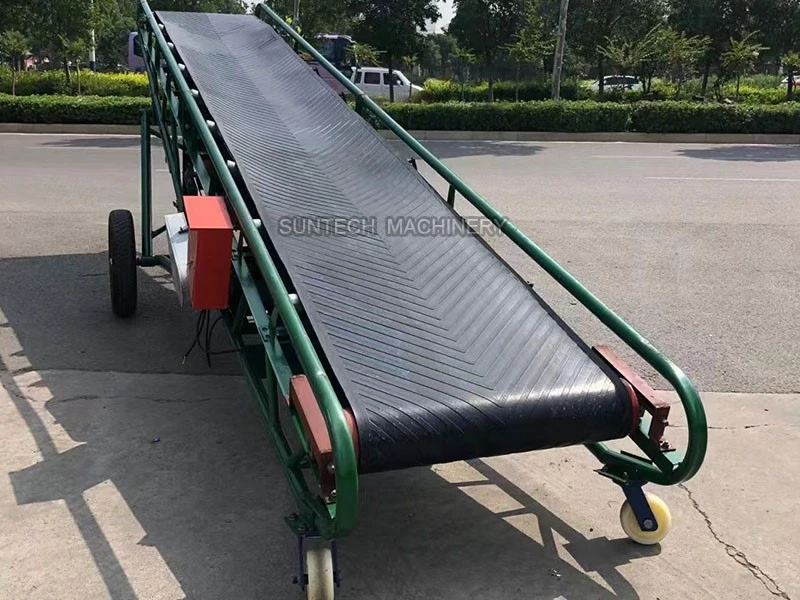

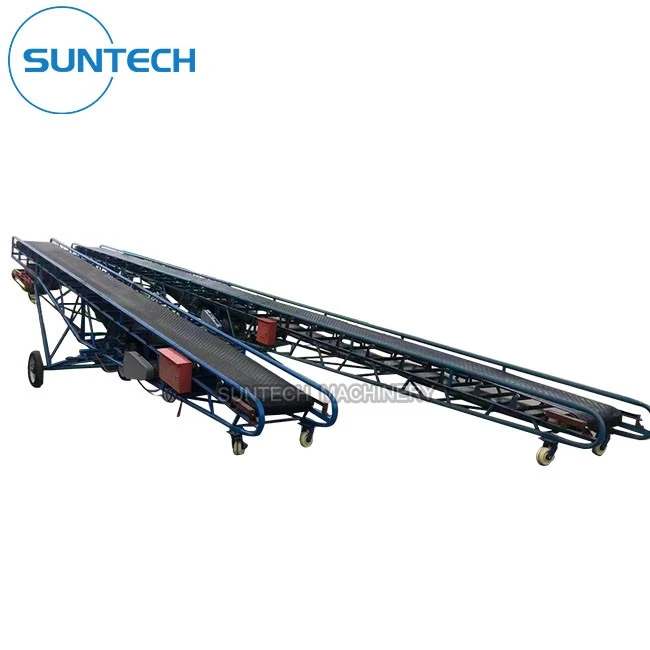

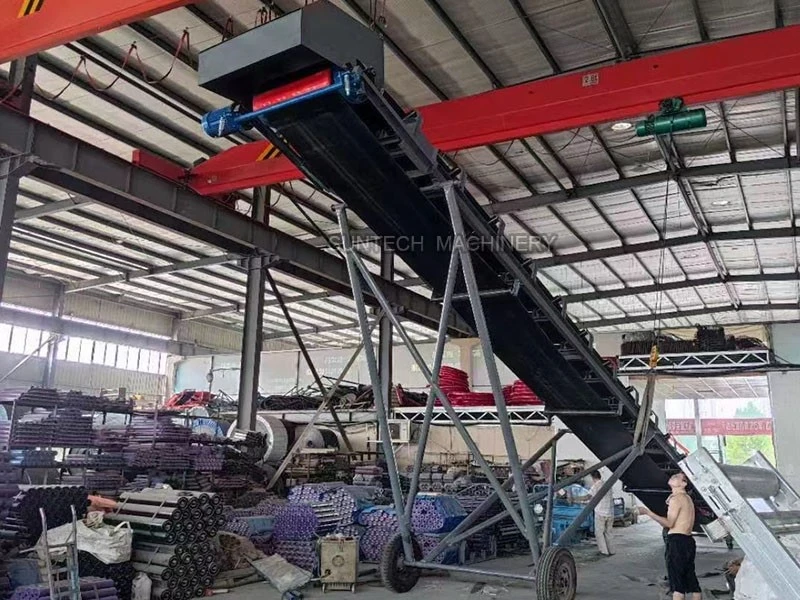

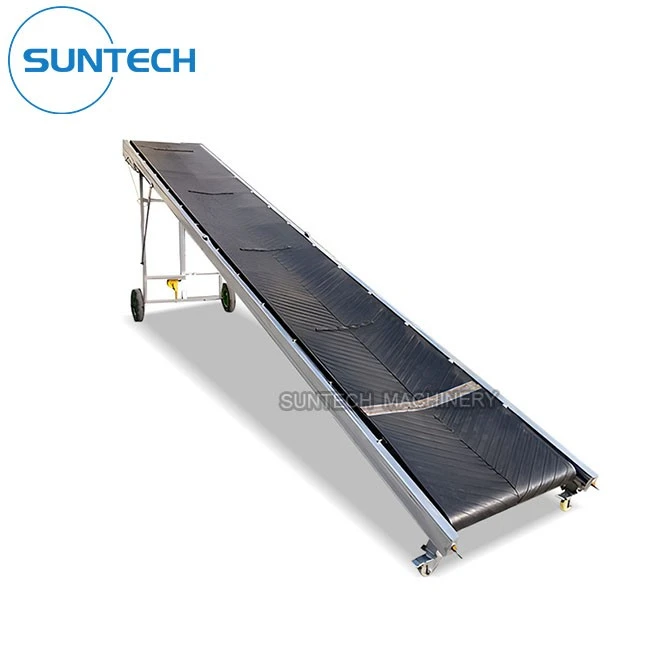

Truck loading chevron conveyor belt machine is the rubber belt conveyor made in inclined type with adjustable height for the bulk material or the packed material loading to the truck purpose.

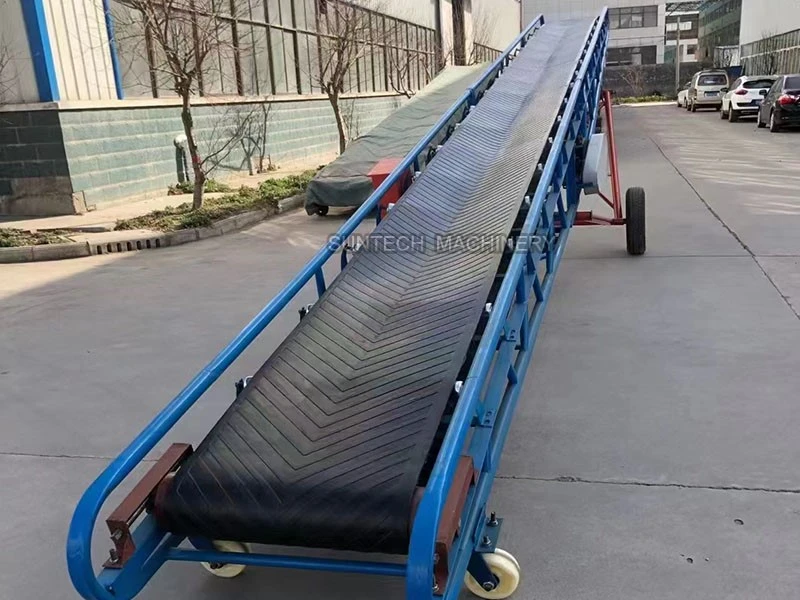

It adopts steel tube structure, which is light and has good maneuverability. The rotating device is an electric roller and is equipped with two types of running wheels: pneumatic tires and rubber universal wheels. The inclination angle can be adjusted for reaching different loading height.

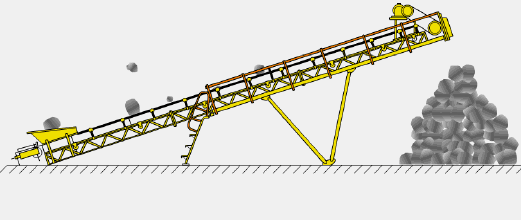

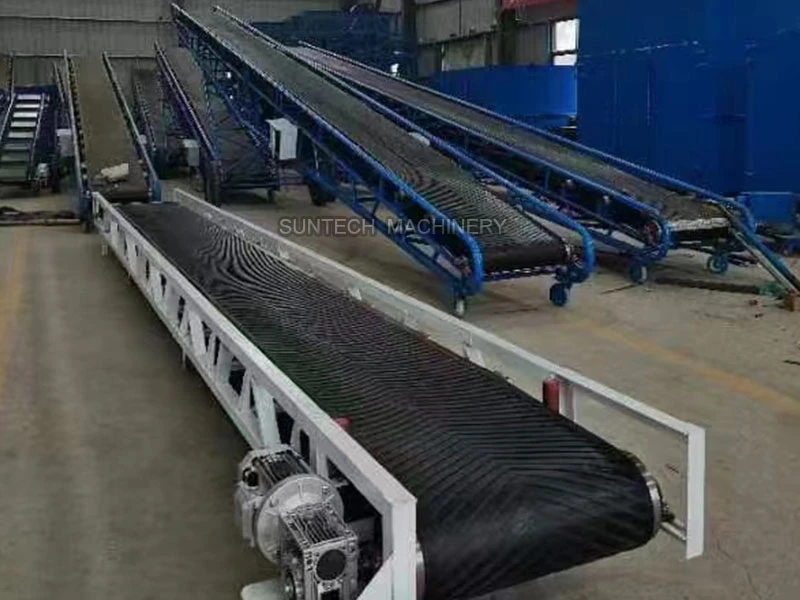

Truck loading chevron conveyor belt machine is mainly composed of two endpoint rollers, some quantity smaller roller and a closed conveyor belt tightly on them. The roller that drives the conveyor belt to rotate is called the driving roller (transmission roller); the other roller that only changes the direction of movement of the conveyor belt is called the redirecting roller. The driving drum is driven by an electric motor through a reducer, and the conveyor belt is dragged by the friction between the driving drum and the conveyor belt. The driving roller is generally installed at the discharge end to increase traction and facilitate dragging. Materials are fed from the feed end and landed on the rotating conveyor belt, and are transported to the discharge end by friction of the conveyor belt for discharge.











There are different belt width from 500mm to 1000mm, you can choose any width as per your specific conveying needs.



Model	Belt Width (mm)	Length(m)	Belt Speed (m/s)	Lifting Height	Slope Angle	Capacity (m³/h)
ST-500	500	3-25	0.8-2.0	adjustable height by motor	0-30	50-100
ST-600	600	3-25	0.8-2.0	adjustable height by motor	0-30	60-120
ST-650	650	3-25	0.8-2.0	adjustable height by motor	0-30	100-250
ST-800	800	3-25	0.8-2.0	adjustable height by motor	0-30	170-350
ST-1000	1000	3-25	0.8-2.0	adjustable height by motor	0-30	270-550



Or you can supply us the following answers so that we can choose the right model and professional plan for you.

1.The capacity that you require?

2.Whats the material to be conveyed?

3.The conveying length and the width of the belt?

4.Whether need adjust height of the motor?

5.The conveying angle?
