Mobile Pneumatic Vacuum Conveying System

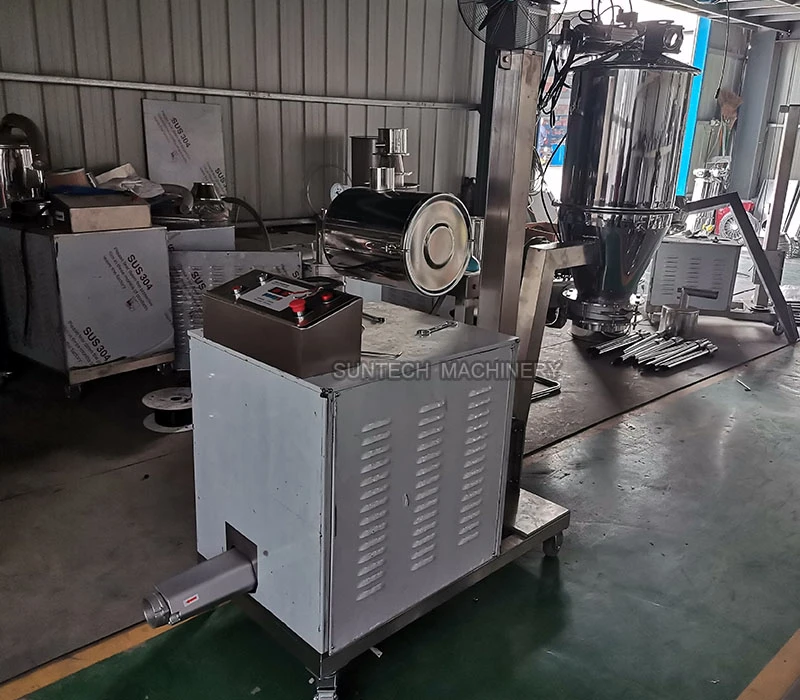

Mobile pneumatic vacuum conveying system is the vacuum conveyor feeder build on movable wheel for that applications which need to move around.
- Product Introduction
Mobile Pneumatic Vacuum Conveying System
Introduction
Mobile pneumatic vacuum conveying system is the vacuum conveyor feeder build on movable wheel for that applications which need to move around. There are some industries productions which each station does not need to load the materials all the time, and there are multiple stations that need to load materials in shift or in turn, in this case, it is inconvenient if the vacuum conveyor is frequently disassembled and installed. In order to facilitate the production needs in this situation, the vacuum conveyor can be made into a movable trolley, and the height of the vacuum hopper can be adjusted to adapt to different receiving device.
Machine Structure

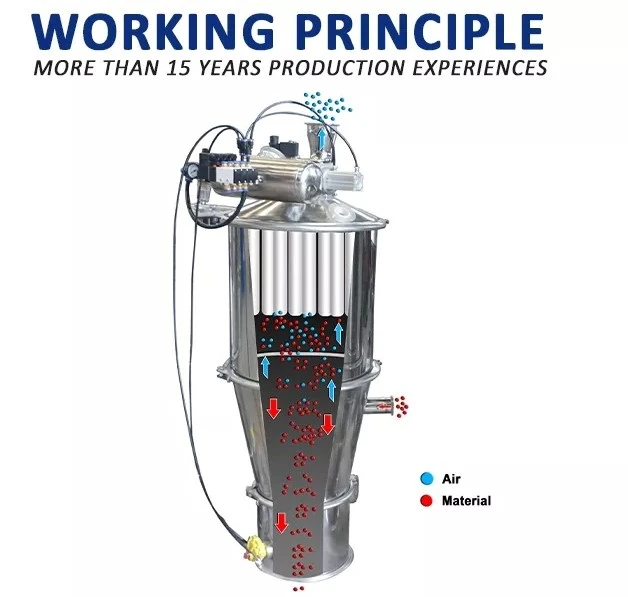

The structure of the vacuum feeder is mainly composed of a vacuum pump, a conveying pipeline, a feed port, a discharge port, etc. Among them, the vacuum pump is the core component of the equipment. It can generate sufficient negative pressure to ensure the smooth transportation of materials. The transportation pipeline is the channel for materials, usually made of stainless steel pipes or plastic pipes to ensure the hygiene and safety of the materials; The inlet and outlet are used for the input and output of materials respectively. Reasonable design of the inlet and outlet can ensure the smooth transportation of materials and reduce material residues.

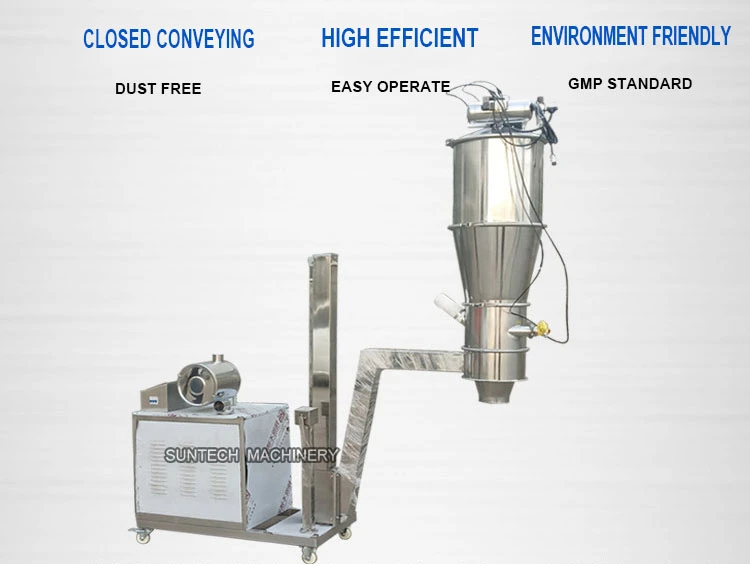

Machine Features

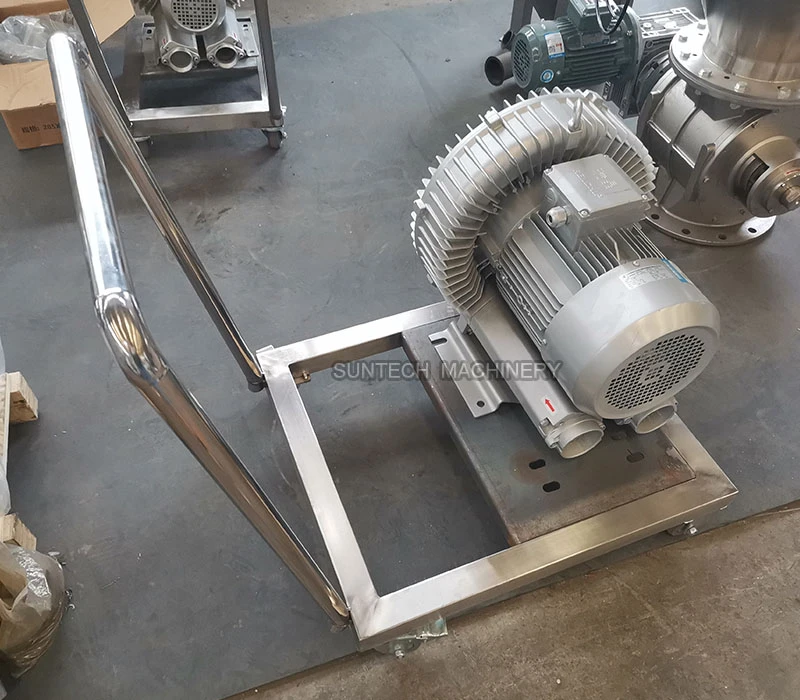

● It can be moved freely. There are wheels with lock on the four corners. It is very convenient to push it by hand and place it at the same time. It can move forward or backward freely and can be operated by one person.
● Reduce pollution for the environmental and improve cleanliness.
● It occupies a small space and can complete powder transportation in a small space.
● The entire conveying process is carried out in a closed system, and no powder leakage will occur.
●Easy for visual inspection. The equipment has no gaps or dead corners that can easily cause material accumulation, and the surface is easy for visual inspection.
● Reduce manual labor intensity and improve work efficiency.

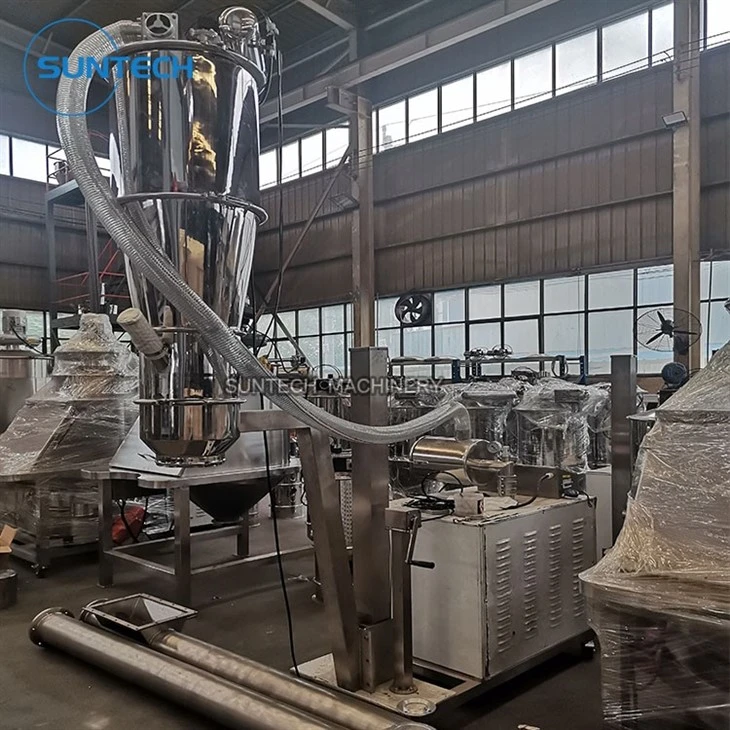

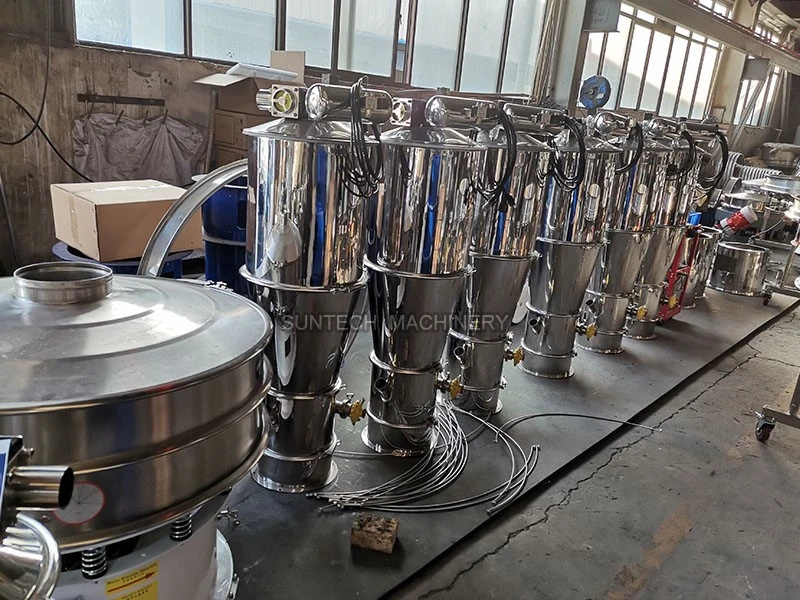

Machine in Workshop

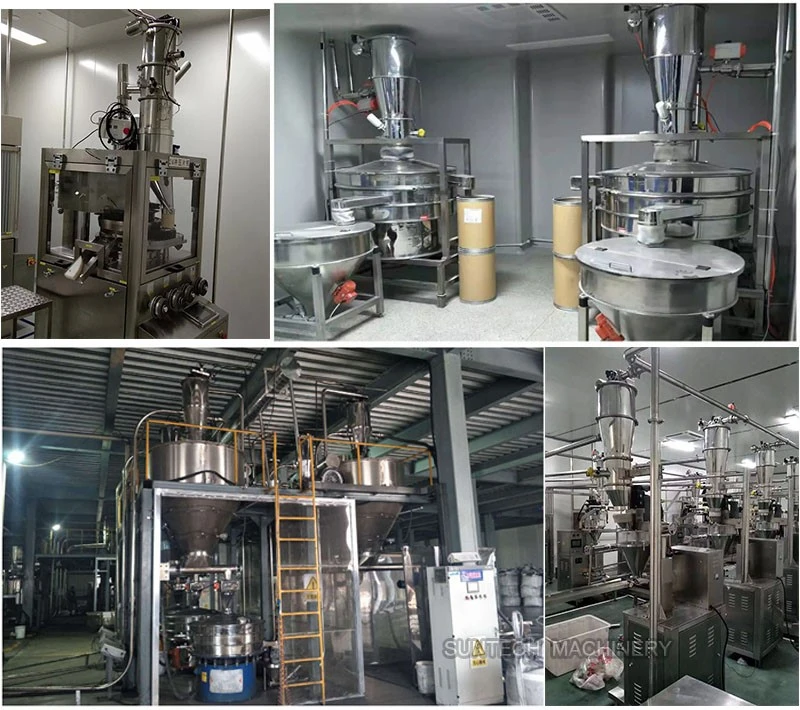

Main Applications
The vacuum feeder is mainly used to transport powder and granular materials, such as API powder, chemical powder, metal oxide powder; capsules, tablets, pills, small food particles, etc, it is not suitable for transporting materials that are too wet or sticky or overweight materials.
Main Specifications
|
Model |
Capacity (kg/h) |
Hopper volume(L) |
Air pressure(Mpa) |
Motor power(kW) |
|
ZKS-1 |
200-400 |
8 |
0.4-0.6 |
1.5 |
|
ZKS-2 |
400-600 |
8 |
0.4-0.6 |
2.2 |
|
ZKS-3 |
600-1200 |
12 |
0.4-0.6 |
3 |
|
ZKS-4 |
1200-2500 |
42 |
0.4-0.6 |
5.5 |
|
ZKS-6 |
1500-3200 |
42 |
0.4-0.6 |
5.5 |
|
ZKS-7 |
2500-6000 |
60 |
0.4-0.6 |
7.5 |
|
ZKS-10-6 |
About 6000(when transporting distance within 10m) |
120 |
0.4-0.6 |
7.5(Roots Fan) |
|
ZKS-20-5 |
About 5000(when transporting distance within 10m) |
280 |
0.4-0.6 |
11(Roots Fan) |
Note: The above conveying capacity is tested when the conveying pipe is 4 meters long and the conveyed material is flour. The longer the conveying pipe, the conveying capacity will decrease, and the conveying capacity is also determined by the material density.

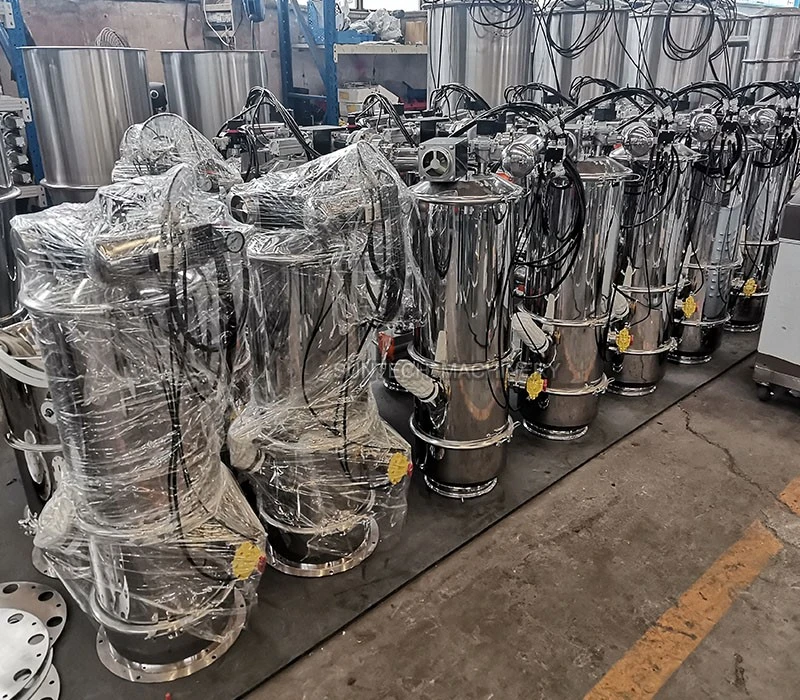

Packing & Delivery
For the single vacuum conveyor delivery, we always take plywooden box packing. Specific packing size and weight will provide after packing before delivery.
