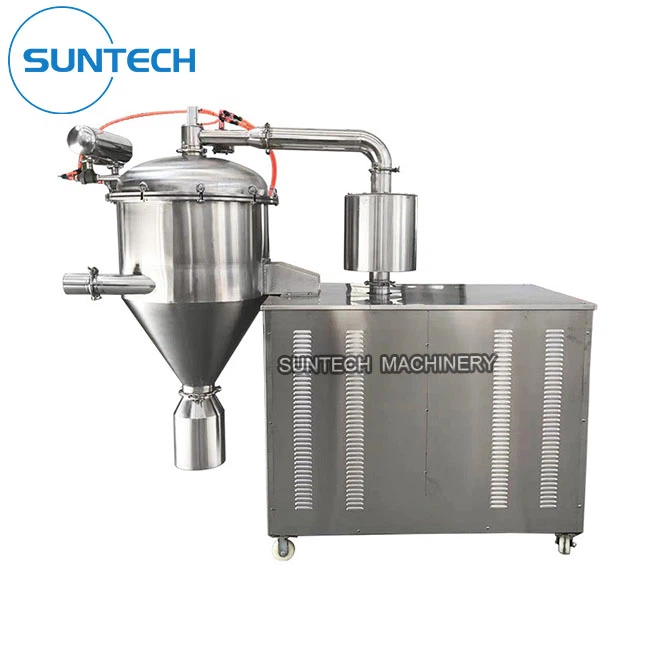

Air Powered Pneumatic Vacuum Conveyor Systems
Air powered pneumatic vacuum conveyor systems uses compressed air to generate high vacuum through a vacuum generator to realize material transportation without a mechanical vacuum pump and has the advantages of a simple structure, small size, maintenance-free, low noise, easy control, eliminating material static electricity, and meets GMP requirements.
- Product Introduction
Air Powered Pneumatic Vacuum Conveyor Systems
Introduction
Air powered pneumatic vacuum conveyor systems uses compressed air to generate high vacuum through a vacuum generator to realize material transportation without a mechanical vacuum pump and has the advantages of a simple structure, small size, maintenance-free, low noise, easy control, eliminating material static electricity, and meets GMP requirements.
Working Principle
When the compressed air is supplied to the vacuum generator, the vacuum generator generates negative pressure to form vacuum airflow, and the material is sucked into the vacuum hopper. After a certain time, the compressed air is closed, the vacuum of the vacuum feeder disappears, and the material is automatically put into the receiving equipment from the feeding door.
Main Advantages
1.Dust free conveying and low maintenance
2.Clean easily between batches
3.Move material in any direction
4.Reduce labor cost
5.Made by SUS304 or 316L to meet GMP sanitary standard
6.No tools needed to change the filters
Main Application case
Air powered pneumatic vacuum conveyor for three dimensional mixer
Air powered pneumatic vacuum conveyor for closed silo
Air powered pneumatic vacuum conveyor for rotary vibrating screen
Air powered pneumatic vacuum conveyor with stand frame
Vacuum Conveyor for V type Mixing machine
Main Specifications
|
Pneumatic Vacuum Conveyor |
||||
|
Model |
Capacity (kg/h) |
Hopper volume(L) |
Air pressure(Mpa) |
air consumption(N/min) |
|
QVC-1 |
50-300 |
1.1 |
0.4-0.6 |
180 |
|
QVC-2 |
100-700 |
6.0 |
0.4-0.6 |
360 |
|
QVC-3 |
300-1500 |
12.0 |
0.4-0.6 |
720 |
|
QVC-4 |
600-3000 |
42 |
0.4-0.6 |
1440 |
Electric vacuum conveyor
|
Model |
Capacity (kg/h) |
Hopper volume(L) |
Air pressure(Mpa) |
Motor power(kW) |
|
ZKS-1 |
200-400 |
8 |
0.4-0.6 |
1.5 |
|
ZKS-2 |
400-600 |
8 |
0.4-0.6 |
2.2 |
|
ZKS-3 |
600-1200 |
12 |
0.4-0.6 |
3 |
|
ZKS-4 |
1200-2500 |
42 |
0.4-0.6 |
5.5 |
|
ZKS-6 |
1500-3200 |
42 |
0.4-0.6 |
5.5 |
|
ZKS-7 |
2500-6000 |
60 |
0.4-0.6 |
7.5 |
|
ZKS-10-6 |
About 6000(when transporting distance within 10m) |
120 |
0.4-0.6 |
7.5(Roots Fan) |
|
ZKS-20-5 |
About 5000(when transporting distance within 10m) |
280 |
0.4-0.6 |
11(Roots Fan) |
Different models for different applications, pls contact us for specific plan recommendations.
Packing & Delivery
For the single machine delivery, we usually take the plywooden box packing and ship it by LCL.
