Flour Powder Pneumatic Conveying Systems
Pneumatic conveying system has played an important role in the food industry, especially for the different flour powder transportation or feeding, as it is closed pipe conveying with powder free flying characteristics. It is designed and made for the flour powder transportation purpose.
- Product Introduction
Flour Powder Pneumatic Conveying Systems
Introduction
Pneumatic conveying system has played an important role in the food industry, especially for the different flour powder transportation or feeding, as it is closed pipe conveying with powder free flying characteristics. It is designed and made for the flour powder transportation purpose.

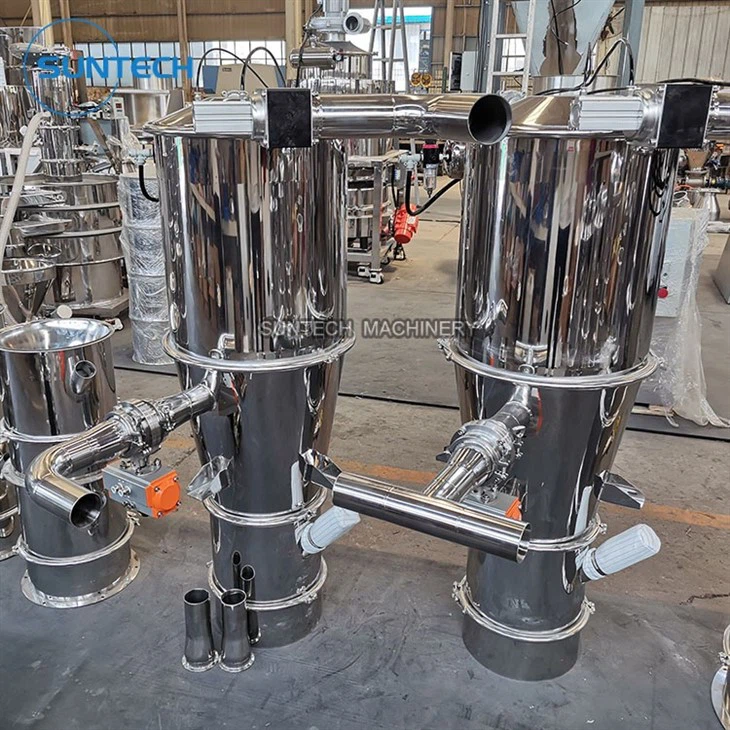

The vacuum feeder is an efficient, dust-free material conveying equipment that realizes automatic conveying of materials based on the negative pressure generated by the vacuum pump. This kind of equipment plays an important role in modern industrial production, especially in industries with high requirements on material purity and working environment, such as food, pharmaceutical, chemical and other fields.
Working Principle
The working principle of the vacuum feeder is relatively simple and efficient. First, start the vacuum pump to extract the air inside the pipeline and the container to achieve a negative pressure state. Then, put the material into the container under negative pressure, and add the material into the container through the feeding device. As the vacuum pump continues to pump out the air in the pipeline, the material is adsorbed into the pipeline and transported to the target location with the air. During the material transportation process, the material and air are separated through the filter element to ensure the purity of the material. Finally, when the material is transported to the target location, the vacuum pump is stopped and the feeding equipment is turned off to complete a transport task.
Main Features
Dust-free transportation: The vacuum feeder adopts closed pipeline transportation, which effectively eliminates dust pollution, improves the working environment, and enhances the purity of materials.
High efficiency and energy saving: The vacuum loading machine uses a vortex air pump as the power source. The pump is oil-free, water-free, maintenance-free, has low energy consumption and low noise.
Strong flexibility: The vacuum feeder can realize multi-point picking and multi-point loading, save the occupying space , and is not limited by long or short distances.
Fully automatic: The vacuum loading machine is controlled by PLC. The system operates according to the set parameters without manual operation and can achieve unattended status.
Safe and reliable: The negative pressure conveying method of the vacuum feeder is inherently explosion-proof, and the equipment itself is highly safe.
Main Application
Vacuum feeders are widely used in the production and scientific research fields of food, pharmaceuticals, chemicals, ceramics, feed, pigments, and agricultural products. In these industries, vacuum feeders can effectively reduce the pollution and loss of materials during transportation and improve product quality and production efficiency. At the same time, the vacuum loading machine can also reduce manual labor intensity and improve the comfort of the working environment.
Summary
As an efficient and dust-free material conveying equipment, vacuum loader plays an important role in modern industrial production. Its unique working principle and advantages make the vacuum loader the preferred material conveying equipment in many industries. With the continuous advancement of technology and the continuous expansion of the market, the application prospects of vacuum feeders will be broader.
Main Specifications
|
Pneumatic Vacuum Conveyor |
||||
|
Model |
Capacity (kg/h) |
Hopper volume(L) |
Air pressure(Mpa) |
air consumption(N/min) |
|
QVC-1 |
50-300 |
1.1 |
0.4-0.6 |
180 |
|
QVC-2 |
100-700 |
6.0 |
0.4-0.6 |
360 |
|
QVC-3 |
300-1500 |
12.0 |
0.4-0.6 |
720 |
|
QVC-4 |
600-3000 |
42 |
0.4-0.6 |
1440 |

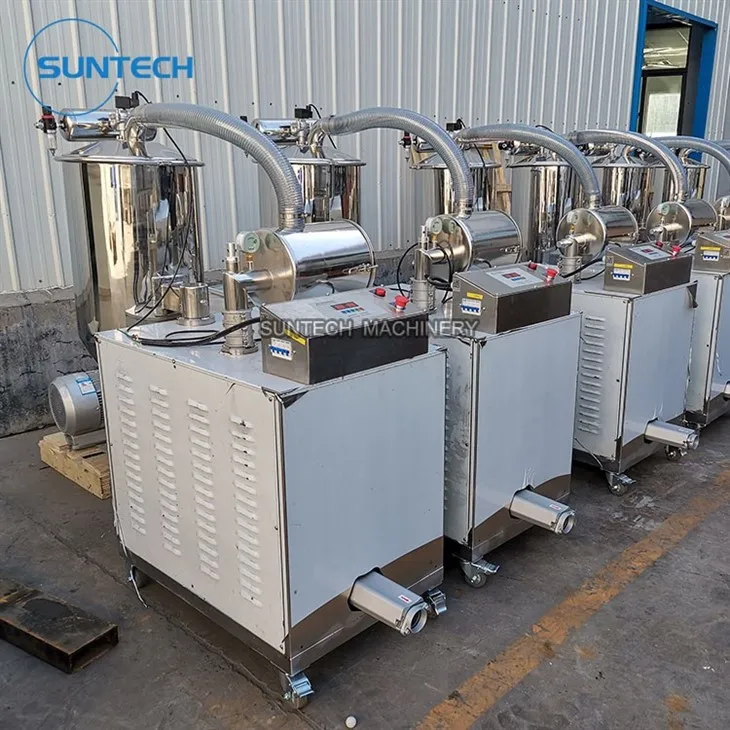

Electric vacuum conveyor
|
Model |
Capacity (kg/h) |
Hopper volume(L) |
Air pressure(Mpa) |
Motor power(kW) |
|
ZKS-1 |
200-400 |
8 |
0.4-0.6 |
1.5 |
|
ZKS-2 |
400-600 |
8 |
0.4-0.6 |
2.2 |
|
ZKS-3 |
600-1200 |
12 |
0.4-0.6 |
3 |
|
ZKS-4 |
1200-2500 |
42 |
0.4-0.6 |
5.5 |
|
ZKS-6 |
1500-3200 |
42 |
0.4-0.6 |
5.5 |
|
ZKS-7 |
2500-6000 |
60 |
0.4-0.6 |
7.5 |
|
ZKS-10-6 |
About 6000(when transporting distance within 10m) |
120 |
0.4-0.6 |
7.5(Roots Fan) |
|
ZKS-20-5 |
About 5000(when transporting distance within 10m) |
280 |
0.4-0.6 |
11(Roots Fan) |
Different models for different applications, pls contact us for specific plan recommendations.
