Inclined Food Sugar Auger Conveyor Feeder
As an very important food additives in the food industry,no matter the white granule sugar, brown sugar, the coconut sugar, all are need to be transported or conveyed to the next production procedure, such as conveyed to the packing machine, sieving machine, mixing machine, etc.
- Product Introduction

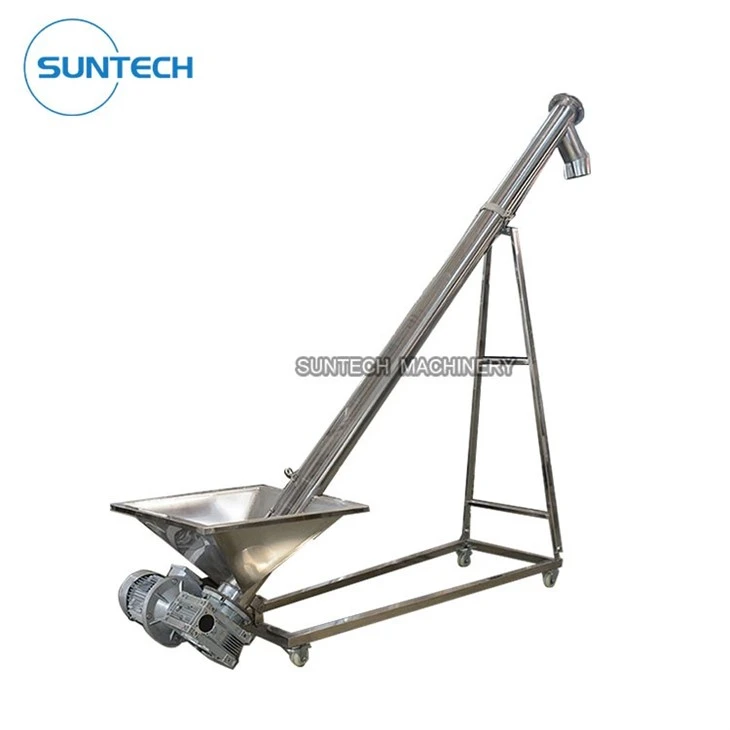

Inclined Food Sugar Auger Conveyor Feeder
Introduction
As an very important food additives in the food industry,no matter the white granule sugar, brown sugar, the coconut sugar, all are need to be transported or conveyed to the next production procedure, such as conveyed to the packing machine, sieving machine, mixing machine, etc. Made in Stainless steel S304 or S316 material, the customized length with different inclination angle, the movable or fixed installation way, the full closed structure, it is an ideal conveying feeder for sugar production or feeding application.
There are U type or Pipe type as per different capacity or different applications
Inclined U shape screw conveyor feeding for the round vibrating screen sifter

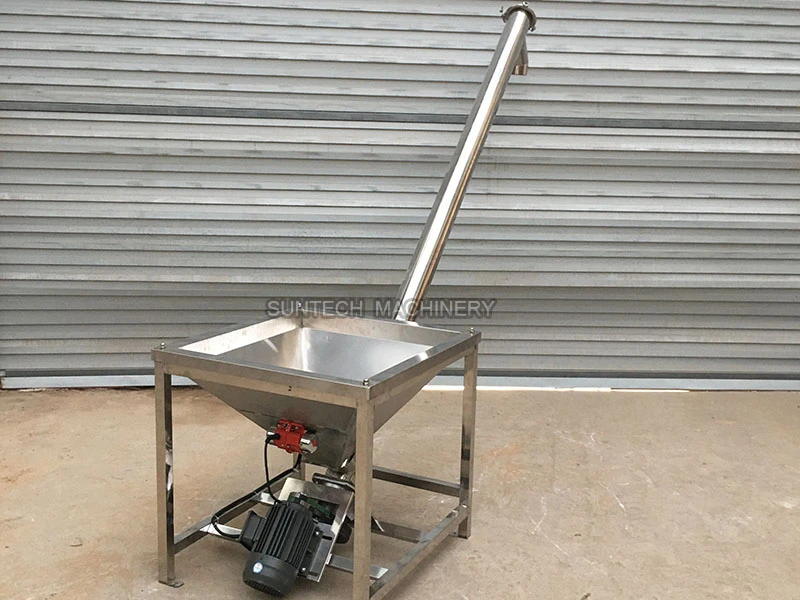

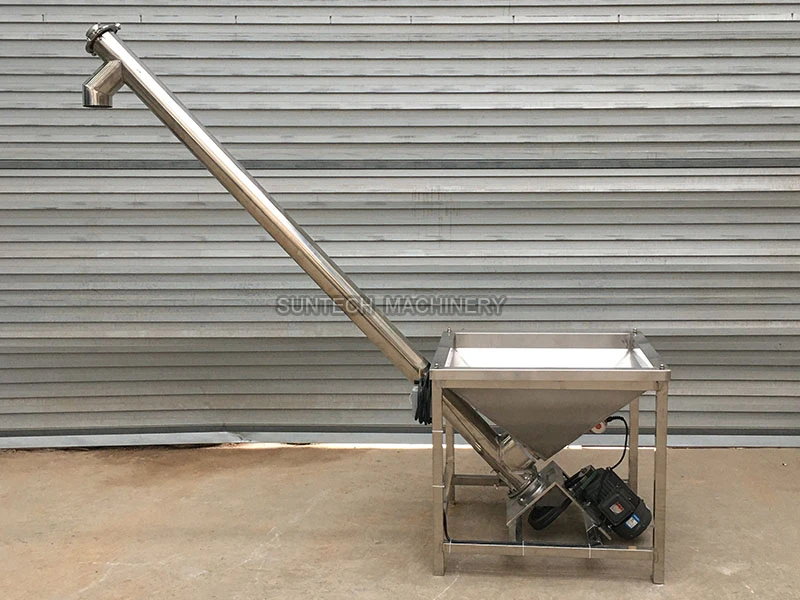

Inclined Pipe type screw conveyor with feeding hopper with vibrator

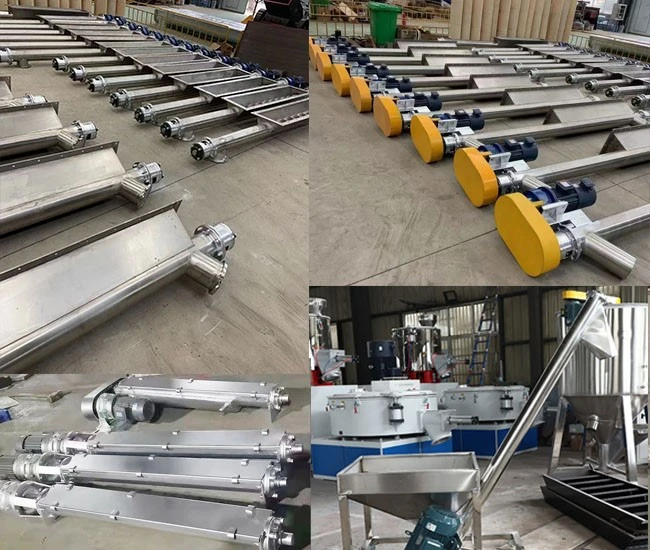

Machine in workshop

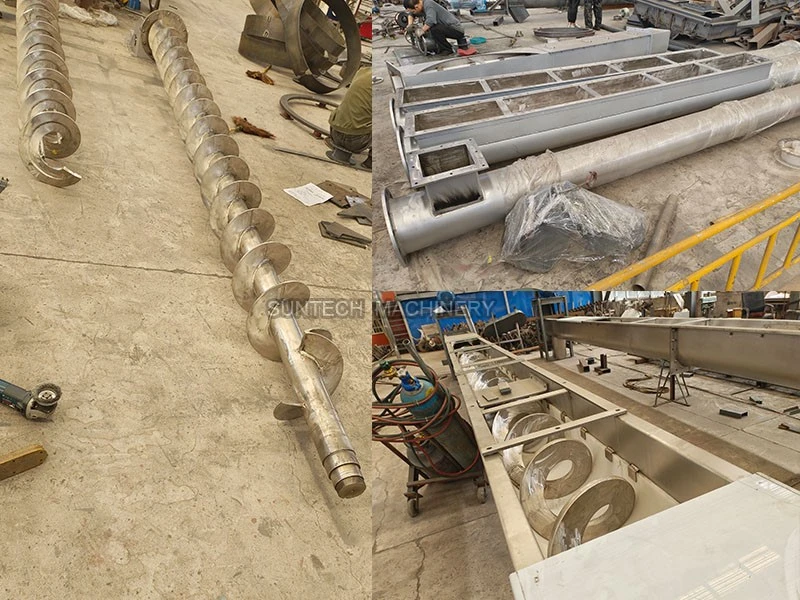

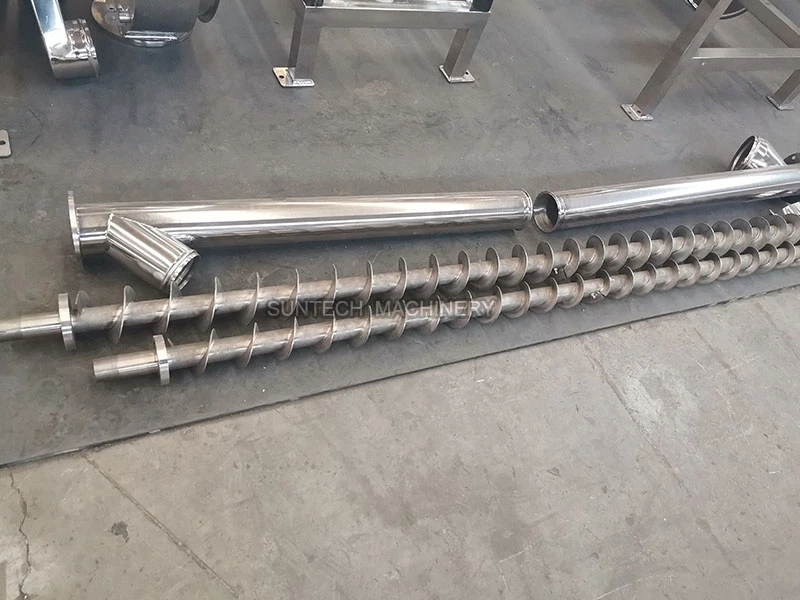

Shaft screw blade with outside pipe

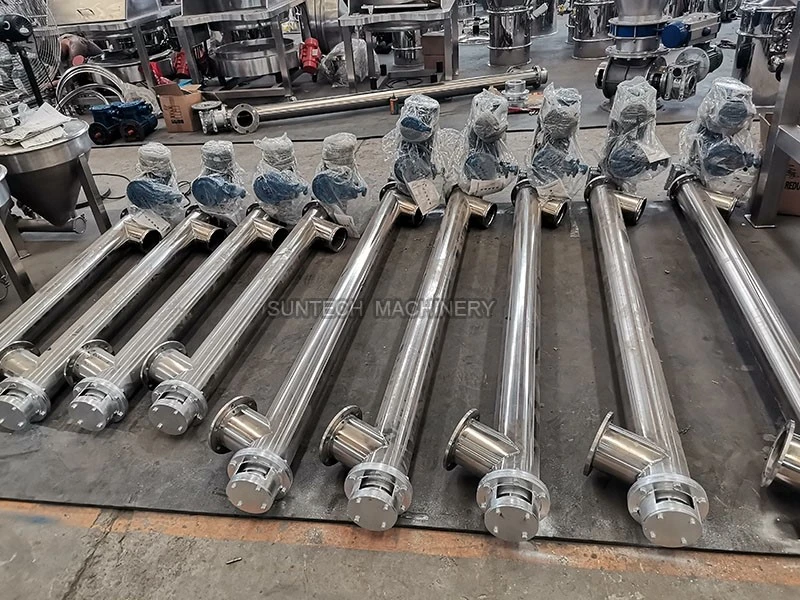

Long distance pipe screw conveyor with multi feeding inlet design.
Shaft screw blade inside & U type Shaft screw conveyor with liner
Multi Length horizontal feeding screw conveyor
Main Application
Food industry: safe and sanitary, made of 304 or 316L stainless steel, can meet the safety and sanitary standards of food equipment, and can transport materials such as flour, salt, soybeans, peanuts, etc.
Pharmaceutical industry: Stainless steel screw conveyors can be used to transport raw materials, finished drugs, capsules and other products in various forms. They can transport pharmaceutical powders, granules, granules and slices.
Chemical transportation: In the chemical industry, stainless steel screw conveyors are widely used for their high temperature resistance, wear resistance and corrosion resistance. They can transport fertilizers, urea and so on.
Feed industry: In the feed processing industry, they can be used for metering, extraction, feeding and transportation. They can transport animal feed, aquatic feed and so on. Casters can be installed to facilitate movement within the factory when needed.
Main Specifications
|
Model |
Diameter |
Screw Rotation Speed |
Inclination Angle |
Conveyor Length |
|
(mm) |
(r/min) |
(degree) |
(m) |
|
|
GX160 |
160 |
20-290 |
<90 |
0~30 |
|
GX219 |
219 |
|||
|
GX273 |
273 |
|||
|
GX325 |
325 |
