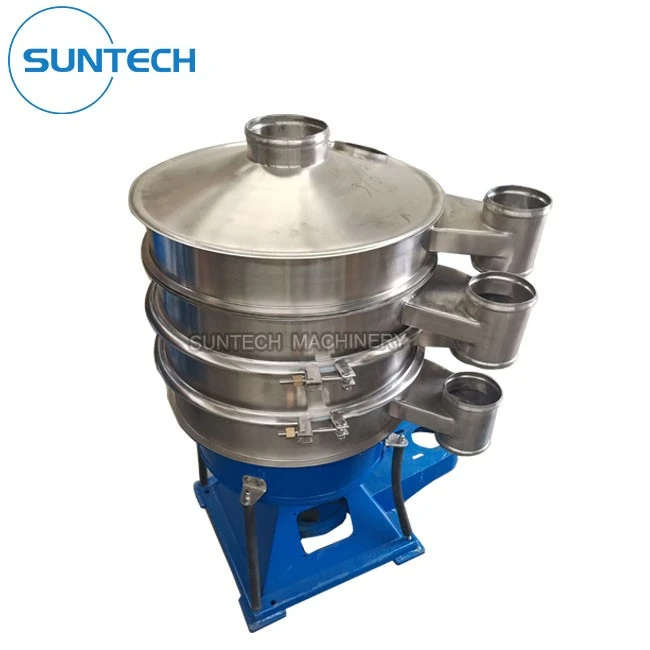

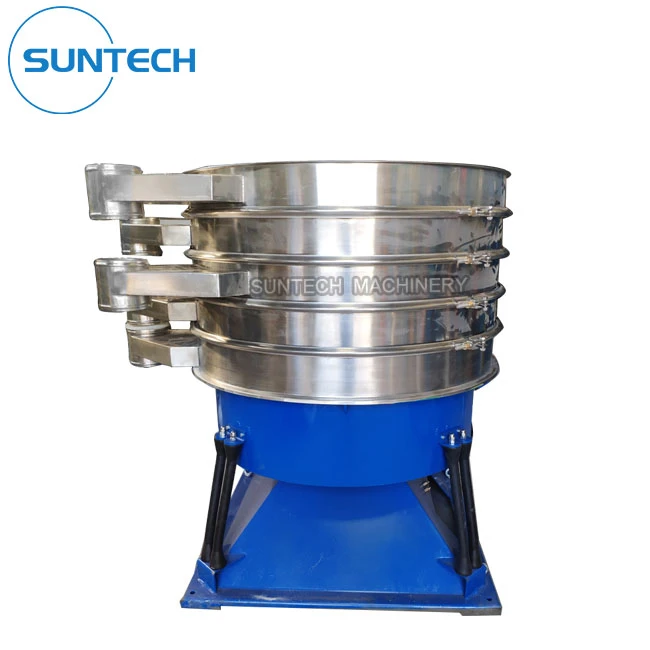

Ybs800 Tumbler Vibrating Screening Machine

Ybs800 Tumbler Vibrating Screening Machine





Ybs800 tumbler vibrating screening machine is an imitated hand screening with low-frequency round swing screen machine. It's working principle is similar to manual sieving with hands. The working motion is instantaneous movement of the radial displacement and the displacement of the axis of the circular motion of the synthesis (spiral motion). It is designed to meet the requirements of large output and high-density sieving. It make use of artificial sieving movement successfully(its sieving precision,sieve efficiency and service life is 5-10 times of common sieve machine), and suitable for all the fine, ultra-fine powder and special materials, particularly suitable for materials which are difficult to classify.







Up to 5 times the output per unit area; accurate to 6-level separation, screening efficiency as high as 90%-99%; using silicone rubber balls, ultrasonic and other high-efficiency screen cleaning device systems, the screen holes will not be blocked. Fully closed and Sealed structure make the working atmosphere dust free, safe operation; acceleration is 4-5 times lower than that of general rotary vibrating screen, the working life of screening parts is increased and maintenance is reduced; the noise is less than 75 decibels. Optimized and balanced, the dynamic load of the foundation is low.







The basic rotary motion is similar to manual screening. The eccentricity is adjustable from 25 to 40mm and the low speed V-belt drive is adjustable from 120 to 360rpm.



The residence time of each product can be adjusted toward the driving axis through the radial and tangential angles of the swing screen.

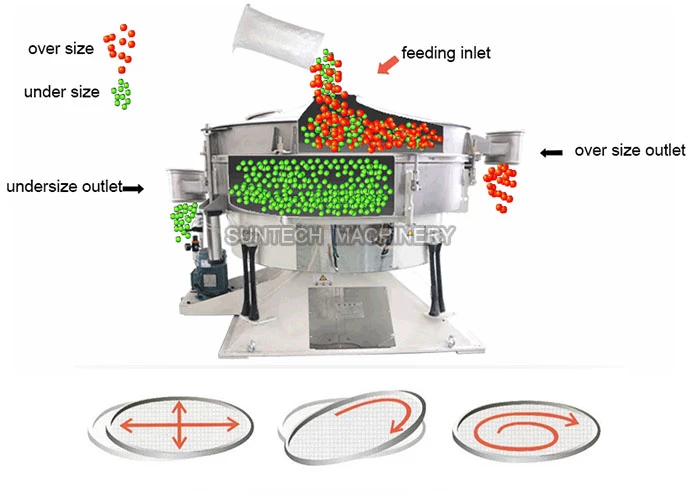

Thus creates horizontal and throwing three-dimensional tumbling motion. The material is evenly dispersed on the entire screen surface from the center to the outer edge, thereby spreading in the axial direction in a spiral motion. The fine particles thus complete the entire screening process.

The horizontal and vertical acceleration increases with the movement of the particles, and the particles close to the mesh size are successfully separated; the larger particles are transported to the outlet, and the flow is controlled by an adjustable guide device at the outlet, which is controlled Another factor is material residence time.



This process is repeated between each screen layer.

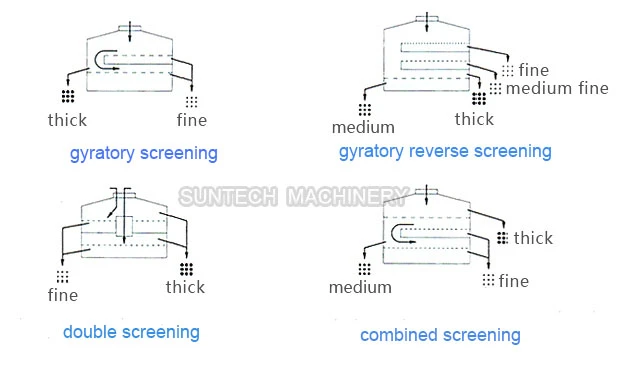

Gyratory Screening: Two layers of screens sieve with the same aperture allow the materials that have been screened once to be screened again to achieve higher screening accuracy.

Gyratory reverse screening: Materials are screened from fine → medium fine → medium → coarse. Coarse materials play a certain role in cleaning the mesh.

Double screening: the materials entering the screen machine are evenly distributed to two levels, nearly doubling the processing capacity of a single screen machine, and one screen machine can be used as two.

Combined screening: ordinary screening + rotary screening to improve the utilization rate of a single screen machine.

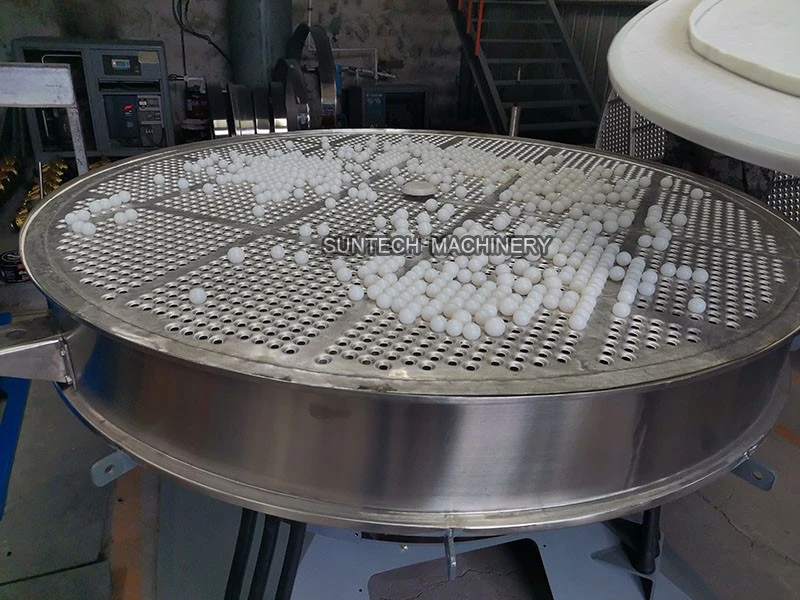

Bouncing ball cleaning: By continuously hitting the screen, the materials can be screened smoothly and the mesh clogging can be reduced. It is suitable for most granular materials.

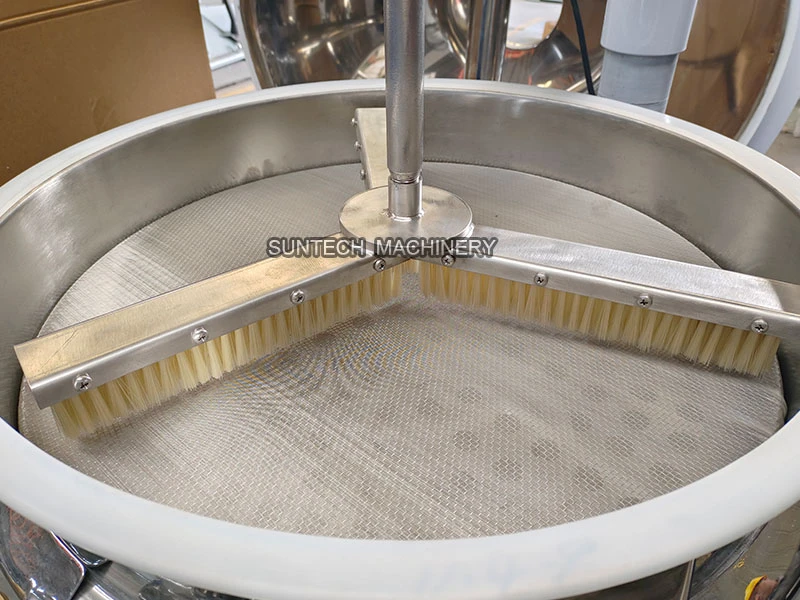

Rotary brush cleaning: The rotary brush is driven by the reduction gear installed on the base chassis. It rotates and brushes under the screen to clean the materials. It is suitable for screening spherical, crystallized and brittle materials.

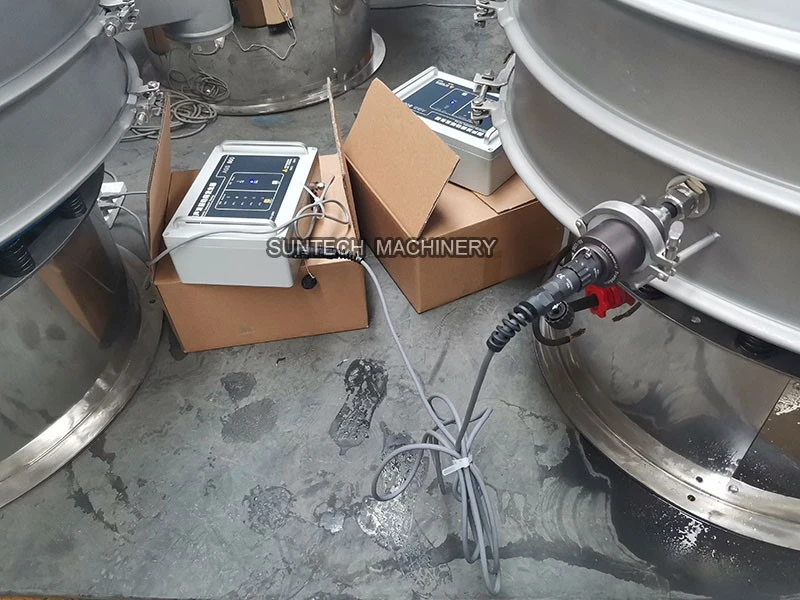

Ultrasonic cleaning device: High-frequency ultrasonic waves are transmitted to the screen, which not only cleans the screen but also increases the output. It is suitable for most fine, large-volume, and difficult-to-screen materials.









Model Choose Reference sheet, for special materials sieving, pls contact us for direct guidance



Material	mesh	Capacity(kg/hr)	Model
Rubber powder	24	1000	YBS-2000-2S
Chili seed	4mm	500	YBS-600-3S
Petroleum Coke Powder	110-120	3000	YBS-1500-2S
Notoginseng powder	100	300	YBS-600-4S
Quartz sand	2-200	6500	FYBS-1536
rice husk	6mm	4.61	YBS-2000-2S
Chinese medicine powder	325	600	YBS-600-4S
feed	40	2200	YBS-1500-2S
fertilizer	2mm	10000	YBS-2600-1S

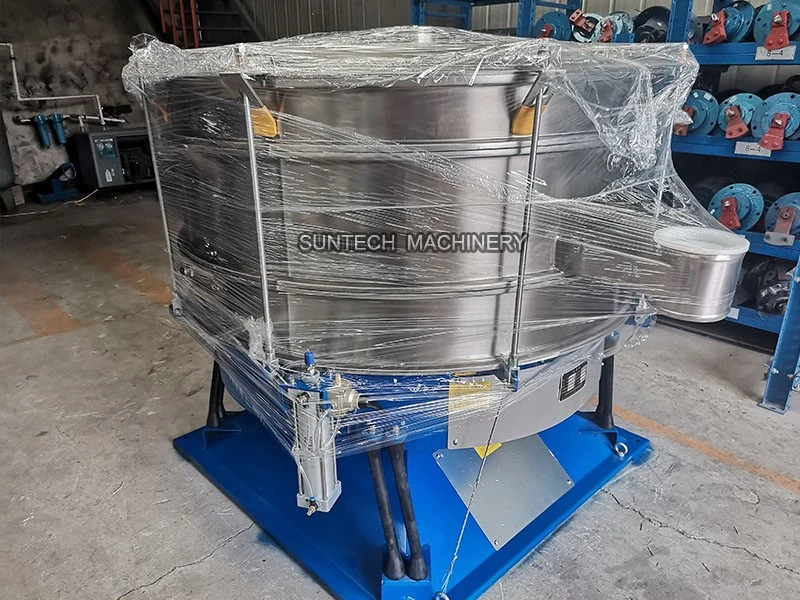

For single machine, we will make the stretch film packing inside and plywooden box outside, for the machine in quantity, we will calculate the container load and load to the container directly.
