What is the working principle of the rotary vibrating screen?

The rotary vibrating screen is working based on the vertical vibration motor and the screen sieve with different mesh size so that complete the sieving and seapration process for the powder and granules. Due to its vibration operation principle, many companies also call it "three-dimensional vibrating screening filter". According to the shape and structure, it is called circular vibrating screen by some customers. From the material, it can be divided into standard rotary vibrating screen and ordinary rotary vibrating screen. For the vibrating screen, the standard type is made of 304 stainless steel for the part in contact with the material, the base is made of carbon steel, and the whole body of the ordinary type is made of ordinary carbon steel.

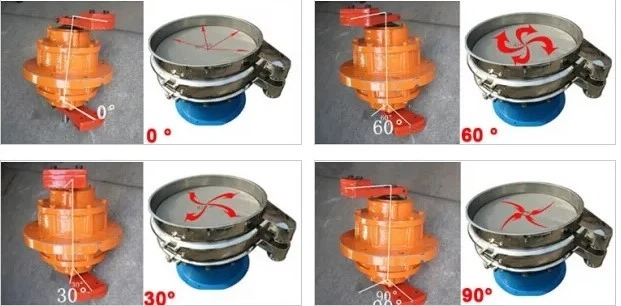

By changing the angle and mass of the upper and lower eccentric blocks of the vibrating motor, the vibrating motor can drive the equipment to generate vibration forces of different sizes, thereby changing the vibration amplitude in the horizontal or vertical direction, and then changing the flow rate and efficiency of the screening.
